Welcome

Joybook 8100 User's Manual

KC9211F/cppl!!Qbhf!j!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

tion may be reproduced, transmitted, transcribed, stored in a retrieval system or

translated into any language or computer language, in any form or by any means,

electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of this company.

Disclaimer

BENQ Corporation makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any warranties,

merchantability or fitness for any particular purpose. Further, BENQ Corporation

reserves the right to revise this publication and to make changes from time to time in

the contents hereof without obligation of this company to notify any person of such

revision or changes.

Windows, Internet Explorer and Outlook Express are trademarks of Microsoft Cor-

poration. Others are copyrights of their respective companies or organizations.

This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights owned

by Macrovision Corporation and other rights owners. Use of this copyright protec-

tion technology must be authorized by Macrovision Corporation and is intended for

home and other limited viewing uses only unless otherwise authorized by Macrovi-

sion Corporation. Reverse engineering or disassembly is prohibited.

KC9211F/cppl!!Qbhf!jj!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Table of Contents i

Table of Contents

Joybook 8100 Features ..............................................................................1

Super DJ Control Panel ..................................................................... 5

Wireless Remote Control ................................................................... 6

Using Super DJ ................................................................................... 8

Function Hotkeys ............................................................................... 9

Getting Started with Windows XP ...........................................................11

Using the Q-Media Bar .............................................................................12

Setting Up QMedia Bar ...................................................................... 13

Your Digital Entertainment Center - BenQ Joybook 8100 .....................14

QMedia Center ................................................................................... 15

Sending and Receiving E-mail ........................................................... 20

Getting Online .................................................................................... 21

Listening to Music and Creating Custom Music Collections .......... 22

Making Your Own Movies ................................................................ 23

Burning CDs..................................................................................... 24

Wireless Magic - Using the Built-In Wireless LAN Function .......... 27

Chatting over the Air - Using EZQ ................................................... 28

The Good Partner of Your Personal Mobile Devices - QSync ........ 30

Attaching External Display Devices .........................................................31

Attaching a VGA Display Device ....................................................... 31

S-Video Out ........................................................................................ 32

Installing Additional Memory ..................................................................33

Recovering Your System ...........................................................................35

Recovering From Your Hard Disk .................................................... 35

Recovering Using the Recovery CDs ................................................. 35

Reinstalling Software or Driver ......................................................... 35

Recommendations and Troubleshooting ................................................39

Information on Safety, Cleaning, and Battery Maintenance ..................40

Safety ................................................................................................... 40

Battery Maintenance .......................................................................... 40

Cleaning Your Joybook 8100 ............................................................. 40

KC9211F/cppl!!Qbhf!j!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Table of Contentsii

< Memo >

KC9211F/cppl!!Qbhf!jj!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features 1

Joybook 8100 Features

Power Indicator

Lights up in blue when Joybook 8100

is turned on. When Joybook 8100

enters sleep mode, turns orange.

Power Button

Turns Joybook 8100 on or

off.

Battery Indicator!

When Joybook 8100 is in use, lights

up in blue. When the battery is charg-

ing, turns orange. Flashing blue indi-

cates that the battery is running low.

Flashing orange indicates that the

battery is malfunctioning, in which

case you should contact service per-

sonnel.

Internet Hotkey

Starts up the Internet

Explorer Web browser.

E-Mail Hotkey

Starts up the Outlook

Express e-mail client.

Customizable Hotkey 1

Can be customized to

open an application.

Hard Disk Drive Activity Indicator

Flashes in blue when Joybook 8100 is

reading the data in the hard disk.

Customizable Hotkey 2

Can be customized to

open an application.

Optical Drive Activity Indicator

Flashes in blue when the optical drive

is accessing data on a disk.

Caps Lock Indicator

Lights up in blue when the Caps Lock

function is activated.

Num Lock Indicator

Lights up in blue when the Num Lock

function is activated.

Cover Switch

Microphone

Left and Right Selection Buttons

Equivalent to the left and right

buttons on a mouse.

Touch Pad

You can use the touch pad to conveniently control

the cursor on the screen.

To move the cursor, gently move your finger on the

touch pad. The cursor will move accordingly.

Tap on the touch pad once to execute the same

action as clicking on the left button of a mouse. Tap

twice to execute the same action as double-clicking.

For more information about how to configure the customizable hot keys, please

refer to"Customizing the hotkeys" on page 13.

KC9211F/cppl!!Qbhf!2!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features2

Ventilation Holes

For dissipating heat and keeping Joybook 8100 at an optimal tem-

perature.

PC Card Ejection Button

Before ejecting a PC Card:

1. Quit all PC Card applications and shut

down all PC Card functions.

2. Push in, then release the PC Card eject

button, causing it to pop out.

3.!When the button has popped out, push it

in again to eject the PC Card.

IEEE 1394 (FireWire)!Port

For connecting high-speed peripherals such as digital video cam-

eras and other consumer electronics devices that use the IEEE 1394

(FireWire) interface.

PC Card Expansion Slot

This PC Card slot accepts one Type-II PC Card. You can use it and

various PC Cards on the market to further expand the capabilities

of your Joybook 8100.

Insert the PC Card into the slots following the direction indicated

on the card and complete related driver settings.

KC9211F/cppl!!Qbhf!3!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features 3

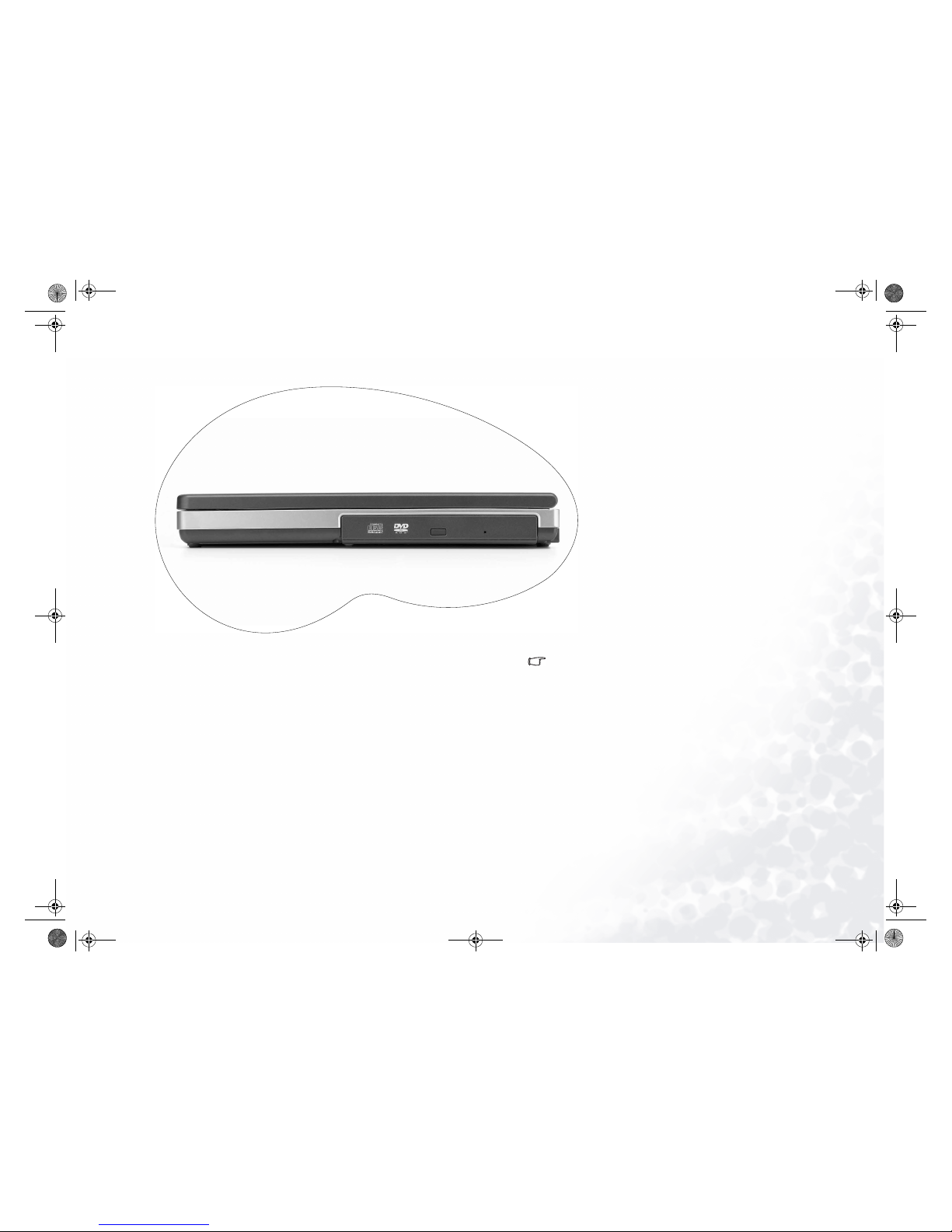

DVD+RW/DVD & CD-RW Combo Drive (Optional)

Supports multi-functional optical module for reading music

CDs, VCDs and DVDs or burning CD-R/CD-RW or DVD+R/

DVD+RW (Optional) discs. Discs can be inserted/ejected by

pressing the small ejection button on the drive.

If you want to open the disc tray of the DVD+RW/DVD & CD-RW

Combo Drive when your Joybook power is off, or it can't be opened

using the ejection button, insert a pointed object into the tray ejec-

tion hole next to the ejection button to force open the disc tray.

KC9211F/cppl!!Qbhf!4!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features4

USB Port

For connecting peripherals such

as mice, digital cameras and

MP3 players that use the USB

interface

VGA Port

For connecting external display

devices, such as monitors and

projectors.

Ethernet Port

Allows Joybook 8100 to connect

to an Ethernet 10/100BaseT net-

work.

Optical Audio (S/PDIF) Jack

Outputs sound to digital audio-

enabled speakers or devices.

Parallel Port

For connecting devices such as

printers that use the parallel port

interface.

S-Video Out

Outputs an display signals to a

television set or VCR.

Modem Port

Accepts an analog telephone line

for use with the internal modem.

Power Jack

For connecting the AC adapter.

USB Port

For connecting peripherals such

as mice, digital cameras and

MP3 players that use the USB

interface

Kensington Lock

For installing the Kensington

lock available on the market to

prevent theft.

KC9211F/cppl!!Qbhf!5!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features 5

Super DJ Control Panel

Wireless Network!Card Activ-

ity Indicator

Lights up in blue when the

wireless network card is active.

Not every Joybook is built-

in a wireless network card.

Refer to the specification

label on the shipping box

if you are not sure about

the standard equipment of

your Joybook.

Super DJ Power Switch/Wire-

less Network Card Switch

When Joybook 8100 is shut

down, can be used to turn the

Super DJ on and off. When Joy-

book 8100 is on, activates or

deactivates the wireless net-

working card.

Previous song/Backward search

Press this button to go back to

the previous song.

Press and hold this button to

start backward search.

Volume Up

Increases the volume of music

playback.

Press the and buttons simul-

taneously during stop mode (music

playback stopped) to change play-

back media.

When Joybook 8100 is

turned off, press this key

to turn on Super DJ.

Next song/Forward search

Press this button to go to the

next song.

Press and hold this button to

start forward search.

Press the and buttons

simultaneously during Super

DJ mode to change playback

mode.

Speaker/Earphone Jack

For connecting external speaker or

earphone.

Super DJ Power Indicator

Lights up in blue when the

Super DJ is turned on.

Play/Pause

Plays or pauses playing music.

Microphone

For recording audio on Joybook

8100.

Stop

Stops music playback.

Infrared Port and Remote Control

Receiver

The interface for infrared commu-

nications, allowing Joybook 8100

to transfer data to and from PDAs

or other devices with infrared

capabilities. It also functions as a

receiver to receive signals from the

wireless remote control.

Volume Down

Decreases the volume of CD

playback.

KC9211F/cppl!!Qbhf!6!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Joybook 8100 Features6

Wireless Remote Control

The wireless remote control allows you to use the multimedia functions of your Joybook 8100

remotely. It can be inserted into the PC Card slot for easy storage and access.

The function of each button on the remote control varies in different modes. For details, please

refer to the description below.

To navigate the QMedia Center...

Enter or exit QMedia Center/

Wake Joybook 8100 up from

sleep mode

Move selection focus left

Confirm selection

Move selection focus down

Return to the previous

screen/menu

Move selection focus up

Move selection focus

right

When playing music using Super DJ...

Backward search

Play/Pause

Select playback mode

Previous song

Select playback media

Forward search

Next song

Stop

Increase volume

Decrease volume

(Directional buttons)

Put Joybook 8100 in

sleep mode*

*Press and hold this button for approximately 5 seconds to put Joybook 8100 in

sleep mode.

**The TV and TV recording functions are to be available through future updates.

Start recording TV pro-

grams in QMedia Center**

KC9211F/cppl!!Qbhf!7!!Uvftebz-!Nbsdi!3-!3115!!22;51!BN

Table des matières

Autres manuels BenQ Ordinateur portable

BenQ

BenQ Joybook L41 Series Manuel utilisateur

BenQ

BenQ Joybook Lite U121 Manuel utilisateur

BenQ

BenQ Joybook 8000 Manuel utilisateur

BenQ

BenQ Joybook 2100 Series Manuel utilisateur

BenQ

BenQ Joybook S32 Series Manuel utilisateur

BenQ

BenQ Joybook R46 Series Manuel utilisateur

BenQ

BenQ Joybook 2000 Series Manuel utilisateur

BenQ

BenQ Joybook R41 series Manuel utilisateur

BenQ

BenQ Joybook 3000 Manuel utilisateur

BenQ

BenQ Joybook S35 Series Manuel utilisateur

BenQ

BenQ Joybook R53 Series Manuel utilisateur

BenQ

BenQ Joybook L31 series Manuel utilisateur

BenQ

BenQ Joybook JBR22 Manuel utilisateur

BenQ

BenQ DHA300 Instructions d'installation

BenQ

BenQ Joybook Lite Manuel utilisateur

BenQ

BenQ Joybook 5000 series Manuel utilisateur

BenQ

BenQ U101 Series Manuel utilisateur

BenQ

BenQ Joybook P53 Series Manuel utilisateur

BenQ

BenQ Joybook T31 Series Manuel utilisateur

BenQ

BenQ Joybook S33 Series Manuel utilisateur

BenQ

BenQ Joybook Lite T132 Manuel utilisateur

BenQ

BenQ Joybook S57 Series Manuel utilisateur

BenQ

BenQ Joybook 5000 series Manuel utilisateur

BenQ

BenQ Joybook 5000 series Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
