Benchmark 1239-301 Manuel utilisateur

20V MAX BRUSHLESS

1/2" IMPACT WRENCH

WEAR CSA APPROVED

EYE PROTECTION

WEAR EAR

PROTECTION

WEAR A

FACE MASK

3042597

JD509820

READ ALL INSTRUCTIONS BEFORE FIRST USE.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

KEEP AWAY FROM CHILDREN.

Maximum initial battery voltage (measured without a load)

is 20 volts. Nominal voltage is 18 volts.

5 Year Limited Warranty

3 Year Limited Warranty on Battery and Charger

PRODUCT SPECIFICATIONS

20V MAX BRUSHLESS 1/2" IMPACT DRILL

Volts 20V

Variable Two Speeds 0–2200/0-2700 RPM (no load)

2 Variable Impact Speeds 0–2600/0-3000 BPM

Torque 380 ft/lbs.

Square Drive 1/2”

Weight 4.6 lbs. (2.08kg) with battery

Battery 20V 4Ah Li-ion (Maximum charged

battery voltage, measured without load,

is 20V with a nominal value of 18V)

Replacement Battery 5350-011 (4Ah) Charge time –

up to 120 minutes

Replacement Charger Assembly 5350-010 (2.4A) up to 120 minutes

charge time

NEED ASSISTANCE?

Call us on our toll-free customer support line:

1-866-349-8665 (Monday through Friday 9am – 5pm Eastern Standard Time)

• Technical questions

• Replacement parts

• Parts missing from package

20V MAX BRUSHLESS 1/2" IMPACT WRENCH 1239-301

TABLE OF CONTENTS

Product Speciﬁcations .................................................................................. 1

Table of Contents .......................................................................................... 2

General Safety Instructions ........................................................................... 3

Eye, Ear & Lung Protection ............................................................................ 3

Electrical Safety ............................................................................................ 4

Power Tool Safety .......................................................................................... 4

Work Area Safety .......................................................................................... 4

Electrical Safety ............................................................................................ 4

Personal Safety ............................................................................................. 5

Power Tool Use and Care ............................................................................... 5

Speciﬁc impact wrench safety rules .............................................................. 6-7

Battery Pack Recycling ................................................................................. 8

Symbols ........................................................................................................ 9

20v Max Brushless 2vsr Impact Wrench.......................................................10

Assembly and Operation .............................................................................. 11

Checking the Battery Charge Status ............................................................ 11

Checking the Battery Pack .......................................................................... 11

Installing a Battery in the Impact Wrench .................................................... 12

Installing Impact Sockets ............................................................................. 13

Forward/Reverse Button............................................................................... 14

Variable Speed Trigger Switch...................................................................... 14

Speed and Auto-Stop Control ...................................................................... 15

Removing Fasteners .................................................................................... 15

Maintenance ............................................................................................... 16

General ....................................................................................................... 16

Lubrication .................................................................................................. 17

Lithium-ion Battery Performance ................................................................. 17

Lithium-ion Battery Maintenance ................................................................. 17

Battery Pack Removal and Preparation for Recycling.................................... 17

Exploded View ............................................................................................ 18

Parts List .................................................................................................... 19

Warranty ..................................................................................................... 20

GENERAL SAFETY INSTRUCTIONS

WARNING: Before using this tool or any of its accessories, read this manual

and follow all Safety Rules and Operating Instructions. The important precautions,

safeguards and instructions appearing in this manual are not meant to cover all

possible situations. It must be understood that common sense and caution are

factors which cannot be built into the product.

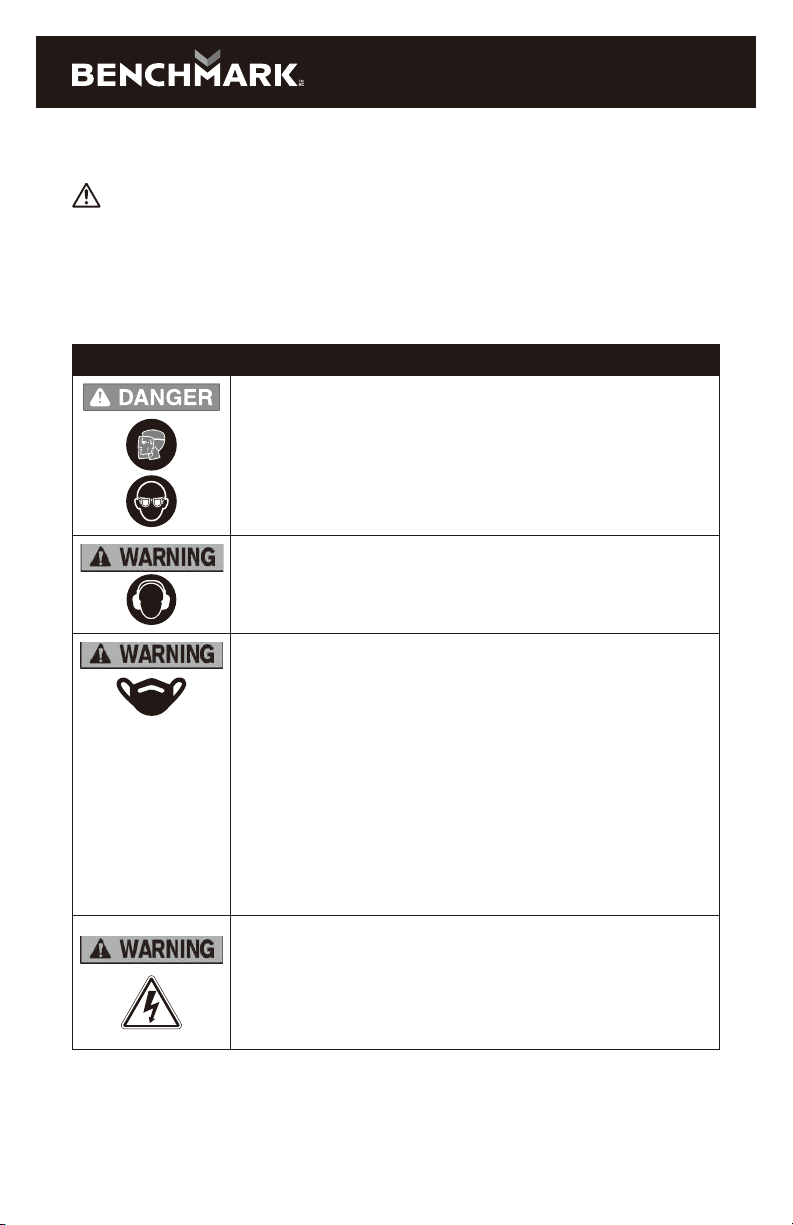

EYE, EAR & LUNG PROTECTION

SYMBOL MEANING

ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA Z94.3 or

ANSI SAFETY STANDARD Z87.1

FLYING DEBRIS can cause permanent eye damage.

Prescription eyeglasses ARE NOT a replacement for proper eye protection.

The usage of a safety standard compliant face shield placed over proper

safety glasses or goggles can reduce the risk of facial injury.

Non-compliant eyewear can cause serious injury if broken during the

operation of a power tool.

Use hearing protection, particularly during extended periods of operation

of the tool, or if the operation is noisy.

WEAR A DUST MASK THAT IS DESIGNED TO BE

USED WHEN OPERATING A POWER TOOL IN A

DUSTY ENVIRONMENT.

Dust that is created by power sanding, sawing, grinding, drilling, and other

construction activities may contain chemicals that are known to cause

cancer, birth defects,

or other genetic abnormalities. These chemicals include:

• Lead from lead-based paints

• Crystalline silica from bricks, cement, and other

masonry products

• Arsenic and chromium from chemically treated lumber

The level of risk from exposure to these chemicals varies, according to how

often this type of work is performed. In order to reduce exposure to these

chemicals, work in a

well-ventilated area, and use approved safety equipment, such as a dust mask

that is speciﬁcally designed to ﬁlter

out microscopic particles.

TO AVOID ELECTRICAL HAZARDS,

FIRE HAZARDS OR DAMAGE TO THE TOOL,

USE PROPER CIRCUIT PROTECTION.

This tool is wired at the factory for 120 V AC operation. It must beconnected

to a 120 V AC, 15 A circuit that is protected by a time-delayedfuse or circuit

breaker. To avoid shock or ﬁre, replace power cordimmediately if it is worn, cut

or damaged in any way.

WARNING: Ventilation openings in batteries and chargers must always

be open to allow cooling air to circulate freely. Air vents that are blocked,

restricted or covered may result in the battery or charger overheating.

Overheating may lead to damage to the tool or cause a ﬁre, resulting in

possible serious injury.

POWER TOOL SAFETY

WARNING: Read all safety warnings and instructions. Failure to follow the

warnings and instructions may result in electric shock, ﬁre and/or serious injury.

Save all warnings and instructions for future reference.

WORK AREA SAFETY

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence

of ﬂammable liquids, gases or dust. Power tools create sparks which may ignite

the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions

can cause you to lose control.

ELECTRICAL SAFETY

Double insulated tools are equipped with a polarized plug (one blade is wider

than the other). This plug will only ﬁt into a polarized plug one way.

If the plug does not ﬁt into the outlet properly, reverse the plug. If it still does

not ﬁt, contact a qualiﬁed electrician to install a polarized outlet. Do not alter

the plug in any way. Double insulation eliminates the need for the three-pronged

grounded power cord and grounded power supply system.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators,

ranges and refrigerators. There is an increased risk of electric shock if your body

is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool

will increase the risk of electric shock.

Do not abuse the cord. Do not use the power cord to carry the tool or to pull the

plug out of the outlet. Keep the power cord away from heat, oil, sharp edges,

and moving parts. Replace a damaged power cord immediately. A damaged power

cord increases the risk of electric shock.

When operating a power tool outdoors, use an outdoor-rated extension cord

type “W-A” or “W”. These cords are rated for outdoor use and they reduce the

risk of electric shock.

PERSONAL SAFETY

Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the inﬂuence

of drugs, alcohol or medication. A moment of inattention while operating power

1239-301

20V MAX BRUSHLESS 1/2" IMPACT WRENCH

tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective

equipment such as dust mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce personal injuries.

connecting to power source and/or battery pack, picking up or carrying the

tool. Carrying power tools with your ﬁnger on the switch or energizing power tools

that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in

personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables

better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing

and gloves away from moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used. Use of dust collection

can reduce dust-related hazards.

Avoid accidental start-ups. Verify that the switch is in the OFF position before

plugging in the tool. Carrying a power tool with a ﬁnger on the switch or plugging in

a tool that has the switch in the ON position invites accidents.

Remove adjusting keys and wrenches before turning the tool ON. A wrench or key

that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing

and balance allows the operator to maintain better control of the tool in unexpected

situations.

Use safety equipment. Always wear eye protection.

Use a dust mask, non-skid safety shoes, a hardhat, or hearing protection when

appropriate.

POWER TOOL USE AND CARE

Use clamps or another practical means to secure and support the workpiece

to a stable platform. Holding the work in a hand or against the body is not stable

and may lead to loss of control.

Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was

designed.

Any power

tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the outlet before making any adjustments, changing

accessories, or storing the tool. Such preventive safety measures reduce the risk

of accidental start-ups.

When power tools are not in use, store them out of the reach of children or

untrained persons. Tools are dangerous in the hands of untrained users.

Maintain power tools with care. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind, and are

easier to control.

Inspect the tool for misalignment or binding of moving parts, broken parts,

If it is

damaged, have the tool serviced before using it. Many accidents are caused by

poorly maintained tools.

Use only accessories that are recommended by the manufacturer for this

model. Accessories that are suitable for one tool may become hazardous when

used with another tool.

Tools servicing must be performed by qualiﬁed personnel. Service or

maintenance performed by non-qualiﬁed personnel could result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow the instructions

in the Maintenance section of this Manual. The use of unauthorized parts or failure

to follow the instructions in the Maintenance section of this Manual may create a

risk of electric shock or injury.

WARNING: Know your impact wrench. Do not plug in the charger or install

the battery in the tool until you have read and understand this Instruction

Manual. Learn the tool’s applications and limitations, as well as the speciﬁc

potential hazards related to this tool. Following this rule will reduce the risk of

electric shock, ﬁre, or serious injury.

Always wear eye protection. Any power tool can throw foreign objects into

your eyes and cause permanent eye damage. ALWAYS wear safety goggles

(not glasses) that comply with ANSI safety standard Z87.1. Everyday glasses

have only impact resistant lenses. They ARE NOT safety glasses.

WARNING: Glasses or goggles not in compliance with ANSI Z87.1 could

cause serious injury when they break.

WARNING: Always use a safety shield, hearing protection and dust mask

when drilling concrete.

Use only impact sockets and accessories that are designed for use with an impact

wrench. Do not use chrome plated sockets and accessories. Chrome plated sockets

and accessories are designed for hand use only and MUST NOT be used with an

impact wrench. They may shatter and possibly cause serious injury.

Before each use, check the impact sockets and accessories for excessive wear or

cracks. Worn or damaged sockets or accessories may shatter and possibly cause

of the impact wrench.

Never use the impact wrench as a torque wrench. Always use a torque wrench to

adjust the fastener to the speciﬁed torque.

1239-301

20V MAX BRUSHLESS 1/2" IMPACT WRENCH

SERVICE

SPECIFIC IMPACT WRENCH SAFETY RULES

Keep the impact wrench handle and body clean and free of oil and grease. Always

use a clean dry cloth when cleaning. Do not use solvents, brake ﬂuid, gasoline or

other petroleum products to clean the tool. They will damage the tool.

Do not wear neckties or loose clothing.

When wearing gloves, they must be tight ﬁtting and slip resistant type. Leather

Always use two hands when operating the impact wrench. Use one hand on the

handle and the other on the front of the tool body.

Never place your hand so it is touching the socket or accessory when the tool is

turned ON. Your hand could be seriously injured.

Always remove the plug from the power source before installing or removing any

socket or accessory.

Be ready for components to shift when removing any fastener. The speed of the

fastener removal could cause unexpected shifting of the components.

WARNING: Only use the charger supplied with this tool to charge the

battery.

Do not store or carry a battery in a manner in which metal objects could contact the

exposed metal end. Do not place a battery in aprons, pockets, drawers, etc. with

loose nails, screws, keys etc. The battery could short circuit causing a ﬁre, personal

injury or damage to the battery.

Never attempt to open the battery for any reason. If the housing of the battery

breaks or cracks, immediately discontinue use and do not recharge.

Do not charge the battery if it is wet or shows any evidence of corrosion.

A small leakage from the battery may occur under extreme usage, charging or

temperature conditions. This does not indicate a failure. However, if the outer seal

is broken and this leakage gets on your skin, follow these steps:

1. Wash immediately with soap and water.

2. Neutralize with a mild acid, such as lemon juice or vinegar.

3. If liquid gets into your eyes, ﬂush immediately with clean water for a minimum

of 10 minutes and seek medical attention.

NOTE: The battery liquid is slightly acidic.

Do not incinerate the battery. It can explode in a ﬁre.

Do not use an extension cord. Plug the charger cord directly into an electrical outlet.

Use the charger only in a standard 120V, 60 Hz electrical outlet.

Do not use the charger in wet or damp conditions. It is intended for indoor use only.

Do not use the charger near sinks or tubs. Do not immerse the charger in water.

Do not allow the cord to hang over the edge of a table or counter or touch hot

surfaces. The charger should be placed away from sinks and hot surfaces.

Do not operate charger if the cord or plug is damaged. Replace the damaged cord

and plug immediately.

Do not operate the charger if it has received a sharp blow, been dropped or

otherwise damaged in any way. Have a qualiﬁed technician examine the charger

and repair it if necessary. Do not disassemble the charger.

Do NOT charge the batteries when the work area or the battery temperature is at or

below 0° C (32° F) or above 45° C (113° F).

Unplug the charger when not in use and before cleaning or maintenance.

BATTERY PACK RECYCLING

To preserve our natural resources, please recycle or dispose of

batteries properly.

The batteries charged by this charger may contain chemicals

and metals that are harmful to the environment. Never dispose of

re-chargeable batteries in your normal household garbage or in

landﬁll sites as they will add to the pollution of the environment.

Consult your local waste authority for information regarding additional available

recycling and disposal options.

1239-301

20V MAX BRUSHLESS 1/2" IMPACT WRENCH

SYMBOLS

WARNING: Some of the following symbols may appear on the impact wrench

Study these symbols and learn their meaning. Proper interpretation of these

VVOLTS Three-phase alternating current

with neutral

AAmperes Direct current

Hz Hertz noNo load speed

WWatts Alternating or direct current

kW Kilowatts Class II construction

ųF Microfarads Splash-proof construction

LLiters Watertight construction

kg Kilograms Protective grounding at grounding

terminal, Class I tools

HHours .../min Revolutions or reciprocations per

minute

N/cm2Newtons per

square centimeter ØDiameter

Pa Pascals 0

OPM Oscillations per minute Arrow

MIN Minutes Warning symbol

SSeconds Wear your safety glasses

Alternating current Wear a dust mask

Three-phase alternating

current Wear hearing protection

3042597

JD509820

This symbol designates that this tool is listed with Canadian and U.S.

requirements by ETL Testing Laboratories, Inc.

Conforms to UL Std. 60745-1 and 60745-2-11.

Certiﬁed to CAN/CSA Std. C22.2 No. 60745-1 and 60745-2-11.

Table des matières

Autres manuels Benchmark Moteur à percussion

Benchmark

Benchmark 1239-300 Manuel utilisateur

Benchmark

Benchmark 1282-721 Manuel utilisateur

Benchmark

Benchmark 1248-000 Manuel utilisateur

Manuels Moteur à percussion populaires d'autres marques

stayer

stayer IW500D Manuel utilisateur

Makita

Makita DTD152 Manuel utilisateur

Milwaukee

Milwaukee M12 FID Manuel utilisateur

Grizzly

Grizzly H6140 Manuel utilisateur

Makita

Makita BTW450 Manuel utilisateur

Ozito

Ozito LID-3000 Manuel utilisateur

Astro Pneumatic Tool

Astro Pneumatic Tool 1812 Manuel utilisateur

Greenlee

Greenlee HW3 Manuel utilisateur

Sthor

Sthor 57091 Manuel utilisateur

Makita

Makita DTD145 Manuel utilisateur

Hilti

Hilti SIW 2-A12 Manuel utilisateur

Ryobi

Ryobi R18IW3 Manuel utilisateur

Parkside

Parkside PDSSA 20-Li A1 Manuel utilisateur

Flex

Flex FX1471 Manuel utilisateur

SATA

SATA 51075C Manuel technique

Cembre

Cembre NR-11P Manuel utilisateur

Makita

Makita BTP131RFE Manuel utilisateur

DeWalt

DeWalt XR Li-ion DCF902 Manuel utilisateur
