BELRAM USXT2 Transmitter Manuel utilisateur

USXT²

12G-SDI FiberOptic Extender

SDI LOOP OUT

SDI IN

USXT²Transmitter

12G-SDI FiberOptic Extender

Fiber OUT

Power

LED STATUS

Purple

Yellow

Blue

Green

Red

12G-SDI

6G-SDI

3G-SDI

HD-SDI

SD-SDI

SDI OUT 1

SDI OUT 2

USXT²RECEIVER

12G-SDI FiberOptic Extender

Fiber IN

Power

LED STATUS

Purple

Yellow

Blue

Green

Red

12G-SDI

6G-SDI

3G-SDI

HD-SDI

SD-SDI

User Manual

Visit us on www.xt2-extenders.com

Thank you

Thank you for purchasing the USXT² 12G-SDI FiberOptic Extender.

This user guide provides technical specifications, instructions for installation as well as

operation (by qualified and professional technicians)

Safety and Notice 04

Overview & Contents 05

Features & Technical Specifications 06

Setup 07

Maintenance 09

Troubleshooting 11

Table of Contents

Safety and Notice

• Do not bend the power cord by force, or do not put heavy objects on the power cord to

prevent breakdown. It can cause a fire.

• Do not touch the power plug with wet hands. You may be struck by electricity. Insert

the power plug firmly to avoid shaking. If not inserted firmly, fire hazard may occur.

• Use mains power with correct voltage. Not doing so may result in unit damage.

• Do not insert metallic objects (hair pin or ironware) or combustible foreign objects

(match, paper and so on) into the terminal hole, or drop the terminal. It may cause a fire

and an injury by electrical shock.

• Don’t put heavy objects on top of the product. It may cause malfunction.

• Do not disassemble, repair or modify. It can cause a fire and an injury by electrical shock

due to abnormal operation.

• Place the product in an even and stable location. If the product falls down or is dropped,

injury and/or malfunction may occur.

• Do not spray water on the product. It may cause a fire and an injury by electrical shock.

Scrub the product surface softly with a dry towel.

• Do not twist or pull the optical cable by force. It can cause malfunction.

• Do not look directly at the light coming from the fiber optic connectors and cable as it is

harmful to the eyes.

• Use the unit in environmental temperatures between 0°C and +50. Not doing so may

result in unit malfunction.

Belram shall have no further obligation under the limited warranty (1 year) if the product has been

damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unau-

thorized modifications, tampering, alterations, or service other than by Belram or its authorized

agents, and causes other than from ordinary use or failure to properly use the product in the ap-

plication for which the product is intended.

Belram underlines that the warranty only covers manufacturing defects.

Overview

The USXT² 12G-SDI extender is a rugged, tour grade fiber optic extender for transmitting

12G signals up to 4K @ 60Hz.

The Transmitter TX unit features a 12G-SDI Loop out BNC and the Receiver RX is

equipped with dual 12G-SDI outputs. The USXT² provides info on the used bandwidth

thanks to the multicolor LED found next to the BNC bulkheads.

Power is provided through Neutrik powerCON TRUE1 TOP connectors (mains power ca-

bles included with Belgian Schuko plug).

The USXT² accepts standard BNC cables (although we recommend 4K 12G-SDI rated coax

cable, contact us for more information)

The extender is fitted with Neutrik opticalCON DUO chassis for the optical link allowing

for a robust connection between sender TX and receiver RX. Common LC duplex OM3/

OM4 or singlemode fiber may be used. However, we strongly recommend to use Neutrik

opticalCON DUO (or opticalCON DUO X-TREME) for the fiber link.

Contents

- 1 USXT² Transmitter (TX)

- 1 USXT² Receiver (RX)

- 2 Power cables with Neutrik powerCON TRUE1 Female <-> Belgian Plug (2m)

Available accessories:

- Heavy duty flight case (for 1 USXT² set)

- Belden 4855R 12G-SDI Patch Cable w/ Neutrik UHD BNC (0,5m/1m/2m/3m/5m/10m)

Features

• Ruggedized touring quality 12G-SDI extender over optical fiber

• UHD 4K60 according to SMPTE ST 2082

• Multirate SDI (SD, 1,5G-SDI, 3G-SDI, 6G-SDI, 12G-SDI)

• Automatic SDI Input switching

• Loop out on Transmitter

• Dual output on Receiver

• Suited for Neutrik opticalCON DUO or standard LC connectors

• Multimode (200m) & Singlemode (10km) hybrid

• Multi colored signal status LED

• Threaded hole for clamp stand or truss mounting

• CE Certified

Technical Specifications

Video Signal 12G-SDI (SMPTE ST 2082)

Optical Connection Neutrik opticalCON DUO (LC compatible)

Max. Resolution 4K UHD (2160p@60Hz)

SDI Color Space YUV, RGB

Video Bandwidth 12 Gbps

SDI EQ and Re-Clocking Yes, SDI input and output support up to 30m for 12G-SDI

SDI Compliance SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE

292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R

BT.601, SMPTE 274M, SMPTE 425M

Optical Fiber Compliance SMPTE 297M

Max. Transmission Distance 200m (Multimode fiber)

10km (Singlemode fiber)

Enclosure Lightweight anodized aluminum housing

Dimension TX and RX unit (L x H x W): 176mm x 56mm x 116mm

Weight 600g per unit (1,2kg total)

Device I/O Video: TX: 75Ω BNC SDI Input + Loop Output

RX: 75Ω BNC SDI Output (x2)

Optical: Neutrik opticalCON DUO

Power: Neutrik powerCON TRUE1 TOP

Operating temperature -20°C to 60°C

Storing temperature -30°C to 70°C

Power Consumption 1,5W

Power Rating 100-240V AC

Suited for outdoor Yes, if not exposed to water (unit must be covered)

Miscellaneous Threaded hole for truss or stand mounting

5-color status LED

Corner Protection

Setup

1. Connect the 12G-SDI source to the USXT² Transmitter unit (“SDI IN”).

Note:

We recommend using 12G certified coax cables with UHD BNC connectors to maintain maximum

performance stability not exceeding 30m in length.

2. Optionally you can loop out the input by connecting a display or interface (“SDI

LOOP OUT”)

3. Plug the power cable in the USXT² Transmitter’s powerCON TRUE1 TOP chassis

(“Power”).

4. Connect the fiber cable to the USXT² Transmitter’s Neutrik opticalCON DUO chassis

(“fiber out”).

Note:

Multimode or Singlemode fiber may be used.

Consult “Technical Specifications” (p.6) for maximum transmission distances.

You can also use opticalCON LITE DUO or standard Duplex LC optical fiber.

Setup (continued)

4. Connect your 12G-SDI interface to the USXT² Receiver unit (”SDI OUT 1”).

Note:

A secondary output is provided. Both outputs can be used simultaneously.

5. Plug the power cable in the USXT² Receiver’s powerCON TRUE1 TOP chassis

(“Power”).

6. Connect the fiber cable to the USXT² Receiver’s Neutrik opticalCON DUO chassis

(”FIBER IN”).

Note:

Multimode or Singlemode fiber may be used. Consult “Technical Specifications” (p.6) for maximum

transmission distances.

7. Check the status LED:

If everything is connected correctly, the LED will show the SDI signal status:

• Off -> No Input

• Red -> SD-SDI

• Green -> HD-SDI

• Blue -> 3G-SDI

• Yellow -> 6G-SDI

• Purple -> 12G-SDI

Maintenance

Optical fiber connections are capable of transmitting very high bandwidths but are prone

to dust and dirt. Therefore we strongly recommend a good maintenance after every use.

There are a couple of simple and cost effective ways to easily clean both the cables and

connectors on the XT² extenders. These cleaning tools are available through Belram.

Cleaning the USXT² optical connector(s)

Required tooling:

Instructions:

1. Remove protective cap from Dry Cleaner.

2. Insert the tip of the Dry Cleaner in LC slot “a”.

3. Push down on the Dry Cleaner 4 - 5 times.

4. Remove Dry Cleaner and repeat for LC slot “b”.

5. The optical connector has been cleaned.

6. Repeat above steps if necessary.

• Dry Cleaner 1,25mm

Required tooling:

Instructions:

1. Remove protective cap from the opticalCON DUO

connector.

2. Click the FOCD-STD onto the connector.

3. Insert the Dry Cleaner’s tip into the ferrule hole of

the FOCD-STD.

4. Push down on the Dry Cleaner 4 - 5 times.

5. Repeat for the remaining ferrule hole of the

FOCD-STD.

6. Repeat above steps if necessary.

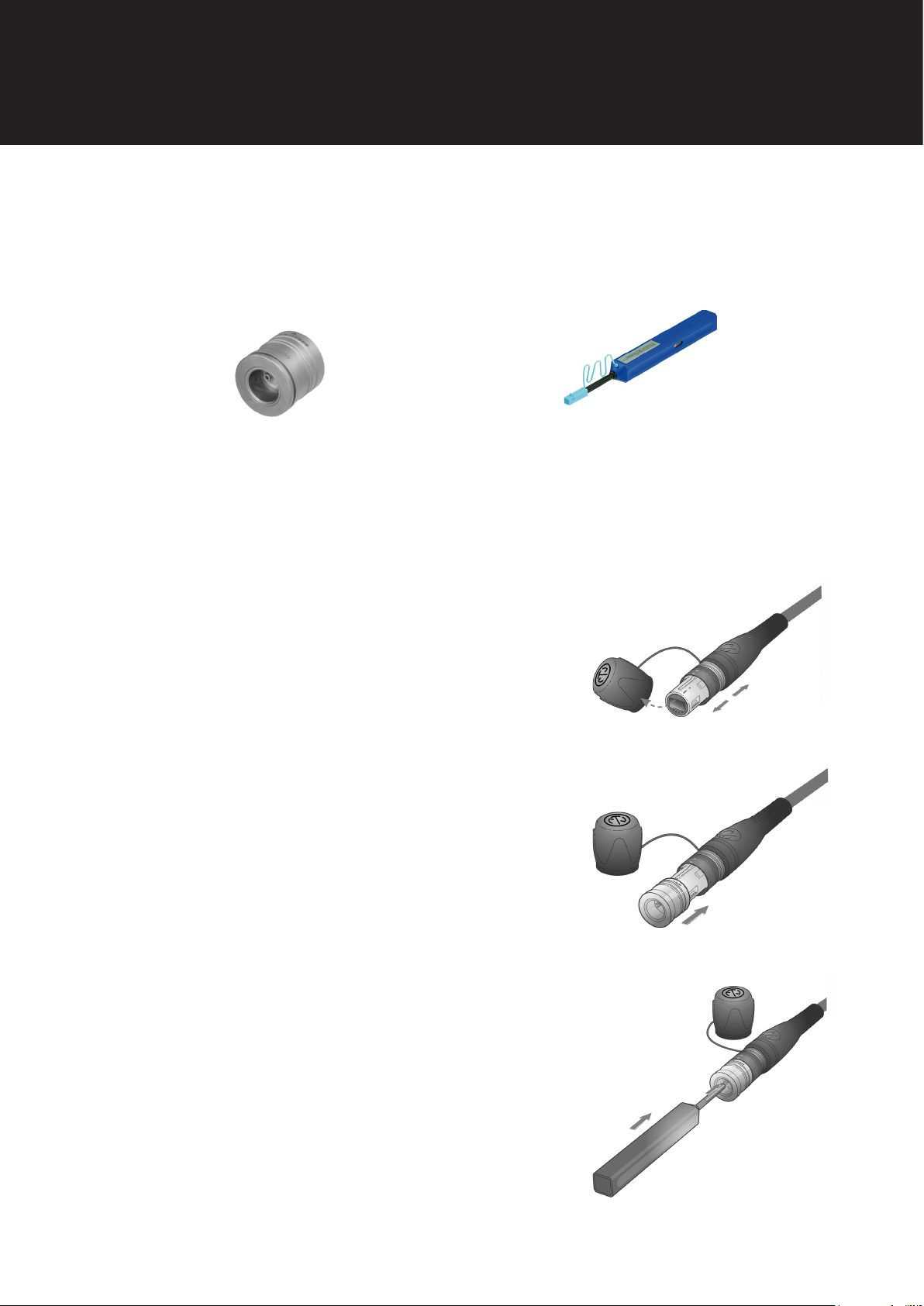

Maintenance (continued)

Cleaning the optical fiber cables (opticalCON DUO, standard LC)

Neutrik FOCD-STD

(for Neutrik opticalCON DUO)

Dry Cleaner 1,25mm
