Belling PBI60R Mode d'emploi
Belling
Bi60R Induction Hob
User & Installation Instructions
Contents
Beforeusingyourappliance............................................3
Safety............................................................4
Safetyandinduction .................................................6
Usingtheinductionhob...............................................7
WhatTheSymbolsMean..............................................8
UsingTheInductionHob..............................................9
CookwareforInductionHobs........................................13
CareofPans......................................................14
CookingonInductionHobs............................................15
Cookingtips....................................................16
Care&Cleaning....................................................17
Troubleshooting....................................................19
Installation .......................................................20
ServiceRecord.....................................................26
TechnicalData..................................................27
2
Before Using Your Hob
Thank you for purchasing a new Belling Induction
Hob. Its stylish and practical design will enhance your
kitchen and make cooking a pleasure. Even if you
have used an induction hob before, it is important that
you read these instructions thoroughly before starting
to cook, paying particular attention to the installation
and safety instructions.
If you have any problems with any aspect of your
Belling hob, please check through these instructions
thoroughly to make sure that you have not missed
anything. If you still need help, then please contact us
using the customer care centre number at the back of
this book.
Before using this appliance please make sure that
you have removed all packaging and wrapping.
Also remove stickers & film from the ceramic glass.
Although every care has been taken to ensure this
appliance has no burrs, or sharp edges, we
recommend that you wear protective gloves when
installing and moving this appliance.
This will prevent any injury.
Our policy is one of constant development and
improvement. Strict accuracy of illustrations and
specifications cannot be guaranteed. Modification
to design and material may be necessary
subsequent to publication.
Always use a registered installer for this appliance.
WARNING! For your own safety, make sure that
these instructions on installation, use and
maintenance are followed.
Environmental protection:
Glen Dimplex Home Appliance brands are
committed to protecting the environment and oper-
ates and Environmental Management System which
complies with BS EN ISO 14001.
All packaging with this appliance is recyclable and
environmentally friendly.
Please recycle whenever possible - contact your
local authority for your nearest recycling centre.
This appliance is for
use in a domestic
kitchen only, it is not
designed, or intend-
ed, for commercial
use.
!!!
!!!
!!!
lease keep these
instructions in a safe
place.
Should you sell or
pass on the appli-
ance, please give the
new owner this
handbook.
i
3
Safety
Keep children away from the vicinity of the hob
when you are cooking.
• Use pans with a flat base which are stable in use,
and avoid using any old misshapen pans or any pan
which is unstable when placed on a flat surface.
• Never leave fat or oil unattended on an active cook
zone. Don’t leave pans on the hob when you are
not around - remove them or turn the cook zones
off (even if only for a moment)
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance
• Keep all flammable materials away from the hob.
Ensure electrical leads do not trail over or go near
the hob.
• Do not place aluminium foil or plastic utensils on hot
surfaces.
• Turn pan handles to a safe position, so they are out
of reach of children, not overhanging the appliance
and cannot be caught accidentally.
• Commercial simmering aids should not be used as
they create excessive temperatures that can dam-
age the surface and may cause a hazard.
• Caution: Do not use the hob if the glass is cracked,
as electrical parts are directly beneath. To avoid the
possibility of electric shock, turn off the electricity
supply to the hob at the socket and arrange a
Service call.
WARNING: If you use a griddle plate, ensure that
it is completely cool before attempting to lift it from
the hob as residual heat may cause burns. Always
use oven gloves to protect your hands.
Do not allow yourself to be distracted whilst
cooking.
When you have finished cooking check that all
controls are in the off position.
4
Safety Advice
Smoke alarm - buy a smoke alarm fitted with a ‘hush
button’ which can silence the alarm instantly should it
activate accidentally & does not necessitate the removal
of the battery (except to change for a new one).
Fire Blanket - consider having a fire blanket in your
kitchen, mounted on the wall where you can get to it
easily & quickly.
Deep-fat Frying - never fill a chip pan (or other deep-
fat fryer) more than one-third full of oil. If you do have
a chip pan fire:
1) call 999 immediately
2) never move the pan
3) turn off the heat but only if it is safe do so
4) never use water on a chip pan fire as this will create
a fireball.
Kitchen Fire - if you have a fire in the kitchen, do not
take risks - get everybody out of the house & call 999.
If a pan catches fire:
1) do not move it - it is likely to be very hot
2) turn off the heat but only if safe to do so & never
lean over a pan to reach the controls
3) if you have a fire blanket, put it over the pan
4) do not use a fire extinguisher on a pan of oil - the
force of the extinguisher can spread the fire
5) if you have managed to extinguish the fire, allow the
pan to cool completely.
Electrical Fire - if you have an electrical fire in the
kitchen, do not take risks - get everybody out of the
house & call 999 :
1) pull the plug out or switch off the power at the fuse
box - this may be enough to extinguish the fire immedi-
ately
2) smother the fire with a fire blanket or use a dry pow-
der or carbon dioxide extinguisher
30 remember: never use water on an electrical fire.
5
Safety & Induction
Detection of an object or a pan on the heating
zone
A small object - such as a fork, a spoon or even a ring
- placed on a hob cooking zone on its own is not
detected as a pan.
The security system acts in the same way when it
detects a pan which is not suitable for use on an
induction hob.
If you are fitted with a pacemaker or an active
implant
The functions of the hob comply with the applicable
standards on electromagnetic interference
Your induction cooking hob thus complies fully with
the statutory requirements (Directive 89/336/EEC). It
is designed to not interfere with the functioning of
other electrical equipment as long as these also comply
with the same regulations.
Your induction hob generates magnetic fields in its
immediate vicinity.
So that there is no interference between your cooking
hob and a pacemaker, the pacemaker must be
designed in compliance with the appropriate regula-
tions.
In this respect we can only guarantee the compliance
of our own product. You can ask the manufacturer or
your doctor about the compliance or any incompatibili-
ties of your pacemaker.
6
About the induction hob
The induction hob provides the most
energy efficeint hob technology avail-
able.
The induction system provides superior
heat up and cool down times for pans
- you get fast, precise, repeatable
power control.
As induction only heats up the pan,
there is no lost heat from the cooking
process, which in turn, limits the heat
generated in the kitchen.
Auto Power Tuning
Induction hobs have a unique power
tuning systems that automatically tunes
the power to the size of the pan base
this ensures energy isn’t wasted.
7
USING THE INDUCTION HOB
Small pan
Large pan
INDUCTION HOB FUNCTIONS
8
Feature Symbol Description
Eco Power
Rotary Controls
Digital Display
No. of power
levels
Keep Warm/
Low Temperature
Auto Heat Up
(4 Zones)
Power Boost
Pan detection
Overheat pan
detection
Child lock
Residual heat
indicators
Holiday shutdown
Flush fitting or
surface mount
11
Yes
L
Yes
Induction Power is the most energy efficient means of cook-
ing food on a hob, provides fast heat up and boiling times
Simple knob control with all the benefits of induction tech-
nology
Secret till "lit" hob display
Precise and repeatable control settings
Holds the pan temperature at approximately, ideal
for melting chocolate “mmmm choc-ol-ateee”
Automatically heats up and turns down the power to a
lower setting. Helps to take the worry out of pans boiling
over and burning food
Temporarily boost the power to a cook zone by a massive
60%
Lets you know if the correct pans are being used and
helps to save energy. When a pan is lifted off the zone,
the power is automatically cut.
Helps prevent cookware from overheating providing an
additional level of safety not availabe on other types of hobs
Prevents unintentional operation of the hob
Warns you against hot surfaces but also indicates that
there is residual heat which can be used as a temporary
warm zone
Rest assured this hob will eventually turn it self off if left
Yes
Induction contro s:
Auto Heat Up
Helps to take the worry out of pans boiling over and burning food! No need to
stand over the pan, allows you to do other tasks whilst maintaining control over the
pan.
The Auto Heat Up is activated by rotating he control knob anti-clockwise and hold-
ing for a couple of seconds until the symbol lights up in the display area, then by
rotating the control knob to the required turn down setting.
The Auto Heat Up delivers full power (9) to the zone for a fixed period of time
before automatically turning back down to the desired setting.
The Auto Heat Up has been tuned to provide the best boost period for each setting.
Average Auto Heat up time is 3 minutes.
9
USING THE INDUCTION HOB
To turn the hob ‘ON’ / ‘OFF’
To turn the hob ‘ON’, turn the control knob for the required cook zone clockwise to
set the cook zone to the desired power setting (1 to 9). The power display will auto-
matically light up.
To turn the hob ‘OFF’ turn the control knob anti-clockwase to the ‘OFF’ position.
Power Setting Suggested food type Auto Heat Up time (mins)
Low temp U ˚C Melting chocolate n/a
1 Milk, Soup Stews, 1
2 Vegetables 2.
34
4 Rice, Potatoes, Pasta
7
6 Frying, fish fingers 2
7 Pancakes, Steaks 3
84
9 Full power n/a
Boost Full power +60% n/a
Power Boost
Rev up your hob with this feature, tem-
porarily boost the power to a cook
zone by a massive 60%.
The power boost is a function that can
be used to temporally boost the nor-
mal maximum power for a cook zone
by borrowing the available power
from a “paired zone”.
The Power Boost is activated by rotat-
ing the control knob clockwise past
power setting 9 and holding for a cou-
ple of seconds until lights up in the
display area. Power Boost is now acti-
vated.
The hob is split into “two paired
areas”.
LH Area (LHF and LHR Cook Zone)
and RH Area (RHF and RHR Cook
Zone).
Only one cook zone per area can be
boosted at anyone time.
Note The Power Boost function will
only operate for a limited time and
is also under thermal control. This
means the power boost will deac-
tivate automatically if the product
is hot, to protect the internal elec-
tronic components of the hob and
to prevent the cookware from over-
heating.
10
USING THE INDUCTION HOB
Cook Zone Normal Max Power Boosted Power kW Maximum
Permissable setting on
paired zone
LHF 1.40 2.20 9 (LHR)
LHR 1.8 3.00 8 (LHF)
RHF 1.40 2.20 8 (RHR)
RHR 2.30 3.70 6 (RHF)
Autres manuels pour PBI60R
1
Table des matières
Autres manuels Belling Plaque
Belling
Belling Hob Mise à jour du firmware
Belling
Belling IHF64T Manuel utilisateur
Belling
Belling GTG 60 LPG Series Manuel utilisateur
Belling
Belling 60cm Manuel utilisateur
Belling
Belling Hob Mise à jour du firmware
Belling
Belling IHK80 Mise à jour du firmware
Belling
Belling CH60R Mise à jour du firmware
Belling
Belling CRS60 Mise à jour du firmware
Belling
Belling Hob Rotary UK Mise à jour du firmware
Belling
Belling GHU60-70 AU Manuel utilisateur
Belling
Belling Gas hobs Mise à jour du firmware
Belling
Belling FSE 54 DO Mise à jour du firmware
Belling
Belling PBi60 Mode d’emploi
Belling
Belling PBI60R Mode d'emploi
Belling
Belling FSE 60 DO Mise à jour du firmware
Belling

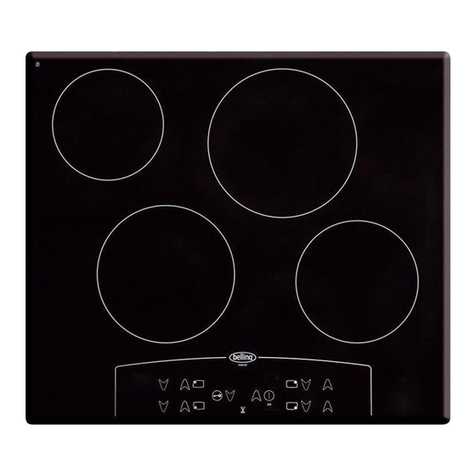

Belling CTC60 Mise à jour du firmware
Belling
Belling IHL773 Manuel utilisateur
Belling
Belling GHU573 Mode d’emploi
Belling
Belling PBi60 AU Mise à jour du firmware
Belling
Belling IH6013 Mise à jour du firmware
