Bellfires SLIDE BELL Guide de configuration

INSTALLATION INSTRUCTIONS AND INSTRUCTIONS FOR USE

Wood-burning built-in fire with lift door

SLIDE BELL

Bellfires wishes you much pleasure and ambiance with your new Bellfires fire

This document is part of the delivery of your wood-burning built-in fire.

Read it carefully before installation and use of the

fire and keep it in a safe place!

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

BELLFIRES WOOD-BURNING BUILT-IN FIRE WITH LIFT DOOR:

SLIDE BELL 70 - 55

SLIDE BELL 70 - 65

SLIDE BELL 80 - 65

SLIDE BELL 90 - 45

SLIDE BELL 105 -45

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

TABLE OF CONTENTS

1. Introduction

1.1 Foreword..........................................................................................

1.2 Safety...............................................................................................

2. Placing.....................................................................................................

3. Installation instructions............................................................................

4. Fitting the fireplace..................................................................................

5. Operation of the fireplace........................................................................

6. Stoking up for the first time.....................................................................

7. Use

7.1 Ventilation........................................................................................

7.2 Getting the fire going.......................................................................

7.3 Instructions while stoking.................................................................

7.4 Heating economically......................................................................

7.5 Cleaning the window........................................................................

8. General hints

8.1 Tips..................................................................................................

8.2 Output..............................................................................................

9. Fuel.........................................................................................................

10. Amount of fuel.........................................................................................

11. Regular maintenance..............................................................................

12. Dimensions..............................................................................................

13. Technical data..........................................................................................

14. Frequently asked questions....................................................................

Page

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

1. INTRODUCTION

1.1. FOREWORD

We would like to congratulate you on your purchase of this modern Bellfires built-in

wood fire. This quality product will give you years of heating pleasure as you enjoy the

play of the flames and the cosy glow of the fire.

This manual contains directions for both positioning the appliance and for its

environmentally-friendly use. It also contains technical data for the appliance, parts

information and directions in the event of problems. Study this manual carefully before

using the stove. We recommend you keep this manual in a safe place for reference

purposes.

1.2. SAFETY AND INSTALLATION INSTRUCTIONS

Safety

Do not place flammable objects within 150 cm of the appliance. Pay special

attention to furnishings and ornaments around the fire.

When you use your fire, the exterior will become hot. Always wear the glove or use

the accessories supplied when filling etc. Protect yourself and others (especially

children!) from burns. Do not leave children unattended when the fire is burning.

Watch your clothing. Synthetic clothing in particular can easily catch fire and burn

intensely.

Do not approach the appliance with flammable materials or liquids. Any work with

solvents, adhesives etc. in the space heated by the fire can be very dangerous.

Make sure you know what state your chimney is in. Cracks in the chimney may not

only lead to damp, staining of walls and leaking of smoke, they can also impair the

carrying off of smoke. Make sure you get proper advice from your Bellfires dealer

or other specialist company.

Avoid chimney fires! Have your chimney swept at least once per year - more often

if you use your fire a lot. Prevent excessive deposits of soot inside the chimney by

not burning freshly-cut wood. Instead, burn clean, dry chopped wood.

Do not use your built-in fire as a barbecue. This can cause (flammable) fat deposits

to be left in the chimney and hastens the chimney becoming clogged. Prevent your

chimney being soiled from above (birds’ nests etc.) by fitting a suitable cap to the

chimney pot.

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

Follow the instructions issued by your local fire brigade.

The fire can be taken in operation if national and local regulations are satisfied. The

required constructive adaptations should be satisfied as well.

Installation instructions

Wood and wood briquettes may be stoked in the fire.

Coals can’t be burned in the fire, because of the absence of a grid/ridling grill.

Never use the appliance to burn rubbish.

Please read all instructions/stickers on and around the appliance.

Please also study the directions for use before using the appliance for the first time.

When you first fire up your appliance, there are a number of extra points you should

take into account. See chapter 6.

In transit, some parts of the appliance may have moved from their original place.

The Slide Bell is a built-in fire with lift door. Check that the door opens and closes,

the retardant plates (brake plates) are fitted correctly to the brackets at the top of the

fire, the interior panels are fixed to the walls and the stones on the bottom have not

moved.

Avoid over-loading (white burning glow), caused, for example, by lengthy burning

with a fully open primary air vent, or by burning too much wood in one go.

The fire can then become over-heated.

The appliance may only be set up if the appliance and location meets the

- national and local installation regulations;

- local fire brigade regulations and required architectural provisions.

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

2. PLACING

2.1. INCLUDED

Documentation Warranty

Manual

Loose in appliance Glove

Handle

5x collar rings Ø125 mm (4x for the convection

opening on the top of the fire and 1x for the

combustion air supply (under/ rear))

2.2. PREPARATION FOR POSITIONING

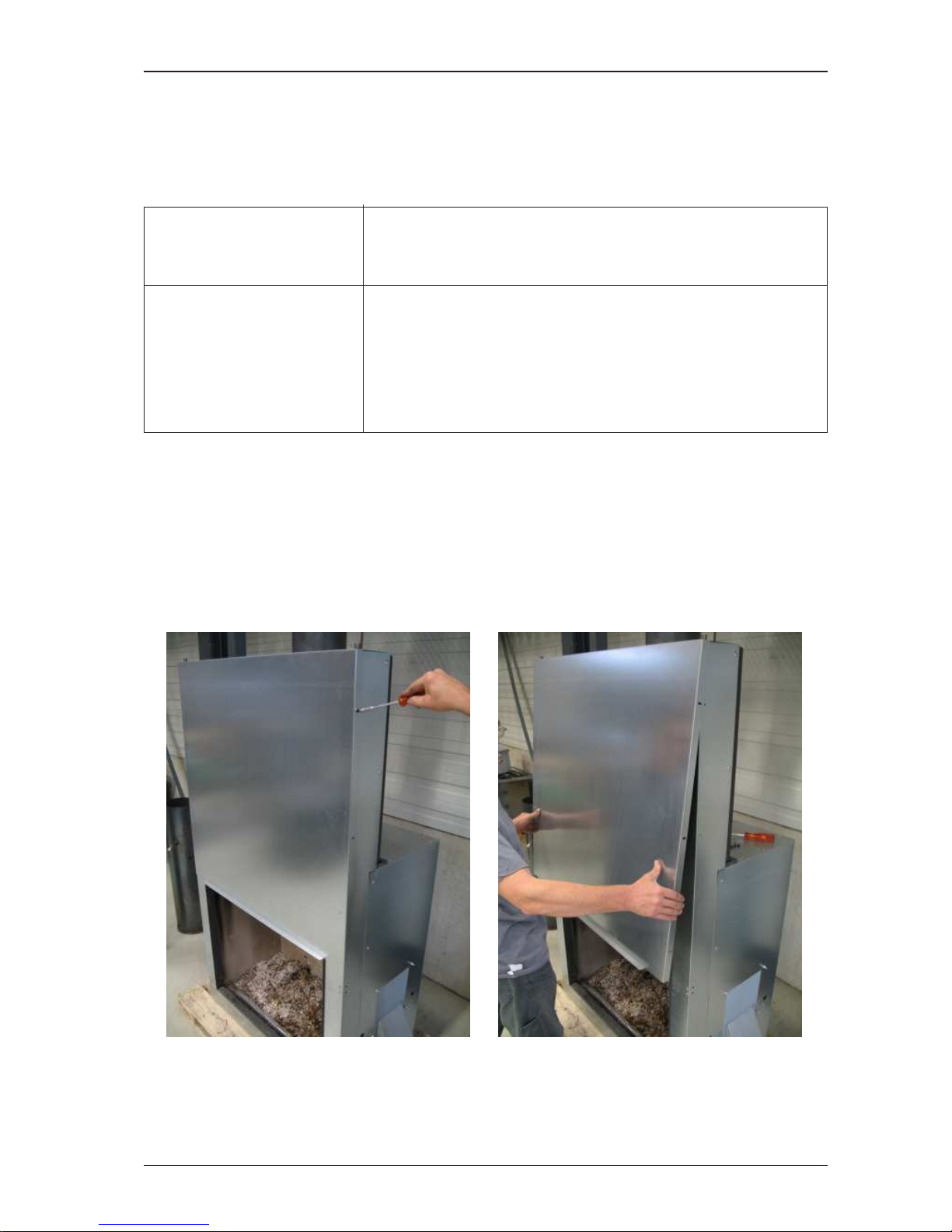

Dismantle the metal plate on the front (above the fire opening) by unscrewing the

screws on the sides and the top (hexagonal 7).

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

Remove the plastic tie-wraps with which the chains are secured.

Ensure that the chains are properly placed on the chain wheels.

Check whether the lift door is functioning properly.

www.tapis.pl

Bellfires English

Instructions for use and installation instructions

If necessary, adjust the lift-door, using the two ‘screw thread eyes’ (on the top of the

lift door).

Ensure that the bottom of the lift door fits horizontally to the sealing strip.

Reassemble the metal plate to the appliance.

In addition, check the way the door tilts forward to allow the glass to be cleaned

and check the operation of the two sliding vents in the top of the door.

These sliders are used to regulate the secondary combustion air.

www.tapis.pl
