Bellfires Free Bell Guide de configuration

INSTALLATION INSTRUCTIONS AND INSTRUCTIONS FOR USE

Wall-mounted gas ﬁre with closed combustion system

FREE BELL

Bellﬁres wishes you many cosy evenings with your new Bellﬁres gas ﬁre

This document is an essential part of your gas ﬁre.

Read it carefully before installation and use of the

gas ﬁre and keep it in a safe place!

Bellﬁres English

Instructions for use and installation instructions

BELLFIRES WALL-MOUNTED GAS FIRE WITH CLOSED COMBUSTION SYSTEM:

FREE BELL

Bellﬁres English

Instructions for use and installation instructions

Bellﬁres English

Instructions for use and installation instructions

CONTENTS

Page

1. WARRANTY TERMS ................................................................................. 7

2. INSTRUCTIONS FOR USE ....................................................................... 9

3. INSTALLATION INSTRUCTIONS .............................................................. 20

4. MAINTENANCE ......................................................................................... 45

5. FAULTS ...................................................................................................... 46

6. ACCESSORIES ......................................................................................... 47

7. ELECTRICAL DIAGRAM ........................................................................... 48

8. DIMENSIONS ............................................................................................ 49

9. TECHNICAL DETAILS/REGULATIONS .................................................... 51

10. REPLACEMENT PARTS LIST .................................................................. 52

11. DISPOSAL OF PACKAGING AND APPLIANCE ....................................... 54

Bellﬁres English

Instructions for use and installation instructions

Bellﬁres English

Instructions for use and installation instructions

Bellﬁres gas ﬁre

Warranty

Bellﬁres guarantees the quality of the supplied hearth and the quality of the

materials used.

This warranty runs for a period of twelve (12) months from ﬁrst use of the hearth

and covers defects which are a result of construction faults or the failure of

component parts.

Bellﬁres has an obligation under the terms of this warranty (at its discretion) not

to charge for the replacement of any component parts.

Note: The following aspects are not covered under the terms of the warranty:

- defects arising which are attributable in whole or in part to:

a Not paying due heed to installation, operating and maintenance

instructions

b Fitting/installation or repair by third parties (including the buyer)

c Heat cracks arising in the jacket due to normal heating

d Discolouration in the ironwork as a result of heat transfer

- the grate, the thermocouple and the glass of the product

Should you wish to claim under the warranty,

please contact your dealer.

Please carefully retain your invoice with this warranty!

Your Bellﬁres dealer: Date of installation:

Bellﬁres

Hallenstraat 17

NL-5531 AB Bladel

Tel. + 31 497 339200 Fax. + 31 497 339210

1 WARRANTY TERMS

∇

Bellﬁres English

Instructions for use and installation instructions

Bellﬁres English

Instructions for use and installation instructions

2 INSTRUCTIONS FOR USE

2.1 INTRODUCTION

Congratulations on your purchase of this modern Bellﬁres wall-mounted gas ﬁre. This

quality product will provide you with many years of enjoyment due to the ﬂame effect

and warmth that it provides. Please read the instructions for use carefully before using

the appliance for the ﬁrst time. Keep this booklet in a safe place.

2.2 BUILT-IN PROTECTION OF THE APPLIANCE

The appliance is fully protected by means of a thermo-electric pilot light shut off in the

event of a gas escape from the main burner.

2.2.1 Safety

Do not place embers, vermiculite granules, wood logs or pebbles

against the pilot light burner. Make sure that the pilot ﬂame can

burn at all times freely over the main burner. Only in this way is

proper ignition of the main burner ensured.

Ignoring these directions could lead to a dangerous situation.

It is essential that the appliance, the complete concentric ﬂue

system and the outlet are cleaned and inspected annually by a

recognised ﬁtter/gas specialist. The safe operation of the appliance

will thus remain guaranteed.

See for additional instructions Chapter 4: Maintenance.

If the pilot ﬂame goes out for any reason, wait for 5 minutes before

attempting to re-light it.

The gas ﬁre must never be used with the door open or the door

glass removed.

Never place ﬂammable material on the ceramic log set.

The ﬁlling of the main burner with embers, vermiculite granules,

wood logs and pebbles may not under any circumstances be

changed or added to.

Do not place easily-ﬂammable materials, such as nylon clothing or

ﬂammable liquids, in the vicinity of the gas ﬁre.

Bellﬁres English

Instructions for use and installation instructions

Ensure at all times that children and other people who are not

aware of the operation of the gas appliance are only in the vicinity

of the appliance exclusively under supervision.

Use a ﬁreguard to protect the people and children mentioned

above against possible burns.

2.3 OPERATION: REMOTE CONTROL

2.3.1 General

Read these instructions carefully before lighting the ﬁre!

The appliance is opperated by radio remote control. This comprises a hand-held

transmitter and a receiver. The receiver is part of the gas control block assembly.

The receiver and the gas control block are behind the frame at the bottom of the

appliance.

The hand-held transmitter and receiver are powered by batteries.

Hand-held transmitter : 1x 9V battery.

Receiver : 4x 1.5V battery type LR6 or AA.

Option: 6V adapter (230 VAC). Available from your ﬁtter.

Note: Hand-held transmitter and receiver are not interchangeable with previous models.

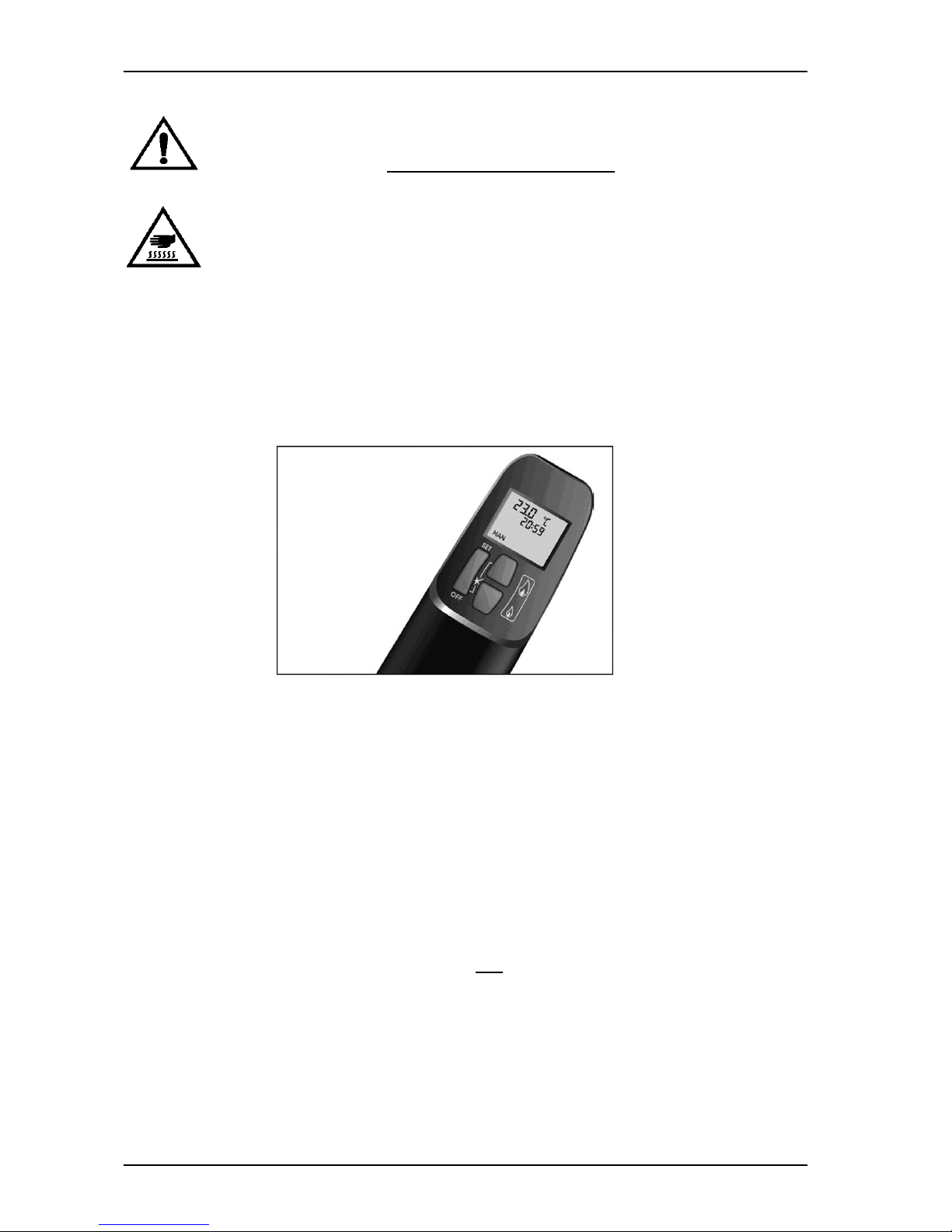

2.3.2 Hand-held transmitter

The remote control works by radio signal. The hand-held transmitter is conﬁgured in the

factory with a unique signal code.
