Belkin F5D4073 Manuel utilisateur

Powerline Networking

Adapters

User Manual

PM01141e a F5D4073

English

Français

DEutsch

nEDErlanDs

Español

italiano

TABLE OF CONTENTS

Table of Contents SECTIONS 1 2 3 4

Powerline Networking Adapters

1 Introduction ...................................................................................1

Features 2

Product Specifications 2

System Requirements 3

Package Contents 3

2 Installing and Setting Up the Adapters .....................................4

3 Configuration............................................................................... 8

Diagnose Powerline Network 8

Setting Up Security on a Local HomePlug Device 9

Setting Up Security on a Network HomePlug Device 10

Diagnostics 11

4 Information...................................................................................12

Powerline Networking Adapters

Table of Contents SECTIONS 12 3 4

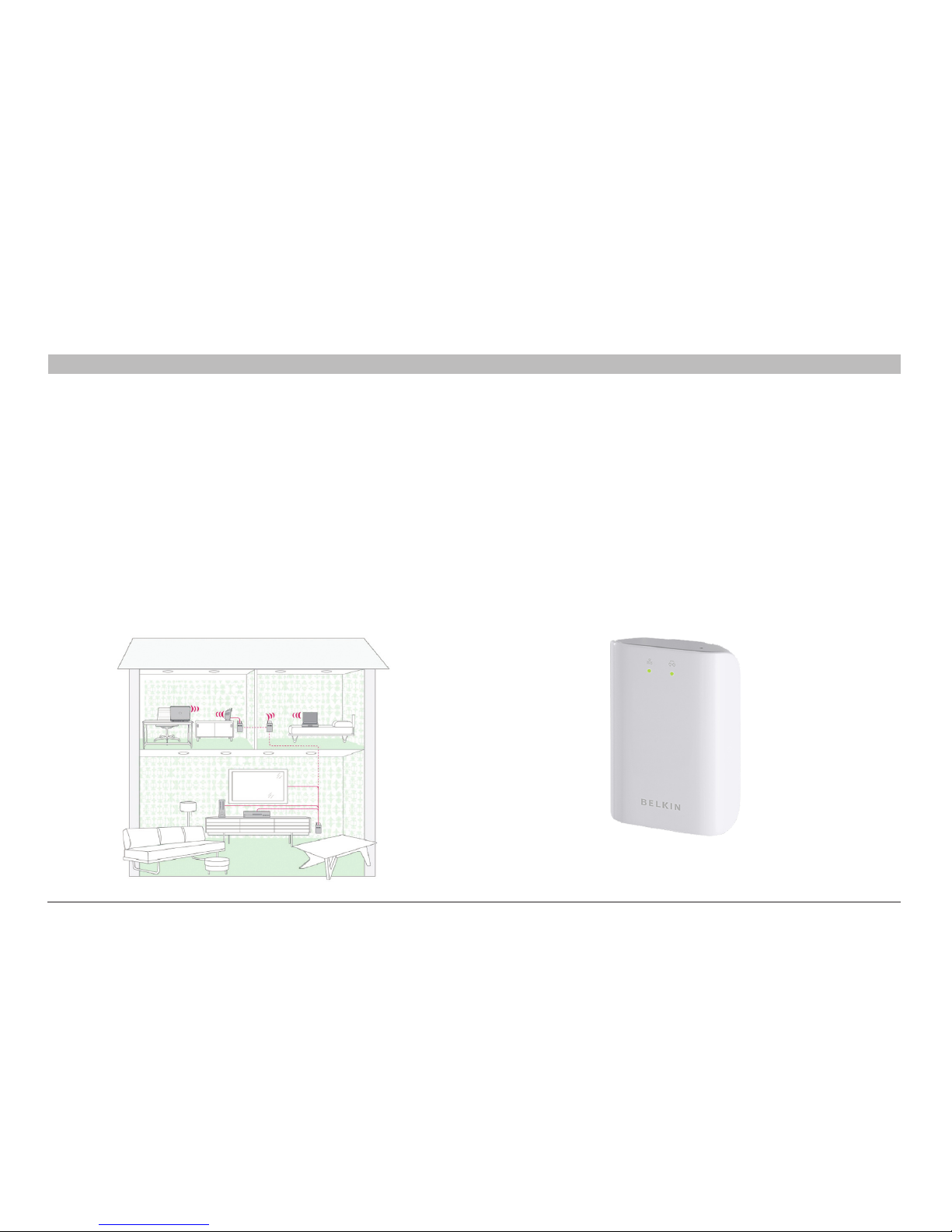

INTRODUCTION

Thank you for purchasing the Powerline Networking Adapter (the Adapter). Most people don’t enjoy buying long and expensive

Ethernet cables or pulling the cables from one place to another, but the Adapter offers one of the easiest ways to enjoy home or

small-business networking. Users can now experience a total network solution with the Adapter. The Powerline Networking Adapter

operates on the HomePlug®Powerline Specification 1.0 Turbo standard, providing up to 85Mbps* bandwidth over home AC wiring.

Since the home power lines are the most pervasive medium in households with multiple outlets in every room, the Adapter allows

multiple home desktop and notebook computers to be networked to share an Internet connection, printers, and files, and play

games without any additional wiring. Note that you need at least two Adapters to create a powerline network.

The installation of the Adapter only requires that a 10/100Mbps Ethernet port is available on your device. This makes the Powerline

Networking Adapter compatible with any device, including Mac, Windows, and UNIX machines.

For security, all HomePlug devices are equipped with 56-bit DES encryption. The private home power grid plus encryption makes

HomePlug significantly more secure than competing technologies.

The Powerline Networking Adapter provides the best solution for no-new-wires home networking. With easy plug-and-play

installation, and the reliability of HomePlug Ethernet’s products, the Powerline Networking Adapter is the best solution for

high-speed networking.

Powerline Networking Adapters

Table of Contents SECTIONS 12 3 4

INTRODUCTION

Product Specifications

Computer Interface: IEEE 802.3/802.3u

Operating Temperature: 32–104 degrees F (0–40 degrees C)

Storage Temperature: -4–176 degrees F (-20–80 degrees C)

Humidity: Max. 5%–90% (non-condensing)

Typical Operating Range: Up to 300m in wall power lines

*The standard transmission rate—85Mbps—is the physical data rate. Actual data

throughput will be lower.

Features

• Upto85Mbps*bandwidthoverstandardhomepowerlines

• Estimatedrangeof300minwallpowerlines

• HomePlugsignaleasilypassesthroughcircuitbreaker

• 56-bitDESencryptionensuresdatasecurity

• Encryptioncompletedbyhardware,without sacrifice to bandwidth

• UsesIEEE802.3computerinterface

• Plug-and-playinstallation

• HomePlugPowerlineSpecification1.0Turbo-compliant

Powerline Networking Adapters

Table of Contents SECTIONS 12 3 4

INTRODUCTION

Package Contents

• One/TwoPowerlineNetworkingAdapters

• HomePlugQuickInstallationGuide

• HomePlugUserManual(onCD)

• InstallationCD

• One/TwoPowerCables

• One/TwoCAT5/RJ45EthernetCables

• One/TwoWallPlugAdapters

Powerline Link LED

On Another HomePlug unit detected

Blinking Powerline network activity

Ethernet Link LED

On Connected to Ethernet

Blinking Ethernet network activity

System Requirements

• Atleast2HomePlugdevices

• AvailableEthernetportoneachcomputerornetworkdevice

• Availablepoweroutlet

• Standardhomepowerlinewiring

• CD-ROMdrive

Table of Contents SECTIONS 1 23 4

INSTALLING AND SETTING UP THE ADAPTERS

Powerline Networking Adapters

Overview

Installation of the Powerline Networking Adapters takes only

minutes and does not require setting up long wires throughout

the house. Simply plug the Adapters into the wall and connect

the Ethernet cable into your device. You may optionally install the

included utility to monitor your powerline network. This utility is not

required for operation.

Hardware Setup

1. PlugyournetworkcableintoanRJ45networkadapterport.

2. PlugtheotherendofyournetworkcableintotheRJ45portlocatedat

the bottom of the Adapter.

3. Plug the power cable into the power connector at the back of

the Adapter.

4. Plug the power plug of your power cable directly into a power outlet

in the wall.

Note: Do not plug the device into a UPS or power strip with surge

protection as they may filter the powerline signal.

5. Repeat this process for the second Adapter

Table of Contents SECTIONS 1 23 4

INSTALLING AND SETTING UP THE ADAPTERS

Powerline Networking Adapters

Running the InstallShield Wizard

1. Insert the CD into your CD-ROM drive and wait for the setup

screen to appear. If the CD-ROM does not automatically run

the CD, click on “Start” in the bottom left corner of your screen

(for most Microsoft Windows operating systems) and go to

“Run”. Type in: “(CD Drive Letter):\setup.exe” and click “OK”.

2. Click the “Powerline Utility” button. Once the software loads,

click on your desired language in the following dialog box:

3. Click “Next” to continue the installation.

Table of Contents SECTIONS 1 23 4

INSTALLING AND SETTING UP THE ADAPTERS

Powerline Networking Adapters

4. This section allows you to change the default directory where

the program is installed. If you don’t want to change the

directory, click “Next” to continue the installation process.

5. The following screens give you different installation options. Click

“Next” through these screens or modify the settings if desired.

Table of Contents SECTIONS 1 23 4

INSTALLING AND SETTING UP THE ADAPTERS

Powerline Networking Adapters

6. Click “Install” after confirming your settings in the following screen. 7. Installation is complete. Click “Finish” to exit the wizard.

Table of Contents SECTIONS 1 2 34

CONFIGURATION

Powerline Networking Adapters

Overview

The Adapter uses 56-bit DES encryption to block access from the

outside. The key is set by using the HomePlug Configuration Utility

on the CD. By default, the protection is enabled. However, it is

recommended that you change the default network password. All your

HomePlug devices must use the same network password in order for

the computers to be networked. Make sure that all devices are loaded

with the same network password.

Diagnose Powerline Network

Part 1: Diagnose a Local HomePlug Device

Double-click the “Belkin HomePlug Utility” icon on your desktop to open

the utility shown in the screen below.

The “Main” tab shows the HomePlug units that are connected to the

current computer and other devices on the network. It also tells you

the MAC address of each device. The MAC address of the Adapter

that is currently connected to the PC running this utility is displayed

at the top of the window next to the “Local” network name. The utility

lets you refresh the window, if you change devices, and also allows

you to connect to different networks if multiple units are connected to

your computer.

Note: If the link quality is poor, and appears red, or if the MAC address

of any of the units connected to this computer appears to be all 0s,

your Adapter may be unreachable via the powerline network. Please

plug it into a different outlet for better signal quality. Also, make sure

the device is not plugged into a power strip.

Note: If you do not see ANY units in the device status, and there is a

device connected to your computer, try unplugging and re-plugging

all devices. Also make sure that the cable connecting your computer

to the HomePlug device is the right type and is working correctly. If

everything seems to be correct, and you do not see anything in the

“Device” window, try rebooting your computer. If the problem still

persists, please contact technical support.
