HAPI™ Tool User Manual
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
Scan for access to the HAPI Tool webpage
2
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
Table of Contents
Safety Information
1. Parts
1.1 HAPI Tool Box
1.2 HAPI Tool Kit
1.3 Spare Parts
2. Assembly
2.1 Tool Setup
2.2CuandGripAdjustment
2.3InsertingtheMonopod
2.4UsingaSuitablePay-O
3. Using the Tool
3.1 Crash Test
3.2CableandMicroductSizeChart
3.3Distance/BendChart
3.4 Inserting the Cable
3.5MicroductConnection
3.5.1 MicroductConnection(option1)
3.5.2 MicroductConnection(option2)
3.6 Correct use of the Tensioning Knob
3.7CrankingtheHandle
4. Troubleshooting
5. Tool Maintenance
4
5
5
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
3
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
Safety Information
When using ber optic equipment, basic precautions should always be followed to reduce the risk of injury to
persons, including the following:
1. Follow all warning and instructions marked on the product.
2. Laser light can be visible or invisible and can cause serious eye injury.
a. Do not look directly into the end of a ber optic connector.
b. Do not look directly into the end of a ber optic adapter having a ber optic connector.
3. Install dust caps or plugs onto unused ber optic connectors or non-shuttered ber optic adapters.
4. Open microducts should be capped o with suitable dust caps or gas block connectors when not in use.
The HAPI™ tool allows Miniex® cables to be pushed into microduct signicantly faster and with less eort than
traditional hand pushing. While installation distances are not necessarily longer, the time to deploy ber and the
risk of cable damage are greatly reduced.
The tool is quick and easy to assemble and use, featuring functionality to set up the tool for both left and right handed
operation. The HAPI is light weight, ergonomic and low maintenance. This user guide gives a comprehensive
overview of what is included in the kit, setting the tool up, using the tool, trouble shooting installation problems and
details how to maintain the HAPI.
4
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
Olives
HandGrip
ToolBody
ArmCu
HAPI Kit in Case
Monopod
Description Part Number
Miniex® Cable Installation Tool 10-HAPI-01
Olives for 5 mm Microduct 10-HAPI-Olive05
Olives for 7 mm Microduct 10-HAPI-Olive07
Olives for 8 mm Microduct 10-HAPI-Olive08
Olives for 10 mm Microduct 10-HAPI-Olive10
Monopod 10-HAPI-MONOPOD
NOTE: The HAPI Tool comes with an Arm Cu and Hand Grip included (see illustrations below)
1.1 What’s in the HAPI Tool Box
1.2 HAPI Tool Kit
1.0 HAPI™ Tool Parts
5
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
The HAPI™ Tool is manufactured to last and should not need any consumables for at least 50,000 m/1,000
installations, assuming the tool is used properly and operated with care.
In addition to the Tool Kit, the following components can be re-ordered for the HAPI Tool.
Description Part Number
Miniex® Cable Installation Tool 10-HAPI-01
Olives
5mm Microduct Olives 10-HAPI-Olive05
7mm Microduct Olives 10-HAPI-Olive07
8mm Microduct Olives 10-HAPI-Olive08
10mm Microduct Olives 10-HAPI-Olive10
Monopod 10-HAPI-MONOPOD
Adapter for Camera Tripod 10-HAPI-Adapter
Tyre/Wheel Assembly 10-HAPI-WHEEL
Microduct Olive Set: 5-10mm (2 pairs each) 10-HAPI-OLIVESET
Cable Guide 10-HAPI-GUIDE
1.3 Spare Parts
6
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
2.0 How to Assemble the HAPI Tool
The HAPI™ Tool is supplied in a ruggedized case which contains all of the parts required to assemble and use it
(see page 5 for identifying these). It can also be used with an optional camera tripod.
See the following pages for setting up the HAPI and using it.
HAPI Tool with the
case open showing
the contents
Optional camera tripod
on which the HAPI can
be mounted using the
supplied adaptor
Tripod adaptor
7
HAPI Tool Kit with the
case open, showing the
contents
Tripod adapter Optional camera tripod
for mounting the HAPI
with the supplied adapter
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
The HAPI™ Tool can be congured for left- and right-handed operation.. The default setup is right handed (crank
handle is operated by the right hand). For left handed operation, the cable guide and microduct clamp orientation is
swapped, as illustrated in the image below.
Left-handed set up
Right-handed set up
2.1 Tool Set Up
8
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual
To operate the tool, the arm cu and hand grip must be tted to the tool body as shown below. Both parts are xed
to the main body via index plungers.
A series of holes located on the underside of the arm cu allow for multi-positioning of the cu and grip. This
provides the best possible ergonomics and it is advisable to rst nd the most comfortable position.
Assembled with arm cu & hand grip
Arm Cu
Tool Body
Hand Grip
2.2CuandGripAdjustment
9
This product may be protected by one or more patents • For further information, please visit: www.ppc-online.com/patents
HAPI™ Miniex® Cable
Installation Tool
User Manual

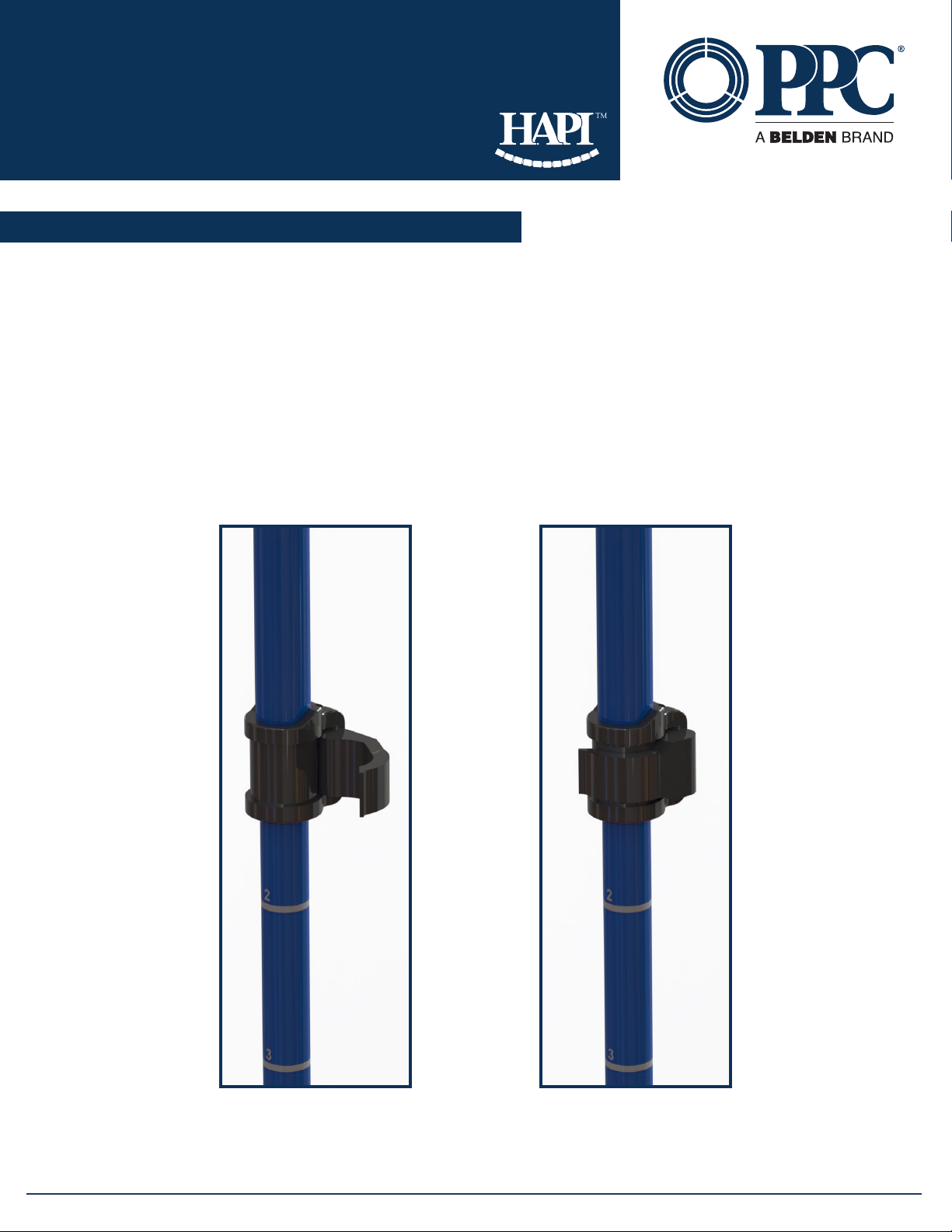

For extended periods of use, the HAPI™ Tool is supplied with a height adjustable monopod.
The pole is inserted into the base of the main body into the tapered hole.
The height is adjusted by opening the latch, sliding the pole upward or downward and locking the latch when the
pole is at the desired height.
Latch open Latch closed
2.3InsertingtheMonopod
10
