Beko 9320 Manuel utilisateur

Vacuum Cleaner

User Manual

Staubsauger

Bedienungsanleitung

BKS 9320

BKS 9322

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from

your product which has been manufactured with high quality and state-of-the-art

technology. Therefore, please read this entire user manual and all other accompanying

documents carefully before using the product and keep it as a reference for future use.

If you handover the product to someone else, give the user manual as well. Follow all

warnings and information in the user manual.

Remember that this operation manual may also apply for other models. Differences

between the models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

CImportant information and useful hints

about usage.

AWarnings for dangerous situations

concerning the safety of life and

property

This product has been produced in environmentally friendly, modern facilities.

Complies with the WEEE Regulation. Does not contain PCB.

Made in P.R.C.

Vacuum Cleaner / User Manual 3 / 21 EN

CONTENTS

Important safety and

environmental instructions 5-4

1.1 General safety . . . . . . . . . . . . . . . . . . . . 4

1.2 Compliance with the WEEE Directive

and disposal of waste products . . . . . . . . . . . 5

1.3 Package information . . . . . . . . . . . . . . . 5

2 Your vacuum cleaner 6

2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1.1 Controls and components . . . . . . . . . . 6

2.1.2 Technical data . . . . . . . . . . . . . . . . . . . 6

3Use 9-7

3.1 Intended use. . . . . . . . . . . . . . . . . . . . . . 7

3.2 Attaching/removing the hose . . . . . . . . . . 7

3.3 Attaching/removing the telescopic tube . . 7

3.4 Attaching/removing the parquet/

carpet brush. . . . . . . . . . . . . . . . . . . . . . . . . 7

3.5 Adjusting the parquet/carpet brush . . . . . 7

3.6 Operation . . . . . . . . . . . . . . . . . . . . . . . . 7

3.6.1 Adjusting the suction power

(BKS 2122 C) . . . . . . . . . . . . . . . . . . . . . . . . 8

(BKS 2121 A) . . . . . . . . . . . . . . . . . . . . . . . . 8

3.6.2 Dust indicator . . . . . . . . . . . . . . . . . . . 8

3.7 Accessories . . . . . . . . . . . . . . . . . . . . . . 8

3.8 Switching off and parking the appliance . . 9

3.9 Handling the appliance . . . . . . . . . . . . . . 9

4 Cleaning and maintenance 11-10

4.1 Replacing the dust bag . . . . . . . . . . . . . 10

4.2 Cleaning the filters . . . . . . . . . . . . . . . . 10

4.2.1 Motor protection filter. . . . . . . . . . . . . 11

4.2.2 HEPA filter . . . . . . . . . . . . . . . . . . . . . 11

4.2.3 Foam filter. . . . . . . . . . . . . . . . . . . . . 11

4.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . 11

01M-8831213200-0615-01

4 / 21 EN Vacuum Cleaner / User Manual

This section contains safety

instructions that will help protect

from risk of personal injury or

property damage.

Failure to follow these instructions

invalidates the granted warranty.

1.1 General safety

•This appliance complies with the

international security standards.

•This appliance can be used by

children aged from 8years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand

the hazards involved. Children

shall not play with the appliance.

Cleaning and user maintenance

shall not be made by children

without supervision.

•Do not use it if the power cable or

the appliance itself is damaged.

Contact an authorized service.

•Your mains power supply should

comply with the information

supplied on the rating plate of

the appliance.

•The mains supply of the

appliance must be secured with

a minimum 16 A fuse.

•Do not use the appliance with

an extension cord.

•In order to prevent the power

cable from getting damaged,

make sure that it doesn›t get

stuck, twisted or rub against

sharp surfaces.

•Do not touch the appliance or its

plug when it is plugged if your

hands are damp or wet.

•Do not pull the power cable

when unplugging the appliance.

•Do not vacuum flammable

materials and when vacuuming

cigarette ashes make sure that

it got cold.

•Do not vacuum water or other

liquid materials.

•Protect the appliance from rain,

humidity and heat sources.

Important safety and environmental instructions

Vacuum Cleaner / User Manual 5 / 21 EN

•Never use the appliance

in or near to combustible

or inflammable places and

materials.

•Unplug the appliance before

cleaning and maintenance.

•Do not dip the appliance or its

cable in water to clean it.

•Check the hose of the appliance

regularly. Do not use if it is

damaged and contact an

authorized service.

•Do not attempt to dismantle the

appliance.

•Only use the original parts or

parts recommended by the

manufacturer.

•Do not use the appliance

without filters; otherwise it can

get damaged.

•When vacuuming the stairs, the

appliance should be located

below the user.

•If your store the package

material, keep it out of the reach

of children.

1.2 Compliance with the WEEE

Directive and disposal of waste

products

This product does not include harmful and

prohibited materials specified in the

“Regulation for Supervision of the Waste

Electric and Electronic Appliances” issued

by the Ministry of Environment and Urban Planning.

This appliance conforms to the WEEE regulation.

This product has been manufactured with high

quality parts and materials which can be reused

and are suitable for recycling. Therefore, do not

dispose the product with normal domestic waste

at the end of its service life. Take it to a collection

point for the recycling of electrical and electronic

equipment. Ask the local authority in your area for

these collection points. Contribute to the

preservation of environment and natural sources

by taking the used products to the recycling points.

1.3 Package information

Package of the product is made of

recyclable materials in accordance with

our National Legislation. Do not dispose

of the packaging materials together with

the domestic or other wastes. Take them to the

packaging material collection points designated by

the local authorities.

Important safety and environmental instructions

6 / 21 EN Vacuum Cleaner / User Manual

2.1 Overview

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were

obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your vacuum cleaner

2.1.1 Controls and components

1- Handle

2- Telescopic tube

3- Hose

4- Telescopic tube adjustment latch

5- Parquet/carpet brush parking hook

6- Parquet/carpet brush

7- Parquet/carpet brush adjustment latch

8- The hose cap

9- Water tank locking latch

10- Carriage handle

11- On/off Switch

12- Power cable winding button

13- Parquet/carpet brush parking groove

14- Filter protection foam

15- Filter protection foam holder

16- Air guiding part

17. Cyclonic ﬁlter

18. Cyclonic ﬁlter cover

19- Wide-mouth nozzle

20- Narrow crevice tool

21- Dust brush

22. Motor protection foam

23- HEPA ﬁlter

24- Water tank

25- Accessory carrier

26- Power cord

2.1.2 Technical data

This appliance complies with the

European Directives numbered

2004/108/EC, 2006/95/EC,

2009/125/EC, 2010/30/EU and

2011/65/EU.

Net weight : 7.5 kg

Supply voltage : 220-240 V~, 50/60 Hz

Maximum power : 2000 W

Rated power : 1700 W

Insulation class : II

Rights to make technical and design changes are reserved.

1011

18 19

25 26

Vacuum Cleaner / User Manual 7 / 21 EN

3 Use

3.1 Intended use

The appliance was designed to be used in houses,

and is not fit for industrial use.

3.2 Attaching/removing the hose

1.To attach the hose (3) pull the hose cap (8) in

the direction of arrow until it is aligned with the

housing.

2.To remove the hose (3) press on the tabs on the

hose cap (8) and pull it.

3.3 Attaching/removing the tele-

scopic tube

1.Attach the telescopic tube (2) to the handle (1).

2.Push the telescopic tube adjustment latch (4) in

the arrow direction and pull the telescopic tube

(2) to adjust its length.

3.Pull the telescopic tube (2) from the handle (1)

to remove it.

3.4 Attaching/removing the parquet/

carpet brush

You can attach/remove the telescopic tube (2)

from the parquet/carpet brush (6) as indicated in

the below figure.

3.5 Adjusting the parquet/carpet

brush

By pressing the adjustment latch (4) located on the

parquet/carpet brush (6);

•Vacuum on firm ground and parquet, extend

the brush before vacuuming.

•Vacuum on carpets and rugs, retract the brush

before vacuuming.

3.6 Operation

1.Open the lid pushing the water container locking

latch (9) upwards.

2.Remove the water tank holding it from its lugs.

8 / 21 EN Vacuum Cleaner / User Manual

3 Operation

3.Pull the filter unit out of the water tank (24)

holding the handle located on the filter carrier.

4.Fill the water tank (24) up to the MAX level.

Required amount of water is 1.3 liters. Insert

the filter unit back into the water tank paying

attention to correct alignment. Insert the water

tank back into the product. Place the dust

container lid, lock the dust container lid and

ensure that it is locked.

AWARNING: Do fill the water tank

(24) above the MAX level and do not

operate without water.

5.Plug the appliance after pulling the power plug

(26) located at the back of the appliance.

WARNING:Stop pulling the ap-

pliancecable when it comes to the

yellow mark located on it. After the

yellow mark the red mark comes. Do

not pull any more after reaching the

red mark.

6.Press on/off button to switch (11) on your

appliance.

3.7 Accessories

There is an accessory carrier (25) on the telescopic

pipe (2) of the appliance.You can use it by attaching

2 accessories supplied with the appliance.

Crevice tool

Suitable for the cleaning of the

surfaces which are difficult to

clean, such as the areas remain-

ing under the sofas and furniture.

Wide-mouth nozzle

Suitable for the cleaning of the

floorings, stair steps, inside of the

cars, sofas, armchairs etc.

Dust brush

Suitable for the cleaning of cur-

tains, and sensitive and fragile

objects.

AWARNING: Do not make cleaning

by using the handle's (1) end part.

Vacuum Cleaner / User Manual 9 / 21 EN

3.8 Switching off the vacuum

cleaner and parking feature

1.Switch off the appliance with the on/off button

(11) and unplug its plug (26).

2.Wind the electric cable inside the appliance

by gently pulling and releasing the cable (the

appliance will automatically take the cable

inside) or by pressing the cable winding button

(12)

3.Insert the parking hook (5) of the parquet/carpet

brush into the parking groove (13) located at the

rear section of the appliance.

AWARNING: Do not press the buttons

of the product with foot. Resulting

damages will not be covered by the

guarantee.

4.You can carry the appliance by holding it from

the carrying handle (10).

3 Operation

AWARNING: After each usage clean

the water tank and water diffusing

separator of the product.

10 / 21 EN Vacuum Cleaner / User Manual

4 Cleaning and maintenance

Before cleaning, press the on/off switch (11) to

switch the product off and unplug (26).

AWARNING:Never use gasoline,

solvent, abrasive cleaning agents,

metal objects or hard brushes to

clean the appliance.

4.1 Draining and cleaning the water

tank

1-After releasing the water tank locking latch (9)

lift the dust container lid upwards.

2.Remove the water tank holding it from its

handles.

3.Pull the filter unit out of the water tank (24)

holding its handle.

4.Drain the used water from water tank (24) and

flush with clean water.

5.Remove the air guiding part (16) from the water

tank and clean.

6.Hold the handle of the filter carrier located on

the filter unit and remove turning in the arrow

direction.

7.After removing the filter carrier, separate

cyclonic filter (17) and cyclonic filter cover (18)

rotating in the arrow direction.

8.Clean and rinse the cyclone, cyclone cover and

water diffusing separator of the filter unit with

clean water.

9.After cleaning, install the parts following the

above steps in reverse order.

4.2 Air Outlet Filter

1.Open the air outlet filter cartridge located on the

rear side of the product pressing the release

switch.

2.The filter and the black filter in the back that will

become apparent after opening the cartridge,

should be washed cleaned once in every 3

months or when required.

AWARNING:Do not use appliances

producing hot air such as hair

dryer or heater to dry the filters.

WARNING:Do not install the filters

without completely drying them;

otherwise smell of moisture may

occur during the use, water can leak

from the back of the appliance or the

filters may get damaged.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Beko Aspirateur

Beko

Beko VRR 60110 VW Instructions d'utilisation d'origine

Beko

Beko BKS 1511 A Manuel utilisateur

Beko

Beko VCA81803B Manuel utilisateur

Beko

Beko VRT 71920 VR Manuel utilisateur

Beko

Beko VCM 71605 AP Manuel utilisateur

Beko

Beko RS 8034 Manuel utilisateur

Beko

Beko VCW 30915 WR Manuel utilisateur

Beko

Beko BKS 1310 EY Manuel utilisateur

Beko

Beko 01M-8816523200-4720-03 Manuel utilisateur

Beko

Beko VCS 5125 AR Manuel utilisateur

Beko

Beko VRT 61814 VR Manuel utilisateur

Beko

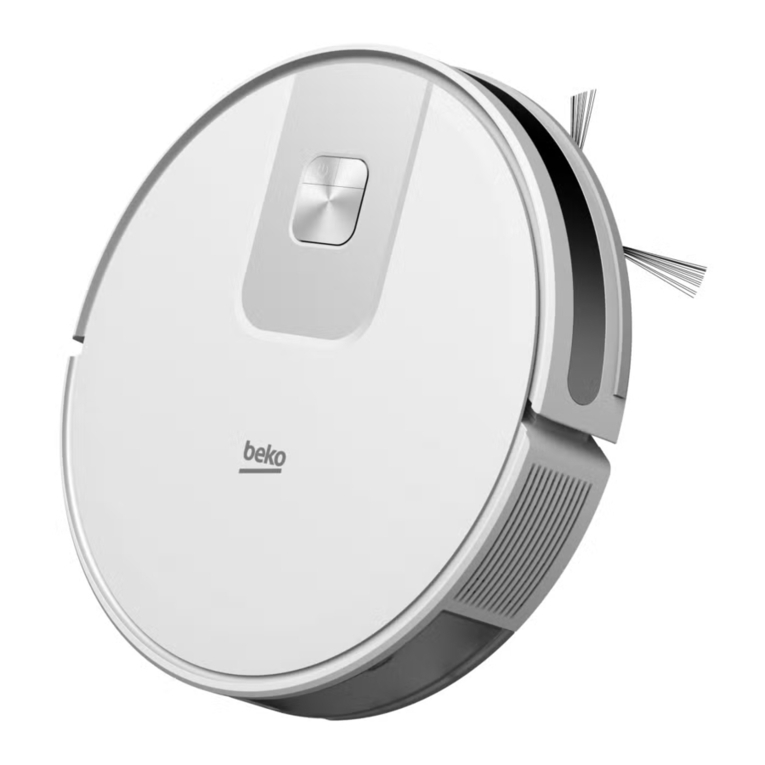

Beko VRR 60314 VW Manuel utilisateur

Beko

Beko VRT 60221 VD Manuel utilisateur

Beko

Beko 01M-8814353200-2621-03 Manuel utilisateur

Beko

Beko 01M-8817043200-4720-06 Manuel utilisateur

Beko

Beko VCC 44822 AD Manuel utilisateur

Beko

Beko RS 2121 Manuel utilisateur

Beko

Beko BKS 9220 T Manuel utilisateur

Beko

Beko VCO 42701 AB Manuel utilisateur

Beko

Beko VCC 6480 T Manuel utilisateur

Beko

Beko 01M-8815993200-0719-01 Manuel utilisateur

Beko

Beko VCW 70340 W Manuel utilisateur

Beko

Beko 01M-8833043200-2517-05 Manuel utilisateur

Beko

Beko VCO 62602 AB Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
