Beko B5T69253W Manuel utilisateur

B5T69253W

B5T69233MG

B5T69253MG

2960313733_EN/230523.1442

Dryer

User Manual

This product was manufactured using the latest technology in environmentally friendly conditions.

Dear Customer,

Please read this guide prior to use this product!

Thank you for choosing Beko product. We would like you to achieve the optimal efficiency from

this high quality product which has been manufactured with state of the art technology. Please

make sure you read and understand this guide and supplementary documentation fully before use.

Observe all warnings and information herein. Therefore you can protect both yourself and your

product against potential damages.

Keep the manual. Include this guide with the unit if you hand it over to someone else.

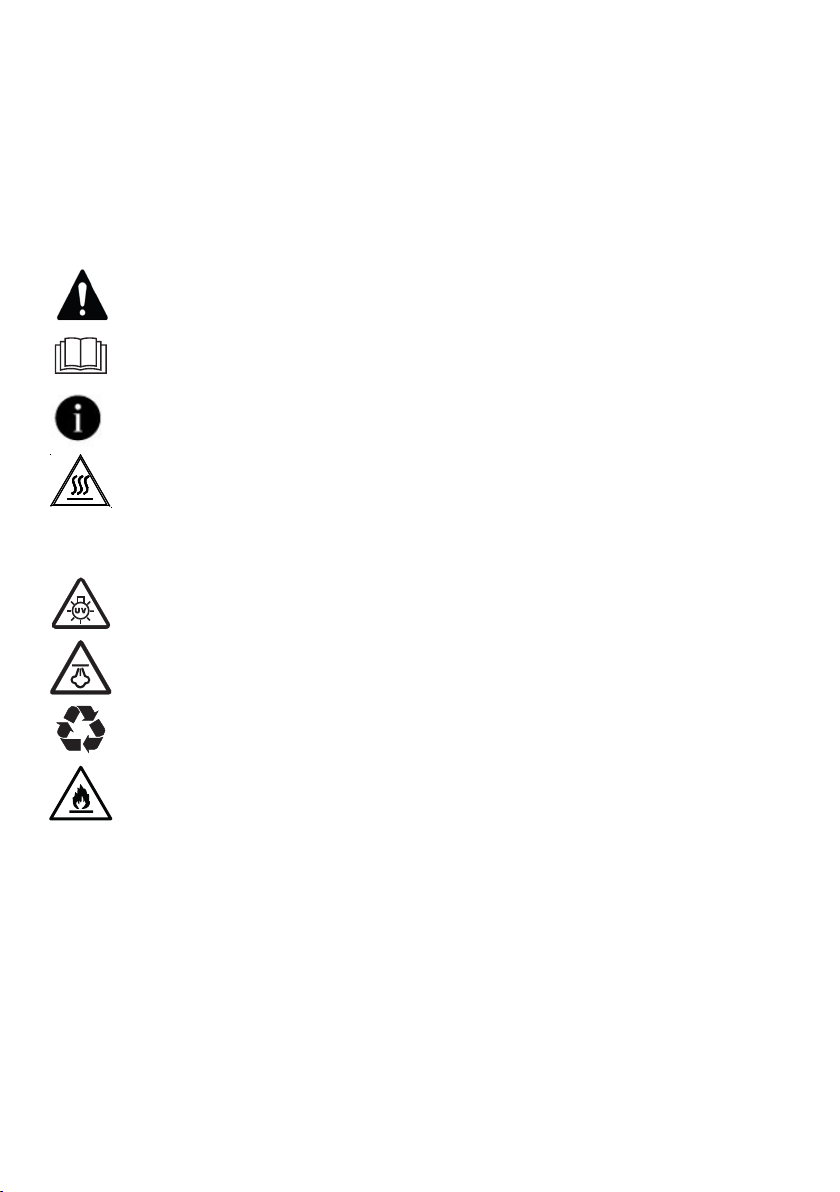

Symbols and Remarks

The following symbols are used in the user guide:

Danger that may cause death or injury

Read the manual

Important information or useful usage tips

Warning against hot surfaces

BWarning against electric shock

Warning against UV Radiation hazard

Warning against scalding

The product's packaging is made of recyclable materials, in accordance with the

National Environment Legislation.

Warning against fire

NOTICE Danger that may cause material damage on the product or surrounding area

1 Safety Instructions .................................................................................. 5

1.1 Intended use ........................................................................................................5

1.2 Safety of children, vulnerable persons and pets ....................................................5

1.3 Electrical Safety ....................................................................................................6

1.4 Transporting safety ...............................................................................................6

1.5 Installing safety .....................................................................................................7

1.6 Usage safety ........................................................................................................8

1.7 Maintenance and cleaning safety........................................................................10

1.8 Lighting safety ....................................................................................................10

2 Environmental instructions.................................................................... 11

2.1 Compliance with the WEEE Regulations and Waste Disposal .............................11

2.2 Packaging information ........................................................................................11

2.3 Standard conformity and test information / EU declaration of conformity ............11

3 Your drying machine .............................................................................. 12

3.1 Technical specifications ......................................................................................12

3.2 General appearance ...........................................................................................13

3.3 Scope of delivery................................................................................................13

4 Installation............................................................................................... 14

4.1 Right place for installation ...................................................................................14

4.2 Removing the shipping safety group...................................................................14

4.3 Connection of water drain hose on products with vapour feature........................15

4.4 Adjusting the stands ...........................................................................................15

4.5 Moving the drying machine.................................................................................16

4.6 Warning regarding the noise ...............................................................................16

4.7 Replacing the lighting bulb..................................................................................16

5 Preparation ............................................................................................. 17

5.1 Laundry suitable for drying in drying machine .....................................................17

5.2 Laundry not suitable for drying in drying machine ...............................................17

5.3 Preparing the laundry to be dried........................................................................17

5.4 What to do for energy saving..............................................................................17

5.5 Correct load capacity .........................................................................................18

6 Running the product ............................................................................. 19

6.1 Control Panel......................................................................................................19

6.2 Symbols .............................................................................................................19

6.3. Preparation of drying machine ...........................................................................19

6.4 Program selection and consumption chart..........................................................20

6.5 Auxiliary functions...............................................................................................23

6.6 Warning indicators..............................................................................................23

6.7 Starting the program...........................................................................................24

6.8 Child Lock ..........................................................................................................24

6.9 Changing the program after it is started..............................................................24

6.10 Cancelling the program.....................................................................................25

6.11 End of program ................................................................................................25

6.12 Odour feature ...................................................................................................25

6.13 General Description of Steam Programs ..........................................................25

7 Maintenance and cleaning .................................................................... 26

7.1 Lint filters (internal and external filters) / Cleaning of the Interior Surface of the

Loading Door ...........................................................................................................26

7.2 Cleaning the sensor ...........................................................................................27

7.3 Emptying the water tank.....................................................................................27

7.4 Cleaning the condenser......................................................................................28

8 Troubleshooting ..................................................................................... 30

Dryer / User Manual

1 Safety Instructions

This section includes the safety instructions necessary to prevent the risk of

personal injury or material damage.

• Our company shall not be held responsible for damages that may occur if

these instructions are not observed.

• Installation and repair operations shall always be performed by Authorized

Service.

• Use original spare parts and accessories only.

• Do not repair or replace any component of the product unless it is clearly

specified in the operation manual.

• Do not modify the product.

1.1 Intended use

• Product is designed only for household use. It is not intended for commercial

use.

• The product is not designed for outdoor use.

• Do not install or operate the product where freezing is a possibility and/or

vulnerable to external elements. Water frozen in the pump or the hoses may

cause damages

• Product can only be used to dry and ventilate laundry which are washed with

water and drying machine safe.

1.2 Safety of children, vulnerable persons and pets

• This product may be used by children aged 8 years and older and persons

with underdeveloped physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a the product safe way and the hazards

involved. Children should not tamper with the device. Cleaning and

maintenance should not be carried out by children unless they are supervised.

• Children under 3 years old shall be kept away from the product unless

supervised.

• Electrical products are dangerous for children and pets. Children and pets shall

not play with the product, climb on or get inside the product.

• Keep the product door closed even when not operated. Children or pets could

be locked inside the product and suffocate.

• Cleaning and user maintenance operations must not be performed by children

unless supervised.

6 Dryer / User Manual

• Keep the packaging materials away from children. Risk of injury and

suffocation.

• Keep all additives used with the product away from children.

• Before disposing of the product, cut the power cord and destroy the loading

door.

1.3 Electrical Safety

• The product must not be plugged in during installation, maintenance, cleaning,

repair and transporting operations.

• If the power the cord is damaged, it shall be replaced by authorized service to

avoid any risk that may occur.

• Do not tuck the power cord under the product or to the rear of the product.

Do not put heavy items on the power cord. Power cord shall not be kinked,

pinched and shall not come in contact with any heat source.

• Do not use an extension cord, multi-plug or adaptor to operate your product.

• The product shall not be powered via an external switch such as a timer or

shall not be connected to a circuit that is regularly opened and closed with a

tool.

• The plug shall be easily accessible. If this is not possible, a mechanism that

meets the electrical legislation and that disconnects all terminals from the

mains (fuse, switch, main switch, etc.) shall be available on the electrical

installation.

• Do not touch the plug with wet hands.

• When unplugging the appliance, don’t hold the power cord, but the plug.

1.4 Transporting safety

• Unplug the product prior to transport, empty the water tank and if any, remove

the water drain connections.

• This product is heavy, do not handle it by yourself.

• Take required precautions for the product against falling and tipping. Do not

crash or drop the product when transporting.

• Do not use the extruding parts of the product (such as the loading door) to

move the product.

• Move the product in upright position. If it cannot be moved upright, transport

via tilting to the right side when viewed from the front.

Dryer / User Manual

1.5 Installing safety

• To prepare the product ready for installation, ensure that the electrical

installation and water drain is proper by checking the information in the

user manual. If it is not suitable for installation, call a qualified electrician

and plumber to arrange the utilities as necessary. These operations shall be

undertaken by the customer.

• Check for any damage on the product before installing it. Do not have the

product installed if it is damaged.

• Do not remove the adjustable stand.

• Place the product on a level and hard surface and balance with the adjustable

legs.

• The gap between the product and the floor shall not be reduced via materials

such as rugs, pieces of wood and bands. The ventilation holes under the base

of the product shall not be clogged with a rug.

• The product shall be installed not to clog the ventilation holes.

• Install the product in an environment free of dust with good ventilation.

• Do not install the product in close proximity to flammable and explosive

materials and do not keep flammable and explosive materials near the product

when it is in operation.

• The product shall not be installed against a door, sliding door where the

product loading door cannot be completely opened, or behind a hinged door

where the product hinge is faced against the door’s hinges.

• Install the product where periodic maintenance and cleaning can be done with

ease.

• Place the product with its back surface to the wall (for heater models).

• After placing the product, ensure that the back wall does not come in contact

with any extrusion (a water tap, electrical outlet etc.).

• Place the product with at least 1 cm space between the product and the

furniture edges.

• Follow the flue connection rules specified in the guide (for models with flue).

• The exhaust air shall not be directed to flue which is used to exhaust the

smoke of devices that consume gas or other fuels (for models with flue).

• The ventilation hose shall not be connected to a heating stove or a chimney

flue (for models with flue).

• Plug the product to a grounded outlet protected with an appropriate fuse in

align with the specified type and current rates. Have an expert electrician set

grounding equipment. Do not use the product without a grounding conforming

with regional/national regulations.

8 Dryer / User Manual

• Plug the product in a grounded socket that conforms with the voltage, current

and frequency values specified in the type label.

• Do not plug the product to loose, broken, dirty, greasy sockets or sockets that

has come out their seats or sockets with a risk of water contact.

• The new hose sets supplied with the product shall be used. Do not re-use the

old hose sets. Do not make attachments to the hoses.

• Place the power cord and hoses not cause a risk of tripping over.

• To use the product on top of a washing machine, a fixing aperture shall

be used between two products. Fixing aperture shall be mounted by the

authorised service.

• When the product is placed on the washing machine, their combined weight

when full could be around 180 kg. Place the products on a sturdy floor that

can carry adequate amount of load.

• Washing machine cannot be placed on top of the drying machine.

Installation Table for Washing Machine and Tumble Dryer

Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine)

Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM≥45cm

Plastic - 46cm w or w/o belt 46cm TD --> WM≥54cm

With Shelf - 60cm 60cm TD --> WM≥50cm

With Shelf - 54cm 54cm TD --> WM≥45cm

1.6 Usage safety

• The maximum weight of dry laundry prior to washing is specified in “Technical

Specifications” section.

• Do not place the unwashed items in the drying machine.

• Items that are soiled with materials such as cooking oils, acetone, alcohol,

petrol, kerosene, stain removers, turpentine, wax or was removers shall be

washed in hot water with more amount of detergent prior to drying with the

drying machine.

• If chemicals are utilized for cleaning, the drying machine shall not be used.

• Rubber foam (latex foam), shower bonnets, water resistant textiles, rubber

supported materials and clothes, pillows with rubber foam pads shall not be

dried in a drying machine.

• The items with hair spray, hair product residue or similar materials shall not be

dried in a drying machine.

• Empty the pockets of the clothes and remove items such as matches and

lighters.

Dryer / User Manual

• If all items cannot be removed rapidly and cannot be placed where heat can

dissipate, do not stop the drying machine before drying cycle completed.

• The last part of the drying machine cycle is conducted without heating (cooling

cycle) in order to ensure that the items are kept at a temperature that will not

harm the items.

• Laundry softeners or similar products shall be used in align with the laundry

softener instructions.

• Do not use the drying machine without the fibre filter.

• Do not allow fibre accumulation around the drying machine.

• To prevent back draft of gas in the room from the devices that consume other

fuels, including open fire, appropriate ventilation shall be provided (for models

with flue).

• Do not operate the product together with heaters such as gas heater and a

chimney. It may cause the flue to catch fire. (for models with flue)

• Do not lean or sit on the loading door when it is open, the product may tip

over.

• Do not get on the product.

• Do not place a source of flame (candles, cigarettes, etc.) on the product or in

the vicinity of it. Do not keep flammable/explosive materials.

• Do not touch the drum as it revolves.

• The back wall of the product will be hot during operation. Do not touch

the back side of the product during drying or after the drying process is

completed. (For models with heating)

• Do not touch the inner surface of the drum while adding or removing clothes

during a continuing program. The drum surface is hot.

• Do not press the buttons with sharp objects such as forks, knives, with your

nails etc.

• Do not operate the faulty or damaged product. Unplug the product (or shut

down the connected fuse) and call the authorized service.

• Unplug the product when not in use.

• Do not place the dryer in the rain or severely wet areas.

10 Dryer / User Manual

1.7 Maintenance and cleaning safety

• Do not wash the product by spraying or pouring water on it. Do not use a

pressure cleaner, steam cleaner, hose or pressurised gun to clean the product.

• Do not use sharp or abrasive tools to clean the product.

• Do not use materials such as household cleaning agents, soaps, detergents,

gas, gasoline, alcohol, wax, etc. to clean the product.

• The fibre filter shall be regularly cleaned. After each drying cycle, clean the fibre

filter and the inner surface of the loading door.

• Clean the fibre accumulation on the fins of the evaporator behind the filter

drawer with a vacuum cleaner. You can clean by hand, provided you wear

protective gloves. Do not try to clean with bare hands. Evaporator fins may

damage your hands. (For products with heat pump)

• Due to fire and explosion hazard, do not use solutions, cleaning materials,

steel wool or similar materials and tools to clean sensors.

• Clean the flue. (for models with flue)

• Do not drink the condensed water.

1.8 Lighting safety

• Contact an authorized service when you need to replace the LED/bulb using

for lighting (for products with lighting).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Beko Séchoir

Beko

Beko HPD24414W Manuel utilisateur

Beko

Beko DH 7533 RXO Manuel utilisateur

Beko

Beko DPY 7504 XB1 Manuel utilisateur

Beko

Beko DTBC 9001 W Manuel utilisateur

Beko

Beko DH 10444 RX0 Manuel utilisateur

Beko

Beko B5T692343WBPB Manuel utilisateur

Beko

Beko DU10133GA0W Manuel utilisateur

Beko

Beko DHS 8412 GA0 Manuel utilisateur

Beko

Beko DS 7433 PXW Manuel utilisateur

Beko

Beko DH8544CSFRX Manuel utilisateur

Beko

Beko DPU 7305 XEL Manuel utilisateur

Beko

Beko DSV74W Manuel utilisateur

Beko

Beko DS 7533 CS RX1 Manuel utilisateur

Beko

Beko DRCS 76 S Manuel utilisateur

Beko

Beko 7188234430 Manuel utilisateur

Beko

Beko DCY 7402 GXB2 Manuel utilisateur

Beko

Beko DPU 8305 XEL Manuel utilisateur

Beko

Beko DS 7534 CSRX1 Manuel utilisateur

Beko

Beko BDP700W Manuel utilisateur

Beko

Beko DPS 7343 X Manuel utilisateur

Beko

Beko TR320 Manuel utilisateur

Beko

Beko DPY 8506 GXB1 Manuel utilisateur

Beko

Beko B5T68243WBDC Manuel utilisateur

Beko

Beko DA 7011 PA Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
