3 Your drying machine

3.1 Technical specifications

* Min. height: Height with the adjustable stand closed.

Max. height: Height with the adjustable stand opened at maximum height.

** Weight of dry laundry before washing.

*** Data plate is under the door on the drying machine.

In order to increase the drying machine’s quality, the technical specifications may be

changed without prior notice.

Figures in this manual are schematic and may not exactly match the product.

The values provided with the drying machine or its accompanying documents are

laboratory readings in accordance with the respective standards. These values may

differ depending on the use and ambient conditions.

Height (Min. / Max.) 84,6 cm / 86,6 cm*

Width 59,8 cm

Depth 60,9 cm

Capacity (max.) 10 kg**

Net weight (± %10) 35 kg

Voltage

See type label***Rated power input

Model code

Dryer / User manual

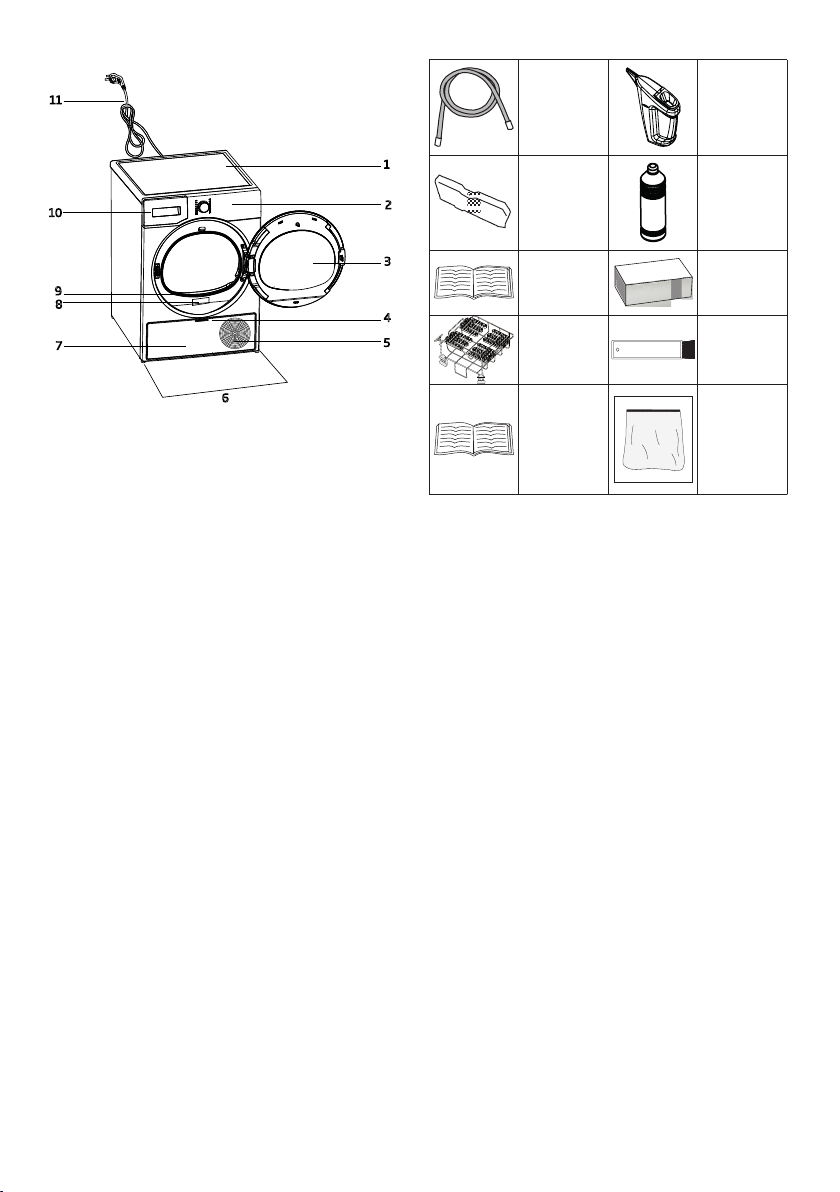

3.2 General appearance

1. Top panel

2. Control panel

3. Loading door

4. Toe board handle

5. Ventilation grids

6. Adjustable feet

7. Toe board

8. Rating plate

9. Lint filter

10. Water tank drawer

11. Power cord

3.3 Scope of delivery

1. Water

discharge

hose*

6. Water

filling cap*

2. Filter

drawer

spare

sponge*

7. Pure

Water*

3. User

Manual

8. Odour

Capsule

Group*

4. Drying

basket* 9. Brush*

5. Drying

basket user

manual*

10. Filter

cloth*

*Optional - may not be included, depends on

model.

16 Dryer / User manual

4 Installation

Read the “Safety Instructions” first!

Before consulting the nearest Authorized

Service for installing the drying machine, see

the information in the user guide and make sure

the electric and water utilities are as required. If

not, call an electrician and plumber to arrange

the utilities as necessary.

It is customer's responsibility to

prepare the location the drying

machine shall be placed on and

also have power and waste water

installation prepared.

4.1 Right place for installation

• Install the drying machine on a flat and

stable surface.

• Dryer machine is heavy. Do not move it by

yourself.

• Operate the drying machine in an

environment free of dust with good

ventilation.

• The gap between the drying machine and

the floor shall not be reduced via materials

such as rugs, pieces of wood and bands.

• Do not block the ventilation grilles of the

drying machine.

• There shall not be doors that can be

locked, sliding doors or hinged doors near

the installation environment of the drying

machine that may block the loading door

to be opened.

• Once the drying machine is installed,

the connections must stay stable. After

placing the drying machine, ensure that

the back wall does not come in contact

with any extrusion (a water tap, electrical

outlet etc.).

• Place the drying machine with at least 1

cm space between the product and the

furniture edges.

• Your drying machine is suitable to be

operated between +5°C to +35°C. If

operated outside this temperature range,

your drying machine’s operation may be

compromised and get damaged.

• The drying machine shall not be placed

with the back side against a wall.

BDo not place the drying machine on

its power cord.

4.2 Removing the

shipping safety group

WARNING!

Remove the shipping

safety group prior to

first use the product.

NOTICE

Do not leave an accessory or any

parts of the shipping safety group

inside the drum.

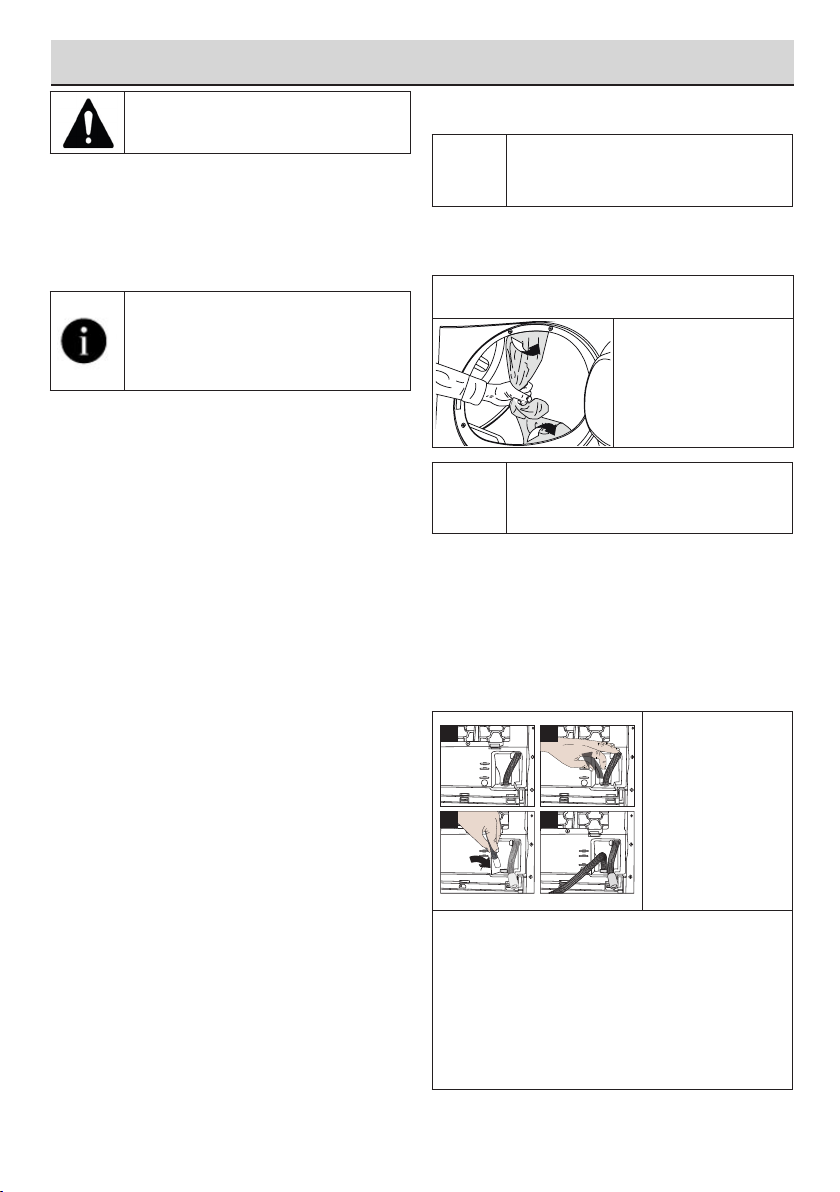

4.3 Water connection

Instead of periodically draining the water

accumulated in the water tank, you can

discharge via the water discharge hose

supplied with the drying machine.

Connecting the water

drainage hose

3 4

21-2 Remove the

hose behind the

drying machine

by pulling it

manually from

where it is

attached. Do

not use a tool

to remove the

hose.

3 Insert one end of the water discharge hose

supplied with the drying machine to where

you have removed the hose on the drying

machine.

4 Fix the other end of the water discharge

hose to directly waste water drainage or a

sink.

Dryer / User manual

NOTICE

The water discharge hose shall be

fixed at maximum 80 cm height.

Ensure that the water discharge

hose do not get kinked, collapsed

or pressed on between the

discharge and the drying machine.

Hose shall be connected not to

be disconnected from its location.

Leaked water may cause damage.

Do not extend the water drainage

hose.

Check whether the water runs at an

appropriate flow. The drainage line

shall not be closed or clogged.

If an accessory package is provided

with your product, check the

detailed instructions.

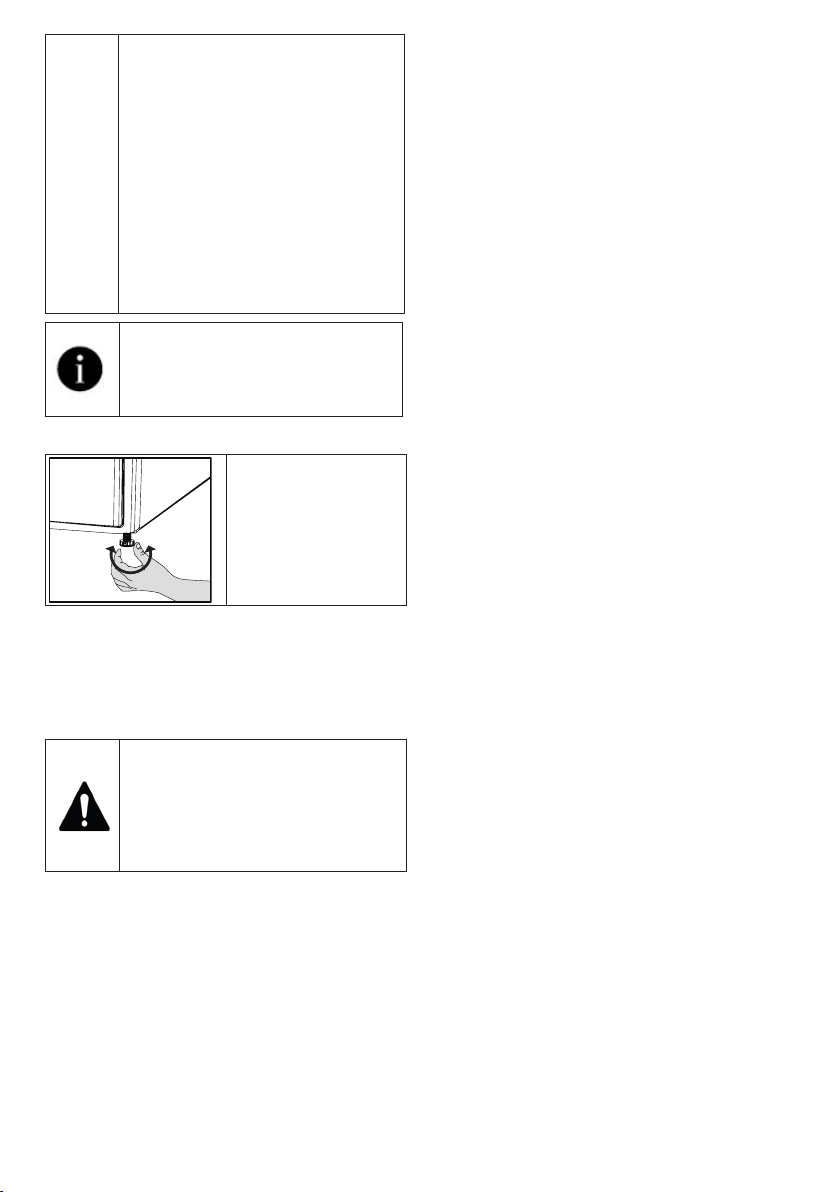

4.4 Adjusting the stands

Until the drying

machine stands level

and sturdy, adjust

the stands by turning

them left and right.

4.5 Moving the drying machine

• Drain the water in the drying machine

completely.

• If the product is connected via direct

discharge, remove the hose connections.

The drying machine is

recommended to be moved in

upright position. Otherwise, tilt it to

the right side when viewed from the

front and move the drying machine.

4.6 Replacing the lighting bulb

If your drying machine has drum lighting lamp;

Consult the authorized service to replace the

bulb/LED used in lighting your drying machine.

The bulb in this product is not suitable for home

lighting. The intended use of this lamp is to

ensure safely loading the laundry to the drying

machine. The lamps used in this appliance is

resistant to heavy physical conditions such as

temperatures over 50°C.

18 Dryer / User manual

Read the “Safety Instructions” first!

5.1 Laundry suitable for

drying in drying machine

NOTICE

Laundry that are not drying machine

safe may damage the appliance and

the laundry during drying. Follow

the instructions on the labels on the

laundry to be dried. Only dry the

laundry with “drying machine safe”

written on their labels.

Do not dry

with dryer

5.2 Laundry not suitable for

drying in drying machine

NOTICE

Undergarments with metal supports

shall not be dried in drying machine.

If these metal supports get loose

and ripped from the garment, it may

damage the machine.

Delicate embroidery textiles, cotton

and silk garments, garments

manufactured from delicate and

valuable textiles, non breathing

garments and tulle curtains shall not

be dried in drying machine.

5.3 Preparing the

laundry to be dried

NOTICE

Items such as coins, metal parts,

needles, nails, screws, stones etc.

may damage the drum group of the

product or may cause functional

operation issues. Therefore check

all laundry that will be loaded to the

product.

Dry the laundry with metal

accessories such as zippers by

turning them inside out.

Close the zippers, hooks and

clasps, button up the covers’

buttons, tie textile belts and apron

belts.

5.4 What to do for energy saving

• Use the highest possible wringing option

as you wash the laundry. Therefore you

can reduce the drying period and reduce

energy consumption. Sort the laundry

based on their types and thickness.

Dry same types of laundry together. For

instance kitchen towels and table cloths

dry faster than bathroom towels.

• Follow the recommendations in the user

manual for program selection.

• During drying do not open the loading

door unless necessary. If you are required

to open the loading door, do not keep it

open for too long.

• Do not add wet laundry as the drying

machine operates.

• Clean the Fibre Filter before and after

each drying session.

• For condensation models, be sure to

clean the condenser at least once a

month or after each 30 drying sessions.

• Make sure the filters are clean. Refer to

maintenance and cleaning for details.

• For models with flue, follow the flue

connection rules specified in the guides

and clean the flue.

• During drying session, properly ventilate

the environment in which the drying

machine is in.

• On models with heat pump, check the

condenser at least every six months and

clean it if it is dirty.

5 Preparation

Dryer / User manual

• If you are using environment friendly filter,

you are not required to clean the filter

after every cycle. When the environment

friendly icon is lit on the screen, change

the filter cloth.

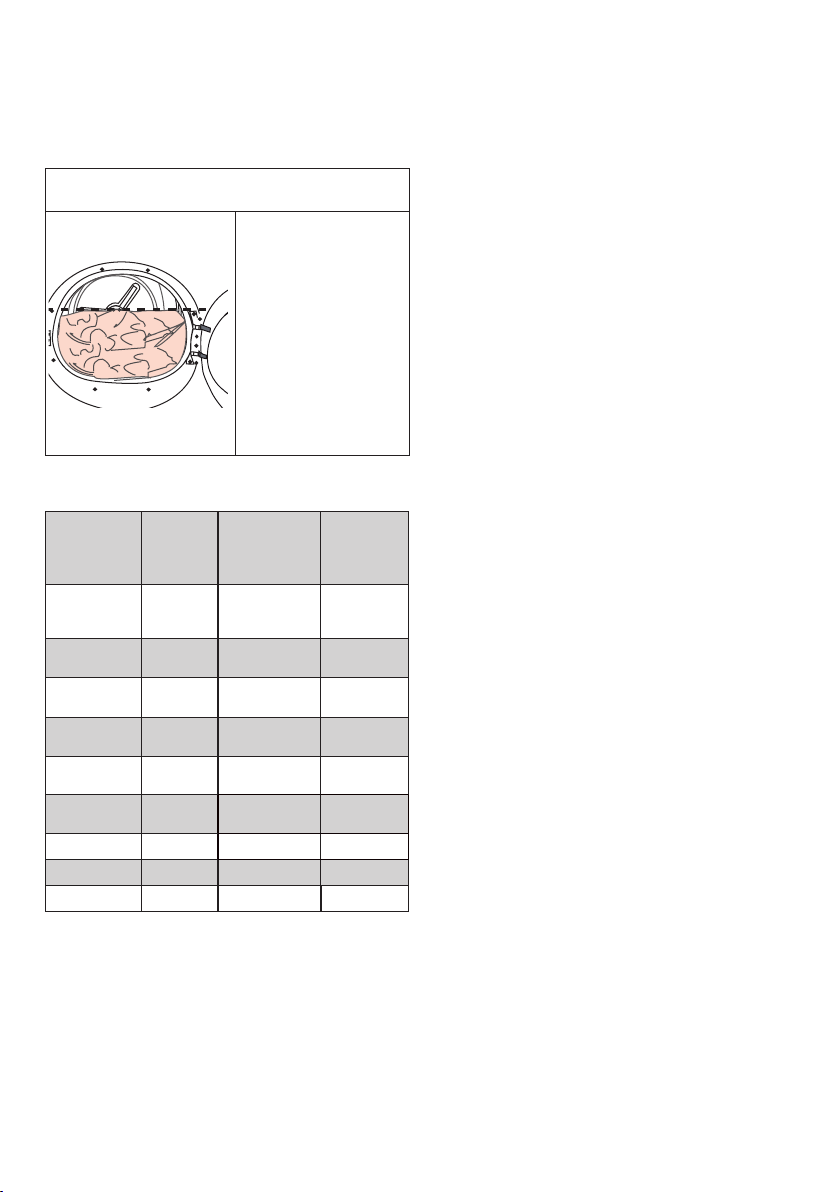

5.5 Correct load capacity

NOTICE

If the laundry in the

product exceed

maximum load

capacity, it may not

operate as intended

and may cause

material damage or

damage the product.

For each program,

follow the maximum

load capacity.

The weights below are provided as examples.

Laundry

Approx.

weight

(g)*

Laundry Approx.

weight (g)*

Cotton

bedding

(double size)

1500 Cotton dress 500

Bedding

(single size) 1000 Dress 350

Bed sheet

(double size) 500 Denim 700

Bed sheet

(single size) 350 Handkerchief

(10 pcs) 100

Large table

cloth 700 T-Shirt 125

Small table

cloth 250 Blouse 150

Tea napkin 100 Cotton shirt 300

Bath towel 700 Shirt 200

Hand towel 350

*Weight of dry laundry before washing.

20 Dryer / User manual

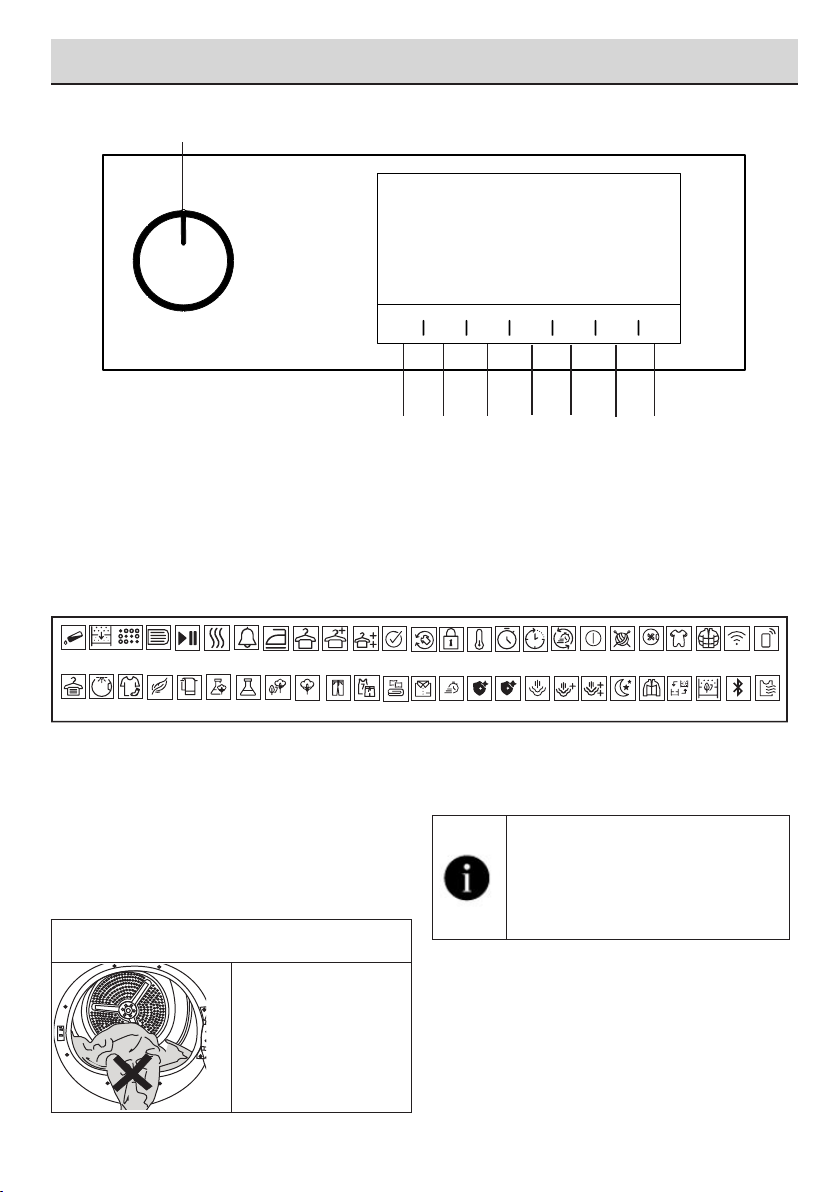

6.1 Control Panel

6 Running the product

1. On/Off/Program Selection button.

2. Start / Stand-by button.

3. End time selection button.

4. Time program selection button.

5. Low temperature selection button.

6. Audible warning and child lock selection

button.

7. Wrinkle prevention selection button/ Drum

light button.

8. Dryness level selection button.

6.2 Symbols

6.3. Preparation of

drying machine

• Plug the drying machine.

• Open the loading door.

• Place the laundry to the drying machine

without jamming them.

• Push and close the loading door.

NOTICE

Ensure that no

laundry is jammed to

the loading door.

Do not close the

loading door with

force.

• Select the desired program by using

On/Off/Program Selection button, the

machine will turn on.

Selecting the program with the On/

Off/Program Selection button does

not mean that the program started.

Press Start / Stand-by button to

start the program.

Filter

cleaning

Tank

full

Filter drawer /

Heat exchanger

cleaning

Start

pause

cancel

Iron Dry

Drying Buzzer Cupboard

Dry

Cupboard

Dry +

Extra dry End Anti-

creasing

Child-proof

lock

Low

temperature

TimeDry Ending In RapiDry

Drum

Light

Dryness

Level

Daily Delicates Synthetics

Towels Mix Cottons

Eco

Cottons Jeans Sport Bedding/

Duvet

Shirts Express Hygienic

Drying

Hygienic

Refresh

Steam Steam

Level1

Steam

Level2

On / O Wool Protect

Night

Freshen

Outdoor

Hygiene

(Baby Protect+)

Environmentally

friendly lter full

Environmentally

friendly lter

Downwear Wi Remote

Control

Bluetooth Gentle

Dry

Dryer / User manual

6.4 Program selection and consumption chart

Programmes Programme Description

Capacity (kg)

Spin speed in

washing machine

(rpm)

Drying Time

(minutes)

Cottons

You can dry your heat-resistant cotton textiles

with this programme. A drying setting suitable for

the thickness of the products to be dried and the

desired level of dryness should be selected.

10 1000 170

Cottons Eco It dries single layer, casual cotton textiles in the

most economical way. 10 1000 165

Cottons Iron dry

You may dry your cotton laundry to be ironed in

this program to have them slightly damp for ease

of ironing. (Shirt, T-shirt, tablecloth, etc.)

10 1000 125

Synthetics

You can dry all your synthetic textiles with this

programme. A drying setting suitable for the level

of dryness you desire should be selected.

4 800 65

Mix

Use this programme to dry non-pigmenting

synthetic and cotton laundry items together.

Sports and fitness clothes may be dried with this

program.

4 1000 83

Towel Drying towels such as kitchen towel, bath towel

and hand towel. 5 1000 110

GentleCare

You may dry your delicate laundry or laundry

with hand wash symbol (silk blouses, thin

underwear, etc.) at low temperature in this

program.

2 1200 35

Sports

You can dry your single-layer sportswear for daily

use made of synthetic, cotton or mixed fabrics

with this program.

4 1000 60

Freshen up

It just provides airing for 10 minutes without

any hot air. You can air the cotton and linen

laundry that are kept closed for a long time , and

eliminate the odour in them.

- - 10

Timer Programme

You may select from time programmes

between 10 and 160 minutes to achieve the

desired drying level at low temperature. In this

programme, tumble drier’s operation lasts for

the set time independently from the dryness of

laundry.

- - -

Jeans You may dry denim pants, skirts, shirts or jackets

in this program. 4 1200 80

22 Dryer / User manual

* : Energy Label standard program EN 61121The values in the table are determined according to

the EN 61121 standard. Consumption values may vary from the valued in the chart depending on

laundry type, wringing speed, ambient conditions and voltage levels.

Outdoor

You can dry your multi-layer textile products

made of synthetic, cotton or mixed fabrics used

for outdoor activities and outdoor sports with this

program.

2 1000 60

Daily

You can dry both cotton and synthetic laundry

with this programme.Sports and fitness clothes

may be dried with this program.

4 1000 83

Shirts It dries the shirts in a more sensitive manner, and

causes less creasing and easier ironing. 1,5 1200 35

Express Super Short Use this program to have 2 shirts ready for

ironing. 0,5 1200 15

Hygiene

It is a long-term program that you can use for the

clothes (baby clothes, towels, underwear, etc.

cotton) you require hygeine. Hygiene is provided

with high temperature. It is especially suitable for

durable fabrics. ((This program is identified and

approved by England’s “The British Foundation”

(Allergy UK).))

5 800 105

Energy consumption values

Programmes Capacity (kg)

Spin speed in

washing machine

(rpm)

Approximate

amount of remaining

humidity

Energy consumption

value kWh

Cottons Eco * 10 1000 60% 5,72

Cottons Iron dry 10 1000 60% 4,70

Synthetics cupboard dry 4 800 40% 2,10

“Cottons Eco programme” used at full and partial load is the standard drying programme to which

the information in the label and the fiche relates, that this programme is suitable for drying normal

wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for

Cottons.

“If you regularly dry the 10 Kg maximum load of Cottons we suggest to connect the drain hose to

prevent the dryer stopping mid-cycle in order to empty the tank” (see Section “Connection to the

drain”)

Autres manuels pour B3T41011DW

Table des matières

Autres manuels Beko Séchoir

Beko

Beko DS9426CX Manuel utilisateur

Beko

Beko B5T42243 Manuel utilisateur

Beko

Beko DPS 7405 GB5 Manuel utilisateur

Beko

Beko DTGV 8000W Manuel utilisateur

Beko

Beko DRYPOINT MDe 2 Guide de l'utilisateur

Beko

Beko DH 10412 RX Manuel utilisateur

Beko

Beko DRYPOINT RAX 600-5000 NA Guide de l'utilisateur

Beko

Beko DS 7433 GA0W Manuel utilisateur

Beko

Beko DCU 7230 Manuel utilisateur

Beko

Beko DPY 7405 GXB2 Manuel utilisateur

Beko

Beko DPU 7305 XEL Manuel utilisateur

Beko

Beko DPY 8506 GXB1 Manuel utilisateur

Beko

Beko MDS 8412RX Manuel utilisateur

Beko

Beko DSV64W Manuel utilisateur

Beko

Beko DPY 7504 XB1 Manuel utilisateur

Beko

Beko DCU 8235 BXT Manuel utilisateur

Beko

Beko DRYPOINT M PLUS DM 10-34 Guide de l'utilisateur

Beko

Beko DTGC 7001 RW Manuel utilisateur

Beko

Beko DPU 7440 Manuel utilisateur

Beko

Beko B3T42242 Manuel utilisateur

Beko

Beko DCU 8330 Manuel utilisateur

Beko

Beko DRYPOINT RAX 200 NA 3PH UL Guide de l'utilisateur

Beko

Beko DC 7430 Manuel utilisateur

Beko

Beko BDP810W Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
