BEING L Series Mode d'emploi

PGROGRAMMING UIDE

LCD CONTROLLER

L Series

PROG STEP

SET

RUN

8888

888

Controller used on the following product

BOF/BON Drying Ovens

BIT/BIF Heating Incubators

BIC Cooling Incubators

BOV Vacuum vensO

BWB Water Bath

User Edition

BEING Scientiﬁc Inc. User Edition

1.0 INTRODUCTION

This programming guide provides the user of the following BEING laboratory instruments the

ability to change the backlit LCD controller’s internal parameters to allow the instrument to

work more effectively and efﬁciently for your operation, process, or experiment.

BIF-16, -35, -55, -120, -200, -400

Mechanical Convention Incubators

BIT-16, -35, -55, -120, -200

Natural Convention Incubators

BIC-60, -120, -250

Cooling incubators

BOF-30, -50, -120, -200, -400

Mechanical Convention Drying Ovens

BON-30, -50, -115, -200

Natural Convention Drying Ovens

BOV-20, -50, -90

Vacuum Ovens

BWB-05, -12, -22

General Purpose Water Bath

2.0 TABLE OF CONTENTS

Safety Messages ................................................................................................................................. 03

Controller elements overview ............................................................................................................. 04

Changing temperature unit of measurement ..................................................................................... 05

Calibration after unit of measurement change ............................................................................ 06 - 07

What is a multi-step program ............................................................................................................. 08

Turn on/off multi-step programs ......................................................................................................... 09

Programming multi-step programs ..................................................................................................... 10

Selecting multi-step program to run ................................................................................................... 11

Setting up program cycling ................................................................................................................. 12

Setting up RUN delay — ﬁxed value (single-step) programs ............................................................ 13

Setting up RUN delay — multi-step programs ................................................................................... 14

Changing power-up mode .................................................................................................................. 15

Internal parameters overview ...................................................................................................... 16 - 17

BEING Scientiﬁc Inc.

User Edition 03

Safety Messages

Safety Message

Be sure that you are completely familiar with the safe operation of each BEING series. This unit may be connected to other

machinery, such as a vacuum pump. Improper use can cause serious or fatal injury.

Installation and repair procedures require specialized skills with laboratory equipment and electricity. Any person that installs

or repairs this unit must have these specialized skills to ensure that this unit is safe to operate. Contact BEING Instrument,

Inc. or their local authorized distributor for repairs or any questions you may have about this unit’s safe installation and

operation.

The precaution statements are general guidelines for the safe use and operation of these instruments. It is not practical to list

all unsafe conditions. Therefore, if you use a procedure that is not recommended in this programming guide, you must determine

if it is safe for the operator and all personnel in the proximity to the instrument. If there is any question of the safety of a procedure,

please contact BEING Instrument before starting or stopping the instrument.

This equipment contains high voltages. Electrical shock can cause serious or fatal injury. Only qualiﬁed personnel should

attempt the startup procedure or troubleshoot this unit.

• Documentation must be available to anyone that operates this equipment at all times.

• Keep non-qualiﬁed personnel at a safe distance from this unit.

• Only qualiﬁed personnel familiar with the safe installation, operation, and maintenance of this unit should attempt start-

up or operating procedures.

• Always stop the instrument before making or removing any connections.

Symbols used in this Programming Guide

The following signal word panels, safety symbols, and non-safety symbols are used to alert you to potential personal injury hazards

or information of importance. Obey all safety messages that follow these symbols to avoid possible personal injury or death.

• Signal word panels

Signal word panels are a method for calling attention to a safety messages or property damage messages and designate a

degree or level of hazard seriousness. It consists of three elements: a safety alert symbol, a signal word and a contrasting

rectangular background. The following signal word anels are in accordance with ANSI Z535.4-2111 (R2017) and ISO

3864 standards.

• Safety symbols

Safety symbols are graphic representations—of a hazard, a hazardous situation, a precaution to avoid a hazard, a result

of not avoiding a hazard, or any combination of these messages—intended to convey a message without the use of

words. The following safety symbols are used in this quick start guide.

Indicates a hazardous situation which, if not

avoided, may result in minor or moderate injury.

Mandatory Warning

Prohibition

General alert. Mandatory action.

Wear protective gloves.

Safety Alert Symbol. General caution.

Do not touch ﬂuid.

Hot Surface

BEING Scientiﬁc Inc. User Edition

PROG STEP

SET

RUN

8888

888

Run ON Audible Alarm Disabled

Keys

Visible Alarm

Temperature Setpoint

Actual Temperature

Countdown Timer (HH:MM)

Heat ON

Program Number

Step Number

(-)08

(-)18 (99 hours, 99 minutes maximum)

Cooling ON

Fan ON w/Speed Indication

Water Level

SETTING SHIFT DECREASE INCREASE RUN/STOP

PROG Area: Displays the program working or setting group. Controller is

capable of programming and storing up to 8 programs.

STEP Area: Displays the number of the step within a program. There are 9

steps available for each program.

TIME Area: Displays the running time or parameter value.

TEMP Area: Displays the measured (actual) temperature within the unit’s

chamber. Also, displays the ambient room temperature when requested.

SET Area: Displays the temperature setpoint.

RUN: Illuminates when the unit’s program is working. Turns off when

program is stopped.

HEAT: Arrows illuminate and blinks when the unit’s heater is on. Turns off

when heating elements are off.

COOLING: Snowﬂake illuminates and blinks when the unit’s cooling is on.

Turns off when cooling system is off. Series BIC only.

FAN: Fan blades illuminate and blinks when the unit’s circulation fan is on.

H (high), M (medium), and L (low) indicate the fan speed. Turns off when

fan is off. Series BIF, BIC, and BOF only.

Water Level: Indicates high and low water bath levels.

Visible Alarm: Illuminates when the program has completed, has been

stopped by user, or when an over temperature condition occurs. Addition-

ally, when the visible alarm illuminates an audible alarm will start.

Audible Alarm Disabled: Illuminates when the user presses any key or

when the unit’s power is turned off.

Keys

SETTING: Starts the programming of the temperature and run time.

Accepts the temperature and run time values.

SHIFT: For changing the parameter value being set and viewing ambient

temperature.

DECREASE: Used for setting parameter value, modiﬁcation of various

values, or start/stop auto-tuning.

INCREASE: Used for setting parameter value, or press and hold for more

than 2 seconds to view the remaining program time.

RUN/STOP: Press for 2 seconds to run or stop the controller.

Controller Element Overview

BEING Scientiﬁc Inc.

User Edition

STEP 1: Enter Level 3 of controller internal parameters

Press the SETTING and SHIFT keys for 3 seconds to

enter the controller’s internal parameter settings.

Time area will change and ﬁrst digit will blink.

Temperature setpoint must be changed manually.

Units are shipped with the temperature measurement set to

Celsius (OC). Parameter CF=0000.

Changing Temperature Unit of Measurement

STEP 2: Enter Level 3 code LK=0088

STEP 3: Scroll to parameter CF

STEP 4: Change parameter CF

STEP 5: Set parameter and return to standard state

Press the INCREASE key to enter the ﬁrst code digit.

Press the SHIFT key to move to the second code

digit. Digit will blink. Press the INCREASE key to

enter the second code digit.

Press the SETTING key to enter the Level 3 controller

parameters.

First available parameter will appear.

Press the SETTING key 15 times to scroll through

parameters until the parameter CF appears.

Press the INCREASE or DECREASE key to change

the ﬁrst digit.

CF=0000 Celsius (OC)

CF=0001 Fahrenheit (OF)

Press the SETTING key 2 times to set parameter

CF and return to standard state.

Upon changing the temperature unit of measure-

ment, the present value (PV) temperature will

change its value.

STEP 7: Scroll to parameter Ht

STEP 8: Change parameter Ht

Press the SETTING key 11 times to scroll through

parameters until the parameter CF appears.

Press the INCREASE or DECREASE key to

change the ﬁrst digit. Press the SHIFT key

to move to the second or third digit. Press

the INCREASE or DECREASE key to change

setting.

Ht=0300 Celsius (OC)

Ht=0572 Fahrenheit (OF)

STEP 6: Repeat Steps 1 and 2

STEP 9: Set parameter and return to standard state

Press the SETTING key 6 times to set parameter Ht and return to standard state.

BEING Scientiﬁc Inc. User Edition

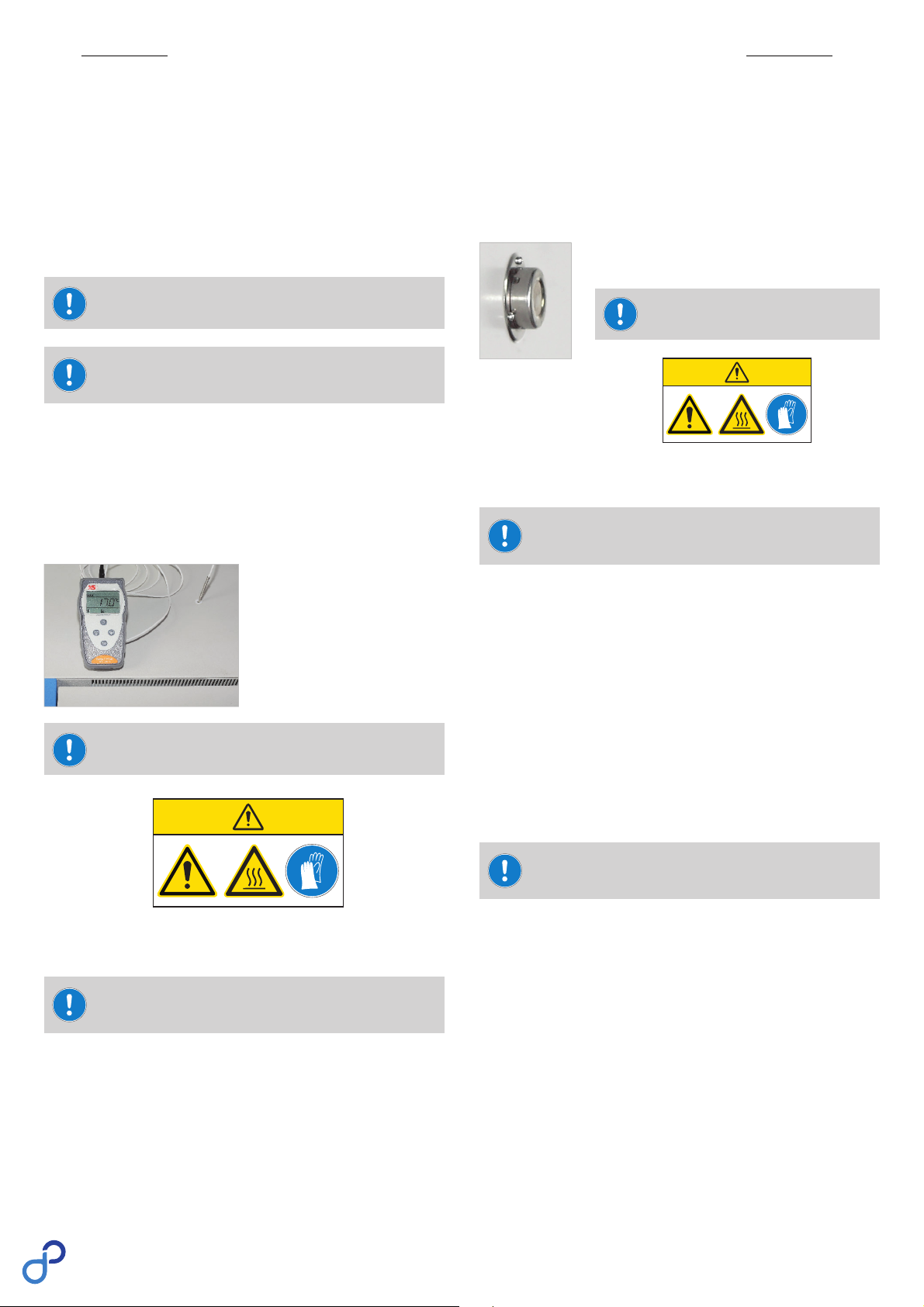

Calibration After Unit of Measurement Change

Check the instrument’s chamber temperature after

changing the unit of measurement to ensure the

controller is measuring it accurately.

Tools Needed:

A remote-monitoring thermocouple thermometer with a

NIST-traceable calibration certiﬁcate.

Compare the thermometer’s and probe’s temperature ratings against

the series operating range to ensure compatibility.

Series BOV: A ribbon lead thermocouple is required so as not to damage

the door seal. Additionally, the lead’s and probe’s materials must be

rated for temperatures up to ambient + 200OC (ambient + 392OF).

Thermometer probe’s outer diameter must be less than 5mm.

Make sure thermometer is stable. Then record the set temperature

(SV1 & SV2), present measured value (PV1 & PV2), and thermometer

reading (TV1 & TV2).

Series BIF, BIT, BOF, and BON

Series BIC

Series BOV

STEP 1: Place test materials in chamber, set program,

and press run for 3 seconds.

STEP 2: Insert thermometer probe into test hole.

Upon reaching the set temperature,

insert thermometer probe into the

test hole.

STEP 3: Run test again at a second set temperature

(SV2) at least 10OC (18OF) greater than the ﬁrst.

STEP 4: Compare thermometer readings to set and

present temperatures. If SV1≠PV1≠TV1 or

SV2≠PV2≠TV2, move to STEP 5.

STEP 1: Place test materials in chamber, set program,

and press run for 3 seconds.

The test hole / accessory port is Ø25mm and

located on the right side of the incubator.

Upon reaching the set temperature and opening the test

hole, insert thermometer probe into the test hole.

Make sure thermometer is stable. Then record the set temperature

(SV1 & SV2), present measured value (PV1 & PV2), and thermometer

reading (TV1 & TV2).

STEP 3: Run test again at a second set temperature

(SV2) at least 10OC (18OF) greater than the ﬁrst.

STEP 4: Compare thermometer readings to set and

present temperatures. If SV1≠PV1≠TV1 or

SV2≠PV2≠TV2, move to STEP 5.

STEP 2: Open test hole / accessory port and insert

thermometer probe into test hole.

STEP 1: Place test materials in chamber. Place

temperature probe in the center of the chamber.

Close and lock door. Set program and press

run for 3 seconds.

Make sure thermometer is stable. Then record the set temperature

(SV1 & SV2), present measured value (PV1 & PV2), and thermometer

reading (TV1 & TV2).

STEP 2: Run test again at a second set temperature

(SV2) at least 10OC (18OF) greater than the ﬁrst.

STEP 3: Compare thermometer readings to set and

present temperatures. If SV1≠PV1≠TV1 or

SV2≠PV2≠TV2, move to STEP 4.

BEING Scientiﬁc Inc.

User Edition 07

STEP 4/5: Perform the following calculations to deter-

mine Pb and PK.

Series BWB

STEP 1: Fill chamber. Place test materials in chamber.

Close chamber cover. Set program and press

run for 3 seconds.

Make sure thermometer is stable. Then record the set temperature

(SV1 & SV2), present measured value (PV1 & PV2), and thermometer

reading (TV1 & TV2).

STEP 3: Run test again at a second set temperature

(SV2) at least 10OC (18OF) greater than the ﬁrst.

STEP 4: Compare thermometer readings to set and

present temperatures. If SV1≠PV1≠TV1 or

SV2≠PV2≠TV2, move to STEP 5.

STEP 2: Upon reaching set temperature, oven chamber

cover. Insert the thermometer probe into the

center of bath.

The Math

For example:

SV1= 37OC TV1 = 36OC

SV2= 50OC TV2 = 48OC

Full Scale Adjustment (Slope)

PK = {[(TV2-TV1) ÷ (SV2-SV1)] - 1} x 4000

PK = {[(48-36) ÷ (50-37)] - 1} x 4000

PK = -308

Zero Adjustment (Intercept)

Pb = TV2 - {[PK ÷ (4000 ÷ SV2)] + SV2}

Pb = 48 - {[-308 ÷ (4000 ÷ 50)] + 50}

Pb = 1.9

STEP 5/6: Enter Level 2 of controller internal parameters

Programming Correction

Press the SETTING and SHIFT keys for 3 seconds to

enter the controller’s internal parameter settings.

Time area will change and ﬁrst digit will blink.

SET

00 Blink

STEP 6/7: Enter Level 2 code. LK=0003

STEP 7/8: Change parameter Pb

Press the INCREASE key to enter the code digit.

Press the SETTING key to enter the Level 2 controller

parameters.

The tM parameter will appear. Press the SETTING

key 3 times to scroll through parameters until the

parameter Pb appears.

Press the INCREASE or DECREASE key to

change the ﬁrst digit. Press the SHIFT key

to move to the second digit. Digit will blink.

Press the INCREASE key to enter the second

digit. Continue until parameter is set.

Press the SETTING key 1 time to move to the

PK parameter.

SET

00 Blink

STEP 8/9: Change parameter PK

Press the INCREASE key to change the ﬁrst

digit. Press the SHIFT key to move to the

second digit. Digit will blink. Press the

INCREASE key to enter the second digit.

Continue until parameter is set.

Press the DECREASE key immediately if you

want a negative parameter value.

Press the SETTING key 2 times to set parameter

PK and return to standard state.

BEING Scientiﬁc Inc. User Edition

What is a Multi-step Programs

Target Temp 1

Running Time 1

Target Temp 1

Target Temp 2

Target Temp 3

Room Temp

Step 1Start

Climb Time 1 Climb Time 2 Climb Time 3

Step 2 Step 3

Target Temp 2

Running Time 2

Target Temp 3

Running Time 3

M-T TULTI EMPERATURE ESTING

Legend

Target temp: The temperature you want it to run as planned. (Input / set temperature)

Climb time: The time it takes to reach your target temperature setting. The temperature rise rate will be controlled automatically based on the controller’s settings. The

step’s run time will not start counting down until the chamber reaches ±0.5 OC / OF of the set temperature.

Running time: The time you want the chamber to run at the set temperature. The controller automatically launches the next step when time runs out unless it is the last step

in the program then the unit shuts down and the audible and visual alarm goes off.

Numerous applications — like materials testing, quality assurance, environmental simulation, and many more — in

many industries require precise, multi-temperature (heating or cooling) testing.

BEING’s L Series controller allows the user to easily program up to 8 multi-step (multi-temperature) programs with

up to 8 steps (temperature and run time) per program. Each program can be cycled from 1 to 99 times.

The following chart shows a 3-step program, where for example, Step 1 is 25OC for 60 minutes, Step 2 is 99OC for 45

minutes, and Step 4 is 199OC for 99 minutes.

Programs

PROG O - Fixed Value and Time

PROG 1 - Multi-step, Step 1 to Step 8

PROG 2 - Multi-step, Step 1 to Step 8

PROG 3 - Multi-step, Step 1 to Step 8

PROG 4 - Multi-step, Step 1 to Step 8

PROG 5 - Multi-step, Step 1 to Step 8

PROG 6 - Multi-step, Step 1 to Step 8

PROG 7 - Multi-step, Step 1 to Step 8

PROG 8 - Multi-step, Step 1 to Step 8

BEING Scientiﬁc Inc.

User Edition 09

Turning On/Off Multi-step Programs

STEP 1: Enter Level 4 of controller internal parameters

Press the SETTING and SHIFT keys for 3 seconds to

enter the controller’s internal parameter settings.

Time area will change and ﬁrst digit will blink.

Upon initializing the unit for the ﬁrst time, user needs to set the

temperature and time for each step in a program.

Units are shipped with the controller set to ﬁxed value

(single-step) programs. Parameter Mo=0000.

STEP 2: Enter Level 4 code. LK=8286

STEP 3: Change parameter Mo

STEP 4: Set parameter and return to standard state

Press the INCREASE key to enter the ﬁrst

code digit. Press the SHIFT key to move to the

second code digit. Digit will blink. Press the

INCREASE key to enter the second code digit.

Follow the same procedure for the third and

fourth code digits.

Press the SETTING key to enter the Level 4 controller

parameters.

The Mo parameter will appear.

Press the INCREASE or DECREASE key to change

the ﬁrst digit.

Mo=0000 Fixed value (Single-step) program

Mo=0001 Multi-step programs

Press the SETTING key 1 time to set parameter Mo

and return to standard state.

Upon changing to multi-step progams, the controller

screen will change to PROG 1.

BEING Scientiﬁc Inc. User Edition

Programming Multi-step Programs

STEP 1: Select program number to set up

Press the INCREASE key to select the

program number to program.

STEP 2: Set the STEP temperature

STEP 3: Set the STEP run time

Press the INCREASE or DECREASE key

to enter the tenths temperature value.

Press the SETTING key to accept the

run time.

The next program step will appear.

The tens temperature value will blink.

Upon setting all of the steps, the controller will

return to multi-step program standard state.

Press the SETTING key to accept

temperature setpoint. The ﬁrst TIME

digit will blink.

Units are shipped with the controller initially set to PROG 1

when multi-step programs are turned on. If multi-step

programs are turned off and later turned on, the last

program run or selected will be displayed.

Press the SETTING key for 3 seconds. The “PROG 1”

will initially blink. Then the number will blink.

Units are shipped with all steps in each program set to zero temperature

and zero run time.

Pressing the SETTING key starts the

programming process.

STEP 1 will appear. “End” in TIME

area will change to run time digits.

PROG and the tenths temperature

value blinks.

Press the SHIFT key to move to the next

parameter digits. Each move will cause

parameter to blink.

Use INCREASE or DECREASE key to set

each temperature value.

Use INCREASE or DECREASE key to

set each minute and hour value.

Press the SHIFT key to move to the

next parameter digits.

STEP 4: Repeat Steps 2 and 3 for each program step

Leave step temperature and run time at zero for each step not needed

for the program.

Autres manuels pour L Series

Table des matières

Autres manuels BEING Contrôleurs

BEING

BEING L Series Mode d'emploi

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
