High-performance 500-Watt

powered subwoofer for

PA applications

Powerful 12"long-excursion

transducer with high temperature

voice coil provides incredibly

accurate and pulse-pounding bass

Precise reproduction of ultra-low

frequencies for ”bulletproof”punch

and impact

State-of-the-art 500-Watt Class-D

amplier with comprehensive

over-excursion, thermal and

clip limit protection

Built-in active stereo crossover

provides high-pass ltered outputs

for full-range loudspeakers

Tunable and switchable Bass Boost

plus Phase switch for ultimate

low-frequency performance

Variable High Cut control for

perfect sound alignment

Subwoofer Level control to adjust

the balance between subwoofer and

the full-range speakers

Power, Signal and Clip LEDs for

perfect monitoring

Intelligent limiter for maximum

sound performance and

woofer protection

Internal switch-mode power supply

for noise-free audio, superior

transient response and very low

power consumption

Continued on next page

High-Performance Active 500-Watt

12" PA Subwoofer with Built-In

Stereo Crossover

With thousands in use around

the world, our EUROLIVE B1500D-PRO

and B1800D-PRO active subwoofers

have become the new standard in

low-frequency reproduction. But what if

your application calls for a smaller system

that still kicks serious butt?

The EUROLIVE B1200D-PRO packs

everything there is to love about these

powerful systems into a more compact,

easy to transport enclosure, making them

ideal for small- to mid-sized venues.

Armed with a 500-Watt Class-D amplier

and a host of truly professional features,

these little brutes crank out tons of tight,

low-end punch—with the denition

and clarity typically reserved for much

larger systems.

Put simply, these cool-running

systems provide an impressive power-to-

weight ratio—and our no-compromise

design means you get amazingly deep,

chest-pounding bass that will keep the

party going all night long.

What is Class-D Technology?

Instead of operating relatively

continuously like Class-AB circuits, Class-D

amps switch on and o thousands of

times per second, delivering power only

when needed. The amplier is either

fully on or fully o, which signicantly

reduces power losses from the output

devices given o as heat. Less heat means

our Class-D amps don’t need massive

heat sinks, and that means we can make

them lighter. Plus B1200D-PRO's amplier

provides all the dynamic punch and

delity you’d expect from a much larger,

more expensive subwoofer.

Custom-Designed Transducers

The transducers (woofers and

tweeters) are the only part of a sound

system you actually hear, so we never cut

corners, and we never just grab whatever

happens to be on the shelf. We custom-

design our own so they are the perfect

match for both the amplier and the

application. We wind our own voice

coils, process the paper pulp into cones

and even machine our own backplates.

This enables us to control the quality, and

frankly, make better components. The 12"

long-excursion, low-frequency transducer

was designed specically for use in the

EUROLIVE B1200D-PRO.

EUROLIVE

D-PRO

Professional Powered Speakers

Page 2 of 4

Pole socket for mounting with

commercial spacer poles

Ergonomically shaped handles for

easy transport

Rugged steel grill for optimal

speaker protection

High-quality components and

exceptionally rugged construction

ensure long life

Conceived and designed by

BEHRINGER Germany

Input jacks accept

audio signals

through balanced

cables with

female XLR plugs

Thru XLR jacks

send out full-

range copies

of each input

signal

Output XLR

jacks send

ltered

copies of

each input

signal

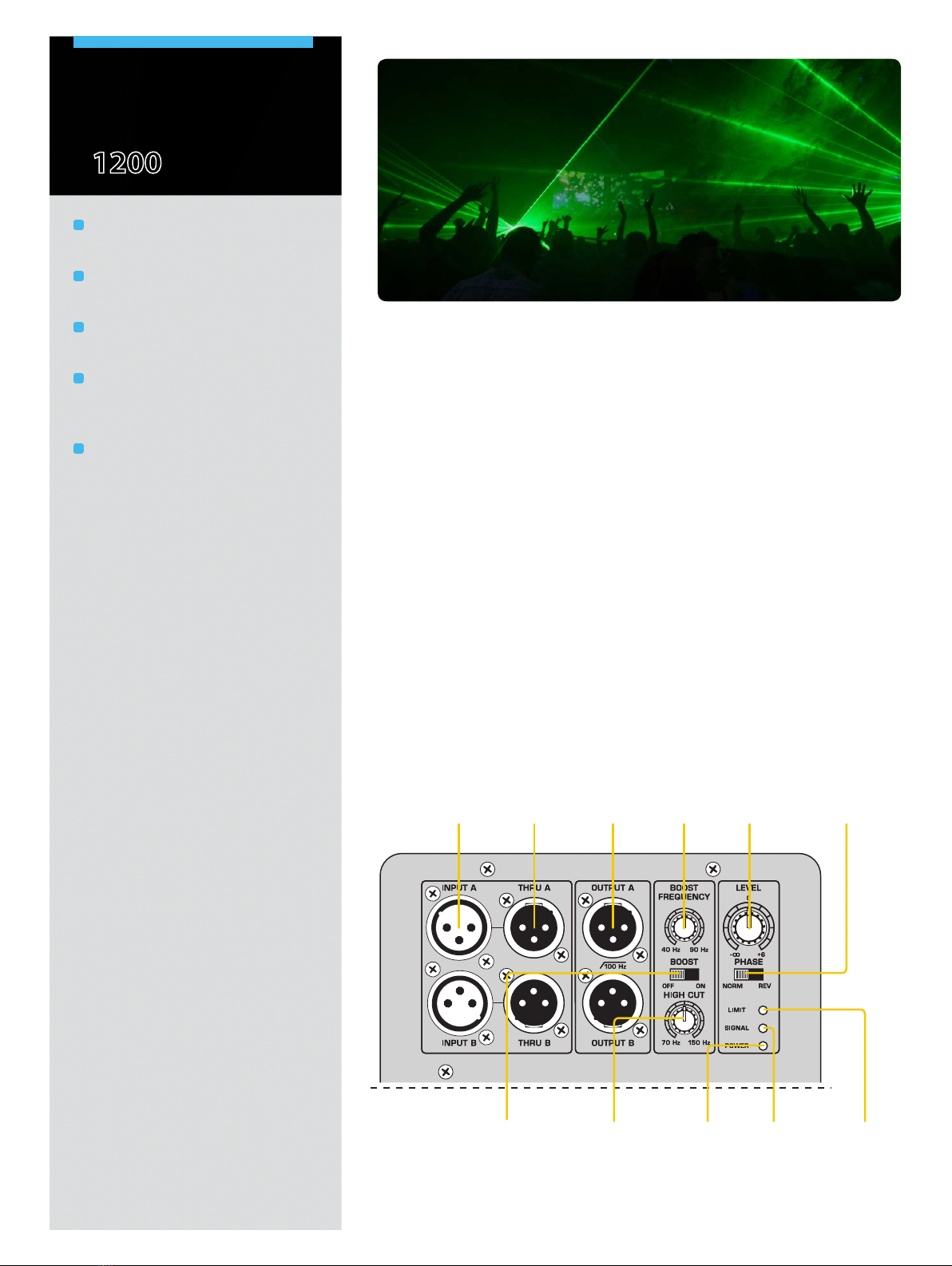

Boost Frequency

knob targets

boost frequency

between 45 Hz

and 90 Hz

Level knob

controls

input gain

Phase Norm/Rev

switch reverses output

phase to compensate

for frequency

cancellation between

subwoofer and

satellite speakers

Clip LED lights

when input signal

overloads channel

Signal LED

shows

signal present

Power LEDHigh Cut controls upper

corner frequency for

subwoofer’s amplier.

Does not aect

Thru A/B signals

Boost switch

adds +10 dB

of boost

Take Control

The B1200D-PRO features

balanced XLR inputs and outputs,

as well as balanced XLR Thru jacks

for connecting additional enclosures.

A Boost Frequency knob lets you

boost any frequency between

45 Hz and 90 Hz. Then just ick the Boost

switch to give your selected frequency a

+10 dB boost. We’ve also provided a High

Cut dial that controls the upper-corner

frequency for the internal amplier

without aecting Thru A/B signals.

A Level knob controls theinput gain,

and the Phase switch reverses the output

phase to compensate for frequency

cancellation between the subwoofer and

satellite speakers. LEDs show operational

status at a glance including power,

signal present and input overloads.

Value

Plenty of power, light weight,

amazing sound, rugged durability and

aordability—you get it all with the

EUROLIVE B1200D-PRO. Plus, we back

it up with one of the best warranty

programs in the industry, a full 3 years!

Order online, or audition the new

BEHRINGER B1200D-PRO at your local

dealer—and let them redene your

low end!

EUROLIVE

D-PRO

Page 3 of 4

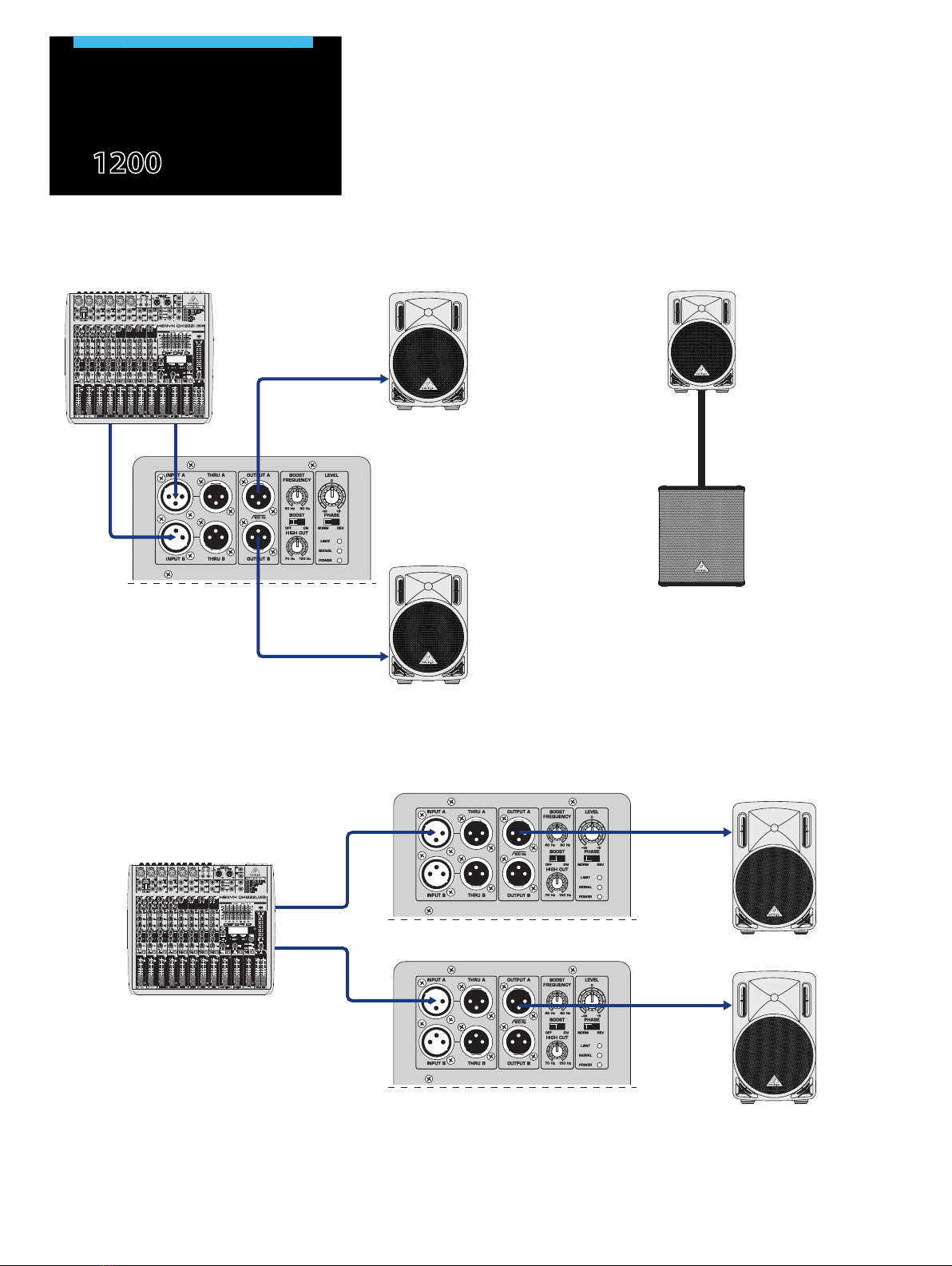

Active Stack ApplicationSingle Subwoofer with Stereo Mains

B208D loudspeaker

EUROLIVE B1200D-PRO

Dual Subwoofers with Stereo Mains

EUROLIVE B1200D-PRO

XENYX QX1222USB

Right

Left

B208D loudspeaker

Right

Left

EUROLIVE B1200D-PRO

XENYX QX1222USB

B210D loudspeaker

EUROLIVE

D-PRO

Page 4 of 4

For service, support or more information contact the BEHRINGER location nearest you:

Technical speciﬁcations and appearances are subject to change without notice and accuracy is not guaranteed. BEHRINGER, KLARKTEKNIK, MIDAS, BUGERA, andTURBOSOUND are part of the MUSIC Group (music-group.com). All trademarks are the property of

their respective owners. MUSIC Group accepts no liability for any loss which may be suﬀered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Colors and speciﬁcations may vary from actual product.

MUSIC Group products are sold through authorized fullﬁllers and resellers only. Fullﬁllers and resellers are not agents of MUSIC Group and have absolutely no authority to bind MUSIC Group by any express or implied undertaking or representation.This manual is copyrighted.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of MUSIC Group IP Ltd. ALL RIGHTS RESERVED.

Europe

MUSIC Group Services UK

Tel: +44 156 273 2290

Email: [email protected]om

USA/Canada

MUSIC Group Services NV Inc.

Tel: +1 702 800 8290

Email: [email protected]om

Japan

MUSIC Group Services JP K.K.

Tel.: +81 3 6231 0454

Email: [email protected]om

Specications

Amplier

Maximum output power 500-W*

Audio Inputs

Input A / B XLR, servo-balanced

Sensitivity +4 dBu @ 0 dB

(center position) for full rated power

Input impedance 12 kΩ unbalanced, 24 kΩ balanced

Audio Outputs

Thru A / B XLR, servo-balanced

Output A / B XLR, servo-balanced

Output impedance 300 Ω unbalanced, 600 Ω balanced

High-pass lter 100 Hz, Butterworth, 18 dB slope

Controls

Level -∞ to +6 dB

Boost frequency 40 Hz - 90 Hz; +10 dB

Boost Switchable

High cut 70 -150 Hz, Butterworth, 24 dB slope

Phase Switchable

System Data

Frequency range 45 Hz - 180 Hz (-10 dB)

Frequency response 60 Hz - 130 Hz (+/-3 dB)

Signal-to-noise >100 dB

(20 Hz to 20 Khz)

Sound pressure level max. 122 dB @ 1 m

(half space)

Woofer 307 mm / 12", 8 Ω

Limiter Optical

Indicators

Signal LED Green

Limit LED Red

Power LED Amber

Circuit Protection

Amplier protection Full short circuit, open circuit,

thermal protection

Load Protection Turn-on/o muting

Power Supply, Voltage (Fuses)

USA / Canada 120 V~, 60 Hz (T 6.3 A H 250 V)

UK / Australia / Europe 220-240 V~, 50/60 Hz

(T 3.15 A H 250 V)

Korea / China 220-240 V~, 50/60 Hz

(T 3.15 A H 250 V)

Japan 100 V~, 50/60 Hz (T 6.3 A H 250 V)

Power consumption 110 W

Mains connection Standard IEC receptacle

Dimensions / Weight

Dimensions (H x W x D) 17.0 x 14.8 x 16.7"

432 x 375 x 423 mm

Weight 43.1 lbs / 19.5 kg

*Independent of limiters and driver protection circuits

Please note these specifications are preliminary and conceptual in nature, and as such are subject

to change as product development progresses. This information is supplied for market research

purposes only and is not to be made public in any manner. This document is solely the property of

The MUSIC Group, or one of its subsidiaries, and must be surrendered upon request of the owner.

EUROLIVE

D-PRO
