Behringer BSY600 Manuel utilisateur

BASS SYNTHESIZER BSY600

Thank you for showing your confidence in us by purchasing the BEHRINGER BASS SYNTHESIZER

BSY600. This high-quality effects pedal reproduces the fat and powerful sound of classic analog

synthesizers—at the touch of a footswitch.

1.CONTROLS

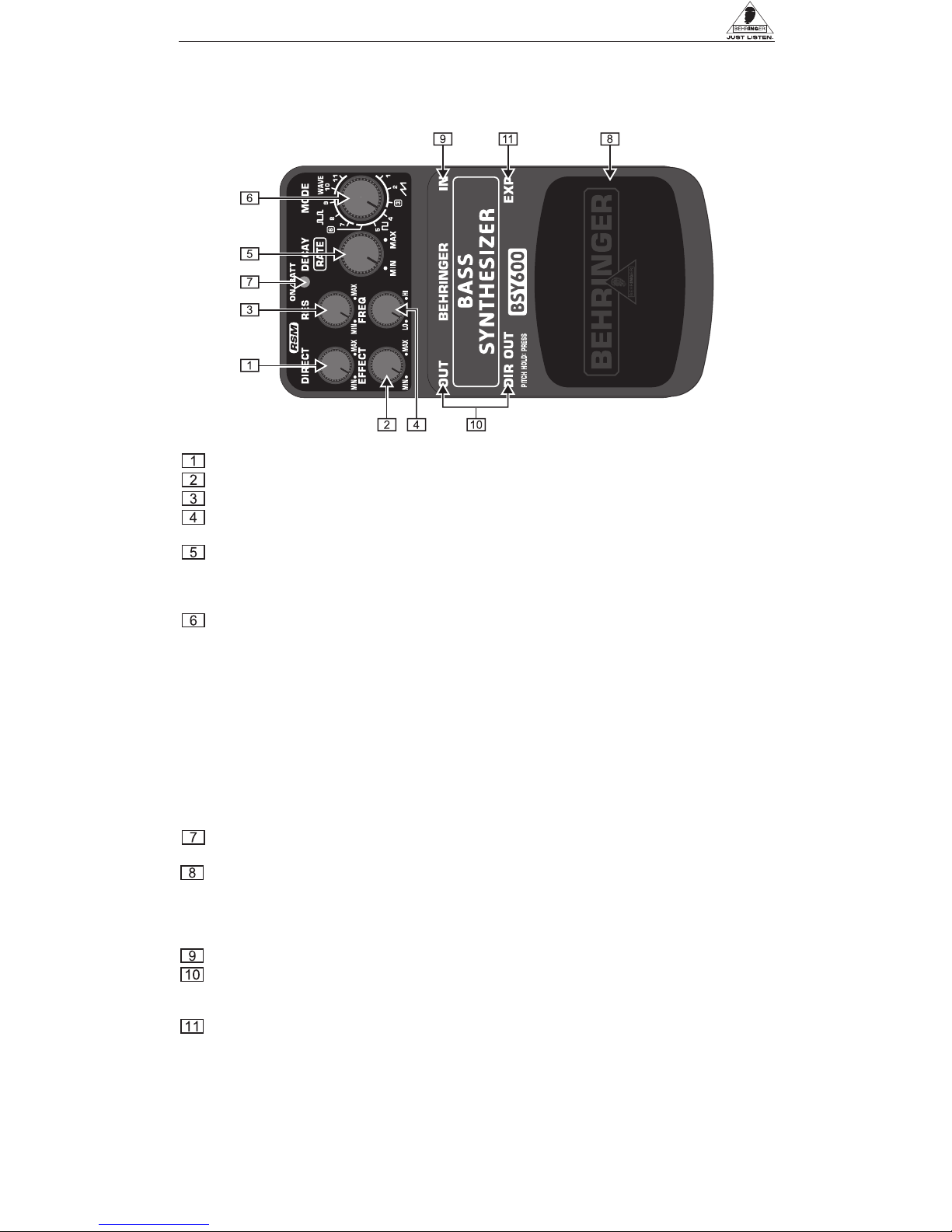

Top view

The DIRECT control adjusts the level of the direct, unaffected signal.

The EFFECT control adjusts the level of the synthesizer effect signal.

The RES(onance) control adjusts the strength of the low-pass filter frequency peak (see below).

TheFREQ(uency)controladjuststhelow-pass/allpassfilterfrequencywhichcutsthehigh-frequencies

and therefore determines the upper and lower limit of the frequency range the filter moves along.

The DECAY/RATE control has 2 different functions. Depending on the MODE switch position

(see below) it adjusts either the LFO speed that modulates the amplitude of the filter frequency

(RATE: mode 3 and 6 only) or sets the time over which the filter frequency moves (DECAY).

When the decay time is set to MAX, the cut-off filter frequency is fixed.

Use the MODE switch to dial up one of 11 synthesizer modes with 4 different waveforms.

1. SAW (sawtooth wave that produces sharp-edged sound)

2. SAW (sawtooth wave one octave lower than mode 1)

3. SAW (sawtooth wave with automatic filter frequency shifting)

4. SQUARE (square wave that produces milder sound than the sawtooth modes)

5. SQUARE (similar to mode 4 with additional square wave one octave below)

6. SQUARE (square wave with automatic filter frequency shifting)

7. PULSE (pulse wave that produces sharp-edged sound different from sawtooth modes)

8. PULSE (pulse wave with all-pass filter for more depth and motion)

9. PULSE (pulse wave with pulse width modulation for fat, spreading sound)

10. WAVE (input signal is directly transformed to a synthesizer sound. Filter rises when string

is played and returns gradually)

11. WAVE (similar to mode 10, but filter drops when string is played and returns gradually)

The ON/BATT LED illuminates when the effect is activated and flashes when the PITCH HOLD

function is active (see below). It also serves as a battery level indicator.

Use the footswitch to activate/deactivate the effect. Keeping the footswitch depressed will

activate the PITCH HOLD function (modes 1 - 9 only) that causes the unit to output the effect

signal continuously, even if the bass is not played at this moment (ON/BATT LED flashes). You

can also play the bass while keeping the footswitch pressed and mix the continuously output

effect signal with the direct bass signal. Release the footswitch to deactivate this function.

Use this 1/4" TS IN connector to plug in the instrument cable.

The two 1/4" TS OUT and DIR OUT connectors send the signal to your amp. Use both

connectorsifyou want to separatetheunprocessed input signal (>DIROUT) and the synthesized

signal(> OUT). To mix both signals together use OUT only.

Use the 1/4" TRS EXP(ression) connector to connect an expression pedal. This way you can

externally control the movement of the filter frequency (DECAY) or—for mode 3 and 6—the

speed of the effect (RATE). When using an expression pedal the DECAY/RATE control

determines the max. value (expression pedal fully pressed).

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V

battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful

not to scratch the unit.

The BSY600 has no on/off switch. As soon as you insert the plug into the IN connector, the

BSY600 begins running. When not using the BSY600, remove the plug from the IN

connector. This extends the life of the battery.

BASS SYNTHESIZER BSY600

The SERIAL NUMBER is located on the underside.

In rare cases interferences of the normal function may appear by external influence (e.g.

electrostatic discharge), as for example sound disturbances or malfunctions. If this

occurs, please turn down the volume on subsequent amplifiers and disconnect the

input connector briefly to restart the application.

2.WARRANTY

For our current warranty terms, please refer to our website at http://www.behringer.com.

3. SPECIFICATIONS

IN Connector: 1/4" TS Impedance: 500 kΩ

OUT Connector: 1/4" TS Impedance: 1 kΩ

DIR OUT Connector: 1/4" TS Impedance: 1 kΩ

Power supply 9 V_, 100 mA, regulated

BEHRINGER PSU-SB

USA/Canada 120 V~, 60 Hz

Europe/U.K./Australia 230 V~, 50 Hz

China 220 V~, 50 Hz

Korea 220 V~, 60 Hz

Japan 100 V~, 50/60 Hz

Powerconnector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Powerconsumption 30 mA

Dimensions (H x W x D) approx. 54 mm (2 1/8") x 70 mm (2 3/4") x 123 mm (4 4/5")

Weight approx. 0.33 kg (0.73 lbs)

BEHRINGERisconstantlystrivingtomaintainthehighestprofessionalstandards.Asaresultoftheseefforts,modificationsmaybemade

fromtimetotimetoexistingproductswithoutpriornotice.Specificationsandappearancemaythereforedifferfromthoselistedorshown.

4.SAFETYINSTRUCTIONS

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do

not service product yourself. Contact our qualified servicing personnel for servicing or repairs,

especially when power supply cord or plug is damaged.

No utilizar cerca de agua o instalar cerca de fuentes de calor. Utilice sólo accesorios y aditamentos

autorizados.Nointentérepararelproductoustedmismo.Contacteanuestropersonal técnico cualificado

para servicio y reparaciones, especialmente cuando la fuente o el cable de alimentación estén

dañados.

Не эксплуатируйте прибор вблизи от источников воды и тепла. Применяйте только авторизованные

дополнительные устройства. Никогда не ремонтируйте прибор самостоятельно. Ремонт может

производить только квалифицированный специализированный персонал, особенно при

повреждениях сетевого провода или сетевой вилки.

DiedeutscheAnleitung ist erhältlich@www.behringer.com

Manuelfrancophoneentéléchargementsurwww.behringer.com

Manualenespañoldisponibleenwww.behringer.com

Manualiitalianidisponibili @ www.behringer.com

Русскоязычное руководство @ www.behringer.com

Polska instrukcja dostępna jest pod adresem @ www.behringer.com

Nederlandsehandleidingbeschikbaar@www.behringer.com

Suomenkielinenkäyttöohjesaatavillaosoitteestawww.behringer.com

Svenskmanualfinnstillgängligpå www.behringer.com

Danskvejledningfindespå@www.behringer.com

Manualportuguêsdisponível@www.behringer.com

Åëëçíéêü åã÷åéñßäéï õðÜñ÷åé äéáèÝóéìï óôç äéåýèõíóç www.behringer.com

Technicalspecificationsandappearancesubjecttochangewithoutnotice.Theinformationcontainedhereiniscorrectatthetime

ofprinting.BEHRINGERacceptsnoliability for anylosswhichmaybesufferedbyanyperson who relieseitherwhollyorinpart

uponany description,photograph or statementcontained herein.Colours andspecificationmay varyslightly fromproduct.

Productsare sold throughour authoriseddealers only. Distributors anddealers arenot agentsof BEHRINGERand have

absolutelynoauthoritytobindBEHRINGERbyanyexpressorimpliedundertakingorrepresentation.Nopartofthismanualmay

bereproducedortransmittedinanyform orbyanymeans,electronicormechanical,includingphotocopyingandrecordingofany

kind,foranypurpose,withouttheexpresswrittenpermissionofBEHRINGERInternationalGmbH.BEHRINGER,theBEHRINGER

Hanns-Martin-Schleyer-Str.36-38,47877Willich-MünchheideII,Germany.Tel.+49215492060,Fax+492154 9206 4903
