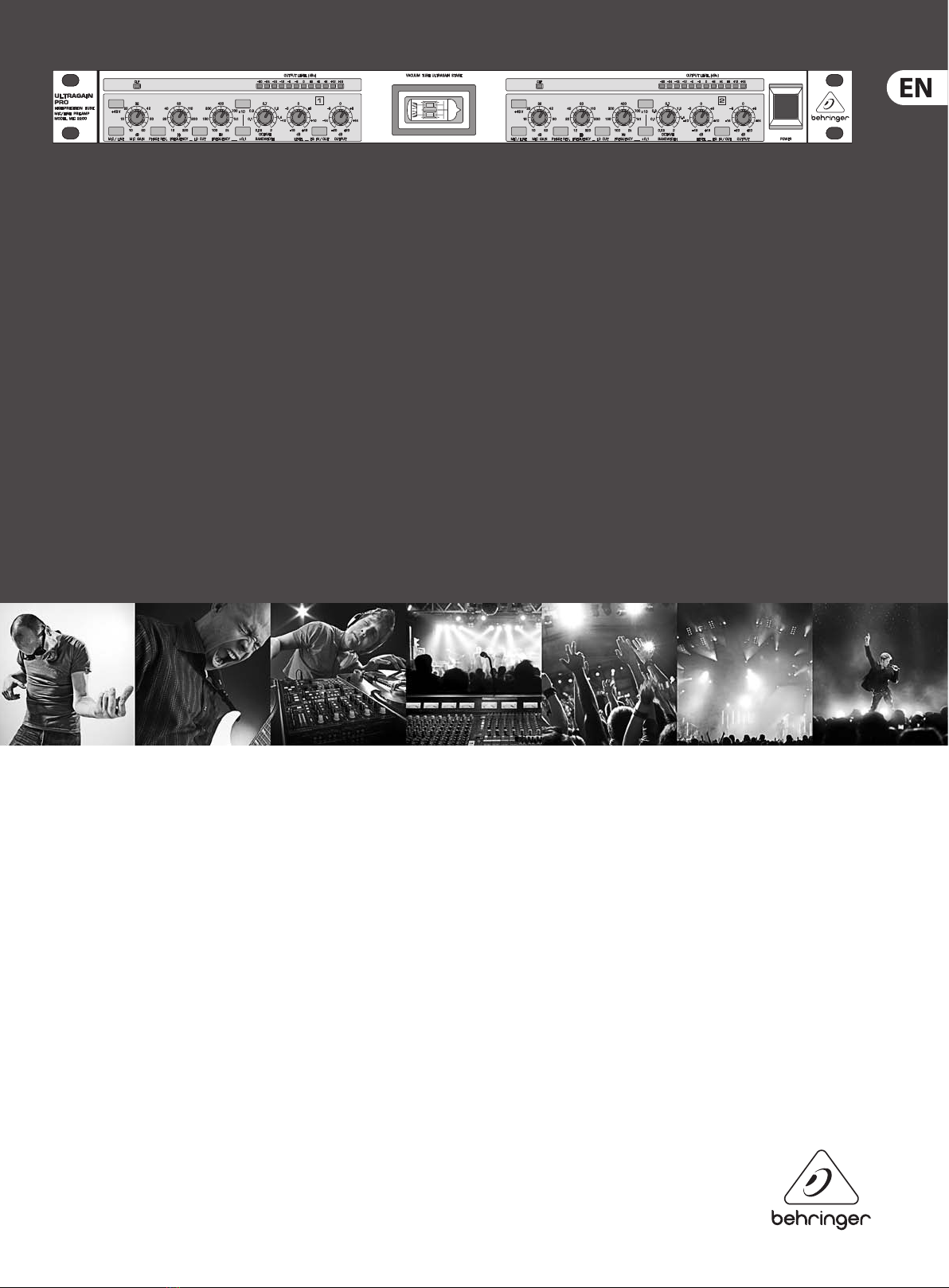

ULTRAGAIN PRO MIC2200

Audiophile Vacuum Tube Microphone/Line Preamplier

Technical Specications

2ULTRAGAIN PRO MIC2200 Technical Specifications

ULTRAGAIN PRO MIC2200

Audiophile Vacuum Tube Microphone/Line Preamplier

Ultra-low noise discrete microphone/line preamplier with hand-selected 12AX7 tube for ultra-musical sound

Mic input stage based on discrete, conjugate transistor pair circuitry

Ultra-wide bandwidth from 10 Hz to 200 kHz for “open” sound

Integrated fully parametric EQs with dedicated center frequency, bandwidth and level controls

Independent line driver for converting -10 dBV into +4 dBu pro level

Soft-mute +48 V phantom power to avoid switch-on thumps

Fully tunable and switchable 12 dB high-pass lter

Switchable phase reverse for correcting phase-related problems

Accurate 12-segment LED metering for output level

Servo-balanced inputs and outputs with ¼" TRS and gold-plated XLR connectors

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by BEHRINGER Germany

Specications

Audio Input

Microphone

Connectors XLR

Type transformerless, DC-decoupled input

Impedance 3 k Ohms balanced

Maximum input level +10 dBu balanced and unbalanced

CMRR typ. 40 dB, >55 dB @ 1 kHz

Line

Connectors XLR and ¼" jack

Type transformerless, DC-decoupled input

Impedance 60 kOhms balanced

Maximum input level +23 dBu balanced and unbalanced

CMRR typ. 40 dB, >55 dB @ 1kHz

Audio Output

Connectors XLR and ¼" jack

Type electronically servo-balanced

outputstage

Impedance 60 Ohms balanced,

30 Ohms unbalanced

Maximum output level +21 dBu balanced and unbalanced

System Specications

Frequency response 10 Hz to 200 kHz, ±3 dB

Noise >94 dBu, unweighted, 22 Hz to 22 kHz

THD 0.011% typ. @ +4 dBu, 1 kHz, Gain 1

IMD 0.01% typ. SMPTE

Crosstalk <-88 dB, 22 Hz to 22 kHz

Function Controls

Mic gain variable (+10 dB to +60 dB)

Frequency (lo cut) variable (12 to 320 Hz)

Frequency (PEQ) variable (10 Hz to 20 kHz),

dependent on x10 and x0.1 switch

Bandwidth variable (0.03 to 2 octaves)

Level variable (-15 dB to +15 dB)

Output variable (-20 dB to +20 dB)

Function Switches

+48 V activates phantom power

Mic/line switches from line to mic preamplier

Phase rev. phase reverse (180°)

Lo cut activates the high-pass lter

x 0.1 switches the frequency control to

10Hz - 200 Hz

x 10 switches the frequency control to

1 kHz - 20 kHz

EQ in/out activates the parametric lter

Indicators

Clip clipping control LED

Output level 12-segment LED display:

-30/-24/-18/-12/-6/-3/0/+3/+6/

+9/+12/+18 dB

function switch LED indicator of every switch

3ULTRAGAIN PRO MIC2200 Technical Specifications

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed

or illustrated.

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM).

ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH

OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS

OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED

IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED.

Power Supply

Mains voltages

USA/Canada 120 V~, 60 Hz

U.K./Australia 240 V~, 50 Hz

Europe 230 V~, 50 Hz

General Export Model 100 - 120 V~, 200 - 240 V~, 50 - 60 Hz

Power consumption max. 20 Watts

Fuse 100 - 120 V~: T 500 mA H

200 - 240 V~: T 250 mA H

Mains connection standard IEC receptacle

Physical

Dimensions (W x D x H) approx. 8.5 x 1.8 x 19"

approx. 217 x 44.5 x 483 mm

Net weight approx. 2.3 kg

Shipping weight approx. 3.4 kg
