QUICKSTART GUIDE

1120

STUDIOX.BEASTX.COM BEASTX.COM WIKI.BEASTX.COM

SAFETY NOTES

• Radio controlled (R/C) helicopters are no toys! The rotor blades rotate at high speed and pose

potential risk. They may cause severe injury due to improper usage. It is necessary to observe common

safety rules for R/C models and the local law. You can gather information from your local R/C model

club or from your national modelers association.

• Pay attention to your own safety and the safety of other people and property in your vicinity when

using our product. Always y in areas away from other people. Never use R/C models in close

proximity to housing areas or crowds of people. R/C models may malfunction or crash due to several

reasons like piloting mistakes or radio interference, and cause severe accidents. Pilots are fully

responsible for their actions, and for damage or injuries caused by the usage of their models.

• Please read the following instructions thoroughly before the rst use of your MICROBEAST PLUS and

setup the system carefully according to this manual. Allow sucient time for the setup procedure and

check each step carefully. Watch for a mechanically clean and proper build of your helicopter. A

wrong system setup can lead to a serious accident and damage to the model.

• Radio controlled (R/C) models consist of several electrical components. It is therefore necessary to

protect the model from moisture and other foreign subtances. If the model is exposed to moisture

this may lead to a malfunction which may cause damage to the model or a crash. Never y in the rain

or extremely high humidity.

• When operating the helicopter with a MICROBEAST PLUS ensure there is a suciently large and stable

receiver power supply. Because of the direct coupling of the rotor blades to the servos, without the

use of a ybar mixer, the servos are exposed to increased actuating forces. In addition, because of the

intermediary electronic gyro system, the servos are driven more often than with traditional use. These

factors can make the power consumption increase a lot compared to a ybar helicopter. When the

supply voltage falls below 3.5 volts for a short amount a of time, the system will power o and reboot.

In this case a crash of the helicopter is unavoidable.

• Do not expose the MICROBEAST PLUS system to extreme variations in temperature. Before powering

up the system, wait some time so that the electronics can acclimatize and any accumulated

condensation is able to evaporate.

• The sensors of MICROBEAST PLUS consist of highly sensitive electromechanical components. These

can be damaged due to moisture or mechanical or electrical impact. Do not continue using this

product, if it has been exposed to such inuences, e.g. due to a crash of the model or due to

overvoltage caused by a defective receiver power supply. Otherwise a failure may happen any time.

• When operating electric helicopters make sure that the electric motor cannot start inadvertently during

the setup procedure. Particularly pay attention if using a single-line receiver and if the ESC is connected

directly to the MICROBEAST PLUS. We recommend disconnecting the electric motor from the ESC

during the setup procedure. Prior the rst usage please slide the motor/pinion away from the main gear,

then check that the motor does not to start inadvertently when the receiver is switched on.

• When operating the RPM Governor feature of MICROBEAST PLUS it is essential to ensure that the

motor cannot start by accident when making adjustment or performing preparations to start the

engine. Carefully read this manual and make sure you fully understand how the RPM Governor feature

is operated before making any adjustments. Also make sure the motor does not start when the radio

link is interrupted or when you switch on the transmitter initially. With electric driven models do not

dock the motor to the main gear unless all necessary adjustment procedures have been nished.

Always maintain sucient safety distance to the motor and other rapidly rotating components of the

helicopter.

• MICROBEAST PLUS with AttitudeControl can be used as a ying aid for beginners by limiting the

reaction of the helicopter to stick inputs and by stabilizing the helicopter with a electronic control

loop. However, this does not provide that the helicopter can always be own safely! By incorrect

control inputs the helicopter still may crash or be placed in a position in which the pilot becomes

disoriented even when using AttitudeControl. In addition, the helicopter can drift due to external

inuences and it is not guaranteed that the articial horizon of the device can stabilize the helicopter

at any time and recover from any orientation. Inuences such as temperature uctuations or

vibrations may cause incorrect results and distort the position calculation of the system in

consequence. There is no guarantee that the system will always work correctly. Only the pilot is

responsible for the control of the helicopter and thus also for the use of the system. Note that the

system for technical reasons will not hold the helicopter absolutely to the point. The unstable

tendency of a helicopter will cause the model to y in a certain direction even when using

AttitudeControl. External inuences such as wind can further strengthen this eect. In addition

measurement inaccuracies of the sensors can distort the position determination slightly. You must

always be able to turn o the system immediately and be able to take over full control of the

helicopter.

• We suggest you to seek the support of an experienced helicopter pilot before you undertake the rst

ight of your model. Additionally, ight training with a R/C simulator can help make ying easier and

more enjoyable. Ask your local dealer if you need technical support or if you observe problems during

the usage of our system.

• AttitudeControl can help to facilitate ying of model helicopters by briey passing over control to the

system if the pilot becomes disoriented. By using the built-in articial horizon the helicopter can be

brought to a nearly horizontal position so that the pilot gains time to reorient. Thus, there can be no

assurance that the model is saved from a crash in general. Depending on the current attitude and the

speed of the model and depending on how fast the AttitudeControl is activated, the model may crash

before or while the system tries to recover. In addition, the helicopter can drift due to external

inuences and it is not guaranteed that the articial horizon of the device can stabilize the helicopter

at any time and recover from any orientation. Inuences such as temperature uctuations or

vibrations may cause incorrect results and distort the position calculation of the system in

consequence. Strictly observe the general safety rules for dealing with RC models and do not totally

rely on the system. The pilot is responsible for the control of the helicopter and thus also for the use

of the system. You must always be able to turn o the system immediately and be able to take over

full control of the helicopter.

If you like to get more insight into the system and like to have a more visualized type of setup you

can use the StudioX App for PC/mac or StudioXm for your smartphone/tablet in combination with

the USB2SYS interface (PC/mac) or BLE2SYS interface (smartphone/tablet) (optional available).

These apps are the source to get even more out of your device like saving/restoring parameters,

firmware updates, loading preset heli configurations and making advanced adjustment to fully

customize your MICROBEAST PLUS to your needs.

StudioX can be downloaded from:

STUDIOX.BEASTX.COM

Dear customer,

thank you for purchasing our product.

MICROBEAST PLUS is a high-end gyro system for RC helicopters that has been developed in Germany using

latest technology and setting high standards. It can be used with many different types of helicopters like

3D aerobatic helis, F3C competition helicopters as well as scale helicopters with 2 or more rotorblades. The

system comes with BASIC flybarless stabilization functionality and can be upgraded by paid update to the

PROEDITION. This enables additional features like „AttitudeControl“ for recue bailout or constant leveling

and a feature called „Bank Switching“ that allows to switch between parameter presets in flight to serve

different flight conditions or flying styles.

To setup MICROBEAST PLUS there is no need for any additional devices. All you need is your radio system

and your helicopter.Thanks to the well proven„EasySetup“ concept you can do all the necessary adjustment

directly at the device and you‘re ready for take off within a few minutes.

This Quickstart Guide is a clearly arranged guide that will lead you step-by-step through the basic flight

setup. Please follow this guide carefully and make sure to read the attached safety notes. For a detailed

instruction manual and further details, tipps, tricks and notes about the product please visit

WIKI.BEASTX.COM

This guide is intended to be used with MICROBEAST PLUS firmware version 5.2.x

only! After power up when the Status-LED lights red, for a few seconds in the left row

menu LEDs Aand Cindicate major version„5“. The yellow LED next to Istands for„2“.

1. HARDWARE INSTALLATION

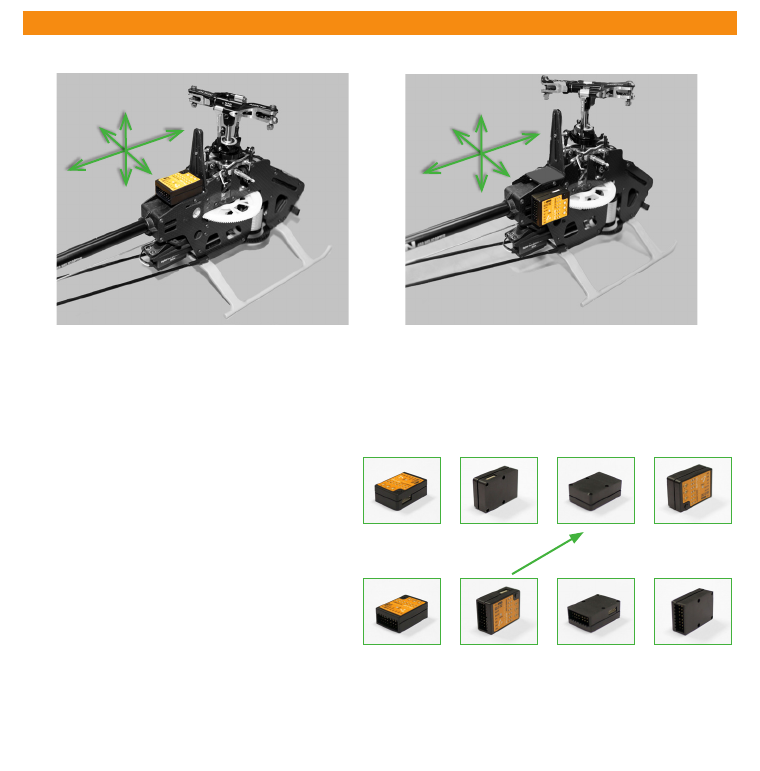

You can position MICROBEAST PLUS flat or upright on the helicopter. The large socket must point to the front or to the rear

of the helicopter. The small white socket must be aligned with the longitudinal axis.

The sensor axis (housing edges of the device) must be aligned exactly parallel to all three rotation axis of the helicopter.

However, it is allowed to position the device offset from the rotation axis.

In summary there are 8 mounting orientations possible:

1. flat, sticker on top, socket pointing to front

2. upright, button up, socket pointing to front

3. flat, sticker showing to ground, socket pointing to front

4. upright, button down, socket pointing to front

5. flat, sticker on top, socket pointing to rear

6. upright, button up, socket pointing to rear

7. flat, sticker showing to ground, socket pointing to rear

8. upright, button down, socket pointing to rear

Use one of the supplied 3M gyro pads to stick the device to your helicopter. The device housing must not directly touch the

chassis of the helicopter. When connecting and laying out the servo and receiver wiring later onwards, please make sure

the wires do not pass tension to the MICROBEAST PLUS. It is not recommended to bundle or tie down the leads close to the

MICROBEAST PLUS device!

1. 2. 3. 4.

5. 6. 7. 8.

Flight direction

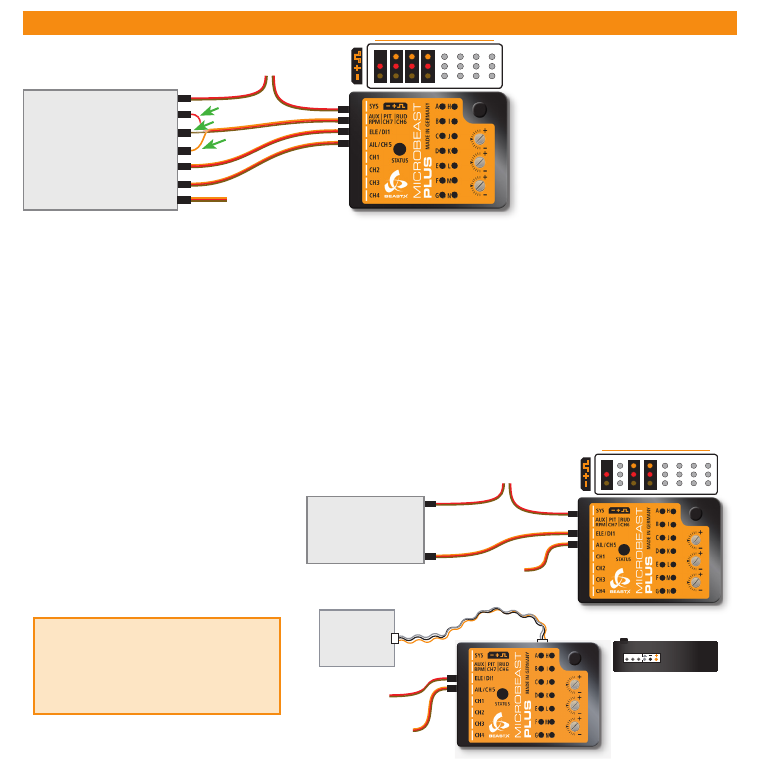

2. CONNECTING THE RECEIVER

BAT

Pitch

Gyro

Rudder

Elevator

Aileron

Throttle

STANDARD

RECEIVER

Throttle servo/ESC

red

brown

orange

BEC/Receiver battery

(if required)

Wiring scheme for Single-Line receivers with following transmission protocols:

• JR® XBus (Mode B), Multiplex® SRXL (V1+V2)

• Jeti® UDI, Jeti® EXBUS

• Graupner/SJ® HOTT SUMD

• Spektrum® SRXL

• Futaba® SBUS

• ALIGN/FlySky iBus

• PPM serial signal (SPPM)

The illustration is only

an example. The function

assignment of your transmitter

determines which channel on

the receiver controls which

function!

Using a Single-Line receiver all channels/functions are transferred by one single connection wire. This allows to use even more

than 5 channels, i. e. for controlling the headspeed Governor, AttitudeControl function and additional output channels. Always

make sure the power supply is stable and dimensioned suciently for the intended application. If possible always connect the

power source directly to MICROBEAST PLUS (not at port [AUX|PIT|RUD]) in order to minimize contact resistance. Additional supply

cables can be plugged into free receiver ports. Especially when using standard size servos it is recommended to use more than

one power supply cable in parallel to preserve a stable voltage and to reduce power loss due to connection resistance.

The assignment of functions to the radio channels is mentioned in the manual of your radio system. Also you can nd out

the function assignment by checking your transmitter‘s servo monitor. The connectors of MICROBEAST PLUS are assigned to

the functions as follows:

AIL|CH5 = Aileron, ELE|DI1 = Elevator, RUD (orange wire) = Rudder, PIT (red wire) = Thrust, Aux (brown wire) = Gyro gain

The wires for aileron and elevator additionally transfer the power between MICROBEAST PLUS and receiver.

BAT

SINGLELINE

RECEIVER

Throttle servo/ESC

BEC/Receiver battery

(if required)

Signal

Using a remote satellite is only intended

for 450 size helis or smaller!

For larger helis please use a full-size Single-

Line receiver for your radio brand (i.e. SRXL).

ESC/Throttle

servo

BEC/Power supply

(if required)

JR® or

SPEKTRUM®

satelite

Remote satellite: DSM2/DSMX, ALIGN iBus, JR RJ-01 DMSS

Standard receiver wiring

Single-Line receivers

throttle servo/ESC

BXA76403

SRXL2

RECEIVER

SRXL2

BEC/receiver battery

(if needed)

throttle servo/ESC

SRXL2

SATELLITE

BEC/receiver battery

(if needed)

Polarity

swapped SRXL2

SATELLITE

WRONG!

SRXL2

SATELLITE

CORRECT!

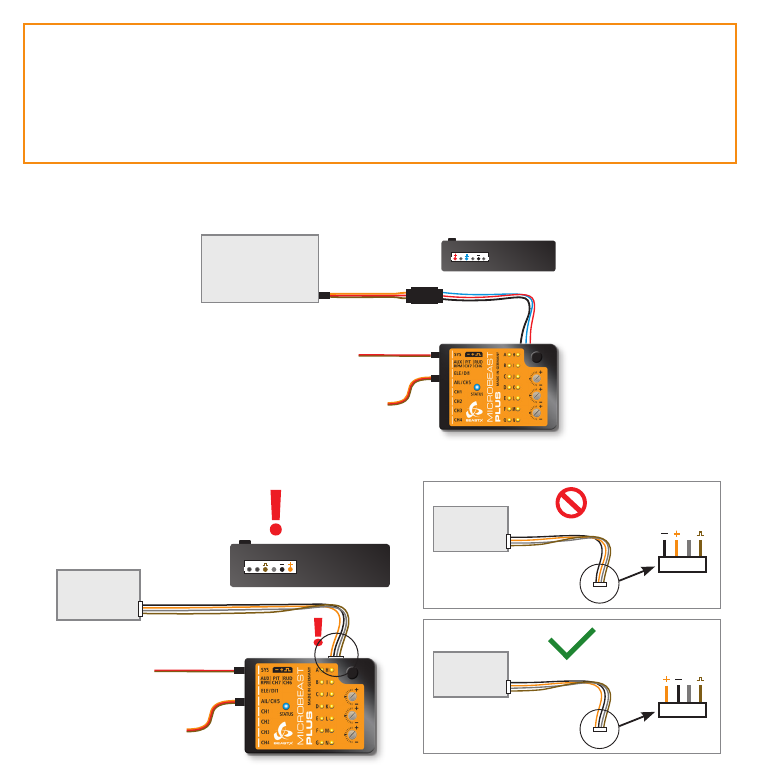

Spektrum® receivers with SRXL2 output must be connected at the side of MICROBEAST PLUS. Having a receiver with stan-

dard type servo connector, the optional available adapter BXA76403 is required in order to connect the SRXL2 port with

MICROBEAST PLUS.

A Spektrum® SRXL2 satellite receiver with 4-wire signal line can be connected directly to the side of MICROBEAST PLUS.

ATTENTION: The polarity of the cable must be swapped on the input side of MICROBEAST PLUS! On MICROBEAST PLUS the

outmost pin is +3.3V, the pin next to it is minus.

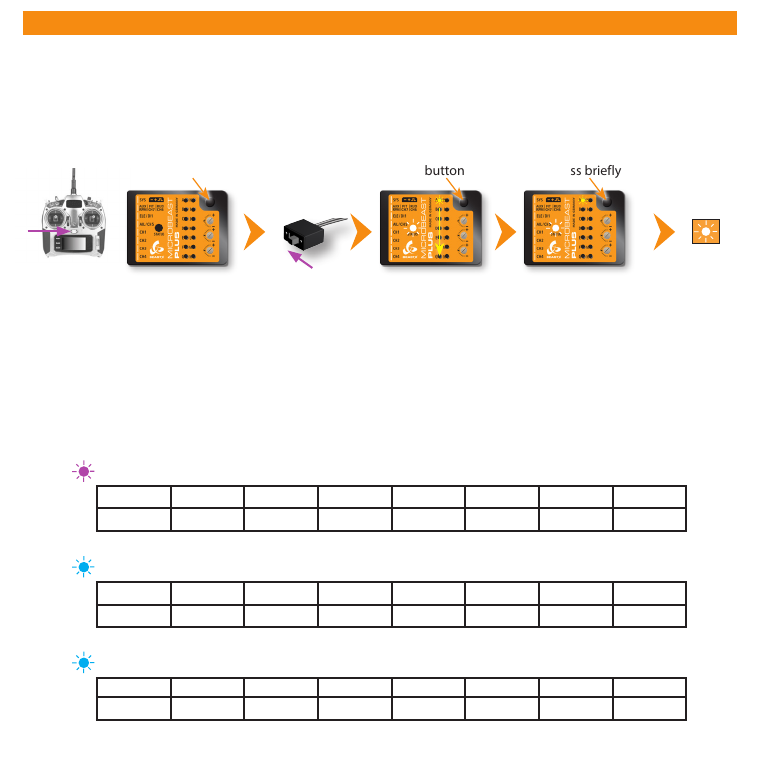

To initiate bind procedure for a Spektrum® DSM2/DSMX remote satellite, connect the Spektrum® bind plug to

[SYS] port. When using a DSM2 remote satellite, push and hold the button. Turn on power while still holding the

button down. The LED on the satellite will ash together with Menu LED Non MICROBEAST PLUS. When binding a

DSMX remote satellite do not touch the button, only power on the device. The LED on the satellite will ash together

with Menu LED H. Initiate the bind procedure on the transmitter. Power o and remove the bind plug when nished

successfully.

To bind other receivers refer to the manual of receiver or radio system. There is no action required with MICROBEAST PLUS.

Spektrum® SRXL2 receivers

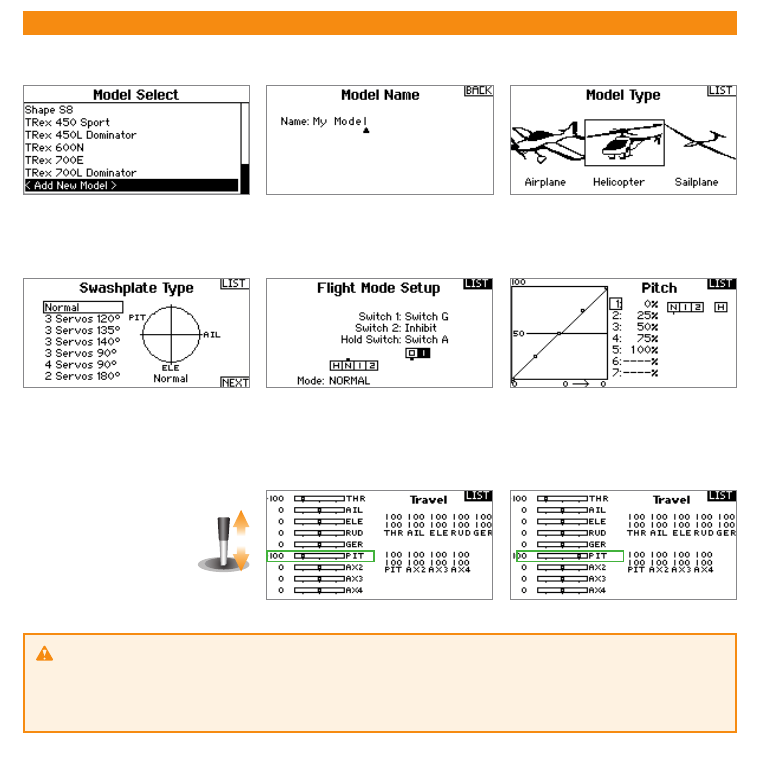

3. PREPARING YOUR TRANSMITTER

For safety reason, remove the motor from the main gear when performing the basic setup on electrc driven

models! Additionally deactivate the throttle by using the „Throttle HOLD“ switch, so the motor won‘t start to turn by

accident when moving the thrust stick.

When flying a nitro or gasser heli remove the servo horn from the throttle servo before first power up. This prevents

jamming the servo due to wrong servo setup!

You mustn‘t use any mixing functions on the output channels! Especially it is not allowed to use mixing functions for the

swashplate servos. Deactivate all output channels that are not used. In the basic configuration we only need pitch, aileron,

elevator, rudder, throttle and one channel to adjust the tail gyro gain.

Create a new helicopter model memory in your transmitter that supplies different flight modes for controling throttle, pitch

and the tail gyro gain in different flight situations.

Only the pitch channel must

be controled when moving

the thrust stick. The same

applies to aileron, elevator

and rudder.

Each control function must exactly control one output channel. Initially the servo throws must be set to 100% and all

trims and sub trims must be zero. For the basic setup do not change the pitch curves yet. The throttle curves and throttle

servo settings can be adjusted as necessary for this model in case you do not intend to use the internal Headspeed Governor

function of MICROBEAST PLUS.

4. RECEIVER SETUP

Switch on

power supply Menu LED Aflashes

Status LED

changes color

(scanning for

receiver)

Make sure your transmitter is on and sending signals to the receiver. At menu point Ayou can start automatic receiver type

detection by briefly pressing the button once. The color of the Status LED indicates which type is currently scanned for. When

the receiver has been detected the menu will skip to point B; when there was some error the Status LED will flash in red color

and the menu stays at A. In this case please make sure you‘ve connected the receiver correctly and try again!

Single-Line receiver (Status LED purple or blue at menu point A)

When at menu point Bpress and hold the button for 2 seconds to load the default function assignment that has been preset

for the detected radio system. Alternatively you may program a different function assignment manually, in case the default

assignment does not match to your transmitter‘s function layout. How this works in detail you can read from the detailed

instruction manual which you can get at wiki.beastx.com.

Preset function assignment for the different single-line receiver protocols (indicated by Status LED color at A and B):

Press and hold button Press briefly

To enter RECEIVER MENU MICROBEAST PLUS must be switched off completely. Push and hold the button before and while

powering on. The menu LEDs will start to cycle from Ato N. Now you can release the button.

Release button

Menu LEDs cycling

Switch on

transmitter

THR AIL ELE RUD GER PIT AX2 AX3

Throttle [CH5] Aileron Elevator Rudder Gyro gain Pitch Aux [CH6] Governor*

Spektrum® DSM2/DSMX/SRXL2, JR® RJ-01 DMSS or ALIGN® iBus remote satellite

12345678

Pitch Aileron Elevator Rudder Aux [CH6] Throttle [CH5] Gyro gain Governor*

PPM serial signal (SPPM)

12345678

Aileron Elevator Throttle [CH5] Rudder Gyro gain Pitch Aux [CH6] Governor*

Futaba® SBus/SBus2 or BEASTX FASST compatible receiver

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Beastx Accessoires

Beastx

Beastx MICROBEAST PLUS Manuel utilisateur

Beastx

Beastx MICROBEAST PLUS Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
