BEA CONDOR ID Manuel utilisateur

CONDOR ID

4RED-GREEN RED-GREEN OFF

QUICK GUIDE

STEP 1STEP 4

WIRING

PRESETTINGS

RFID GATE SENSOR

>2.8 m

<2.8 m

12-24V

GND

COM

GREEN

BROWN

WHITE

YELLOW

PINK

VIOLET

GREY

BLACK

POWER-

SUPPLY

START-

SIGNAL

STOP-

SIGNAL

P.4

P.3

At the end of the installation or

after changing the adjustment of

the sensor,it is MANDATORY to

introduce the preset value

in function of the installation

height by remote control.

FOR THIS, THE IR-FIELD

MUST BE EMPTY!

15°

30°

45°

15°

30°

45°

STEP 2

SENSOR ANGLE

p.3

SETUP

See user’s guide on the

next pages for more

detailed information. p.4

STEP 5

STEP 3

RADAR ANGLE

p.3

START STOP

2/8

EXIT

RFID GATE SENSOR

CONDOR ID

START-SIGNAL

Fasten the sensor

firmly to avoid vibrations.

Do not cover

the sensor.

Avoid moving objects

in the detection field.

Avoid HF, neon and

discharge lamps in the

detection field.

LED FLASHES

QUICKLY

LED FLASHES

SLOWLY

SETUPSTOP-SIGNAL LED OFF

Fixing screw

Radar antenna

Infrared lenses

Adjustment screw

for radar tilt angle

LED

INSTALLATION TIPS

LED-SIGNAL

DESCRIPTION

USER’S GUIDE

GREEN LED RED LED RED-GREEN LED

START STOP

3/8

By turning the screw clockwise, the detection depth decreases resp.

The detection field approaches the sensor.

By turning the screw counter clockwise, the detection depth

increases.

The angle of the radar field can be adapted by turning the adjustment screw.

Installation height: 3.2m

Field size: 8

Rejection mode: 1 (detection of pedestrians)

Installation height: 2.5m

Field size: 7

Rejection mode: 1 (detection of pedestrians)

The IR-detection field is approx.15% smaller than the zone detected by the Spotfinder.

If rejection mode 2 (detection of pallets) is selected, the radar detection field is slightly smaller.

12-24V

GND

COM

GREEN

BROWN

WHITE

YELLOW

PINK

VIOLET

GREY

BLACK

POWER-

SUPPLY

START-

SIGNAL

STOP-

SIGNAL

NOT USED

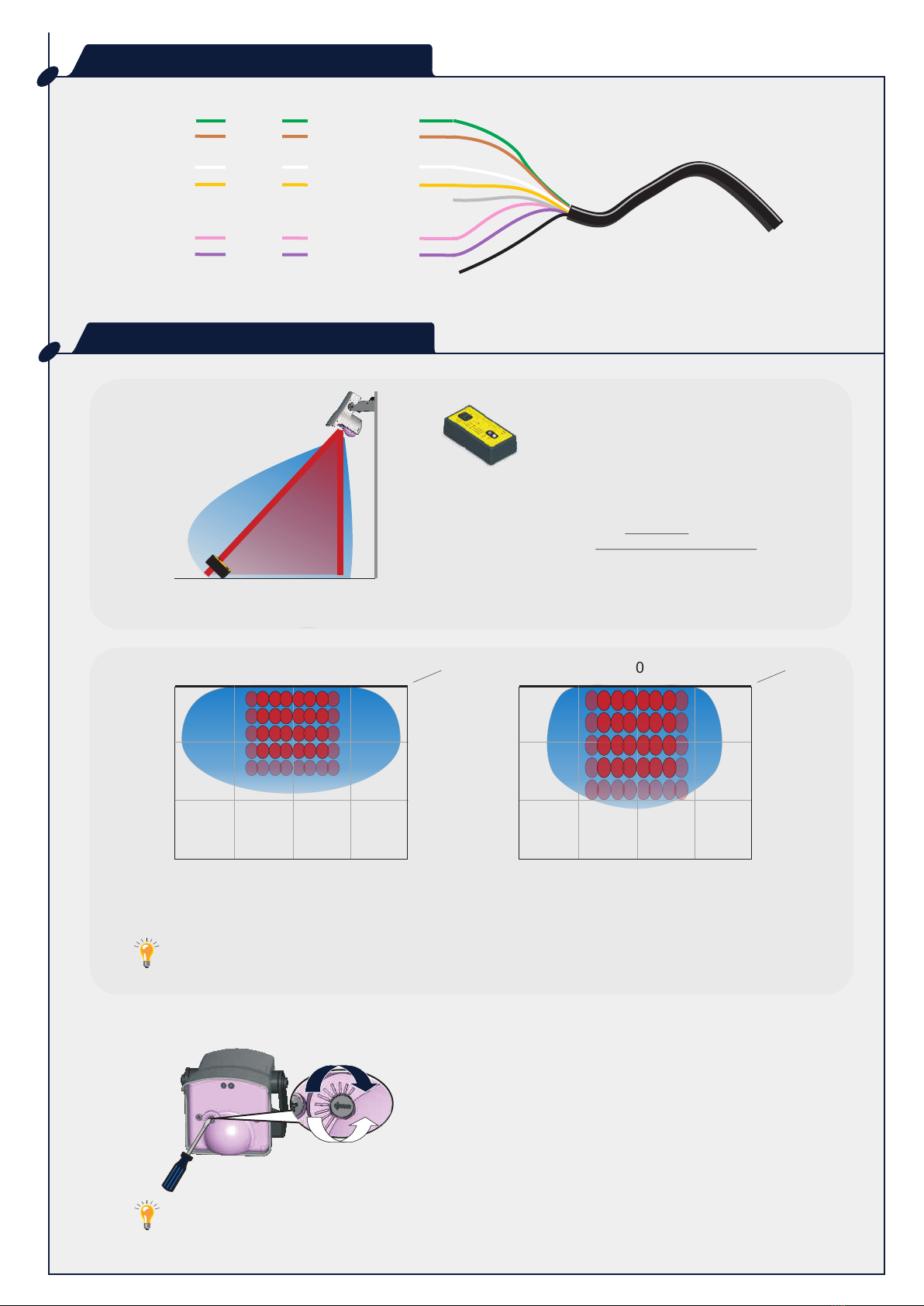

DETECTION FIELD

WIRING

The Spotfinder is necessary to position the

detection field correctly.

The CONDOR ID should be positioned by using

the Spotfinder so that the START-line is at the

desired distance from the sensor.

Therefore the Spotfinder should be put on the

floor and turned towards the sensor. The

CONDOR ID should be adjusted until the

Spotfinder detects the first line of IR-spots.

If the adjustment screw has to be repositioned to the default position as shown above, it is mandatory to

start from the 12 o’clock position and turn counterclockwise to the 9 o’clock position.

>2.8m <2.8m

123459

4/8

3. 1

Max. duration of presence detection

IR-Immunity

Detection field size

Rejection mode

Holdtime STOP-Relay

RFID-mode

Relay configuration

Installation height

Platform

Factory settings

Standard

Vestibule

REMOTE CONTROL

PRESETTINGS

When 2 or more sensors are installed close to each other or their detection fields overlap, alternate the frequencies

between sensors to avoid crosstalk.

Frequency 1

Frequency 2

FREQUENCY ADJUSTMENT

RED-GREEN

At the end of the installation or

after changing the adjustment of the

sensor,it is MANDATORY to introduce

the preset value in function of the

installation height by remote control.

FOR THIS, THE IR-FIELD MUST BE

EMPTY!

SETUP

START STOP

123

456

789

F1 F2 ...

5/8

0 ms

500 ms

1000 ms

1500 ms

active

passive

active

radar + IR seperately

combined mode

combined mode + error mode

standard

platform

normal (pedestrian detection)

increased immunity (pallet detection)

low rejection

medium rejection

high rejection

0-9

factory value: 7

15 sec

30 sec

1 min

2 min

5 min

10 min

20 min

1 h

1,30 h

2 h

passive

active

passive

active

unlock

lock

value check

frequency 1

frequency 2

setup

presettings

factory settings

1 or 4

Relay configuration

Size of detection field

Rejection mode

Holdtime STOP-Relay

RFID-mode

IR-Immunity

Max. duration of

presence detection

Frequency

Factory value

REMOTE CONTROL

SETTINGS OVERVIEW

How to adjust one or more parameters?

How to check one or more values?

RED RED

RED OFF

Select parameter Set value

Xvalue

RED RED GREEN OFF

Select parameter

The number of green

flashes indicates the

value of the chosen

parameter.

6/8

RED-GREEN

RED

During setup the LED

continues to flash

quickly red-green.

The power supply is too weak.

High intensity light (discharge

lamps) disturbs the sensor.

During setup the LED

continues to flash

slowly red-green.

The sensor does not

respond to the remote

control.

The batteries in the remote

control are not installed properly

or dead.

The remote control is badly

pointed.

The sensor is not powered.

The sensor requires an access

code.

Verify or replace the batteries.

Make sure the power supply is

stable.

Change the position of the lamps.

Point the remote control towards

the sensor.

Check the power supply of the

sensor.

The sensor does not

unlock, even after

entering the access

code.

You have to enter a code or the

wrong code was entered.

(Maybe it was changed?).

Cut and restore power supply.

No code is required to unlock

during the first minute after

powering.

New access code: + + new code

Delete access code: + + 0000

LED

SYMPTOMS POSSIBLE CAUSES CORRECTIVE ACTION

TROUBLESHOOTING

RED-GREEN

Internal problem

The red and green

LED are permanently

on.

The sensor is defect and has to be

replaced.

The IR sensor does

not react.

The IR power emission is too

low according to the mounting

height.

Launch a new setup.

Make sure to step out of the

detection field before.

RED

OFF

7/8

microwave and infrared

24.175 GHz

<< 5mW/cm

< 20 dBm EIRP

motion and presence

green, red

12 - 24V AC +10% / -10%

12 - 24V DC +10% / - 3%

50 - 60 Hz

< 3.5W

2 relays with switch-over contact (free of potential)

60V DC / 125V AC

1A (resistive) @ 24V DC

30W (DC) / 60VA (AC)

2.5m - 3.2m

0° to 45°

-8° to +15° (relative to sensor front face)

-30°C to +60°C

IP65

Electromagnetic compatibility (EMC) according to

ABS + PC

black

7.5m

2004/108/EEC

127 mm (D) x 102 mm (B) x 96 mm (H)

400g

Technology:

Radiated frequency:

Radiated power density:

Transmitter radiated power:

Detection mode:

LED-signal:

Supply voltage:

(measured at cable end)

Mains frequency:

Power consumption:

Output:

Max. voltage:

Max. current:

Max. switching power:

Installation height:

Tilt angle sensor:

Tilt angle radar:

Temperature range:

Protection degree:

Norm conformity:

Dimensions:

Weight:

Material:

Colour:

Cable length:

Specifications are subject to change without prior notice.

TECHNICAL SPECIFICATIONS

SENSORIO A division of BEA SA - LIEGE Science Park - Allée des Noisetiers 5 - 4031 Angleur [B]

T +32 4 361 65 89 - F +32 4 361 28 58 - [email protected] - www.sensorio.be

8/8

42.0627-V8 / 03.10
