VANTAGE SUB
SERVICE MANUAL
CONTENT
SPECIFICATIONS-------------------------------------------------------------3
PRECAUTIONS----------------------------------------------------------------3
GENERAL CHART-------------------------------------------------------------4
BILL OF MATERIAL----------------------------------------------------------4
CHAPTER 1(ACOUSTIC)
Technical parameter
Disassembly instruction
Flow chart
Principle chart
PCB board
General chart
------------------------------------------------------------6
-------------------------------------------------------7
-----------------------------------------------------------------------9
-----------------------------------------------------------------10
----------------------------------------------------------------------11
-------------------------------------------------------------------12
BILL OF MATERIAL---------------------------------------------------------13
CHAPTER 2(ELECTRONIC)
Page 1
Chapter 1
(Acoustic)
Page 2
SPECIFICATIONS
Model Number
Cabinet Type
Component
Speaker System
Speaker Terminals
Dimensions
(Wx x
Weight(net)
D H)mm
VANTAGE SUB
Active Subwoofer
80woofer
Bass Reflex
Spring Clip
10.3 kg/pc
360 x 201 x 375
PRECAUTIONS
There are wires connected speaker with amplifier panel, when disassembling
speaker, remember to unplug the connecting terminals.
When disassembling amplifier panel, please refer to Chapter 2 (Electronic).
Page 3
GENERAL CHART
BILL OF MATERIAL
Page 4
ITEM MATERIAL NO. MATERIAL NAME UNIT USAGE REMA RD
top cover ABS plastic VANTAGESeries,00,001,0 black-brightness
VANTAGE SUB amplifier bo ard BBK BP-529 220V
woo fer un it 8" HSP-8115 4 non-magnet-proof
Chapter 2
(Electronic)
Page 5
TECHNICAL PARAMETER
Page 6
Type : Active Subwoofer
Speaker Unit : (8") cone woofer x 1
Power Output
Distortion : 0.7%
S/N Ratio : 80dB
Frequency Response : 20Hz-160Hz
Sensitivity : 12
Switch off automatically period : minutes
Power supply :
Dimensions (W x D x H) : 360 x 201 x 375 mm
: 60W (4 /100Hz)
0mV
18~20
AC220V 50Hz
Study the cords layout carefully before any takedown. Set them as original after
servicing.
DISASSEMBLY INSTRUCTION
Fig 1
Page 7
AA
B
C
Fig 2
Fig 3
D
Fig 4

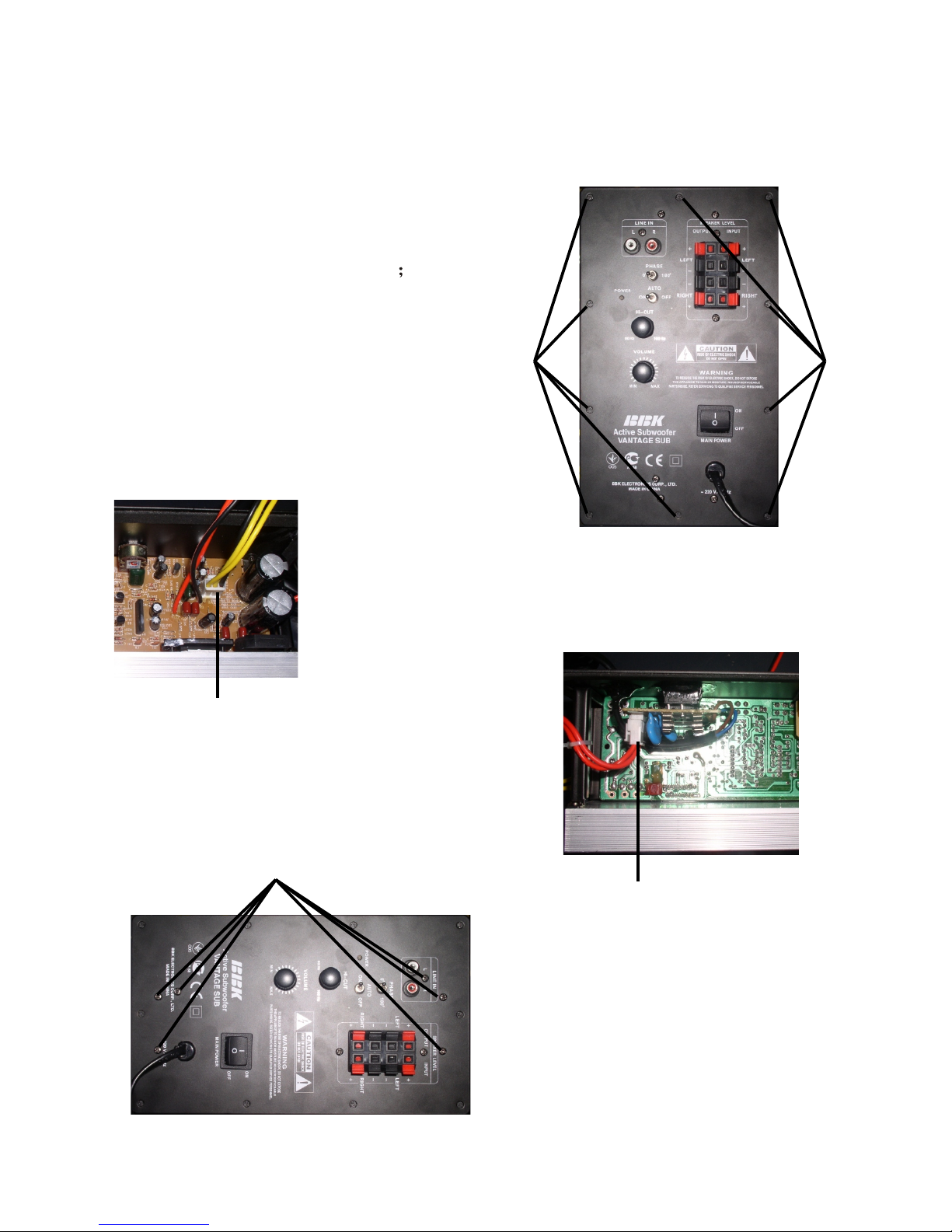

Take off back panel:
- screw off nail A (fig 1);
- take away speaker terminal
- take away terminal B (fig 2);
- take away terminal C (fig 3);
- take off back panel.
Page 8
Fig 4
E
Take off power amplifier PCB:
- screw off nail D (fig 4);
- move down knob, screw off fixed nut (fig 4);
- move away teriminal E (fig 5);
- take off power amplifier PCB.
FLOW CHART
Page 9
