Bazooka BASE TUBE Mode d’emploi

TOYOTA FJ CRUISER 2007- BASE TUBE (BAZOOKA

®)

Part Number: 00016-60009

Accessory Code:

Kit Contents

Item # Quantity Reqd. Description

1 1 Bazooka Tube Assembly

2 1 Wire Harness

3 1 Hardware Bag

4 1 Care Card

Hardware Bag Contents

Item # Quantity Reqd. Description

1 4 4” Wire Ties

2 4 M6 X 30mm Bolts

3 2 M6 X 25mm Bolts

4 2 Main Plate w/ mounts

5 2 L- Mounting Plates

6 4 M6 X 30mm Bolts

7 2 Washers

Additional Items Required For Installation

Item # Quantity Reqd. Description

Conflicts

None

Recommended Tools

Personal & Vehicle

Protection

Notes

Vehicle Protection Seat/Floor Covers

Part Protection Blankets

Special Tools Notes

Installation Tools Notes

Panel Removal Tool Nylon Removal Tool (NRT)

Socket/Ratchet 10mm

Socket Extension 6 inch

Torque Wrench 3 lbf·ft

Pliers 1. Diagonal Cutters

2. Long Nose (optional)

Screwdriver Magnetized Philips # 2

Special Chemicals

General Applicability

All Toyota FJ Grades

Recommended Sequence of Application

Item # Accessory

1 Install Security/Audio

2 Install Bazooka Tube

3 Install Door Sills

4 Install Molded Dash

*Mandatory

Vehicle Service Parts (may be required for reassembly)

Item # Quantity Reqd. Description

Bass Tube Specifications

Woofer Size 8”

Voice Coil Size 1”high power/high

temp.

Magnet Size 15 oz.

Frequency Response 39 – 85 hz.

Efficiency 105dB

Power Handling 100 watts

Dimensions 18.125” x 8.5” x 10”

Weight 14 lbs.

Impedance 2 ohms DVC

Southeast Toyota Distributors, LLC Page 1 of 9

TOYOTA FJ CRUISER

Care must be taken when installing this accessory to ensure damage does not occur to the vehicle. The installation of this

accessory should follow approved guidelines to ensure a quality installation.

These guidelines can be found in the "Accessory Installation Practices" document.

This document covers such items as:-

•Vehicle Protection (use of covers and blankets, cleaning chemicals, etc.).

•Safety (eye protection, rechecking torque procedure, etc.).

•Vehicle Disassembly/Reassembly (panel removal, part storage, etc.).

•Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.).

Please see your Toyota dealer for a copy of this document.

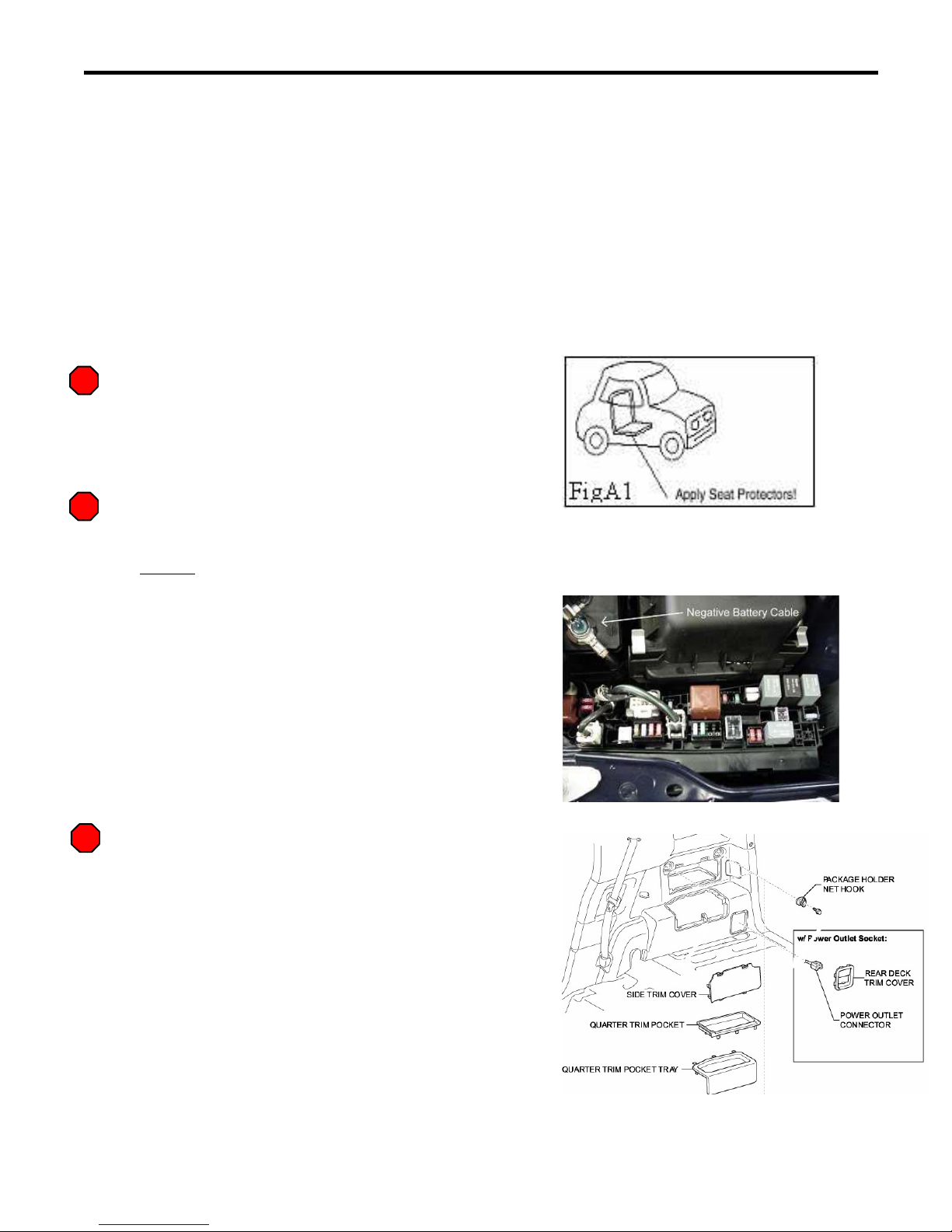

1. Pre-installation Precautions

(a) Use Seat & Floor Protectors and Fender

Covers/Blankets to avoid damage to

surfaces. Operator Safety Warning (if

applicable.)

2. Battery Disconnect

(a) NOTE: Be sure to open the rear hatch,

PRIOR to disconnecting the battery.

(b) Remove the NEGATIVE (-) battery

terminal using a 10mm socket before any

disassembly starts. (Fig. 2-1).

3. Disassemble Center Rear Storage Area

(a) Remove Cargo Net Cleats using 10mm

Socket. Place in a safe location.

(b) Remove Side Trim Cover, Quarter Trim

Pocket, Quarter Trim Pocket Tray. (Fig.

3-2)

Fig 2-1

Fig 3-2

STOP

Southeast Toyota Distributors, LLC Page 2 of 9

BASS TUBE (BAZOOKA®)

4. Mount L-Brackets

(a) On wheel well, slide L-brackets under

side garnish ensuring no wires are

pinched. Insert Ground ring between

front L-bracket and vehicle. DO NOT

TIGHTEN AT THIS POINT! (Fig. 4-1)

NOTE: It may be necessary to unsnap

factory harness clip to align rear L-bracket.

5. Route Wire Harness

(a) Plug harness in at point shown. (Fig. 5-1)

(b) Route Wire harness as shown. (Fig. 5-2)

using 4” wire ties.

Fig. 4-1

Fig 5-1

(1) Fig. 5-2

Southeast Toyota Distributors, LLC Page 3 of 9

BASS TUBE (BAZOOKA®)

6. Install Main Plate

(a) Using the Cargo Cleats and the M6 x

35mm, loosely mount the top of the main

plate. DO NOT TIGHTEN AT THIS

POINT! See Fig 6-1.

(b) Route wiring harness through slot in

Main plate as shown. (Fig 6-2)

washer, bolt the lower points of the main

plate to the L-Brackets. DO NOT

TIGHTEN AT THIS POINT! (Fig. 6-3)

7. Tighten All Bolts

(a) Tighten bottom L-bracket bolts.

(b) Tighten Cargo cleat bolts.

Fig 6-1

Fig 6-2

Fig 6-3

Southeast Toyota Distributors, LLC Page 4 of 9

BASS TUBE (BAZOOKA®)

8. Install Bass Tube

(a) Hang Bass Tube on Main Mounting

Plate as shown

(b) Using two M6 x 20MM bolts, tighten

down upper bolts as indicated in Fig 8-4.

Fig 8-4

Southeast Toyota Distributors, LLC Page 5 of 9

TOYOTA FJ CRUISER 2007 - BASS TUBE (BAZOOKA®)

Checklist - these points MUST be checked to ensure a quality installation.

Check: Look For:

Accessory Function Checks

Turn on Radio

Verify CD & Satellite Tuner (if equipped)

Antenna is functioning

Bazooka Tube operation

Vehicle Function Checks

Hazard Button

HVAC

Rear Window Defogger

Passenger Seat Belt Warning Light

Radio display turns on & sound is heard

CD player functions & Satellite Tuner

stations are playing (if equipped)

Reception of AM/FM stations

Bazooka Tube – Listen to Bazooka Tube to

make sure it is functioning properly or by

feeling the Bazooka for vibration. Be sure

the Phase Switch is in the “UP” position.

Functioning Hazard Lights

All HVAC controls function properly

Functioning Rear Window Defogger

Functioning Seat Belt Warning Light

Southeast Toyota Distributors, LLC Page 6 of 9

TOYOTA 2007 - BASS TUBE (BAZOOKA®)

Troubleshooting

Condition: Check For:

No sound from Bass Tube, however factory

speakers still play

Distorted Sound

Low Sound

Rattling Noises

1. Is the green L.E.D. lit on the Bass Tube?

If not, check for 12 volts on pins of the Bass

Tube Connector with the ignition on. If

either pin doesn’t indicate 12 volts, check T-

Harness connectors behind the radio.

2. Is the 14-pin Molex connector securely

connected to the Bass Tube?

3. Is the ground ring securely fastened to the

rear center Anchorage bolt?

1. Close the back hatch of the vehicle

2. Adjust the radio to a comfortable listening

level, and then turn the “gain control” knob

on the Bass Tube counter-clockwise until the

sound becomes clean.

1. Close the back hatch of the vehicle

2. Adjust the radio to a comfortable listening

level, and then turn the “gain control” knob

on the Bass Tube clockwise until the sound

becomes audible. Do not adjust the level too

high, as this will result in distorted sound.

Rattling will be evident in some panels at

extreme volume conditions, but make sure

you have performed the following to

minimize noise:

1. Securely tightened Mounting Hardware so

Bass Tube Bracket does not move.

Southeast Toyota Distributors, LLC Page 7 of 9

TOYOTA 2007 - BASS TUBE (BAZOOKA®)

Troubleshooting

Condition: Check For:

Dimming Radio Lights

Radio does not come on

No Sound at all

Bass Tube produces sound on the right or

the left, but not both.

Dimming Radio Lights could occur when the

Bass Tube is played at high volumes.

Check to ensure that the main connector,

antenna connector, and auxiliary connector

have been correctly plugged back in.

1. Is the fuse under the hood still

operational?

2. Is the battery ground reconnected?

3. Is the radio connector securely seated?

Check T-Harness connections at the back of

the radio. All connectors must be securely

fastened to the correct wiring for both

channels to produce audio output.

Southeast Toyota Distributors, LLC Page 8 of 9

TOYOTA FJ CRUISER 2007- BASS TUBE (BAZOOKA®)

Wire Harness & Radio Wiring Schematics

WIRING CONNECTOR SCHEMATICS:

Harness Split Radio Connector Subwoofer Connector

Harness Split Connector

Pin No. Wire Color Function

1 Red 12 Volt Battery Connection (B+)

2 White/Black Left Front Speaker (-)

3 Gray/Black Right Front Speaker (-)

4 Blue/White Remote Turn-On/Ignition (Switched+)

5 White Left Front Speaker (+)

6 Gray Right Front Speaker (+)

Subwoofer Connector

Pin No. Wire Color Function

1 Black Chassis Ground

2 N/A N/A

3 N/A N/A

4 N/A N/A

5 White Left Front Speaker (+)

6 Grey Right Front Speaker (+)

7 N/A N/A

8 Red 12 Volt Battery Connection (B+)

9 Blue/White Remote Turn-On/Ignition (Switched+)

10 N/A N/A

11 N/A N/A

12 White/Black Left Front Speaker (-)

13 Grey/Black Right Front Speaker (-)

14 N/A N/A

Radio Connector (R4 GRAY)

Pin No. Wire Color Function

1 Right Front Speaker (+)

2 Left Front Speaker (+)

3 NO CONNECTION NO CONNECTION

4 NO CONNECTION NO CONNECTION

5 12 Volt Ignition Switched (B+)

6 12 Volt Battery Connection (B+)

7 Right Front Speaker (-)

8 Left Front Speaker (-)

9 Chassis Ground (B-)

10 Power Antenna Control (+)

11 Power Antenna Control (-)

12 Dimmer / Illumination Control (B+ variable)

Southeast Toyota Distributors, LLC Page 9 of 9
