Baxtran Giropes TOUCH Series Manuel utilisateur
ENENUSER'S MANUAL T-TOUCH SERIES
V.5_25/11/2019
EN
COMMERCIAL SCALES
TOUCH SERIES
USER MANUAL
marca propiedad de | est une marque de | trade mark property of:
Pol. Empordà Internacional Calle F. Parcela 15-16
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212 - F. (34) 972 527 211
El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas regulaciones oficiales./Le
constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d’y apporter des améliorations techniques ou de respecter de nouvelles réglamentations./The
manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
ENENUSER'S MANUAL T-TOUCH SERIES
2
3
ENENUSER'S MANUAL T-TOUCH SERIES
EN
1. QUICK GUIDE 6
1.1 REQUIREMENTS 6
1.2 INTERFACES 6
1.3 TYPE OF POWER SOURCE 7
1.4 PAPER ROLL CHANGE - S70 / M80 8
1.5 SWITCHING ON AND OFF 9
2. GENERAL INFORMATION 10
2.1 SALES SCREEN 10
2.2 REAR SCREEN 12
2.3 ON-SCREEN KEYBOARD 13
3. OPERATION 14
3.1 FUNCTIONS 14
3.2 SALES OPERATION MODE 15
3.3 MANUAL ENTRY PRICE / QUANTITY 16
3.4 AUTO-ACCUMULATION MODE 17
3.5 REMOVE ACCUMULATED PRODUCTS 18
3.6 COLLECTION OPERATION 20
3.7 SALES RETURN 22
3.8 EDIT PLU 22
4. MAIN MENU SETTINGS 24
4.1 LOG IN/LOG OUT 25
4.2 SALES 26
4.3 ID SETTING 26
4.4 SETTINGS 30
4.4.1 BASIC INFORMATION 31
4.4.2 SYSTEM 34
4.4.3 WEIGHT 37
4.4.4 OPERATION 37
4.4.5 CALIBRATION 41
4.4.6 COMUNICATION 41
4.4.7 PREVIOUS SCREEN 42
4.5 USER INTERFACE 49
4.6 DATA 57
4.7 REPORTS 61
4.8 PRICE TYPE 62
4.9 PRINT FORMAT 62
ENENUSER'S MANUAL T-TOUCH SERIES
4
WARNING!
1. Check the voltage before connecting the scale. Use only the correct voltage
assigned to avoid damage.
2. Avoid using the scale in hazardous environments.
3. Avoid suddenly or strongly impacting the scale.
4. Avoid submerging the scale in water and in highly humid environments.
5. Do not turn on the scale when it has just undergone large temperature changes
to avoid possible damage.
5
ENENUSER'S MANUAL T-TOUCH SERIES
INTRODUCTION
The touch screen scales S70 and M80 are specially designed for shops, supermarkets, etc. They use a Linux-based operating system with touch
screens.
Characteristics
• Resistive touch screen system.
• 8" (S70), 10'' (M80) TFT LCD screen.
• 7'' (S70), 10'' (M80) customer HD screen.
• The customer's screen is able to play images and videos.
• Selectable weighing units.
• Built-in real time clock.
• 1 GB RAM and 1 GB FLASH memory.
• Unlimited data storage capacity*.
• 99999 PLU storage capacity.
• Multiple, customizable print formats.
• Connectivity with PC keyboard, mouse, barcode scanner and cash box.
• RS232x2: The serial communication port can be connected to a PC,
mini printer, ticket printer, label printer, etc.
• Report management.
Note: * Data storage depends on the availability of free memory
ENENUSER'S MANUAL T-TOUCH SERIES
6
1. QUICK GUIDE
1.1 REQUIREMENTS
Check that the power supply has the correct voltage required before use. The mounting location must be a stable surface free of heat, water and
moisture.
1.2 INTERFACES
M80 Series:
RJ-11 USB2 RJ-45 RS-232: COM1 MINI USB
S70 Series:
RS-232 X 2 RJ-11 RJ-45 MINI USB
USBPort x 2
JACK ADAPTER
RS-232 COM2
7
ENENUSER'S MANUAL T-TOUCH SERIES
INTERFACE QUANTITY DESCRIPTION
RJ11 1 Cash draw
USB 2For mouse, keyboard, barcode scanner
RJ45 1 Ethernet
RS232 2For printers or other supported equipment
1.3 TYPE OF POWER SOURCE
M80 Series
SWITCHING ON
LOADING
CONNECTOR
S70 Series
SWITCHING ON
LOADING
CONNECTOR
ENENUSER'S MANUAL T-TOUCH SERIES
8
1.4 PAPER ROLL CHANGE - S70 / M80
Push button to open Lift to open the lid Replace the paper roll
Peel off the paper Close Pull out the paper
9
ENENUSER'S MANUAL T-TOUCH SERIES
1.5 SWITCHING ON AND OFF
SWITCHING ON
Press and hold down the Power key until you hear a "beep", then
the scale will start the power up process.
SWITCH
SHUTTING DOWN
Press the key on the main menu, and press "confirm" on
the pop-up screen to turn off the equipment
SWITCH OFF KEY
Note: If you press and hold the "On" switch for a long period, the scale will turn off.
1- It is necessary to enter the user name and password to access the scale’s operations.
To access the scale’s operations, select the user name on the list and enter the password.
Default user name: admin
Default password: admin
2- It is necessary to press the "access" key to display the sales screen where, by pressing the "Menu" key, we access the main menu,
from which we can move through the scale’s different sections.
ENENUSER'S MANUAL T-TOUCH SERIES
10
2. GENERAL INFORMATION

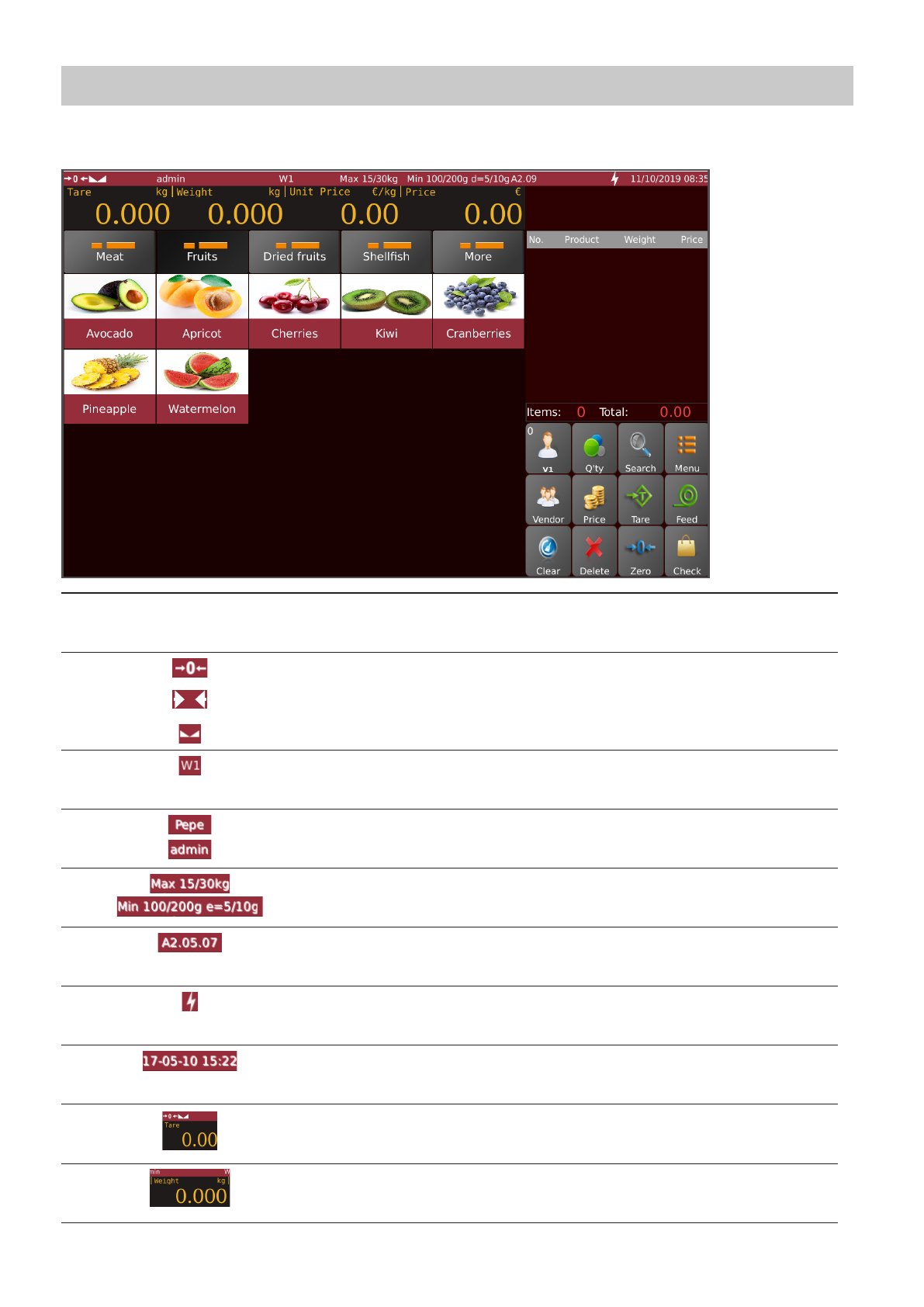

2.1 SALES SCREEN
DISPLAY/
INDICATOR
DESCRIPTION
1 Zero
Tare
Stable
Displays the current weighing status
A
2 Range Displays the weighing range
4 Operator Displays who the active operator is
5 Capacity Displays the capacity, the minimum weight, and the division.
6 Version Displays the software version
7 Power supply Displays that it is connected to the electricity
8 Date and time Displays the date and time
9Tare Displays the tare value
10 Weight Displays the weight
