Baxter AK 98 Guide d'installation

AK 98

Machine Introduction

Training Material

Introduction Module

AK 98

Dialysis Machine

Reference:

AK 98

Operator’s Manual 3.xx

Chapters 2 & 3

INTENDED USE | Refer to Operator’s Manuals SW 3.xx

Special Considerations:

CAUTION!

If treating patients weighing below 25 kg it is recommended that UF supervision alarm limits are configured accordingly by

an authorized service technician.

CAUTION!

The treatment of patients with a weight below 25 kg shall be performed under the full supervision of the physician. In these

cases, additional measures to supervise the patient weight loss as per standard of care for low body weight is

recommended. Failure to do so could result in serious adverse consequences like hypovolemia and hypotension.

HC10139 |

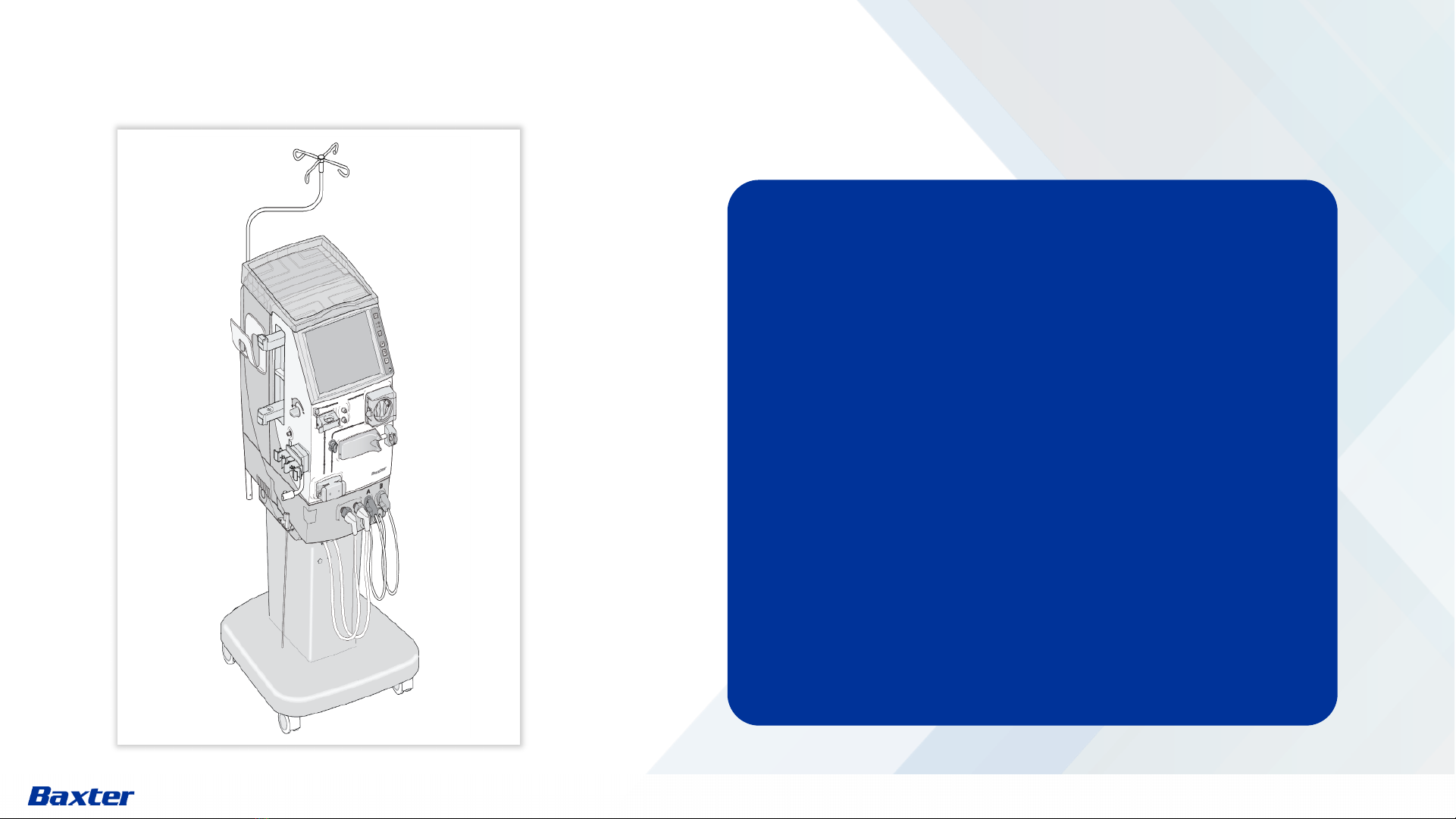

AK 98

DIALYSIS MACHINE

Important Notice:

The contents of this training does not

replace the training by the local

healthcare provider. It does not replace

the users responsibility to read and

understand the full text of the Operator’s

manual prior to operating the machine.

If there are deviations between the

actions described here, and the

instructions contained in the Operator’s

Manual, then the information from the

Operator’s Manual takes precedence.

HC10139 |

LEARNING OBJECTIVES

The aim of this module is to obtain an overview of the

AK 98

dialysis machine with special focus

on:

•The blood part of the machine

•The fluid part of the machine

•The operator’s panel

•Setting of the treatment parameters and activating functions

5HC10139 |

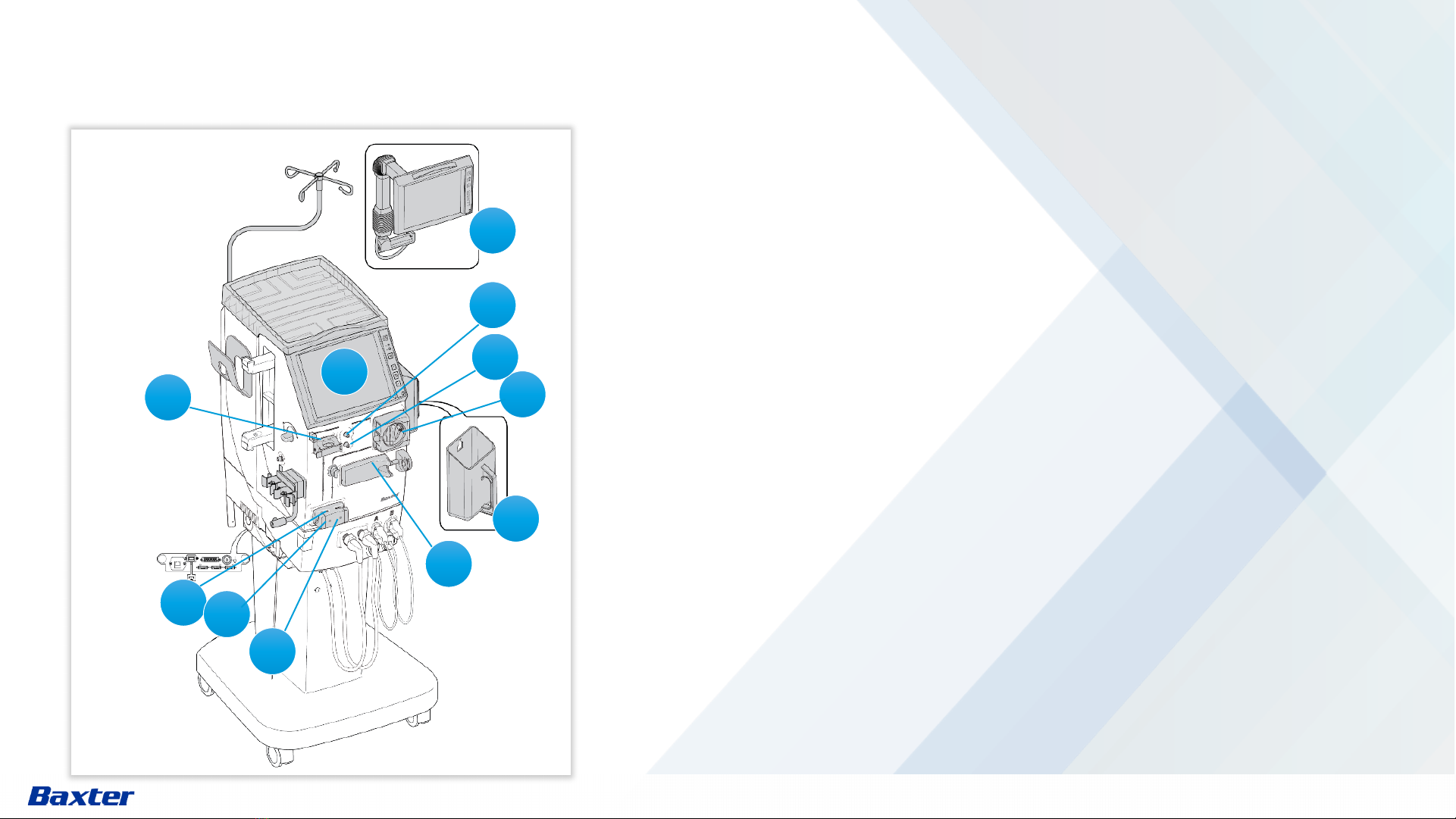

MACHINE EXTERNAL COMPONENTS | Blood Part

1. Remote Operator’s panel (not available in all markets)

2. Operator’s panel

3. Air detector

4. Venous pressure transducer connector

5. Arterial pressure transducer connector

6. Blood pump

7. Heparin pump

8. Priming detector

9. Arterial blood line clamp

10.Venous blood line clamp

11.Prime bucket (not available in all markets)

HC10139 |

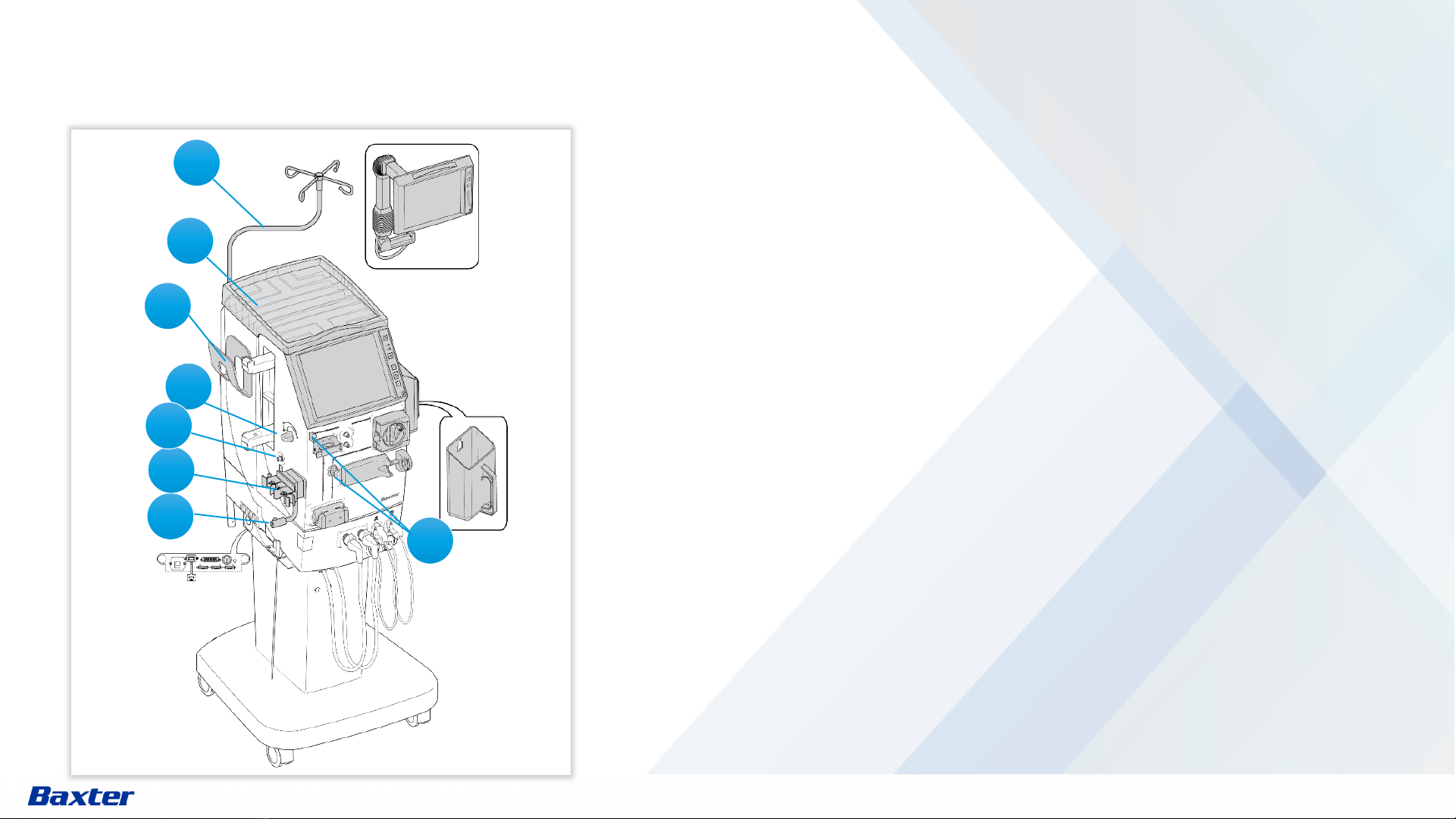

MACHINE EXTERNAL COMPONENTS | Blood Part

11. Arm for dialyzer holder

12. Expansion chamber holder

13. Blood pressure monitor (BPM)

14. Blood line guides

15. Level adjustment knob

16. BPM cuff holder

17. Top tray

18. Infusion stand

HC10139 |

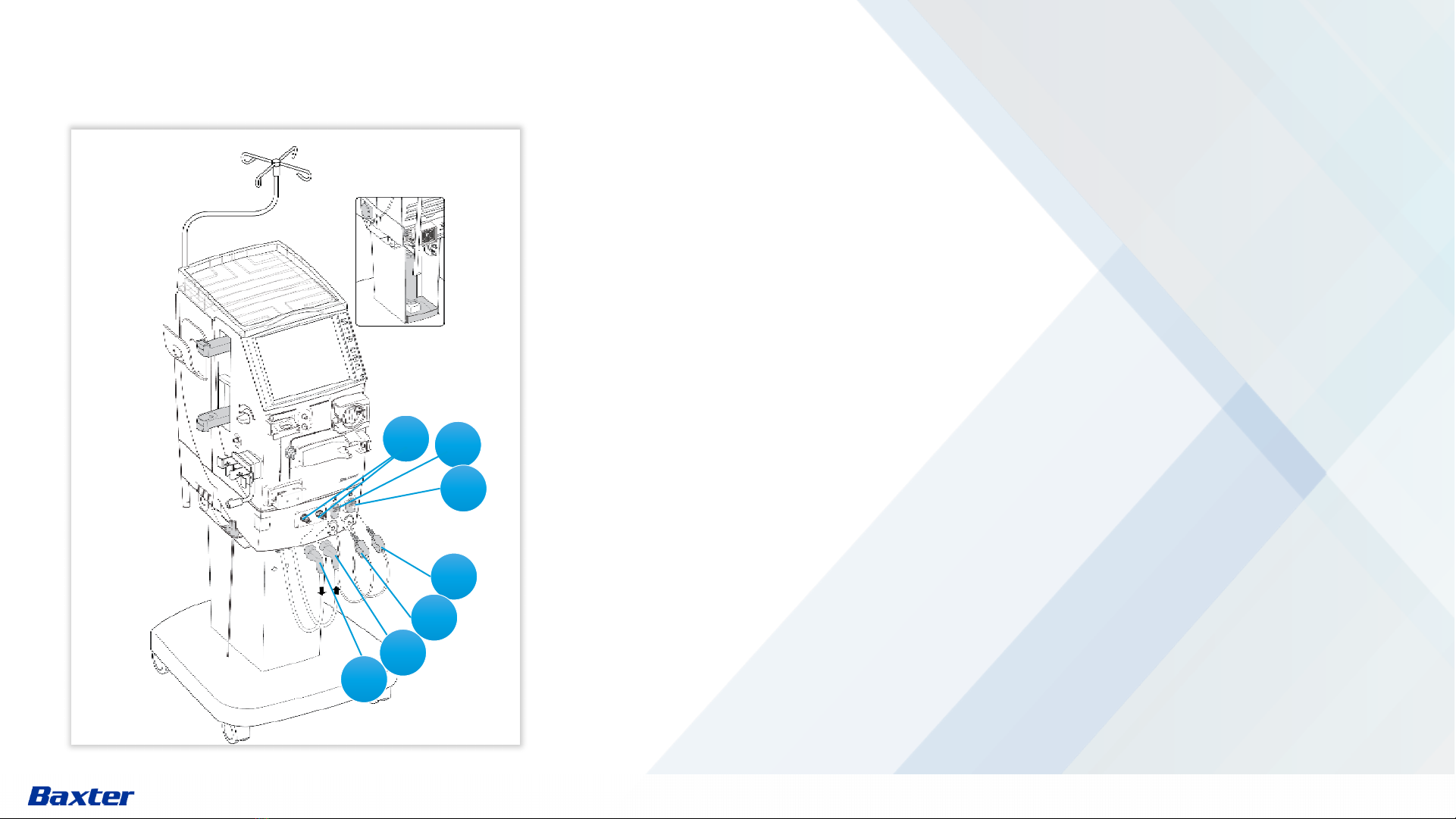

MACHINE EXTERNAL COMPONENTS | Fluid Part

1. Stand-by ports for dialysis fluid tubes

2. Dialysis fluid tube from machine to dialyzer (blue)

3. Dialysis fluid tube from dialyzer to machine (red)

4. Stand-by port for red concentrate connector

5. Stand-by port for blue concentrate connector

6. Concentrate connector, red

7. Concentrate connector, blue

HC10139 |

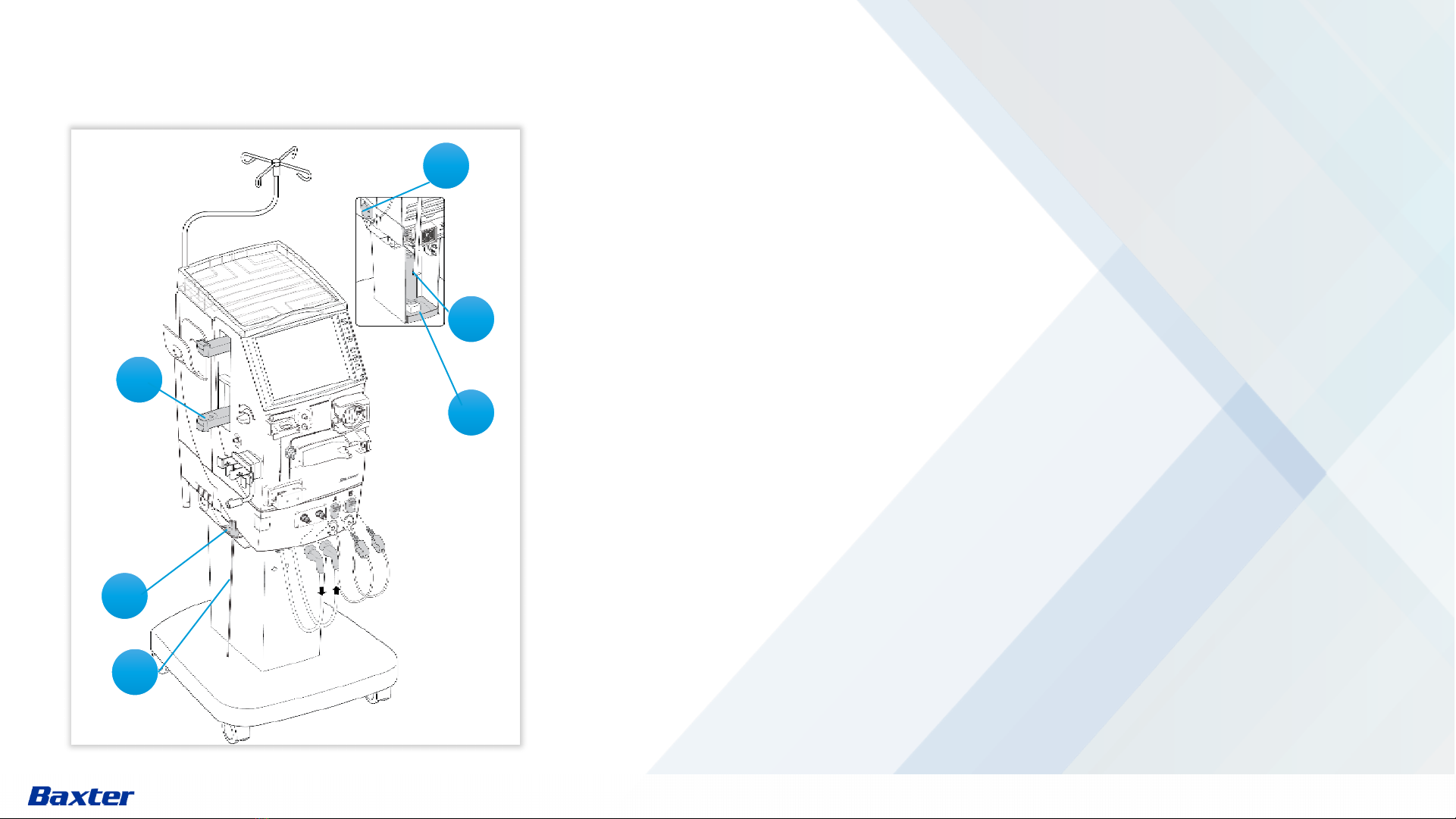

MACHINE EXTERNAL COMPONENTS | Fluid Part

1. Pick-up tube

2. Pick-up tube holder

3. BiCart

cartridge holder

4. Blood leak detector

5. Ultrafilter

6. Leakage detector tray

HC10139 |

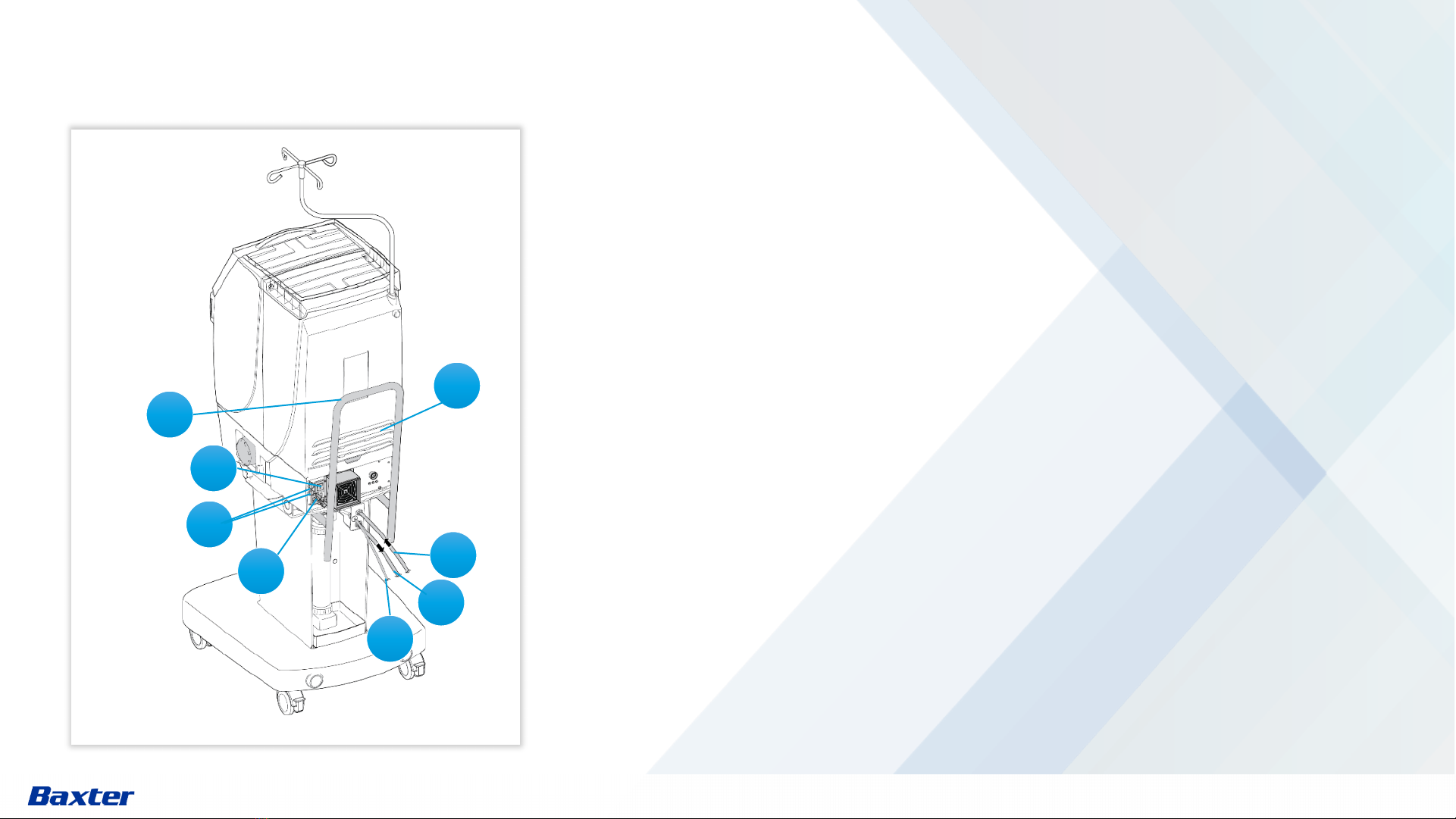

MACHINE EXTERNAL COMPONENTS | Rear

1. Transportation handle

2. Air filters

3. Inlet water tube

4. Outlet tube (drain)

5. Citric acid inlet tube

6. Mains connection

7. Fuses

8. Main switch

HC10139 |
