Baxi 807 Instructions d'utilisation

5113198/01

INSTALLER AND OWNER GUIDE

This guide is intended to help you install and care for your electric heater. Please read

carefully before installing and using your heater. However, if further information is

required, our Baxi Fires Division Technical Helpline will be pleased to help.

Telephone 08706 061 065 (National call rates apply in the United Kingdom)

In the Republic of Ireland telephone 0044 8706 061 065.

Important: Please keep your guide in a safe place for future reference

Model 807

Electric Heater

Fitted with one of the following fascia

Adage,

Alisa,

Anthem,

Dream,

Eternal,

Manor,

Ocean,

Ultimate or

Victorian.

Safety First.

Baxi Fires Division fires are CE Approved and designed to meet the appropriate British

Standards and Safety Marks.

Quality and Excellence.

At the heart of every Baxi Fires Division heater.

All Baxi Fires Division heaters are manufactured to the highest standards of quality and

excellence and are manufactured under a BS EN ISO 9001 quality system accepted by

the British Standards Institute.

CUSTOMER CARE

Thank you for choosing Baxi Fires Division

All Baxi Fires Division heaters are designed to meet the most stringent quality,

performance and safety requirements to provide our customers with many years of

trouble free service. This guide aims to improve your understanding and appreciation of

your new heater, by providing simple and informative instructions to enable you to

install it and to ensure that you benefit from the excellent performance and features it

has to offer.

If you require further assistance, the Baxi Fires Division Technical Helpline will be

pleased to help.

Please telephone 08706 061 065 (local rates apply in the United Kingdom).

In the Republic of Ireland telephone 0044 8706 061 065.

FOR OTHER USEFUL TELEPHONE NUMBERS SEE THE LAST PAGE OF THIS GUIDE

Baxi Fires Division, Erdington, Birmingham B24 9QP

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from those

given in this publication

Page 2

INSTALLER AND OWNER GUIDE

HANDLING AND UNPACKING

Before continuing any further with the installation of this heater please read the

following:

Unpacking the Dream heater.

This heater has a fascia which is heavy (13.35 kG).

To avoid damage it is packed in a separate box within the main box.

When unpacking it is important that the box containing the fascia is removed before the

main body of the heater. This is to prevent the main box tipping over and causing

damage or injury.

Important safety instructions.

!The lifting weights of the heater parts are listed below: -

Heater Heat engine (kG) Complete Fascia (kG) Spacer (kG)

Adage 6.8 2.16 2.3#

Alisa 7.2 0.62 1.2

Anthem 7.2 0.62 2.3

Dream 6.8 13.35 ---

Eternal 6.8 3.45 2.3

Manor 6.8 4.3 2.3*

Ocean 6.8 2.16 2.3*

Ultimate 6.8 4.3 2.3*

Victorian 6.8 5.56 2.3

* A Spacer is not supplied with the heater, but is available as an optional extra

Please contact your dealer quoting Part number 05801T1.

# The Adage blue does not include a spacer frame with the product, but is

available as an optional extra. Please contact your dealer quoting part number

05801T1.

One person should be sufficient to lift the heater. If for any reason this weight is

considered too heavy then obtain assistance.

When lifting always keep your back straight. Bend your legs and not your back.

!Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body/top heavy bending. Always bend from the knees rather than the

waist. Do not lean forward or sideways whilst handling the heater.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

Always keep the heater as close to the body as possible. This will minimise the

cantilever action.

Page 3

INSTALLER AND OWNER GUIDE

!Use gloves to provide additional grip.

!Always use assistance if required.

Always

! Always install the heater in accordance with this guide. If in doubt obtain

expert advice.

! Always make sure the electrical socket is accessible and located adjacent to, but

not above the heater.

! Always disconnect the heater from the electrical supply before carrying out

cleaning, maintenance or replacing the light bulb.

! Always

make sure the heater is firmly secured to prevent it from being tipped over.

! Always use a fireguard when young children and infirm persons can come into

contact with the heater.

! Always use genuine Baxi Fires Division spares.

Never

! Never leave children unsupervised in a room where the heater is ON and

unguarded.

! Never obstruct or cover the fan outlet or force items into heater openings.

! Never install or use the heater anywhere where water is in use, i.e.

Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.

! Never use aerosols or steam cleaners on or around the heater.

! Never route the mains supply cable under carpet etc.

! Never install the heater close to curtains or combustible materials.

! Never use the heater to dry clothes etc.

! Never sit or stand on the heater.

FITTING THE HEATER

The installation of this heater requires a reasonable level of DIY skills.

Please read this guide thoroughly before commencing installation and if in doubt,

seek help from a competent person

Do I need any tools?

1. You will need two screwdrivers: -

1 off Pozidrive / Phillips / cross head

screwdriver. This should have a number 2 size

end. If you are unsure about the size of the end simply make sure that the end fits into

the screws supplied with the heater. If the end is too small then the end will spin and

damage the screw.

1 off Flat end

screwdriver. The end should fit into the slot head screws supplied with

Page 4

INSTALLER AND OWNER GUIDE

the heater.

2. For drilling into brickwork you will need an electric hammer drill and appropriate

size drill bit for the wall plugs supplied (See figure 4).

Where can I fit the heater?

This heater can be fitted into fireplaces or surrounds where the following dimensions

are available.

Width 390mm - 450 mm (15.35 inches - 17.72 inches)

Height 555mm - 590 mm (21.9 inches - 23.2 inches)

Depth At least 75mm (At least 3 inches)

There should be at least 30mm (1.2 inches) clearance between the top of the fascia and

anything such as a shelf, fireplace surround or mantel etc. This will allow the fascia to

be lifted off or removed during servicing. To check this gently place the fascia against

the surface to which it is to be fixed. Measure the distance from the top of the fascia.

Using the 75mm (3 inch) spacer kit supplied, the Adage (Not Adage blue), Anthem and

Victorian heaters can also be used where a fireplace opening or fireplace surround

opening are not available i.e. a flat wall. The Dream

heater does not have the 75mm (3

inch spacer) and cannot be used against flat walls unless it is fitted to a rebated

surround or suite.

A 75mm spacer kit is available for the Adage blue, Manor, Ocean and Ultimate models

as an optional extra. Please contact your dealer quoting Part number 05801T1.

Important electrical safety.

The heater must not

be located in front of or under an electrical socket, the socket must

always be accessible in order to disconnect the heater from the electrical supply for

maintenance and cleaning.

Important! This heater must be earthed.

The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core

cable.

! The wires in the cable are coloured in accordance with the following code: -

Live =Brown Neutral = Blue Earth = Green /Yellow

! The mains supply must be safely routed from the heater to an electrical socket.

Moving the cable guide.

At the base of the heater you will find an electric cable which runs through a

rectangular plastic cable guide. As supplied the cable guide is fitted into the rectangular

Page 5

INSTALLER AND OWNER GUIDE

cutout on the right side of the heater. If required, the

cable guide can be removed and put in the

rectangular slot in the centre or left hand side of the

heater. For removal and fitting please see the

following sections.

Removing the cable guide

1. Before removing the cable guide please note that

the wider part of the cable guide is on the outer edge

of the base (See figure 1- Item 1).

2. To remove the cable guide push and lift the tab on

the bottom of the cable guide. The bottom of the

cable guide will open (See figure 1- Item 2).

3. Lift the electric cable clear of the cable guide.

4. Hold the bottom of the cable guide close to the

heater then gently pull the cable guide away from

the rectangular slot (See figure 1- Item 3).

Fitting the cable guide.

When fitting the cable guide please remember that

the wider part of the cable guide has to be fitted

against the outer edge of the base (See figure 1- Item

1).

1. Gently pinch the sides of the cable guide (See

figure 1 - Item 4) and push the cable guide into the

required rectangular slot.

2. Place the electrical cable into the guide and close

the top of the cable guide.

If the mains cable is damaged, to avoid a hazard it

must be replaced by a Baxi Fires Division authorised

service agent, or similarly qualified person (See the

last page of this guide for useful telephone

numbers).

All external wiring between the heater and the

electrical supply shall comply with current IEE

regulations.

Removing the fascia

Eternal, Manor, Ultimate and Victorian heaters.

1. Remove the two fascia securing screws (See figure 2). Remove the front fascia by

Page 6

INSTALLER AND OWNER GUIDE

Figure 1. Removing and

positioning the cable guide.

Item 1

Item 2

Item 3

Item 4

gently pulling the base of the fascia forward whilst lifting

clear of the support brackets at the top of the heater (See

figure 2).

2. Keep the fascia in a safe place while installing the heater

Adage, and Ocean heaters.

1. Very strong magnets attach the

fascia to the heater. Support the

rear of the heater and gently pull

the fascia forward (See figure 3).

2. Keep the fascia in a safe place

while installing the heater.

Alisa, Anthem and Dream

heaters.

The fascia is supplied in separate

packaging within the main box.

Heater fixing.

All fixings supplied with the

heater have been identified in

figure 4.

Page 7

INSTALLER AND OWNER GUIDE

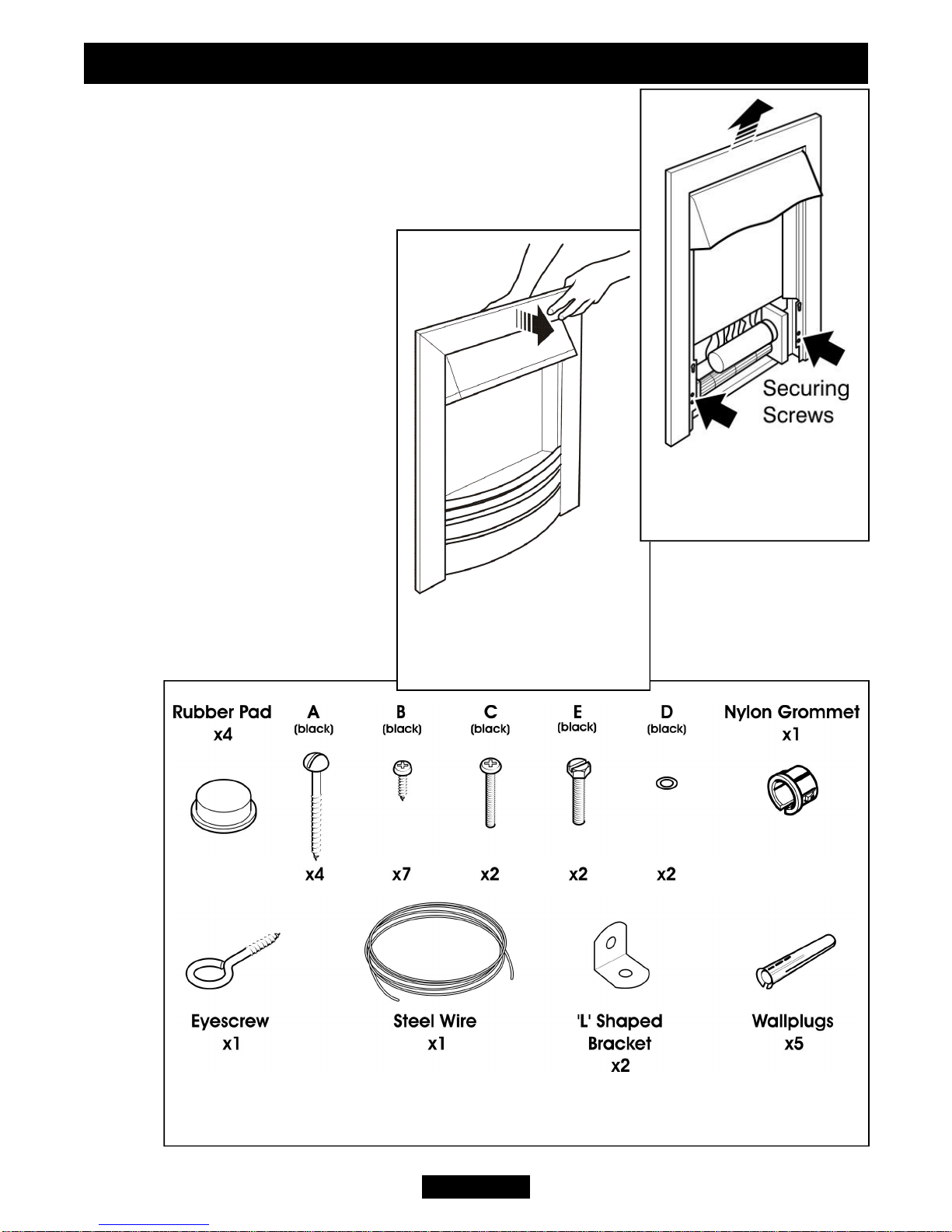

Figure 3. Removal of

Adage and Ocean

fascia.

Figure 2. Removing

Eternal, Ultimate and

Victorian fascia.

Figure 4. Loose parts identification (Depending upon model, certain parts

may not be included or required)

The heater must be fixed into position to prevent it from being tipped over

The following fixing options are available:

Screw Fixing

Wire Fixing

Spacer Frame (As supplied with Adage(Not Adage blue), Alisa, Anthem,

Eternal and Victorian heaters or available as an optional extra for the Adage blue,

Manor, Ocean and Ultimate models).

If fitting the heater into a fireplace or surround opening, try the heater in the opening to

ensure that it will fit.

If fitting the heater onto a decorative hearth surface such as marble or tile it is advisable

to protect the hearth surface. Do not drag the heater across the surface of the hearth as

this may scratch the hearth surface.

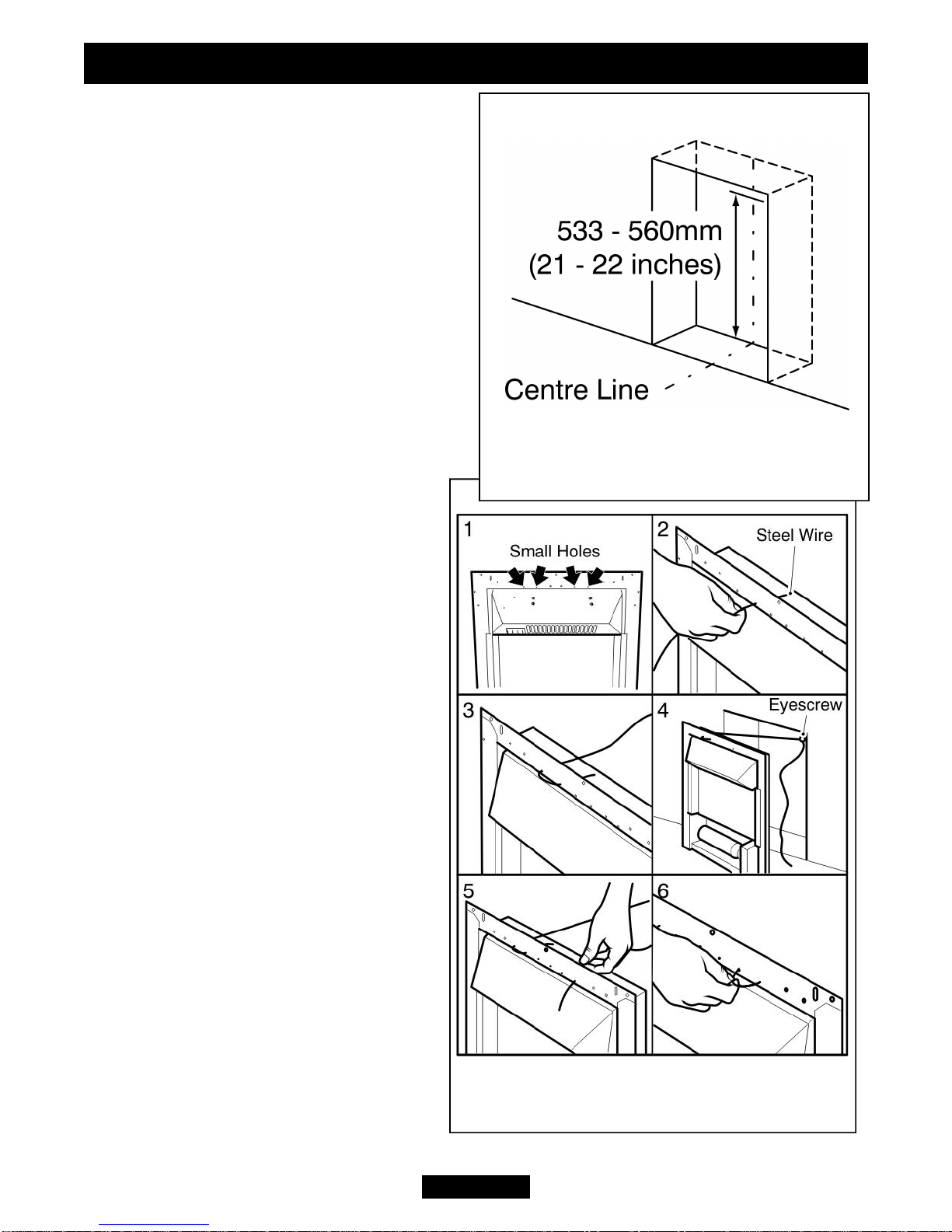

Method A - Screw fixing.

Note - If fixing to marble it is recommended that

Method B - ‘Wire fixing’ is used. Drilling marble

without the correct tools and experience may result in

the marble cracking.

1. Place the heater into the fireplace or surround

opening. Make sure that the heater is in the middle of

the surround or fireplace.

2. There are two slotted holes in the top of the heater

(See figure 5). Mark through the slotted holes so that

their position is clear when the heater is removed.

3. Remove the heater

4. Drill an appropriate size hole in each of the marked

positions. Insert wall plugs into the drilled holes.

Place the heater so that the slotted holes are in line with the wall plugs in the fixing

surface.

6. Screw and secure the heater with two ‘A’ screws (See figure 4).

Method B - Wire fix.

This method of fixing needs a fireplace opening and is recommended when fixing the

heater to a marble surround or where the wall or brickwork is in poor condition.

The fixing kit supplied with the heater includes a steel wire and eyescrew (See figure

4). These can be used to secure the heater to the back of a fireplace opening.

Mark the eyescrew position on the centre line at the back of the fireplace opening and

at a height of 533-560mm (21 inches - 22 inches) (See figure 6).

Page 8

INSTALLER AND OWNER GUIDE

Figure 5. Slots for screw

fixing.

3. Drill an appropriate size hole in the

marked position.

4. Insert a wall plug into the drilled hole.

5. Screw the eyescrew into the wall plug.

6. Position the heater in front of the

fireplace opening.

7. At the top of the heater there are four

small holes, two each side of the heater

(See figure 7- Item 1). From the front of the

heater, thread about 50mm ( 2 inches) of the

steel wire into the inside small hole on the

left side of the heater (See figure 7 - item

2).

8. Thread the other end of the wire through

the remaining small hole on the left hand

side of the heater. Continue to push the

wire through this hole until there is only

a small loop of wire at the front of the

heater (See figure 7 - item 3).

9. At the back of the heater there will be

a long piece and a short piece of wire

coming through the two holes. Hold the

short piece and give the long piece a

gentle tug. This will secure the steel

wire. Take the long piece and thread this

through the eyescrew in the back of the

fireplace opening (See figure 7 - item 4).

10. From the back of the heater thread

the long piece of steel wire through the

outer small hole on the right hand side

of the heater (See figure 7 - item 5).

11. Locate the heater in the fireplace

opening, then from the front of the

heater, gently pull the steel wire on the

right hand side to gather up the excess

until the heater is secure. Thread the

wire through the remaining small hole to

lock the wire and heater in place (See

figure 7 - item 6).

Page 9

INSTALLER AND OWNER GUIDE

Figure 7. Steel wire fixing (Detail at top of

heater may differ from that shown)

Figure 6. Eyescrew position.

Method C - Spacer Frame

(A spacer frame is NOT available for the

Dream heater and is available as an

optional extra for the Adage blue, Manor,

Ocean and Ultimate models)

This spacer frame is for use during installations

where a chimney recess or rebated fire

surround are not available. For your safety the

frame and heater must be securely fixed to the

rear wall.

Fitting the spacer frame for models

supplied with a wooden spacer frame.

1. There are three ‘L’ shape brackets supplied

with the heater (See figure 4). To fix the

brackets to the spacer frame there are three

‘B’ screws (See figure 4). The spacer frame

has a stepped outer. The rear of the spacer is

the narrow side - when positioned against the

wall or fixing surface the steps should widen

as they come closer to you. Position and

screw the ‘L’ shaped brackets to the rear of

the spacer frame as shown in figure 8.

2. Position the spacer frame against the wall

or front of the opening. Make sure

that the spacer frame is central to the

fireplace surround or is in the correct

position against the wall. Mark

through the rear holes in the brackets

so that their position is clear when

the spacer frame is removed.

3. Remove the spacer frame.

4. Drill appropriate sized holes in the

marked position.

5. Insert a wall plug into the drilled

holes.

6. Place the spacer frame so that the

holes in the brackets are in line with

the wall plugs in the fixing surface.

Page 10

INSTALLER AND OWNER GUIDE

Figure 10. Fixing the Heater to the spacer frame.

Figure 9. Locating the electric cable

into the spacer frame.

Figure 8. Bracket positions

Table des matières

Autres manuels Baxi Chauffage

Baxi

Baxi Brazilia F5 Guide de l'utilisateur

Baxi

Baxi Luna Duo-tec Series Guide de l'utilisateur

Baxi

Baxi Combi 80 Maxflue Manuel utilisateur

Baxi

Baxi CL 50 CR Manuel utilisateur

Baxi

Baxi Brazilia F 8S Mode d’emploi

Baxi

Baxi Brazilia F5 Guide de l'utilisateur

Baxi

Baxi Brazilia F5 Instructions de fonctionnement

Baxi

Baxi KL Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
