Please read this manual before installing your keyboard

ZKX3-K and ZKX3-J Keyboard

Installation and Operation Instructions

ZKX3-K and ZKX3-J Keyboard

Installation and Operation Instructions

Page 2

ZKX3-.. Keyboard Installation and Operating Instructions

IMPORTANT

The first few pages of these instructions contain important information on safety and product

conformity. Please read, and ensure that you understand this information before continuing.

Page 3

Installation and Operating Instructions ZKX3-.. Keyboard

CONTENTS

PRODUCT SAFETY ...................................................................................................................................................................................... 4

ELECTROMAGNETIC COMPATIBILITY (EMC)......................................................................................................................................... 4

MANUFACTURERS DECLARATION OF CONFORMANCE ....................................................................................................................... 4

UNPACKING .................................................................................................................................................................................................. 4

ACCESSORIES ............................................................................................................................................................................................. 5

INSTALLATION .............................................................................................................................................................................................. 6

DESCRIPTION OF UNIT IDs ........................................................................................................................................................................... 7

CONNECTINGA SINGLE KEYBOARD TOASINGLE ZMX.. OR ZTX6/.. ....................................................................................................... 7

TERMINATING/BIASING THE BAXNET NETWORK ........................................................................................................................................ 8

BAXNET - UNIT IDsAND KEYBOARD PRIORITIES ....................................................................................................................................... 8

UNIT IDs - KEYBOARD PRIORITIES .............................................................................................................................................................. 8

UNIT IDs - LEGAL VALUES .......................................................................................................................................................................... 8

UNIT IDs - CHANGING THE UNIT ID ON YOUR KEYBOARD ........................................................................................................................ 8

BASIC OPERATIONS ..................................................................................................................................................................................... 9

FUNCTION TABLE ....................................................................................................................................................................................... 10

RESPONDING TOANALARM ..................................................................................................................................................................... 11

HOW TO MANUALLY ACTIVATE AN ALARM USING THE ZKX3.. ............................................................................................................. 11

SETTINGAPRESET POSITION USING THE KEYBOARD ............................................................................................................................ 11

HOW TO RECORD AFULL SCREEN CAMERASEQUENCE USING THEAUTOLIST FUNCTION ............................................................. 11

SPECIAL POWER-UP SEQUENCES ............................................................................................................................................................ 11

KEY FUNCTIONS ........................................................................................................................................................................................ 12

CONTROLLINGA VCR ................................................................................................................................................................................ 13

CAMERA TITLE EDITING USING THE ZKX3 ................................................................................................................................................ 14

SUMMER/WINTER TIME ADJUSTMENT USING THE ZKX3 .......................................................................................................................... 14

SPECIFICATIONS ......................................................................................................................................................................................... 14

APPENDIXA ................................................................................................................................................................................................ 15

Page 4

ZKX3-.. Keyboard Installation and Operating Instructions

PRODUCT SAFETY

Please follow these instructions as you install your keyboard and retain them for future use. If you have any problems,

contact your Baxall agent.

WARNING

Installation is only to be carried out by competent, qualified and experienced personnel.

Wire in accordance with your national wiring regulations. Failure to do so can result in injury or death by electric

shock.

Use a class 2 isolated power supply for the 12V DC.

This product must not be used for intrinsically safe or medical applications.

CAUTION

Do not exceed the voltage and temperature limits given in the specification.

ELECTROMAGNETIC COMPATIBILITY (EMC)

CAUTION

This is a Class A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

This product is intended for use in general purpose CCTV applications in a residential, commercial or light industrial

EMC environment, and has no other use. Refer to Baxall Security before using the product in an industrial EMC environment.

The product must be installed in accordance with good installation practice to enable the product to function as intended

and to prevent problems. Refer to your agent for installation guidance.

Contact Baxall Limited to obtain a specification defining the acceptable levels of product degradation with regard to EMC

immunity.

MANUFACTURERS DECLARATION OF CONFORMANCE

Baxall Security Limited declare that the product supplied with this manual is compliant with the essential protection

requirements of the EMC directive 89/336 and the Low Voltage Directive LVD 73/23 EEC. Conforming to the requirements

of standards EN 55022 for emissions, IEC801 parts 2, 3 and 4 for immunity and BS415 superseded by EN 60950 for

Electrical Equipment safety.

UNPACKING

Keep your packaging for use if your keyboard is stored for a time or needs to be returned for whatever reason. The

packaging should contain:-

 ZKX3-.. keyboard

 BAX-NIL2/RJ

 BAX-NIL4

 These Instructions

Check the product code on the serial number label. If you have an incorrect item or it is damaged then inform Baxall

Limited and the carriers immediately. If the equipment is incorrect or damaged, do not attempt to use it.

Page 5

Installation and Operating Instructions ZKX3-.. Keyboard

ACCESSORIES

BAX-RKIT - Remote keyboard wiring kit, for connecting a keyboard at a distance greater than 10 metres from the main

unit. It can also be used to connect multiple keyboards. Kit includes PSU11/T power supply, 2 x BAX-NIL2/RJ, 2 x BAX-NAP

screw terminal to RJ45 adapters.

BAX-NIL1 - 1 metre lead, RJ45 to 6 pin mini-din

BAX-NIL2/RJ - 2 metre lead, RJ45 to RJ45

BAX-NIL4 - 4 metre lead, RJ45 to 6 pin mini-din

BAX-NIL9 - 9 metre lead, RJ45 to 6 pin mini-din

These leads are for connecting your keyboard to the ZTX6 matrix or ZMX multiplexer. The maximum length of this

connection is 10 metres.

BAX-NILA - 1 metre lead, 2 x 6 pin mini-din

This lead is for connecting local main-units together. It only makes the network connections.

BAX-NAP - Network Access Point. RJ45 to screw terminal adapter

BAX-CON1 - Back-to-back RJ45 connector

PSU11/T - 12V DC Class 2 isolated power supply

Page 6

ZKX3-.. Keyboard Installation and Operating Instructions

INSTALLATION

BaxNet

Your keyboard can control ZMX+, ZMXStorm, ZMX/../9, ZMX/../16 and ZTX6/.. units over the BaxNet network. Note throughout

this manual, ZMX+, ZMXStorm, ZMX/../9, ZMX/../16 are referred to collectively as ZMX.. .

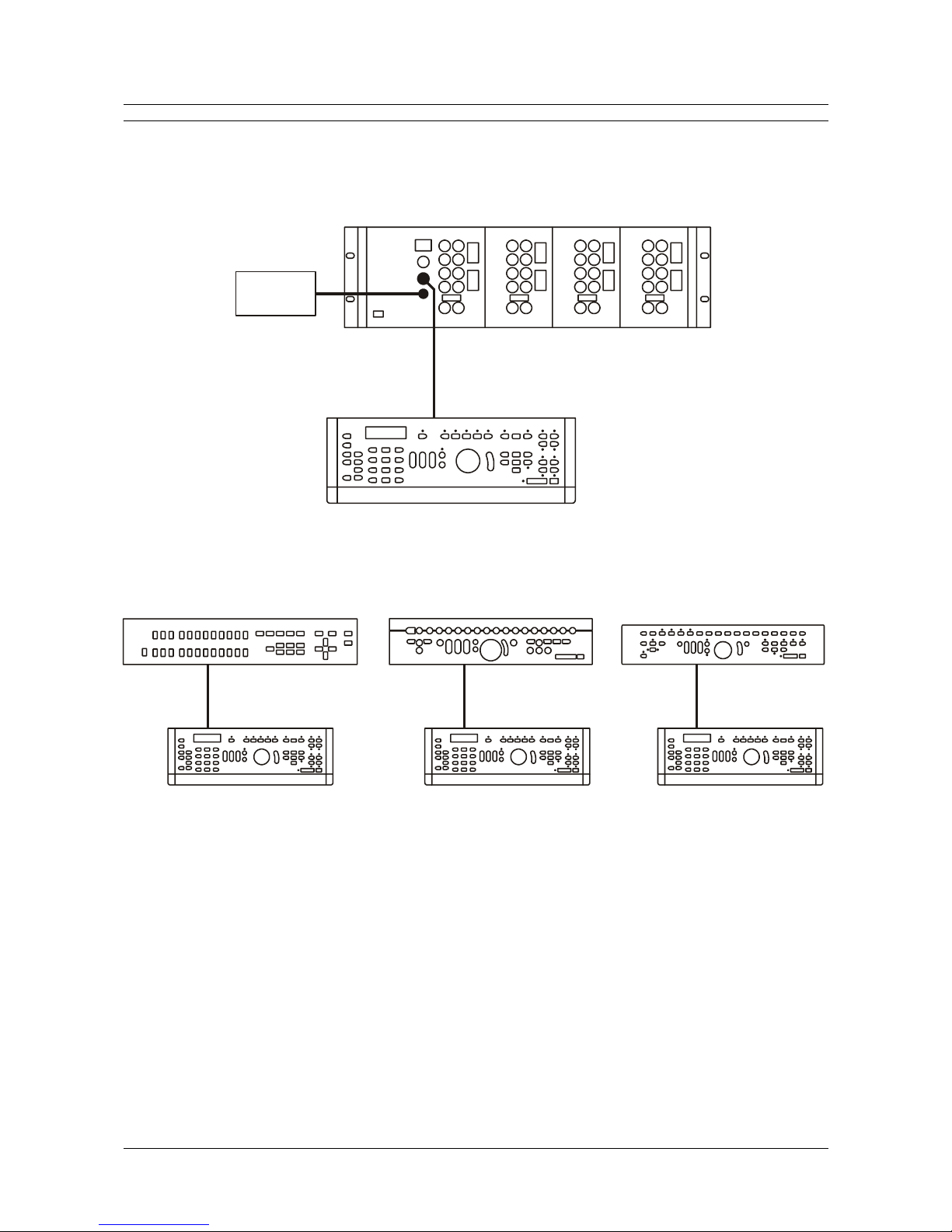

Fig. 1 Connection to a ZTX6

You can connect multiple keyboards, multiple ZMX.. and multiple ZTX6/.. units on a single network providing that the total

number of devices does not exceed 32. A BAX-RKIT provides the facility for remote keyboard connection via screw

terminal network access points.

ZTX6

PSU

ZKX3...

BAX-NIL1, 4 or 9 BAX-NIL2/RJ

BAX-NIL2/RJ

ZKX3..

Fig. 2 Connection to a ZMX.. Fig. 3 Connection to a ZMXS.. Fig. 4 Connection to a ZMX+

ZKX3.. ZKX3..

ZMX/../9; ZMX/../16 ZMXS.. ZMX+...

Page 7

Installation and Operating Instructions ZKX3-.. Keyboard

INSTALLATION

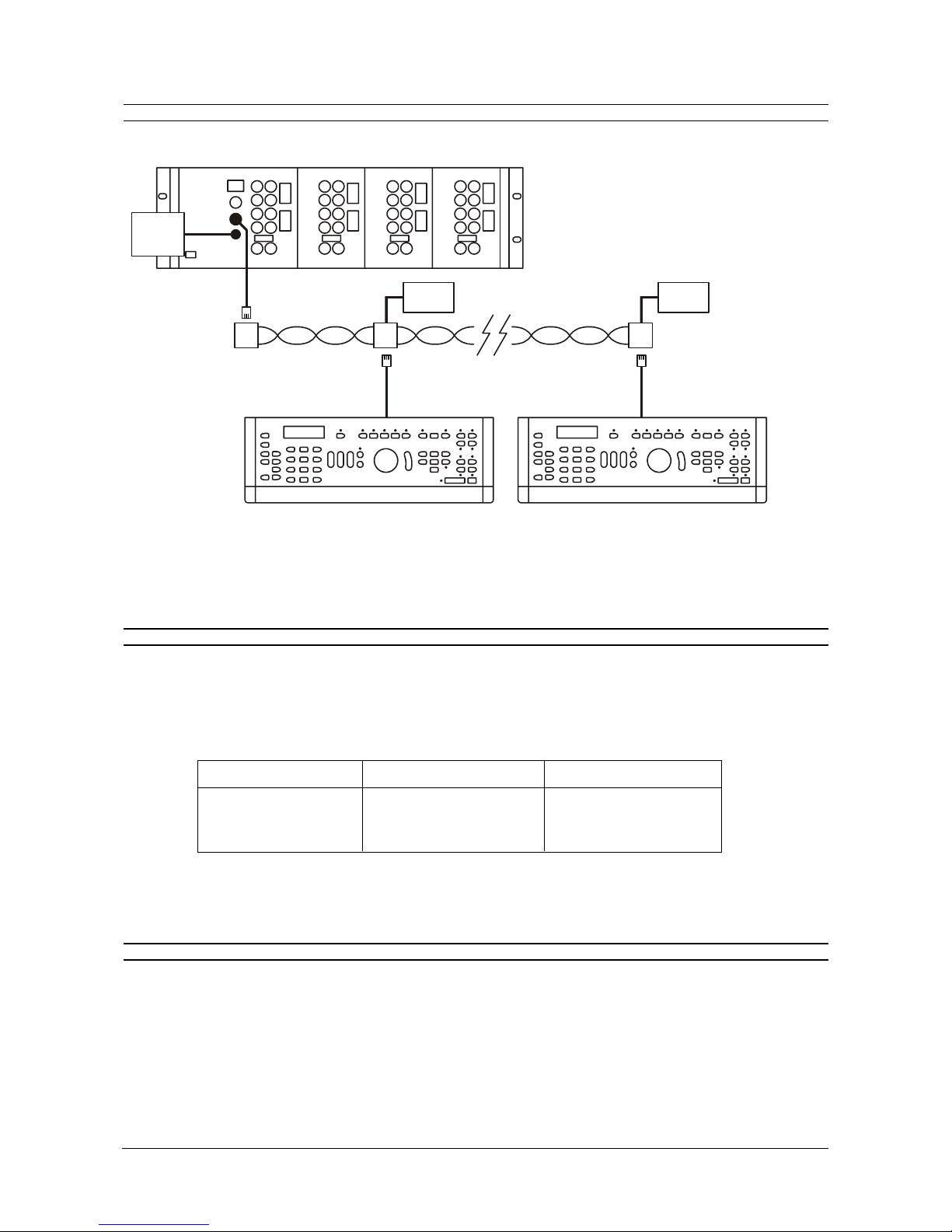

Fig. 5 BaxNet system showing multiple keyboards

If you wish to wire your network using 8 pin RJ45s then Appendix A gives details of the RJ45 connections on the rear of your

keyboard.

DESCRIPTION OF UNIT IDS

Each unit on the BaxNet network requires a Unit ID number. This Unit ID is used to select a unit for control. The keyboard

Unit ID determines the control priority over other keyboards (lower number keyboards take precedence over higher

number keyboards).

The table below defines the maximum number of units which can be installed on a single BaxNet network and their valid

unit IDs. For a more full explanation see Unit IDs - Legal Values. Note that Unit ID 0 is reserved do not use it.

* Total number of devices connected including keyboards must not exceed 32. Therefore with 8 keyboards 24 other

devices may be connected, with 3 keyboards, 29 other devices etc.

CONNECTING A SINGLE KEYBOARD TO A SINGLE ZMX.. OR ZTX6/..

The keyboard accepts power over the BaxNet network (max distance 10 metres) from a ZMX.. or a ZTX6/.. . Each can

power a single keyboard.

Connect the leads as shown in figures 1, 2, 3, 4 or 5.

If you are only using a single keyboard, the installation is now complete. The ZTX6/.. Unit ID is displayed on power-up. The

ZMX.. Unit ID will need setting in the COMMUNICATIONS, RS485 menu, refer to your ZMX.. instructions.

ZTX6/..

BAX-NIL-1

ZKX3.. ZKX3..

BAX-NIL2/RJ BAX-NIL2/RJ

BAX-NAP

BAX-NAP BAX-NAP PSUPSU

PSU

Unit Possible Unit IDs Maximum Units

ZKX3-.. 1 to 8 8

ZMX.. 9 to 32 *

ZTX6/.. 9 to 32 *

Page 8

ZKX3-.. Keyboard Installation and Operating Instructions

TERMINATING/BIASING THE BAXNET NETWORK

The keyboard has built in network termination and/or biasing. For most small to medium sized installations, it should not

be necessary to change the switches from their default settings. Only for large installations should your network require

biasing and/or terminating. Contact Baxall Security Limited for advice. The switches are shown below for your reference.

The default setting for switches 1, 2 and 3 is OFF. Switch 4 is not used.

BAXNET - UNIT IDs AND KEYBOARD PRIORITIES

The Unit ID is a number between 1 and 32. It is used to select a ZMX.. or ZTX6/.. for control from your keyboard and also

to decide the priority of one keyboard over another (lower numbers take precedence).

UNIT IDs - KEYBOARD PRIORITIES

The priority of keyboards over each other is determined by the value of the Unit ID. Keyboards with a lower value Unit ID

take precedence over keyboards with a higher Unit ID. A higher priority keyboard can take control of a ZMX.. or ZTX6/..

immediately and at any time from a lower priority keyboard. A lower priority keyboard must wait for 30 seconds from the

last command by the higher priority unit before it can take control. If another command from the higher priority keyboard

is sent in this time then it must wait another 30 seconds. The following control messages are displayed on on the ZKX

keyboard:

CONTROL LOST Indicated when a higher priority keyboard on BaxNet has taken control or when the current keyboard

has timed out.

CONTROL UNIT #n Indicated when the current keyboard has control over all other keyboards on the BaxNet connection.

To re-activate control of a keyboard that has timed-out (CONTROL LOST), operate the pan or tilt keys.

UNIT IDs - LEGAL VALUES

IMPORTANT NOTE: Use the table to decide the Unit IDs. ZKX3-..s Unit IDs must be between 1 and 8

Setting the unit ID is included in the ZTX6/.. instructions, setting the unit ID on a ZMX.. is done in the COMMUNICATIONS,

RS485 menu and setting the unit ID on the keyboard is described below.

The following table gives the valid unit IDs for the listed products. Note that Unit ID 0 is reserved do not use it.

UNIT IDS - CHANGING THE UNIT ID ON YOUR KEYBOARD

Read these instructions thoroughly before attempting to change the Unit ID.

1. Disconnect the power from your keyboard

2. Reconnect the power

3. Within 5 seconds of reconnecting the power, press the two keys shown below simultaneously.

AND

Unit Possible Unit IDs

ZKX3-.. 1 to 8

ZMX.. 9 to 32

ZTX6/.. 9 to 32

OFF UP

321

*Default setting

Network setting Switch 1 Switch 2

Biased ON ON

Not Biased* OFF* OFF*

Network setting Switch 3

Terminated ON

Not Terminated* OFF*

*Default setting

Page 9

Installation and Operating Instructions ZKX3-.. Keyboard

UNIT IDS - CHANGING THE UNIT ID ON YOUR KEYBOARD

4. The LCD display should change to:

Special Config

5. Within 5 seconds press the Reverse Play key

6. The LCD display should change to:

Change KBD Id

7. Within 5 seconds enter the new ID number (1 - 9) and press the enter key.

8. The LCD display should change to:

Change KBD Id

New SELFUNT = 00n

where nis the new unit number.

BASIC OPERATIONS

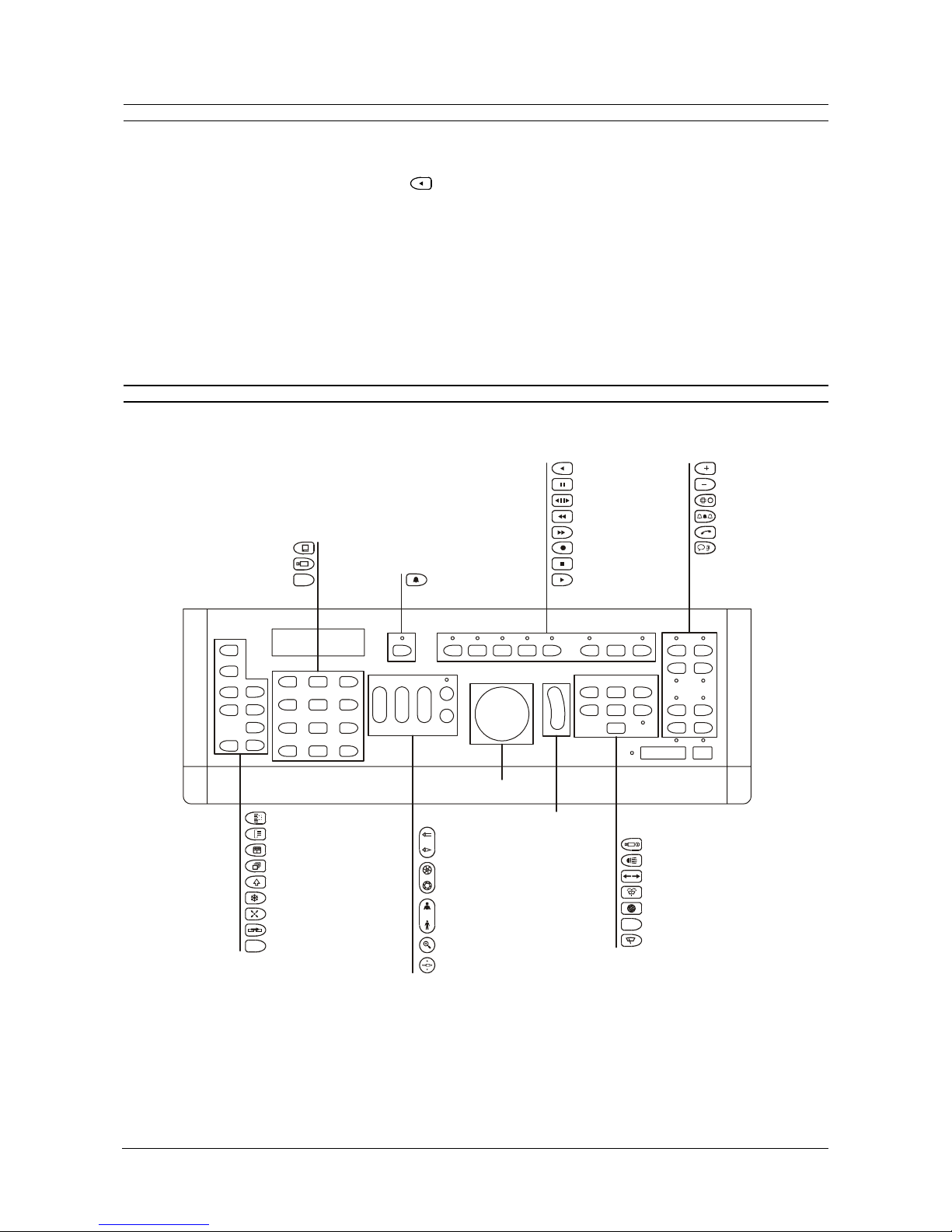

Fig. 6 ZKX3.. Keyboard layout and key descriptions

Escape

Multiscreen

Sequence

Shift

Freeze

Preset

Unit select Zoom out

Focus near

Open iris

Zoom in

Focus far

Close iris

Joystick/Control Disk

ENTER key

Telemetry

Camera power

Lamp

Auto pan

Wash

Global

Auxilliary 4

Wipe

Function Electronic Zoom

Alarm acknowledge

Reserved* Increment*

Pause Decrement*

VCR Mode Enhance*

Rewind List Alarms*

Fast forward Remote Site*

Record Audio*

Stop

Play

Monitor select

Camera select

Number keys (0-9)

* reserved for future use

Page 10

ZKX3-.. Keyboard Installation and Operating Instructions

BASIC OPERATIONS

ZKX3-.. keyboards are provided with a means of controlling cameras fitted with pan/tilt heads. Depending upon the

keyboard model, this may be either a three axis joystick (ZKX3-J) or a control disk (ZKX3-K). Where on screen programming

is required, these controls serve to input text, navigate through menus, etc. Important Note: During power-up, the

keyboard performs a joystick calibration function. Do not move the joystick during this period until the keyboard has been

properly initialised.

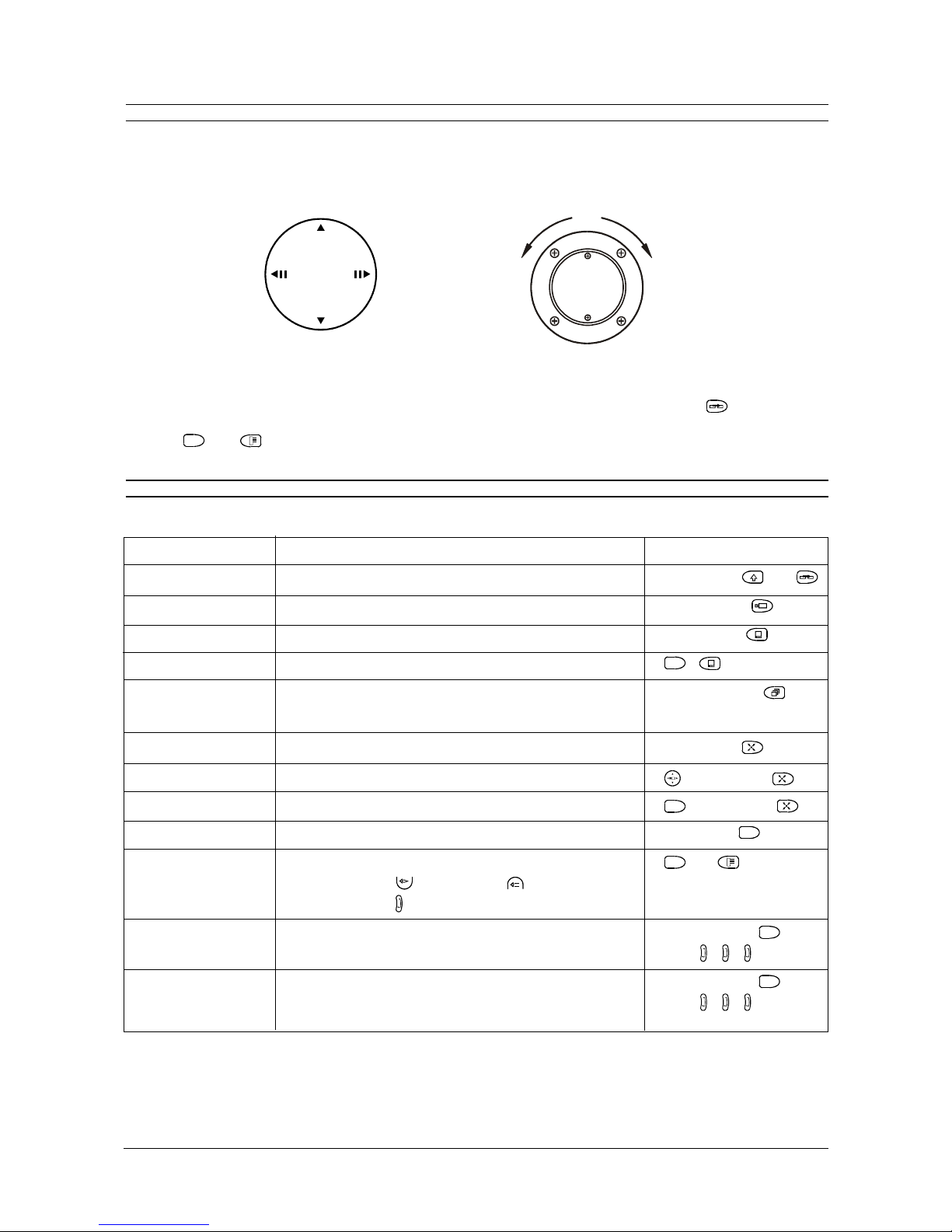

Control Disk Joystick

Note: In the following function table + indicates an action followed by another action e.g. Unit ID + means enter the

Unit ID number using the numerical keys then press the Select Unit key. AND indicates the simultaneous action of two

keys e.g.

AND means press the Function and Menu keys simultaneously.

FUNCTION TABLE

FUNCTION DESCRIPTION KEYSTROKE

Select Unit You must select a unit in order to control it. To select a unit: Unit ID No. + AND

Select Camera Enables a specific camera to be selected Camera No. +

Select Monitor Enables a specific monitor to be selected Monitor No. +

Select Monitor A to E Selects Monitor A - E (1=A, 2=B, 3=C, 4=D, 5=E).

Select Sequence Starts a predefined sequence on the current monitor Sequence No. +

To stop the sequence, select a camera.

Select Preset Selects a preset camera position Preset No. +

Select Preset Selects a preset camera position + Preset No. +

Record Preset Records a preset camera position

+ Preset No. +

Selecting a Macro Selects and runs a predefined Macro Macro No. +

Adjusting the LCD Allows the LCD contrast to be adjusted.

AND

(Use Focus Near and Focus Far keys to adjust

followed by enter to store the setting).

Enable Beep Switches on the beep-on-keypress function Press and hold

then

press + +

Disable Beep Switches off the beep-on-keypress function Press and hold

then

press + +

ZMX... only

Zoom Out Zoom In

Autres manuels pour ZKX3-K

Ce manuel convient aux modèles suivants

Autres manuels Baxall Clavier

Baxall

Baxall ZKX3-K Manuel utilisateur

Baxall

Baxall Pyramid 2 Manuel utilisateur

Baxall

Baxall ZKX2-K Manuel utilisateur

Manuels Clavier populaires d'autres marques

Vortexgear

Vortexgear POK3R Manuel utilisateur

Razer

Razer RZ03-0188 Manuel utilisateur

Logitech

Logitech RUGGED LITE Manuel utilisateur

Honeywell

Honeywell ADEMCO 5839 Instructions de montage

Hama

Hama AK-120 Manuel utilisateur

Rodgers

Rodgers RK-76 Manuel utilisateur

Logic Controls

Logic Controls KB5000 Series Manuel utilisateur

Rapoo

Rapoo E9270P Manuel utilisateur

iKey

iKey DP-88 Manuel utilisateur

Logitech

Logitech G413 TKL SE Instructions de montage

Keychron

Keychron C1 Manuel utilisateur

Dahua

Dahua NKB Manuel utilisateur

Ultimate Technology

Ultimate Technology 500 POS Manuel utilisateur

Ducky

Ducky Shine 5 Manuel utilisateur

Mace

Mace MACALLY MERGOKEY Manuel utilisateur

iKey

iKey KYB-42-KIOSK Manuel utilisateur

Akko

Akko MX108 Manuel utilisateur

Viper

Viper V770 Manuel utilisateur
