BVP901Intelligent Keyboard Instruction Manual

BAVONO BVP901 Manual

INDEX

I. KEYBOARD OVERVIEW................................................................................................................................................................2

II. INTELLIGENT KEYBOARD TECHNICAL PARAMETERS .....................................................................................................2

III. INTELLIGENT KEYBOARD DRAWING ....................................................................................................................................2

3.1 FRONT PANEL CHART AND FUNCTION KEY DESCRIPTION ................................................................................................ 2

3.2 INTELLIGENT KEYBOARD CONNECTION .......................................................................................................................... 3

IV. KEYBOARD OPERATION ...........................................................................................................................................................5

4.1 MENU CHART: .............................................................................................................................................................. 5

4.2 JOYSTICK OPERATION................................................................................................................................................... 5

4.3 CAMERA LENS CONTROL .............................................................................................................................................. 6

4.4 PRESET POSITION SETTING /ADJUSTING ....................................................................................................................... 6

4.5 THE KEYBOARD MENU .................................................................................................................................................. 6

4.5.1 THE SPEED DOME /DECODER SETTING .............................................................................................................. 6

4.5.2 SETTING KEYBOARD PARAMETERS .................................................................................................................... 10

4.5.2.1 ID NUMBER.......................................................................................................................................... 10

4.5.2.2 BAUD RATE .......................................................................................................................................... 10

4.5.2.3 SOUND .................................................................................................................................................11

4.5.2.4 MATCHING RESISTANCE (150Ω)...........................................................................................................11

4.5.2.5 PROTOCOL ...........................................................................................................................................11

4.5.2.6 TEST ....................................................................................................................................................11

4.5.2.7 MAX SECONDARY CONTROL DEVICES ................................................................................................... 12

4.5.2.8 MAX ALARM DEVICES 11 ........................................................................................................................ 12

4.5.3 WASH BRUSH................................................................................................................................................... 12

4.5.4 HEATER ........................................................................................................................................................... 12

4.5.5 AUXILIARY SWITCH 1 ........................................................................................................................................ 12

4.5.6 AUXILIARY SWITCH 2 ........................................................................................................................................ 12

4.5.7 MATRIX MENU .................................................................................................................................................. 13

4.5.8 PROPORTIONING THE JOYSTICK ........................................................................................................................ 13

4.6 LOCKING KEYBOARD................................................................................................................................................... 14

4.7 DEFENSE SETTING ..................................................................................................................................................... 15

V. COMMON KEY FUNCTIONS......................................................................................................................................................15

5.1 DEFAULT PROTOCOL OPERATING................................................................................................................................. 15

5.2 OTHER PROTOCOLS OPERATING ................................................................................................................................. 16

VI. TROUBLESHOOTING................................................................................................................................................................17

BVP901Intelligent Keyboard Instruction Manual

I. Keyboard Overview

The keyboard is used for controlling the intelligent dome. The keyboard is the main device between operator

and device in the monitoring system. It can be regarded as the main control keyboard and as the secondary

control keyboard.

Main Characteristics:

(1) Liquid Crystal Display the LCD display board is regarded as interface between operator and device. It is

direct, convenient, and easy to follow and conveys large amounts of information.

(2) Proportion Joystick (Options: PTZ control joystick and PT control joystick )

Use this joystick to operate high-speed dome. It is easy to use with good handling and flexible

maneuvering.

(3) The lock function of the keyboard can prevent unauthorized users to operate the keyboard.

(4) Provide RS-485 control output signal and also offer the standard RS-232 control signal.

II. Intelligent Keyboard Technical Parameters

2.1 Function Parameter

(1) Control Mode: Main、Secondary

(2) Max. connected secondary control keyboard: 16

(3) Max. controlled monitor: 64

2.2 Technical Parameter

(1) Communication baud rates: 1200 bps; 2400 bps; 4800 bps; 9600 bps

(2) Protocols: Default、PELCO-D、PELCO-P、Kalatel、Samsung

(3) Data Format: 1 starting bit, 8 data bits, 1 stopping bit

(4) Power input: DC 12V

III. Intelligent Keyboard Drawing

3.1 Front Panel Chart and Function Key Description

BVP901Intelligent Keyboard Instruction Manual

3.1.1 Function Area 1: Dome Camera Lens Control and Keyboard Lock and Unlock

(1) SHIFT key: Such as <SHIFT> + <Other Key> Selects alternate function of key.

(2) LOCK key: After pressing this key; input the password 6688, the keyboard is under locked status.

Open the keyboard by inputting 6688

3.1.2 Function Area 2: Menu Turning, Exit and Preset Position Set

(1) FUN key: Press the FUN key to select functions.

(2) EXIT key: Exit from function or function ladder.

(3) F1 Key: Keyboard menu cursor up.

(4) F2 key: Keyboard menu cursor down.

3.1.3 Number Area: Data Input, Clear and Confirmation

(1) CLR key: Clear the inputted number on the DATA display area. Press CLR to delete when

inputted number is wrong or needs to input it again.

(2) ENTER key: When you press the ENTER key, the inputted number in the Data area to select

function or step through ladder functions.

(3) 0~9 Number key: Number input.

3.1.4 Function Area 3: Dome Camera & Matrix Selection and Auto scanning Control

3.1.5 Joystick: Control Dome Camera running: Up, down, Left, Right, Left-up, Left-down, Right-up,

right-down, camera lens zoom in and zoom out.

2-Dimentional Keyboard joystick can’t control Dome Camera lens zoom in and zoom out.

Other functions are the same as 3-Dimentional keyboard

3.1.6 Data Display Area: Data Display

When the “DATA” column does not show “0”, the “DATA” column displays the Address of the dome

camera or decoder.

When the “DATA” column shows “0”, the “CAM” column displays the address of the dome camera or

decoder.

3.2 Intelligent Keyboard Connection

Insert RJ45 pin of transfer line offered with keyboard into RJ45 socket on keyboard’s back panel. As shown

below:

BVP901Intelligent Keyboard Instruction Manual

The leads of RJ45 socket show as left chart:

1：RS-485 D+ （yellow）

2：RS-485 D- （white）

7：Power Line POWER1-（black）

8：Power Line POWER2+（red）

RJ45 Socket

Keyboard Connection with Dome Camera & Matrix

RJ45 插座

BVP901Intelligent Keyboard Instruction Manual

IV. Keyboard Operation

4.1 Menu Chart:

4.2 Joystick Operation

The joystick is used for controlling the moving direction of dome or high speed dome.

(1) 2-dimentional keyboard joystick

Move this joystick to operate dome or high speed dome. The running speed of the dome camera is a

direct ratio to the speed of the joystick. When the joystick is in the center, the dome or the high speed

BVP901Intelligent Keyboard Instruction Manual

dome stops running.

(2) 3-dimentional keyboard joystick

Move the joystick to control dome camera running: up, down, left, right, left-up, left-down, right-up,

right-down. These functions are the same as those of 2-dimentional keyboard joystick. The controlling

speed of lens is a direct ratio to the rotation speed of the joystick. When the joystick is in the center, the

lens stop controlling.

The joystick controls the lens as well as the running speed and direction of high speed dome, see as

follows:

4.3 Camera Lens Control

ZOOM in: zoom in

ZOOM out: zoom out

FOCUS far: focus far

FOCUS near: focus near

IRIS open: Iris big

IRIS close: Iris small

4.4 Preset Position Setting / Adjusting

Adjust the camera to the desired position including location, camera zoom, focus and iris. Enter the Preset

Position Number you wish to set, then the number shows in the DATA area. Press Shift + Call for final

confirmation. Preset position adjusting is to back to the position you preset, input the address of the dome

or decoder in the Data area, press CAM key to show in the CAM area. Input the preset position you would

like to view into the DATA area, press the Call key and the dome moves to the preset position.

Example: Set Preset Position No. 1:

(1) Move the keyboard joystick to the desired position and adjust the camera lens.

(2) Press CLR to clear the number in the data area.

(3) Enter the Preset Position Number 1.

(4) Press Shift + Call for final confirmation.

View preset position No. 1

(1) Press CLR to clear the number in the DATA area.

(2) Input the preset position number 1.

(3) Press the Call key. The dome will move to the Preset Position.

4.5 The Keyboard Menu

When the keyboard is under default (Main Menu) status, LCD displays as follows:

Input Monitor No. below DATA area and press MON key, the monitor number will display below MON area;

input the speed dome or decoder address below DATA area, the address will display below CAM area.

4.5.1 The Speed Dome / Decoder Setting

When the keyboard is under default (Main Menu) status (If not, press Exit key and exit to default

BVP901Intelligent Keyboard Instruction Manual

status)

Press FUN key once, the keyboard displays:

Press ENTER key to the speed dome menu setting, the address is the same as before. Press FUN

key to the next.

4.5.1.1 Preset Position Speed and Dwell Time Setting

Dome Camera has the capacity to set up to 128 preset positions through the keyboard. It can set

the running speed to each preset position from 0.1°/s to 280°/s (1-64 Steps) and dwell time from

(1-60 seconds). User can set the parameters of dome camera preset positions through the

keyboard. (The dome can rotate at low speeds and at fast speeds. Its speed can be divided into 64

steps. 1 is the lowest speed and 64 is the fastest speed.)

Press FUN key until LCD displays:

When setting Speed and Time, the user should select the preset position in advance. Press F1 to

change cursor, press EXIT to move back to the main menu.

Example: Set the running speed of preset position No. 1 for Speed Dome 1 as Grade 64 (fastest

speed), dwelling time is 1 second.

(1) Press the FUN key until LCD displays:

Press Enter key, LCD displays:

(2) Press CLR key until Position:000_ displays 000_

(3) Input 1, press Enter.

(4) Press F1 to move cursor to Speed:00_

(5) Input 64, press Enter

(6) Press F1 to move cursor to Time:00_

(7) Input 1, press Enter

(8) Press Exit key and exit the setting

4.5.1.2 Pattern Tours Setting

Pattern Tours is an important function for high speed dome. The keyboard can set pattern tour

groups for the speed dome camera. Before setting the Pattern Tours, please set all preset positions

in advance. If the preset positions are not set the pattern tour will default to the pattern tour

parameter.

Press FUN key until LCD displays:

Running speed

(Input 1-64)

Preset

osition（In

ut 1-128）

Dwell time

(

ut 1-60

)

Press CLR key to delete value on DATA

column, input the speed dome or

decoder address (1-1024), press Enter

key for confirmation.

Displays the Group

Number (1-8)

BVP901Intelligent Keyboard Instruction Manual

Input a Group number using the number keys, press Enter, the keyboard displays:

Input desired Pattern Tour (Preset Position No.) for the Group, press Enter for confirmation. One preset

position is added, press ENTER key for confirmation. When completed, Press F2 to close and exit,

press EXIT key and exit. This dome can set 8 cruise groups with a Max of 16 cruise points, can set the

preset positions repeatedly. (i.e. pattern tours route: 1 – 2 – 8 – 4 – 1 – 6 – 9 – 2 – 3 – 1 – 11 – 12 – 6 –

12 )

Example: To set 1-16 preset positions & parameter as the first pattern cruise group, the route is:

1 – 2 – 3 – 4 – 5 – 6 –7 – 8 – 9 – 10 – 11 – 12 –13 – 14– 15 – 16

The keyboard displays:

¾This dome can set 8 cruise groups with a Max of 16 cruise points. (1-128 points at any preset

position for each group)

¾Set the preset position at each of the cruise groups

¾Dwell time at each preset position can be customized at a different time (1-60 seconds). The speed

to each preset position can be different (1-64 grades)

¾Default cruise group will auto scan by starting at preset position point No. 1 to preset position point

No. 16.

Two pattern tours styles can be used:

A .To-and-from Scanning

To-and-from Scanning is to make an auto circle scanning by points, see as follows:

To start up To-and-from Scanning: Input cruise Number, press SCAN key into to-and-from

scanning.

BVP901Intelligent Keyboard Instruction Manual

B. Cruise Scanning

Cruise Scanning is to make an auto cruise scanning, see as follows:

To start up Cruise Scanning: Input cruise Number, adjust key Shift + Scan into cruise scanning.

4.5.1.3 Guard Location Set

The guard location is an important position that the speed dome camera will come back to

automatically when there is no operation for a defined period. The user can set a guard location

and control the waiting time to the guard location, starting and stopping (1-255 seconds) before

allowing the camera to return to the guard location.

Press FUN key until LCD displays:

Press ENTER key to set the Guard Location. The position is set as the guard location. Press

Exit key and quit.

4.5.1.4 Guard Location Parameter Set

Press FUN key until LCD displays:

Time: 000 To set the waiting time

Switch: To set the guard location to start or stop

4.5.1.5 Speed Dome Menu

Press the FUN key until LCD displays:

Input the speed dome address, press ENTER key and enter OSD menu.

Location setting

Parameter setting

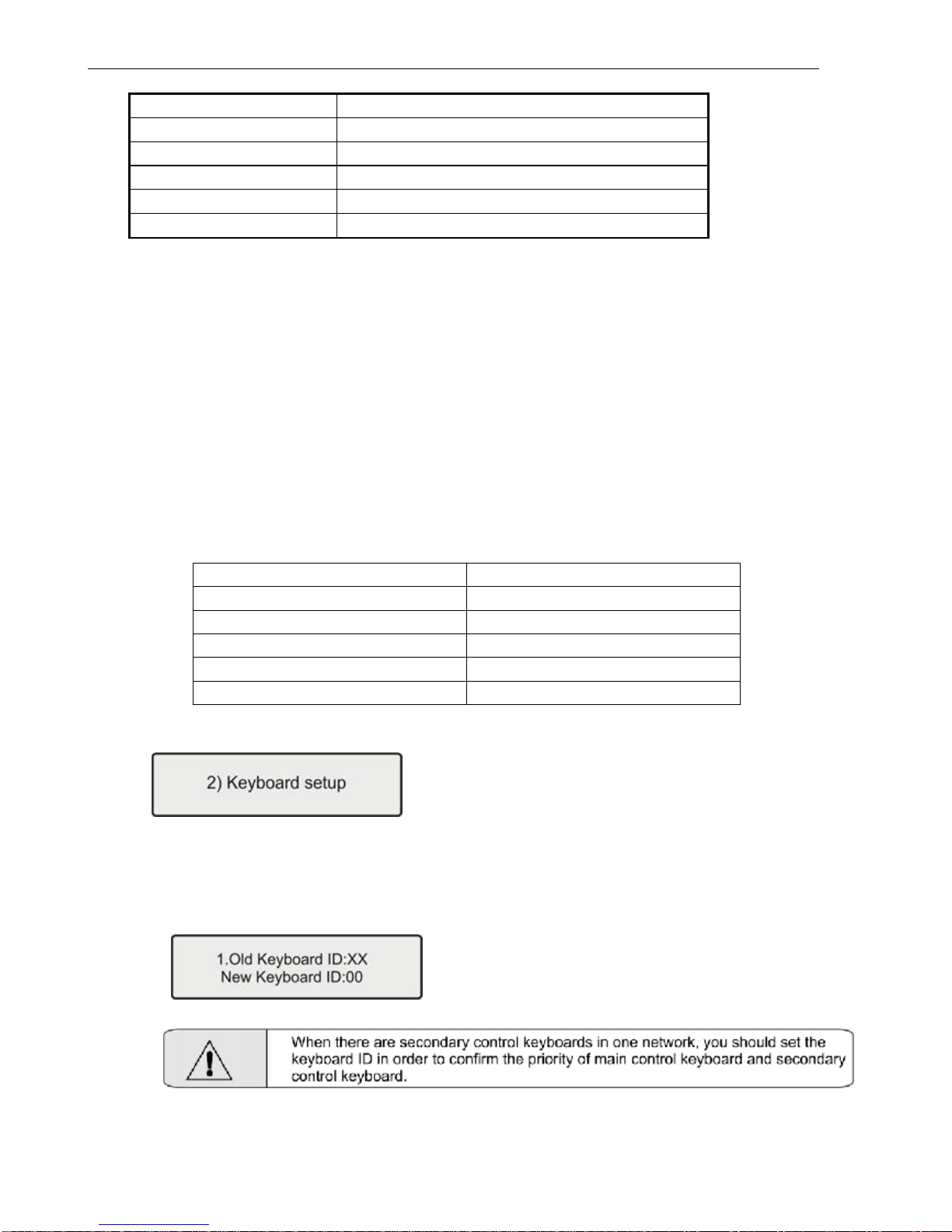

BVP901Intelligent Keyboard Instruction Manual

(1) Operating menu below for reference:

Operating Key Function

MON Dome menu cursor down

SEQ Dome menu cursor up

ACK Current Menu Confirmation

LIST Current Menu Change

ENABLE Menu Selection

(2) The four keys “SEQ”, “MON”, “Area” and “CAM” on the down-right of the keyboards stand for “UP”,

“DOWN”, “LEFT” and “RIGHT” respectively, they are used for OSD setting with default protocol. The

part of keyboard as illustrated in diagram below:

When other protocols，OSD menu entry and parameters setting should be chosen by selecting the

preset points as content in the table 1 below:

Table 1

Function How To Achieve

OSD MENU ENTRY CALL THE PRESET POINT 55

UP CALL THE PRESET POINT 56

DOWN CALL THE PRESET POINT 57

LEFT CALL THE PRESET POINT 58

RIGHT CALL THE PRESET POINT 59

4.5.2 Setting Keyboard Parameters

When the keyboard is under default (Main Menu) status, press the FUN key until LCD displays:

Press the ENTER key to enter keyboard set up menu. Press the FUN key to choose and navigate the

submenu. Press the EXIT key to exit to the main menu.

4.5.2.1 ID Number

Press the FUN key until LCD displays:

Input the number (0-16), press ENTER for confirmation. New ID will be in effect immediately.

Note: ID: 00 Main Control Keyboard, ID: 01-16 Secondary Control Keyboard.

4.5.2.2 Baud Rate

Press the FUN key until LCD displays:

Table des matières

Manuels Clavier populaires d'autres marques

Vortexgear

Vortexgear POK3R Manuel utilisateur

Razer

Razer RZ03-0188 Manuel utilisateur

Logitech

Logitech RUGGED LITE Manuel utilisateur

Honeywell

Honeywell ADEMCO 5839 Instructions de montage

Hama

Hama AK-120 Manuel utilisateur

Rodgers

Rodgers RK-76 Manuel utilisateur

Logic Controls

Logic Controls KB5000 Series Manuel utilisateur

Rapoo

Rapoo E9270P Manuel utilisateur

iKey

iKey DP-88 Manuel utilisateur

Logitech

Logitech G413 TKL SE Instructions de montage

Keychron

Keychron C1 Manuel utilisateur

Dahua

Dahua NKB Manuel utilisateur

Ultimate Technology

Ultimate Technology 500 POS Manuel utilisateur

Ducky

Ducky Shine 5 Manuel utilisateur

Mace

Mace MACALLY MERGOKEY Manuel utilisateur

iKey

iKey KYB-42-KIOSK Manuel utilisateur

Akko

Akko MX108 Manuel utilisateur

Viper

Viper V770 Manuel utilisateur
