Instructions for Use

BSCM45-ANZ

Microwave Oven

Contents

Safety Instructions .............................................................................................................................2

Safety Instructions .............................................................................................................................3

Installation instructions .....................................................................................................................4

Description of your oven....................................................................................................................6

Basic controls .....................................................................................................................................8

Special functions ..............................................................................................................................14

When the oven is working................................................................................................................17

Defrosting..........................................................................................................................................18

Cooking with a microwave oven .....................................................................................................20

Cooking with the grill .......................................................................................................................22

Roasting and baking.........................................................................................................................24

What kind of ovenware can be used?.............................................................................................26

Oven Cleaning and Maintenance.....................................................................................................28

What should I do if the oven doesn’t work?...................................................................................30

Technical characteristics .................................................................................................................31

Installation.........................................................................................................................................33

Dear Customer:

Before going any further, we want to thank you for choosing our product. We are sure that this modern,

functional and practical microwave oven, manufactured with top quality materials, will fully meet your

expectations.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best

results from using your microwave oven.

KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

Always keep the instruction manual handy. If you pass the microwave oven to someone else give

them the manual as well!

Safety Instructions

Warning! Do not leave the oven

unsupervised.

Warning! If you see smoke or

fire, keep the door closed in order

to smother the flames. Switch off

the oven and take the plug out of

the socket or cut off the oven

power supply.

WARNING: The appliance and

its accessible parts become hot

during use.

Care should be taken to avoid

touching heating elements.

Children less than 8 years of

age shall be kept away unless

continuously supervised.

This appliance can be used by

children aged from 8 years and

above and persons with

reduced physical, sensory or

mental capa bilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the

appliance in a safe way and

understand the hazards

involved. Children shall not

play with the appliance.

Cleaning and user maintenance

shall not be made by children

without supervision.

Children must be supervised to

ensure that they do not play with

the appliance. Use the safety

locks.

Warning! During use the

appliance becomes very hot. Care

should be taken to avoid touching

heating elements inside the oven.

RISK OF BURNS!

Warning! Accessible parts may

become hot during use. Young

children should be kept away.

Warning! When opening the

door during or upon

completion of the cooking

cycle, be careful of the flow of

hot air and/or steam and water

drops coming out of the

cooking chamber. Step back or

to the side to avoid burns.

Warning! Make sure you never

catch the power cables of other

electrical appliances in the hot

door or the oven. The cable

insulation may melt. Danger of

short-circuiting!

This oven is exclusively for

domestic use!

The appliance is designed for use in

the home for preparing food. No

liability is assumed for any damage

caused by improper or incorrect

use.

Safety Instructions

Avoid damaging the oven or other

dangerous situations by following

these instructions:

Please cover the socket inside

the oven as you are not using

the food probe. This will

prevent possible damages.

Only use the recommended

food probe for this oven.

This will prevent possible

damages on the appliance

Do not cover or obstruct the

ventilation openings.

Do not keep any inflammable

object inside the oven as it may

burn if the oven is switched on.

Do not use the oven as a

pantry.

Do not pour spirits (e.g. brandy,

whisky, schnapps, etc.) over hot

food. Danger of explosion!

Accessories such as wire racks

and trays, etc. get hot in the

cooking space. Always wear

protective gloves or use oven

cloths.

To avoid being burnt, always

use oven gloves for handling

dishes and containers and

touching the oven.

Do not lean or sit on the open

oven door. This may damage

the oven, especially in the hinge

zone. The door can bear a

maximum weight of 8 kg.

The racks can bear a maximum

load of 8 kg. To avoid damaging

the oven, do not exceed this

load.

Cleaning:

The appliance will remain hot for

some time after it is switched off

and cool down only slowly to

room temperature. Please allow

sufficient time for the appliance

to cool down before, for

instance, cleaning it.

Do not use harsh abrasive

cleaners or sharp metal scrapers

to clean the oven door glass

since they can scratch the

surface, which may result in

shattering of the glass.

Do not use high pressure or

steam jet cleaning appliances.

Please follow the instructions

regarding cleaning in the section

“Oven Cleaning and

Maintenance”.

Repairs:

If the power cable is damaged it

should be substituted by the

manufacturer, authorised agents

or technicians qualified for this

task in order to avoid dangerous

situations. Furthermore, special

tools are required for this task.

Repair and maintenance work,

especially of current carrying parts,

can only be carried out by technicians

authorized by the manufacturer.

Installation instructions

Before installation

Check that the input voltage indicated on the

characteristics plate is the same as the voltage of

the power outlet you are going to use.

Open the oven door and take out all the

accessories and remove the packing material.

Do not remove the mica cover on the ceiling of

the interior! This cover stops fat and pieces of

food damaging the microwave generator.

Warning! The front surface of the oven may be

wrapped with a protective film. Before using the

oven for the first time, carefully remove this film,

starting on the inside.

Make sure that the oven is not damaged in any

way. Check that the oven door closes correctly

and that the interior of the door and the front of

the oven opening are not damaged. If you find any

damage contact Customer Services.

DO NOT USE THE OVEN if the power cable or

the plug are damaged, if the oven does not

function correctly or if it has been damaged or

dropped. Contact Customer Services.

Put the oven on a flat and stable surface. The

oven must not be put close to any sources of

heat, radios or televisions.

During installation, make sure that the power

cable does not come into contact with any

moisture or objects with sharp edges behind

the oven. High temperatures can damage the

cable.

Warning: after the oven is installed you must

make sure you can access the plug.

After installation

The oven is equipped with a power cable and a

plug for single phase current.

If the oven is to be installed on a permanent

basis it should be installed by a qualified

technician.

WARNING: THE OVEN MUST BE EARTHED.

The manufacturer and retailers do not accept

responsibility for any damage that may be

caused to people, animals or property if these

installation instructions are not observed..

The oven only functions when the door is closed

correctly.

After the first use, clean the inside of the oven and

the accessories, following the cleaning

instructions given in the section “Oven cleaning

and maintenance”.

Fit the Turntable support in the centre of the oven

cavity and put the Turntable ring and the

Turntable plate on top, making sure they slot in.

Whenever you use the microwave, the turntable

plate and the respective accessories must be

inside and correctly fitted. The turntable plate

can rotate in both directions.

During installation, follow the instructions supplied separately.

The advantages of microwaves

In conventional ovens, heat radiated by electrical

elements or gas burners slowly penetrates the

food from outside to inside. On account of this

there is a major amount of energy is wasted

heating the air, the oven components and the food

containers.

In a microwave oven, heat is generated by the

food itself and the heat travels from inside to

outside. No heat is lost to the air, the walls of the

oven cavity or the dishes and containers (if these

are suitable for use in microwave oven), in other

words, only the food is heated.

Microwave ovens have the following advantages:

1. Shorter cooking times; in general these are

up to 3/4 less than the time required for

conventional cooking.

2. Ultra-fast food defrosting, thus reducing the

danger of bacterial development.

3. Energy savings.

4. Conservation of the nutritional value of foods

due to the shorter cooking times.

5. Easy to clean.

How a microwave oven works

In a microwave oven there is a high tension valve

called a magnetron which converts electrical

energy into microwave energy. These

electromagnetic waves are channelled to the

interior of the oven through a wave guide and

distributed by a metallic spreader or through a

turntable.

Inside the oven the microwaves propagate in all

directions and are reflected by the metal walls,

uniformly penetrating the food.

Why food heats up

Most foods contain water and water molecules

vibrate when subjected to microwaves.

The friction between molecules produces heat

which raises the temperature of the food, de-

freezing it, cooking it or keeping it hot.

Since the heat arises inside the food:

This can be cooked with little or no liquid or

fats/oils;

De-freezing, heating or cooking in a

microwave oven is quicker than in a

conventional oven;

The vitamins, minerals and nutritional

substances in the food are conserved;

The natural colour and aroma of the food are

unchanged.

Microwaves pass through china, glass, cardboard

or plastic but do not go through metal. For this

reason, metal containers or ones with metal parts

must not be used in a microwave oven.

Microwaves are reflected by metal...

... but go through glass and china...

... and are absorbed by foods.

Description of your oven

1. –Control panel

6. –Turntable support

2. –Door window glass

7. –Turntable ring

3. –Lateral supports

8. –Turntable plate

4. –Catches

9. –Glass tray

5. –Hot Air Output

10. –Trivet

800

600

CDEFGH

A. –Function keys

F. –Power/Weight indication lights

B. –“-“ and “+” keys

G–Clock/Time key and display

C. –Oven Temperature key and display

H. –Clock/Time indication lights

D. –Oven Temperature light

I. –Start and Stop/ Safety locking keys

E. –Power/Weight selection key and display

Description of your oven

Description of Functions

Symbol

Function

Microwave Power

Output

Foods

Microwave

200 W

Slow defrosting for delicate foods; keeping food hot.

400 W

Cooking with little heat; boiling rice.

Rapid defrosting, heating baby food.

600 W

Heating and cooking food.

800 W

Cooking vegetables and food.

Cooking and heating carefully.

Heating and cooking small portions of food.

1000 W

Rapidly heating liquids.

Microwave

+ Grill

200 W

Toasting food.

400 W

Grilling poultry and meat.

600 W

Cooking pies and cheese-topped dishes.

Grill

Grilling food.

Grill + Fan

---

Grilling meat and fish.

Grilling poultry.

Potatoes –deep-frozen, defrosting and roasting.

Hot-Air

---

Roasting and baking.

Microwaves +

Hot-Air

200-600 W

Quick meat, fish and poultry roasting.

Baking cakes.

Basic controls

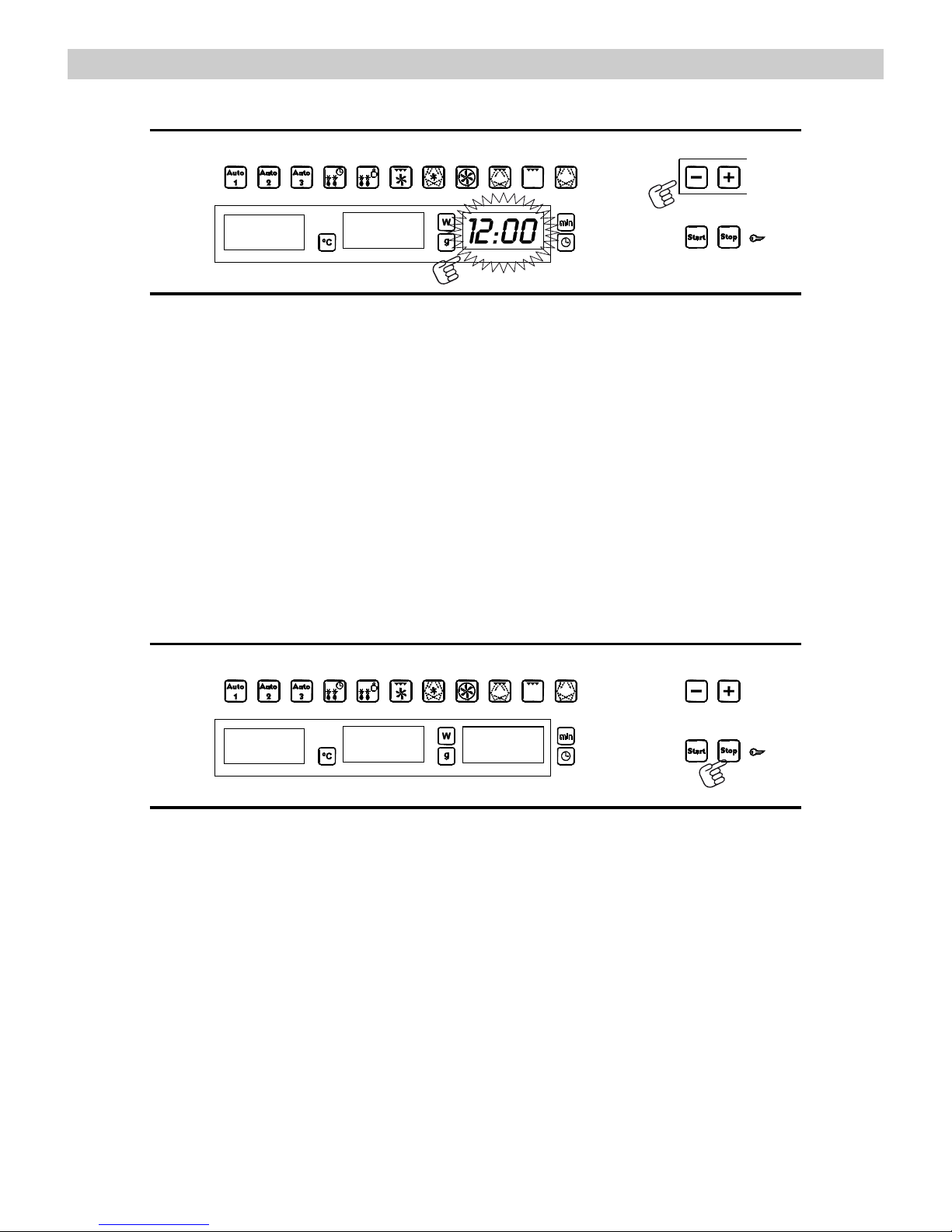

Setting the clock

1,3,5

2,4

After your microwave oven is first plugged in or

after a power failure, the clock display will flash to

indicate that the time shown is not correct. To set

the clock, proceed as follows:

1. Press the Clock key. The hour numbers will

start to flash.

2. Press keys “-”and “+”to set the hours.

3. Press again the Clock key to set the minutes.

The minute numbers will start to flash.

4. Press keys “-” and “+”to set the minutes.

5. To finish, press the Clock key again.

Hiding/Displaying the Clock

If the clock display disturbs you, you can hide it by

pressing the Clock key for 3 seconds. The dots

that separate the hours and minutes will flash but

the rest of the clock display will be hidden.

If you want to see the clock display again, press

the Clock key again for 3 seconds.

Safety locking

1,2 (>3s)

safe

The oven functioning can be locked (for example,

to stop it being used by children).

1. To lock the oven, press the Stop key for 3

seconds. You will hear a sound signal and the

display will show the word “SAFE”. The oven is

locked in this state and cannot be used.

2. To unlock the oven, press the Stop key

again for 3 seconds. You will hear a sound

signal and the display will show the time

again.

Basic Functions

Microwave oven

Use this function to cook and heat vegetables, potatoes, rice, fish and meat.

800

3,5

1:00

1. Press the Microwave function key. The

function key lights up.

2. Press the Power Selection key to change the

microwave power. The respective light will start

to flash. If you do not press this key, the oven

operates at 800 W power.

3. To change the microwave power press key “-”

and “+”.

4. Press the Time Selection key to change the

operating time. The correspondent light will

start to flash.

5. Press key “-”and “+”, to change the function

time (e.g. 1 minute).

6. Press the START key. The oven will start to

operate

NOTE: When 1000 W power is selected, the

operating time is limited to a maximum of 15

minutes.

Microwave oven –Quick Start

Use this function to rapidly heat foods with high water content, such as water, coffee, tea or thin soup.

0:30

1,2

1000

1. Press the Start key. The oven starts to operate

in the Microwave function at maximum power

for 30 seconds.

2. If you want to increase the operating time press

the Start key again. Each time you press this

key the operating time will be increased by 30

seconds.

NOTE: When 1000 W power is selected, the

operating time is limited to a maximum of 15

minutes.

Table des matières

Autres manuels Baumatic Four à micro-ondes

Baumatic

Baumatic BMC255SS Manuel utilisateur

Baumatic

Baumatic BMM201SS Manuel utilisateur

Baumatic

Baumatic BTM31SS Manuel utilisateur

Baumatic

Baumatic BMMI170SS Manuel utilisateur

Baumatic

Baumatic BTM23.1SS Manuel utilisateur

Baumatic

Baumatic BTM17.3SS Manuel utilisateur

Baumatic

Baumatic BMG200SS Manuel utilisateur

Baumatic

Baumatic B900SS-B Manuel utilisateur

Baumatic

Baumatic BTM23.1SS Manuel utilisateur

Baumatic

Baumatic BMC460BGL Manuel utilisateur

Baumatic

Baumatic BTM17.1SS Manuel de l'opérateur

Baumatic

Baumatic BMFS3420 Manuel utilisateur

Baumatic

Baumatic BTM25.1SS Manuel utilisateur

Baumatic

Baumatic BMGI255SS Manuel utilisateur

Baumatic

Baumatic BMC253SS Manuel utilisateur

Baumatic

Baumatic BMIG3825 Manuel utilisateur

Baumatic

Baumatic BMCI300SS Manuel utilisateur

Baumatic

Baumatic BWMC253SS Manuel utilisateur

Baumatic

Baumatic BAMW2330-P Manuel utilisateur

Baumatic

Baumatic BAM251TK Manuel utilisateur

Baumatic

Baumatic BTWM2SS Mode d'emploi

Baumatic

Baumatic BAMG28TK Manuel utilisateur

Baumatic

Baumatic GEM252TK Manuel utilisateur

Baumatic

Baumatic BMGI250SS Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
