Baumatic B46.1SS Manuel utilisateur

B46.1SS/B46.1TCSS/B60.3SS/

BT61.1SS/BT62.1SS/

BT62.1TCSS/BG67.1SS/

B68.1SS/B68.1TCSS/B17.8SS

Gas hobs

User Manual for your Baumatic

B46.1SS 60 cm 4 Burner gas hob

B46.1TCSS 60 cm 4 Burner gas hob with thermocouples

B60.3SS 60 cm 4 Burner gas hob with thermocouples

BT61.1SS 60 cm 4 Burner gas hob with thermocouples

BT62.1SS 60 cm 4 Burner gas hob

BT62.1TCSS 60 cm 4 Burner gas hob with thermocouples

BG67.1SS 70 cm 5 Burner gas hob with thermocouples

B68.1SS 70 cm 5 Burner gas hob

B68.1TCSS 70 cm 5 burner gas hob with thermocouples

B17.8SS 90 cm 5 burner gas hob with thermocouples

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 11/10/11

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 – 17

B46.1SS/B46.1TCSS 8

B60.3SS 9

BT61.1SS 10

BT62.1SS/BT62.1TCSS 11

BG67.1SS 12

B68.1SS/B68.1TCSS 13

B17.8SS 14

Electricaldetails 15

Gasdetails 15

Gas hob surface layout 15 - 17

Using the gas hob 17 - 20

Beforefirstuse 17

Switchingthehobon 17–18

Pushbutton ignition (B46.1SS) 18

Pushbutton ignition with flame failure device 18 - 19

(B46.1TCSS/B60.3SS/BT61.1SS)

Automatic ignition (B68.1SS/BT62.1SS) 19

Automatic ignition with flame failure device 19 – 20

(B17.8SS/B68.1TCSS/BG67.1SS/BT62.1TCSS)

Energysavingtips 20

Cleaning 20 - 22

Cleaning the hob top 21

Aftereachuse 21

Cleaning the hob burners 21

Maintaining the cast iron pan stands 22

Installation 22 - 33

Positioning 23-24

Unpacking the appliance 24

Installing the appliance 24 – 27

Gas connection 27

Ventilationrequirements 27-28

Gas Safety (Installation and Use) Regulations 28 - 29

Gas Adjustment (Conversion to LPG) 29 - 30

Minimum flow adjustment for hob gas taps 31

Gas tap maintenance 32 - 33

Electricalconnection 33

Replacing the mains supply cable 33

My appliance isn’t working correctly 34

Baumatic consumables 35

Contactdetails 36

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will be hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

oThe appliance should only be installed and connected by a

GASSAFE registered installer.

oCare should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

During use

oAny film or stickers that are present on the hob surface when it

is delivered should be removed before use.

oCare should be used when utilising the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

oMake sure that all of the cooking zones are switched off after

use.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

GASSAFE registered installer, strictly in

accordance with the manufacturer’s instructions

and the relevant British Standards. Please see the

specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed.

oBaumatic Ltd. DO NOT recommend that this appliance is

installed on any type of marine vessel.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-2009/142/CE Concerning gas appliances

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Specifications

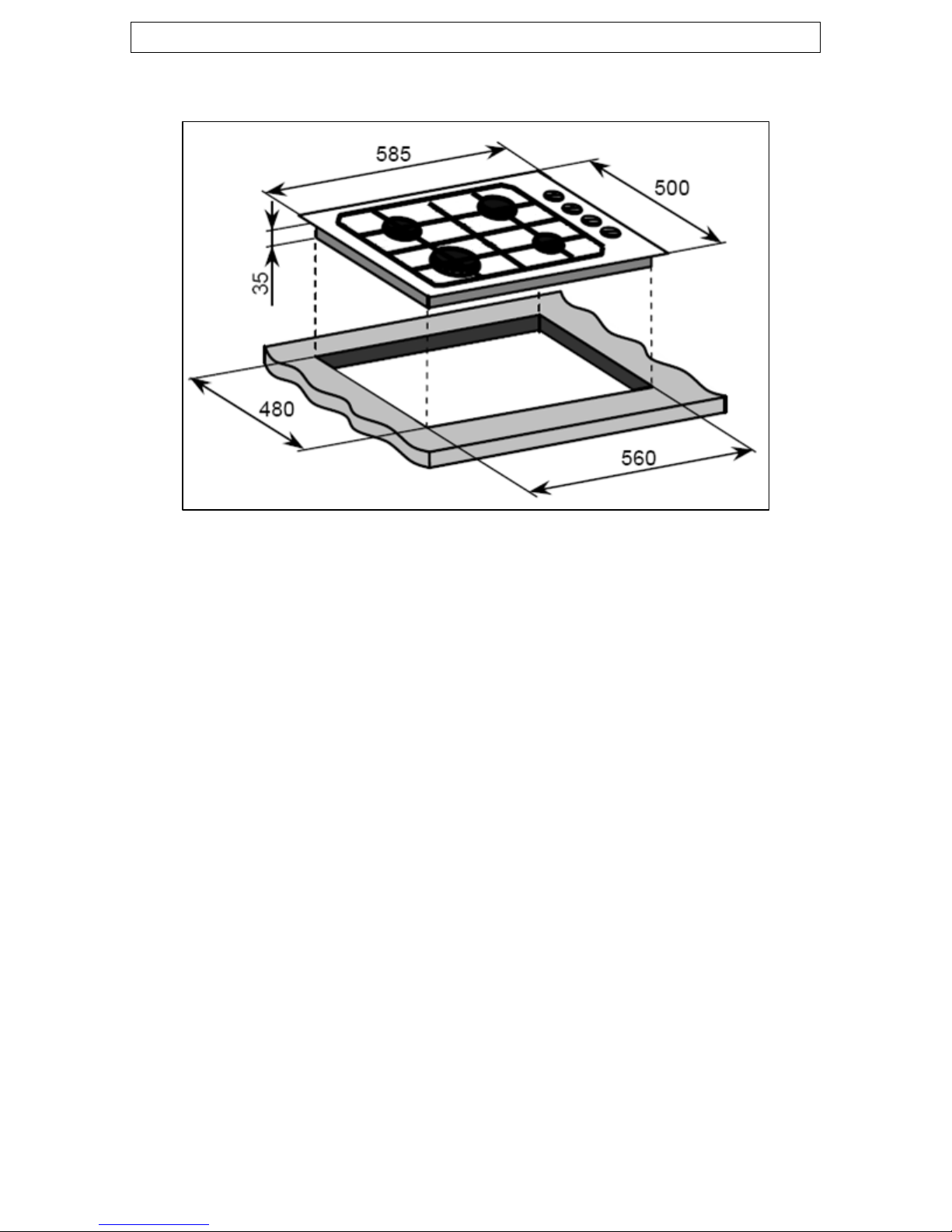

B46.1SS/B46.1TCSS

Product dimensions: Aperture dimensions:

Height: 500 mm Height: 480 mm

Width: 585 mm Width: 560 mm

Depth: 35 mm

Product specifications:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oSide control operation

oPushbutton ignition

oEnamelled pan stands

oFlame failure safety device on each burner (B46.1TCSS

only)

Standard accessories:

oLPG conversion jets

B60.3SS

Product dimensions: Aperture dimensions:

Height: 500 mm Height: 480 mm

Width: 585 mm Width: 560 mm

Depth: 35 mm

Product specifications:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oSide control operation

oPushbutton ignition

oHeavy duty cast iron pan stands

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

Optional extra:

oBTGRID Double-sided griddle plate

BT61.1SS

Product dimensions: Aperture dimensions:

Depth: 500 mm Depth: 480 mm

Width: 585 mm Width: 560 mm

Height: 35 mm

Product specifications:

o1 x 3.30 kW triple crown (wok) burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oSide control operation

oPushbutton ignition

oHeavy duty cast iron pan stands

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

oWok stand

Optional extra:

oBTGRID Double-sided griddle plate
