FBS752 Feller Buncher

OPERATOR’S MANUAL

Issue Date: April 2021

TABLE OF CONTENTS

1 INTRODUCTION ................................................................................................................................ 4

1.1 Overview..................................................................................................................................... 4

1.2 Intended Use And Foreseeable Misuse................................................................................... 4

2 SAFETY............................................................................................................................................... 5

2.1 Safety Alert Symbol And Safety Words................................................................................... 5

2.2 Operational Hazards.................................................................................................................. 5

Prepare For Emergencies ......................................................................................................... 6

Replace Safety Signs ................................................................................................................ 6

Do Not Allow Riders .................................................................................................................. 6

Lower Operating Speed ............................................................................................................ 6

Avoid Rollover ........................................................................................................................... 7

Avoid Powerlines....................................................................................................................... 7

Detach Feller Buncher Safely................................................................................................... 7

Hazards From Modifying Equipment ....................................................................................... 7

2.3 Maintenance Hazards................................................................................................................ 8

3 SAFETY SIGNS.................................................................................................................................. 9

4 OPERATION ..................................................................................................................................... 12

4.1 Preparation For Use ................................................................................................................ 12

4.2 Hydraulic Connections ........................................................................................................... 12

4.3 Control Box (Optional) ............................................................................................................ 13

4.4 Machine Components ............................................................................................................. 13

4.5 Attach To Skidsteer ................................................................................................................. 14

4.6 Detach From Skidsteer ........................................................................................................... 14

4.7 Transporting............................................................................................................................. 14

4.8 First Time User Tips ................................................................................................................ 14

4.9 Field Operation ........................................................................................................................ 15

4.10 Hydraulic Adjustments.......................................................................................................... 16

5 SERVICE AND MAINTENANCE..................................................................................................... 17

5.1 Lubrication ............................................................................................................................... 17

5.2 Inspect Hoses .......................................................................................................................... 18

5.3 Inspect And Rotate Or Replace Cutting Teeth ...................................................................... 18

5.4 Motor Shaft Seal ...................................................................................................................... 19

5.5 Remove And Install Rotor....................................................................................................... 19

6 TROUBLESHOOTING ..................................................................................................................... 21

7 WARRANTY...................................................................................................................................... 22

1 INTRODUCTION

Congratulations on your choice of a Baumalight

Feller Buncher to complement your operation. This

equipment has been designed and manufactured

to meet the needs of a discriminating buyer.

This new and unique design allows us to build it

very economically and makes it a very compact

unit for storage and transport. Hydraulic controls

are easy to adjust and operate.

Safe, efcient and trouble free operation of your

feller buncher requires that you and anyone

else who will be operating or maintaining the

feller buncher, read and understand the Safety,

Operation, Maintenance and Troubleshooting

information contained within the Operator’s

Manual.

This manual covers the Baumalight skidsteer

mounted Feller Buncher. Use the Table of Contents

as a guide to locate required information.

Keep this manual handy for frequent reference

and to pass on to new operators or owners. Call

your Baumalight dealer, distributor or the factory

if you need assistance, information or additional

copies of the manuals.

OPERATOR ORIENTATION - The directions left,

right, front and rear, as mentioned throughout this

manual, are as seen from the operator’s seat and

facing in the direction of travel.

1.1 Overview

The feller buncher is designed to be used by an

experienced operator. Operator must be trained

in the safe operation of a skidsteer and hazards

related to using the feller buncher and the safe use

of the feller buncher for the intended purpose.

Operators will require personal protective

equipment to reduce the risk from some hazards

that cannot be completely eliminated or controlled

by the design of the feller buncher.

Care is required to ensure that the feller buncher

will not come in contact with metallic objects,

stones or other materials.

Feller bunchers are not designed for use in

hazardous atmospheres where there is a risk

of re or explosion due to ammable gases or

vapors. Use in hazardous, explosive atmospheres

is prohibited. Serious injury or death of the operator

or bystanders may be caused if feller buncher is

misused. Misuse may also cause damage to the

machine carrying the feller buncher.

1.2 Intended Use And Foreseeable

Misuse

2 SAFETY

You must read, understand and follow the

instructions given by the operating unit

manufacturers, as well as the instructions in this

manual.

The safety information in this manual is denoted

by the safety alert symbol:

This symbol means ATTENTION! BECOME

ALERT! YOUR SAFETY IS INVOLVED!

The level of risk is indicated by the following signal

words:

^^ DANGER

DANGER - Indicates a hazardous

situation, which, if not avoided, WILL

result in death or serious injury.

^ WARNING

WARNING - Indicates a hazardous

situation, which, if not avoided, could

result in death or serious injury.

^ CAUTION

CAUTION - Indicates a hazardous

situation, which, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE - Indicates a situation that could

result in damage to the equipment or

other property.

2.1 Safety Alert Symbol And Safety

Words

2.2 Operational Hazards

^ WARNING

Prevent death or serious injury.

Read and understand this manual before

operating feller buncher.

Always stop engine and remove key

before leaving operators seat.

Never allow anyone in near feller

buncher or in area where tree may fall

during operation.

Travel at a safe speed.

^ WARNING

Prevent death or serious injury from

moving parts.

Moving parts can crush and dismember.

Do not operate without guards and

shields in place.

Disconnect and lockout power source

before adjusting or servicing.

^ WARNING

Use feller buncher only for the designed

applications.

Any other use may result in personal

injury, damage to equipment and may

void the warranty.

^ WARNING

Prevent death or serious injury.

Verify feller buncher is locked to

quick attach hitch before operation or

transport.

^ WARNING

Protect from ying debris.

Wear proper safety glasses, goggles,

or a face shield to protect from ying

debris.

Carefully read all safety messages in this manual

and on equipment safety signs. Keep safety signs

in good condition and replace missing or damaged

safety signs.

New equipment components and repair parts must

include the current safety decal.

Learn how to properly operate equipment.

NEVER operate or work around this equipment

without proper instruction, while fatigued or under

the inuence of alcohol, prescription or non-

prescription medication or if feeling ill.

Keep your equipment in proper working condition.

Know the regulations and laws that apply to you

and your industry. This manual is not to replace

any regulations or laws. Additional information

may be found at: www.asae.org or www.osha.gov.

If you do not understand any part of this manual,

contact Baumalight at 866-820-7603.

Prepare For Emergencies

• Be prepared in case of emergencies.

• Keep a re extinguisher and rst aid kit close

to the machine.

• Keep emergency phone numbers in your

phone or close by.

• Know your address so emergency services

can locate you if an emergency arises.

Replace Safety Signs

• Replace missing or damaged safety signs.

• Safety signs are identied in Section 3 of this

manual.

• Replacement safety signs are available from

your Baumalight dealer.

Do Not Allow Riders

• NEVER lift or carry anyone on feller buncher.

• NEVER use feller buncher as a work platform.

• NEVER allow passengers on feller buncher.

Lower Operating Speed

Keep feller buncher low and move at slow speeds

on rough or uneven terrain.

Avoid Rollover

The equipment may rollover, resulting in death or

serious injury. To help prevent rollover:

• Travel at a slow speed.

• Avoid sharp turns & sudden movement on

slopes.

• Carry feller buncher close to the ground.

• Avoid holes, ditches and other obstructions

which may cause equipment to rollover.

• Balance load so weight is evenly distributed

and load is stable.

• Use caution when operating on slopes and do

not operate on excessively steep slopes.

• Do not exceed load capacity of equipment.

Avoid Powerlines

^ DANGER

Prevent electrocution.

Death or serious injury can result

if equipment or tree comes near or

contacts power line.

Electrocution can occur without direct

contact.

• Check clearance before raising equipment.

• Verify cut trees will not contact or come near

power line.

DO NOT leave the operator’s seat if any part of the

equipment or tree contacts electric line or cable.

Detach Feller Buncher Safely

Detach feller buncher on a rm and level surface.

Feller buncher may fall over if detached on unlevel

or soft surface. Keep clear of machinery.

Relieve hydraulic pressure before disconnecting

hydraulic hoses.

Raised Attachment

^ WARNING

Crushing hazard.

Raised, unsupported feller buncher can

fall, resulting in death or serious injury.

Never enter the area under a raised feller

buncher.

A raised feller buncher can lower unexpectedly,

resulting in death or serious injury.

NEVER enter area under a raised feller buncher.

Lower feller buncher to ground, engage parking

brake, shut off engine and remove key before

servicing.

Hazards From Modifying Equipment

Do not make any alterations to your feller buncher.

Altering may cause your equipment to be unsafe

and may void the manufacturers’ warranty.

Avoid High Pressure Fluids

^ WARNING

Pressurized uids can penetrate the

skin.

Hydraulic hoses can fail from age,

damage and exposure.

Use body and face protection while

searching for leaks. A tiny, almost

invisible leak can penetrate the skin,

thereby requiring immediate medical

attention.

Use wood or cardboard to detect

hydraulic leaks, never use your hands.

Escaping uid under pressure can penetrate the

skin causing serious injury.

Prevent the hazard by relieving pressure before

connecting or disconnecting hydraulic lines. Verify

all connections are tight before applying pressure.

Search for leaks with a piece of cardboard or wood.

Protect hands and body from high pressure uids.

If an accident occurs, see a doctor immediately.

Any uid injected into the skin must be surgically

removed within a few hours or serious infection

may result.

Doctors unfamiliar with this type of injury should

reference a knowledgeable medical source.

Avoid Loud Noise

^ WARNING

Prolonged exposure to loud noise can

cause impairment or loss of hearing.

Wear a suitable hearing protective device

such as earmuffs or earplugs to protect

against objectionable or uncomfortable

loud noises.

2.3 Maintenance Hazards

Before servicing, park machine on a rm and

level surface, set parking brake and place a “Do

Not Operate” tag on control panel. Read and

understand this manual. If you do not understand

any part of the manual, contact Baumalight at 866-

820-7603.

Always wear face and/or eye protection, safety

shoes, and other protective equipment appropriate

for the job.

Do not make unauthorized modications. Contact

Baumalight at 866-820-7603. Before you weld,

cut/drill holes, or make any other modications.

Always use Baumalight replacement parts.

^ WARNING

Moving parts can crush and cut.

Keep clear of moving components.

Follow lockout procedure before

servicing.

^ WARNING

Crushing hazard.

Before performing inspections, service

or maintenance:

Park machine on rm, level surface.

Engage parking brake.

Turn engine off and remove key.

Place “Do Not Operate” tag on skidsteer

control panel.

^ WARNING

Entanglement hazard.

Keep clear of moving components.

Wear proper protective equipment

appropriate for the job.

^ WARNING

Burn hazard.

Hot and high pressure hydraulic oil.

Allow oil to cool before servicing.

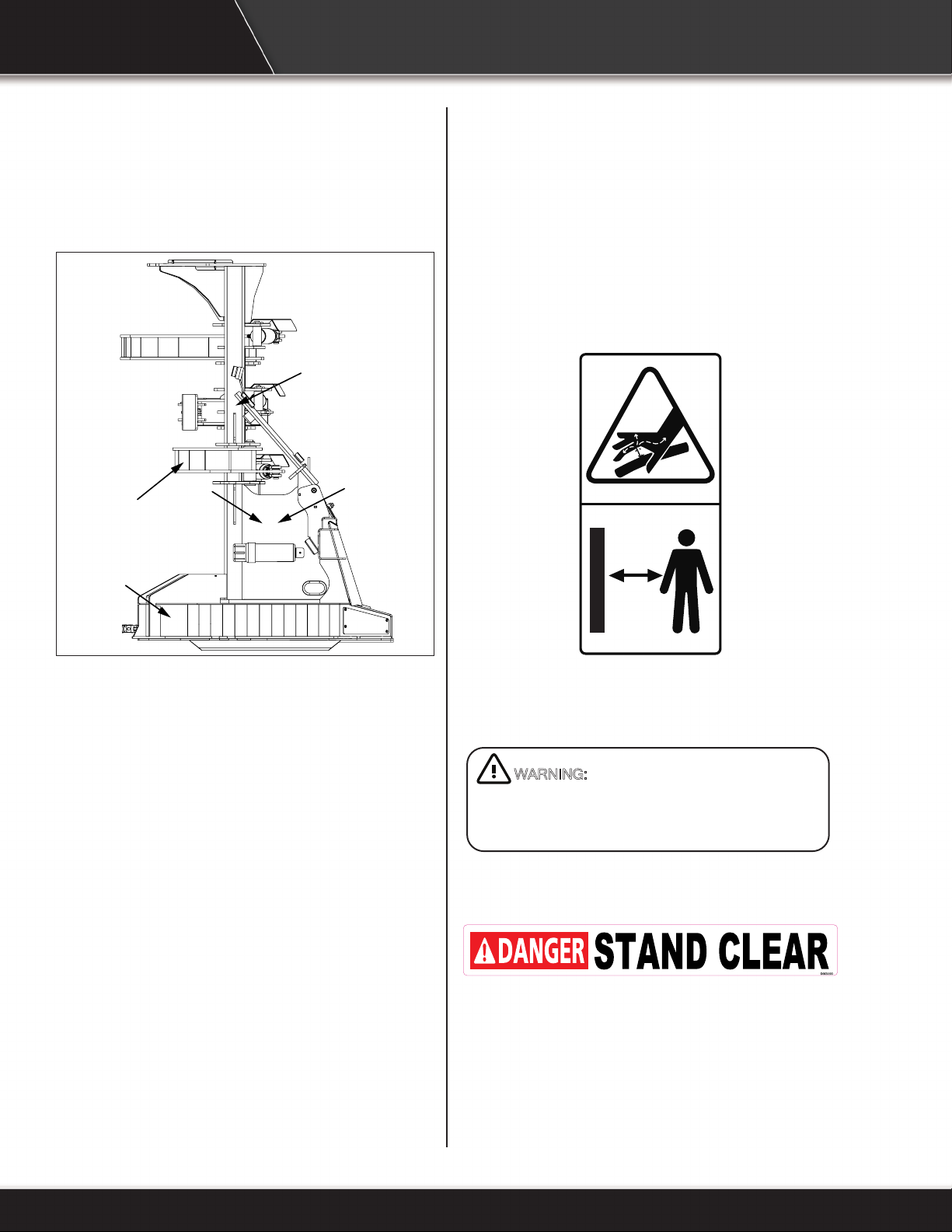

3 SAFETY SIGNS

A. D005253 ^ WARNING - Pressurized uid

hazard. Pressurized uids can penetrate the

skin. Do not check for leaks with your hands.

Keep back a safe distance when pressurized.

D005253

B. D005262 ^WARNING - P65 warning

information.

WARNING: This product can expose you to chemicals

including 1,3-Butadiene and lead, which are known to the state of

California to cause cancer and birth defects or other reproductive

harm. For more information go to www.P65Warnings.ca.gov.

D005262

C. D003190

Table des matières

Autres manuels Baumalight Équipement industriel

Baumalight

Baumalight PT324 Manuel utilisateur

Baumalight

Baumalight FGS952 Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
