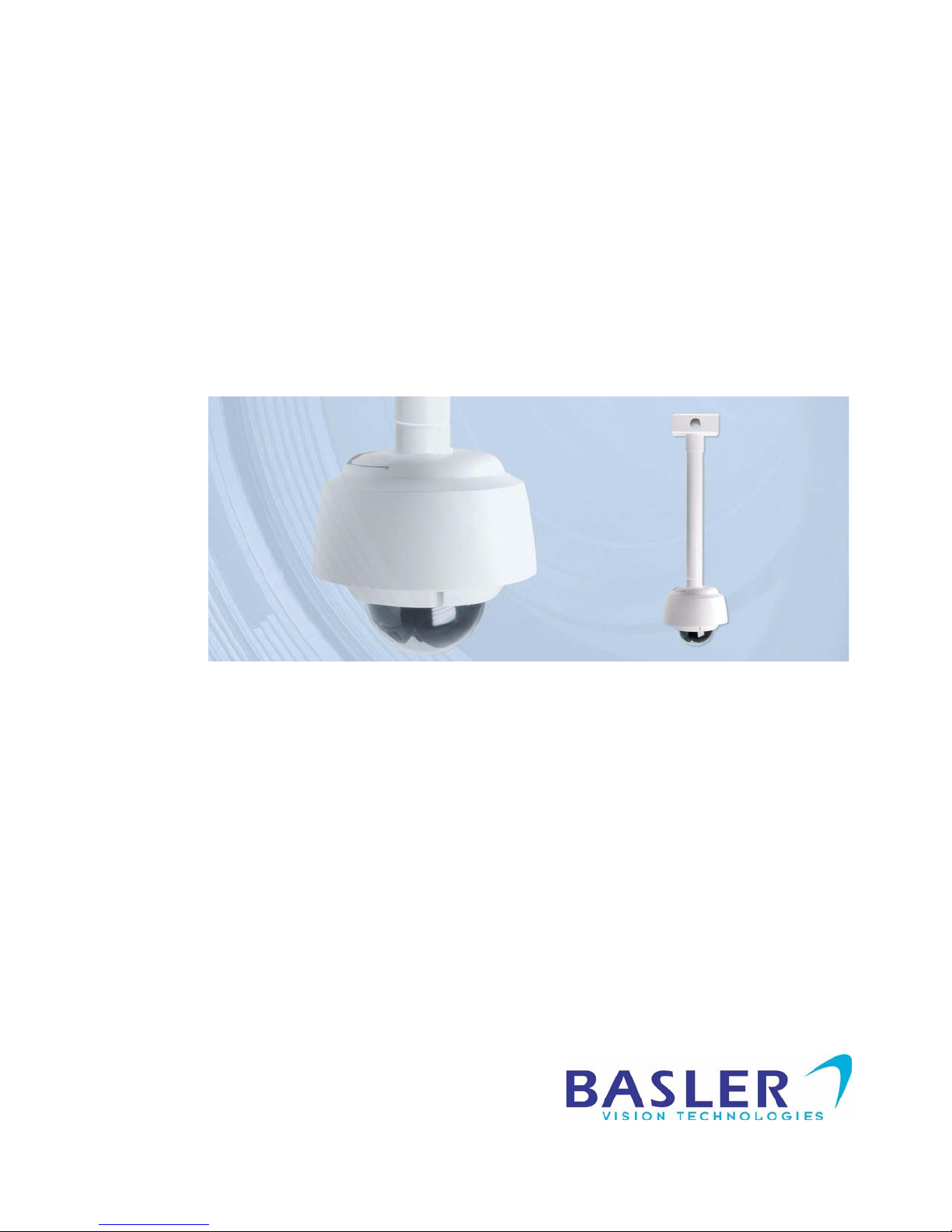

Basler IP Fixed Dome Camera

Pendant Mount Kit Installation Guide

Document Number: AW001042

Version: 01 Language: 000 (English)

Release Date: 10 October 2011

Contacting Basler Support Worldwide

Europe and the Middle East:

Basler AG Phone: +49-4102-463-303

An der Strusbek 60 - 62 Fax: +49-4102-463-599

22926 Ahrensburg Email: bc.support.ip.emea@baslerweb.com

Germany

The Americas:

Basler, Inc. Phone: +1-610-280-0171

855 Springdale Drive, Suite 203 Fax: +1-610-280-7608

Exton, PA 19341 Email: bc.support.ip.usa@baslerweb.com

U.S.A.

Asia:

Basler Asia Pte. Ltd Phone: +65-6425-0472

8 Boon Lay Way Fax: +65-6425-0473

# 03 - 03 Tradehub 21 Email: bc.support.ip.asia@baslerweb.com

Singapore 609964

www.basler-ipcam.com

All material in this publication is subject to change without notice and is copyright

Basler Vision Technologies.

Pendant Mount Kit Installation Guide

Basler IP Fixed Dome Camera 1

1 Introduction

Document Intent

The intent of this document is to help you install a pendant mount kit for the Basler IP Fixed Dome

Camera. This document should be used in combination with the Basler IP Fixed Dome Camera

Installation Guide. The dome camera installation guide includes information you will need to

successfully attach the dome camera to the pendant mount.

Kit Contents

WARNING

The installation should be made by a qualified service person and should comply

with all local codes. The connection to the ceiling must be able to support at least

two times the weight of the pendant mount kit plus the dome camera.

The kit plus the dome camera weighs 3.3 kilograms (7.3 pounds).

Camera

Adapter Pendant

Pipe Ceiling Mount

Bracket Pipe

Adapter

Camera

Adapter

Seal

M4 x 8

Screws

Self-drilling

Screws

(4 x 37)

Spacer Bolts

Pendant Mount Kit Installation Guide

2Basler IP Fixed Dome Camera

Dimensions (in mm)

Pendant Mount Kit Installation Guide

Basler IP Fixed Dome Camera 3

2 Installation

The pendant mount and the dome camera should be assembled as shown in the exploded drawing

on the next page.

The connection to the ceiling must be able to support at least two times the weight of the

pendant mount kit plus the dome camera. The pendant mount kit plus the dome camera

weighs 3.3 kilograms (7.3 pounds).

As you are assembling the pendant mount kit, we suggest that you thread the network cable and

the secondary cable through the unit as shown in the exploded drawing.

We recommend assembling the kit in the following order:

1. Attach the ceiling mount bracket in the desired position in the ceiling using the four self-drilling

screws (4 x 37).

2. Screw the pendant pipe into the ceiling mount bracket.

3. Attach the camera adapter seal to the camera adapter (the seal is a peel-and-stick type).

4. Attach the pipe adapter to the camera adapter with four M4 x 8 screws.

5. Screw the camera adapter into the pendant pipe.

6. Attach the dome camera base to the camera adapter with three M4 x 8 screws.

7. Follow the instructions in the Basler IP Fixed Dome Camera Installation Guide to complete the

dome camera installation.

Pendant Mount Kit Installation Guide

4Basler IP Fixed Dome Camera

Ceiling Mount Bracket

Self-drilling Screw

(x 4)

Pendant Pipe

Pipe Adapter

Camera Adapter Seal

Camera Adapter

M4 x 8 Screw

(x 3)

Dome Camera

Base

Dome

M4 x 8 Screw

(x 4)

Network and

Secondary

Cables
