Bartscher 104.446 Manuel utilisateur

104.446

210

104.447

- 13 -

1. General Information 14

1.1 Information about the instruction manual 14

1.2 Key to symbols 14

1.3 Liability and Warrantees 15

1.4 Copyright protection 15

1.5 Declaration of conformity 15

2. Safety 16

2.1 General information 16

2.2 Safety instructions for use of the device 16-17

2.3 Intended use 17

3. Delivery, packaging and storage 18

3.1 Delivery check 18

3.2 Packaging 18

3.3 Storage 18

4. Technical data 19

4.1 Overview of parts 19

4.2 Technical specification 20

5. Installation and operation 20

5.1 Safety instructions 20-21

5.2 Installation and connection 21

5.3 Operating 22-23

6. Cleaning and maintenance 23

6.1 Safety advice 23

6.2 Cleaning 23

6.3 Safety instructions for maintenance 24

7. Waste disposal 24

Bartscher GmbH

Franz-Kleine-Str. 28

D-33154 Salzkotten phone: +49 (0) 5258 971-0

Germany fax: +49 (0) 5258 971-120

GB/UK

- 14 -

1. General information

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and

maintenance of the device and should be consulted as an important source of

information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure

the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and

safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and

easily accessible for anyone carrying out the installation, servicing, maintenance or

cleaning.

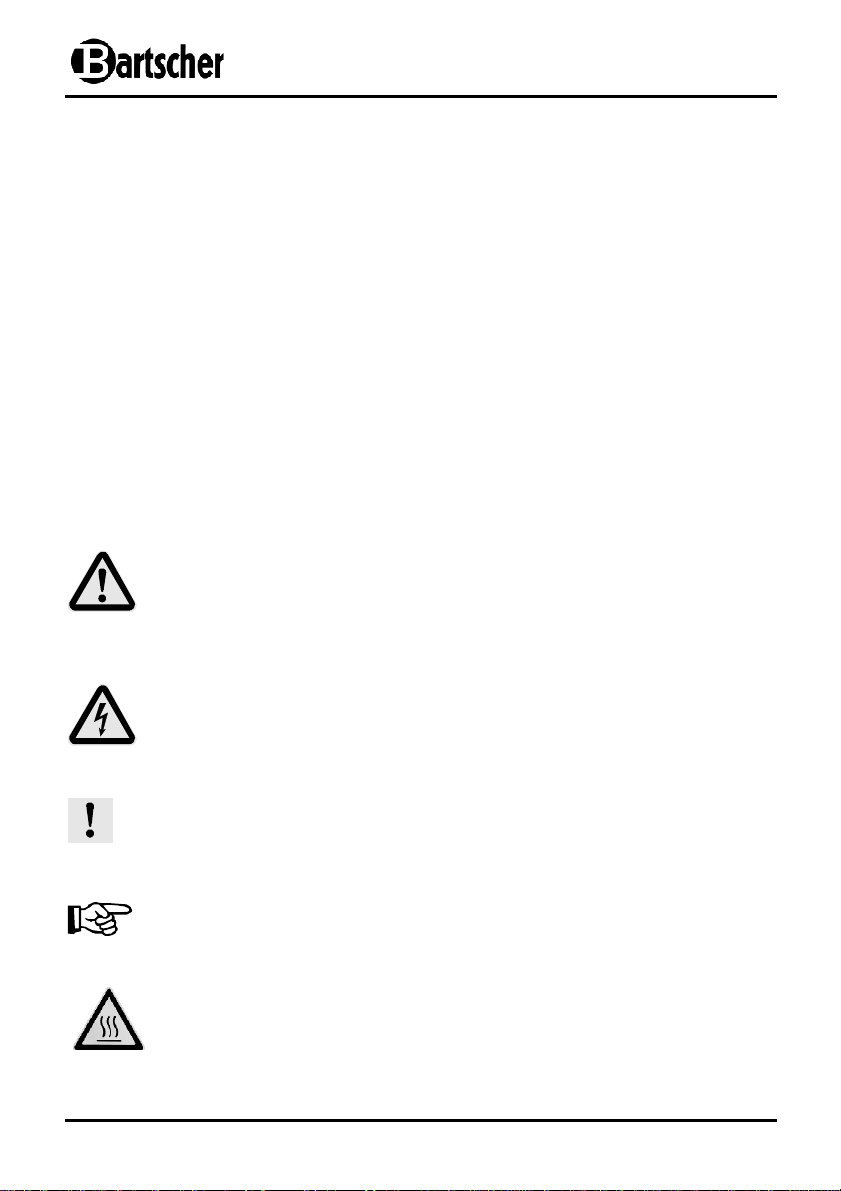

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any

advice relating to the device. The instructions should be followed very carefully to avoid

any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention

in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow

the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of

damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for

an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the unit surface is hot when in use. Ignoring this

warning may result in burns!

- 15 -

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety

regulations, current levels of technical engineering as well as the expertise and

experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do

not accept liability for any translation errors. The German version of this instruction

manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from

the descriptions and illustrations in this manual. This is also the case for special orders

or when the device has been modified in line with new technology. If you have any

questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer

does not accept liability for any damage or malfunction resulting from not

following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone

wishing to work with or using it. We reserve the right to make technical changes for

purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is

or by any means without permission in writing from the manufacturer. Any person who

commits any unauthorized act in relation to this publication shall be liable to claims for

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright

and subject to other protection rights. Any person unlawfully using this

publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

- 16 -

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers

which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the

device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all

hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological

standards. However, the device can pose a danger if handled improperly and

inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus

operating this device safely and in a fault-free manner is very essential to protect

yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to

the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the

European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial

safety measures concur with the state of the rules and regulations applicable at the time

in question for the entire period of use of the device and to comply with the new

specifications.

Outside the European Union, the industrial safety laws applicable at the place of

installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and

accident prevention regulations as well as environment protection regulations applicable

for area of application of the device must be followed and complied with.

- 17 -

CAUTION!

oThe unit is not intended for use by individuals (including children) with physical or

mental disabilities, insufficient experience, and/or insufficient knowledge unless

such persons are under the care of a person responsible for their safety or have

received instructions regarding appropriate use of the unit.

oChildren should be observed to ensure that they are not playing with the unit.

oPreserve this manual safely. When passing on/selling the device to a third party, the

manuals must be handed over along with the device.

oEvery person using the device must act in accordance to the manuals and under

consideration of the safety advice.

oThe device is to be used indoors only.

2.3 Intended use

ATTENTION!

This device has been designed and built for commercial use only and should be

operated by qualified personnel only.

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a

qualified customer service only.

The crêpe maker

should be used only for frying batter and flour-based products.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device

is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a

consequence of experiencing damages resulting from unconventional use are

impossible.

The operator is liable for all damages resulting from inappropriate use.

- 18 -

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after

receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages

can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for

storage purposes, when moving or, in case of damages, when the device must be sent

back to a repair center. The outer and inner packing material should be removed

completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your

country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please

contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside

indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

-Do not store outdoors.

-Keep it dry and dust-free.

-Do not expose it to aggressive media.

-Do not expose it to direct sunlight.

-Avoid mechanical shocks and vibration.

-In case of longer storage (> 3 months) make sure you check the state of the

packaging and the parts regularly. If required refresh or renew.

- 19 -

4. Technical data

4.1 Overview of parts

104.446

104.447

Crêpe plate

Heat plate

Temperature dial

Crêpe spatula

Crêpe spreader

Temperature dial

Feet

Standby light

(orange)

Standby light

(orange)

Crêpe spreader

Crêpe spatula

Crêpe plate

Feet

Casing

Temperature dial

Standby light

(orange)

Heat plate

- 20 -

4.2 Technical specification

Name Electric crêpe maker

Single Double

Art. No.:

104.446 104.447

Construction: Stainless steel and iron

Power: 230V ~ 50 Hz 3.0 kW 230V ~ 50 Hz 2 x 3.0 kW

Temperature range: 0°C – 300°C

Dimensions: W 450 x D 510 x H 246 mm W 870 x D 510 x H 246 mm

Crêpe plates

dimension: Ø 400 mm

Weight: 21.5 kg 40.0 kg

Accessories: 1 crêpe spreader, 1 crêpe spatula

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with

protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

•See that the cable does not touch any heat sources or sharp edges. Do not let the

cable dangle over the counter edge.

WARNING! Hot external surface!

During operation some elements of the unit very become hot. To avoid burns, do

not touch hot elements!

•Do not use the device in case it does not function properly, has been damaged or

dropped.

•Do not use any accessory or spare parts that have not been recommended by the

manufacturer. These can be dangerous for the user or lead to damages of the device

or personal injury, and further, the warranty expires.

- 21 -

•Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep

away the cable from operating range and do not dunk it into water.

•Do not wrap the power cord around the unit and do not bend it.

•Do not place any objects on the crêpe plates when in use.

•Do not place any pots or pans on the griddle surface.

•Protect the unit from rain and moisture.

•Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with

that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

CAUTION!

The installation and maintenance of the appliance should only be carried out by

trained personnel!

•Unpack the unit and remove all packing material. Remove the protective film from

the unit. If any glue remains, remove it with an appropriate solvent.

•Mount the adjustable legs and adjust them so that the unit stands in a stable position.

•Place the unit on a level, stable surface which can support the weight of the unit and is

not heat sensitive.

•NEVER place the unit on a flammable surface (e.g. carpet, tablecloth, etc.)

•Do not place the unit near an open flame, electric ovens, heating ovens and other

sources of heat.

•Do not place the unit near flammable or easily ignitable materials.

•Maintain a minimum distance of 20 cm from all sides.

•Two separate electrical outlets are necessary for the double crêpe maker.

•The electrical circuit in the socket must be secured to at least 16A. Only connect the

unit directly to the wall socket; do not use any extension cords or power strips.

•Place the unit so that the plug is easily accessible and can be quickly removed from

its socket in case of necessity.

Autres manuels pour 104.446

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bartscher Appareils de cuisine

Bartscher

Bartscher 116726 Manuel utilisateur

Bartscher

Bartscher T6110 Touch Guide de démarrage rapide

Bartscher

Bartscher IW 35 PRO-2 Manuel utilisateur

Bartscher

Bartscher 120.579 Manuel utilisateur

Bartscher

Bartscher 120.578 Manuel utilisateur

Bartscher

Bartscher KST3240 Plus Manuel utilisateur

Bartscher

Bartscher IW 35-EB Manuel utilisateur

Bartscher

Bartscher 131.7433 Manuel utilisateur

Bartscher

Bartscher 420/20L Manuel utilisateur

Bartscher

Bartscher 300301 Manuel de la liste des pièces

Bartscher

Bartscher 100048 Guide de démarrage rapide

Bartscher

Bartscher M 5230 Manuel utilisateur

Bartscher

Bartscher IWS650 Manuel utilisateur

Bartscher

Bartscher 173.195 Manuel utilisateur

Bartscher

Bartscher 305/15L Manuel utilisateur

Bartscher

Bartscher SNACK 650 Series Mode d’emploi

Bartscher

Bartscher NT 501 Manuel utilisateur

Bartscher

Bartscher A150114G Manuel utilisateur

Bartscher

Bartscher A150114G Manuel utilisateur

Bartscher

Bartscher 400M Manuel utilisateur

Bartscher

Bartscher MSI400 Manuel utilisateur

Bartscher

Bartscher 300422 Manuel utilisateur

Bartscher

Bartscher 150992 Manuel utilisateur

Bartscher

Bartscher 3010 Guide de l'utilisateur

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
