Bargeheights LED 36 Manuel utilisateur

User Manual

LED 36

RGB Wash Luminaire

1. THEBEGINNING

Thanks!

Thank you for choosing the Bargeheights LED 36! This versatile

PAR-style LED wash luminaire will provide reliable performance

day in and day out. To ensure long lasting performance, please

follow the guidelines in this manual. The instructions here are

important for your safety and the maintenance of this xture.

Enjoy!

Unpacking

All of our luminaires are thoroughly tested prior to being

shipped. While your LED 36 functioned perfectly when it left

us, it may have been bumped around during shipping. Please

inspect the carton and if you notice any damage, take a good

look at the xture. If you see any damage, it is important to

contact our support team right away. And, if you nd any pieces

necessary for operation are missing – let us know! We’ll make it

right as soon as possible.

Support

If something is not working properly, let us know! Grab a com-

puter or your favorite handheld device and head to

www.bargeheightslighting.com/support for user manuals,

DMX channel lists and support information. You can also email

us at [email protected]. We’re happy to help.

WARNING!

To reduce the risk of re or electrical shock, do not attempt to

use this xture with any covers missing or removed.

The Bargeheights LED 36 carries a one-year (365 day) manu-

facturers’ limited warranty. Please contact Bargeheights for

warranty repair or returns. All returns require an RA (Return

Authorization) number. If your xture is still under warranty,

TABLEOFCONTENTS

1. The Beginning

Unpacking

Support

Introduction

DMX Quick Reference

2. Safety Information

3. Setup

DMX Cabling

DMX Termination

3-pin vs. 5-pin

Master/Slave Mode

4. Operation/Conguration

Menu Structure

DMX Control Mode

Auto Control Mode

Master/Slave Mode

Technical Specications

Photometric Data

5. Care/Maintenance

Returns

Shipping Damage

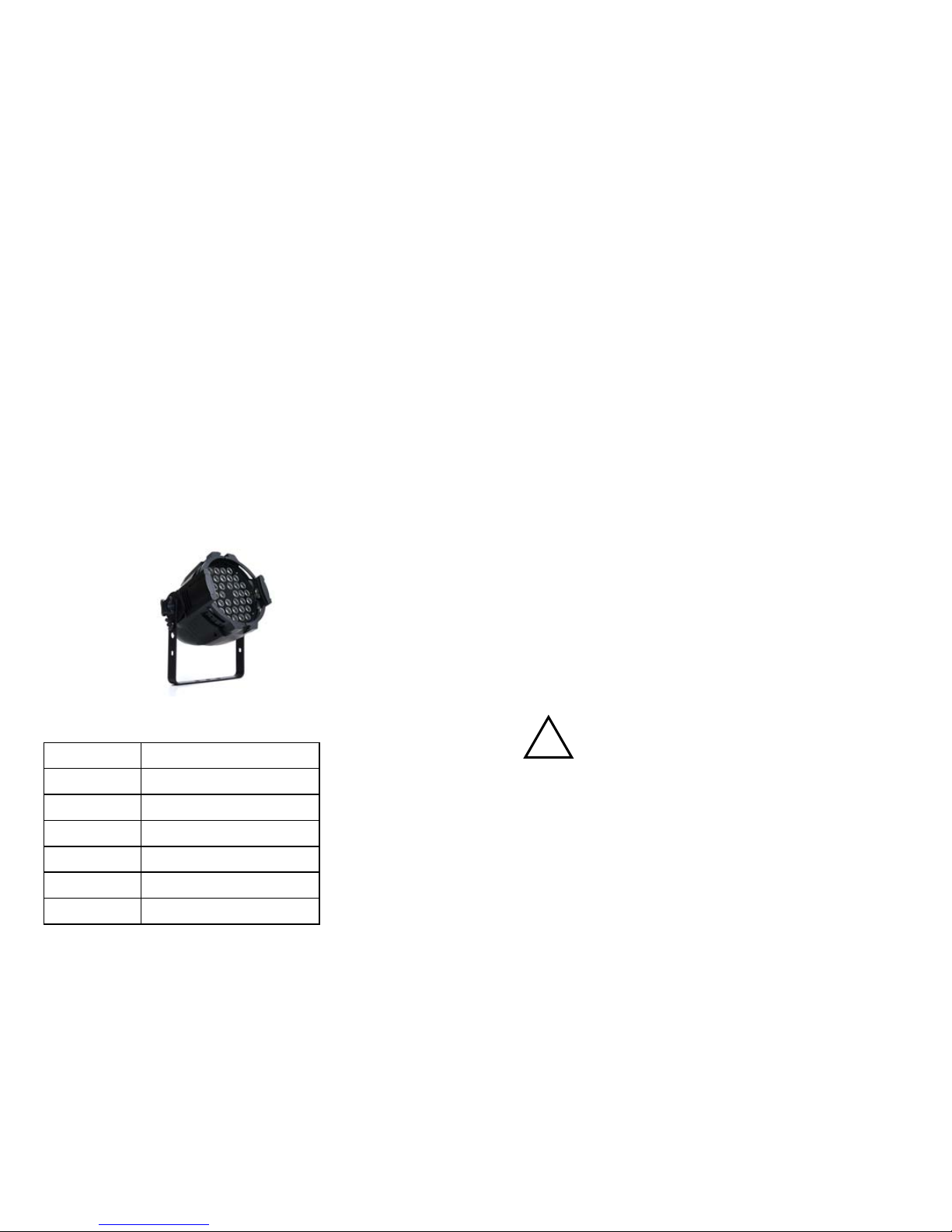

Introduction

• PAR-style LED Wash Luminaire

• Full RGB color mixing via 36 x 1w LEDs

(12 Red, 12 Green, 12 Blue)

• High output, low power consumption

• Variable electronic strobe

• Variable electronic dimmer

• Master/Slave modes

• Built-in standalone modes - no controller required!

• RGB color mixing ability in standalone mode

• Rugged aluminum chassis

• Locking yoke

• Quiet internal fan for cooling

DMX Quick Reference

Channel Function

1 Overall Intensity

2 Red Intensity

3 Green Intensity

4 Blue Intensity

5 Strobe

6 Color / Strobe Effects

2. SAFETYINFORMATION

• DO NOT connect the xture into a dimmer. Use constant line voltage only to

avoid damage.

• Make sure you are connecting the xture to line voltage that is not higher

than the voltage stated on the rear of the xture.

• The LED 36 is for indoor use only. Do not expose the xture to rain, or other

moisture like your bathtub.

• Do not operate the xture with ammable items nearby. NEVER lay anything

on the xture while it is on.

• Give it space! The LED 36 needs at least 6in (15cm) from other surfaces and

objects. Make sure that none of the ventilation or fan slots are blocked.

• ALWAYS disconnect the xture from its power source before servicing or

cleaning.

• ALWAYS secure your LED 36 using a safety cable. NEVER hang or carry it by

its cord. It has a yoke for a reason!

• DO NOT operate when the ambient temperatures are higher than 104°F

(40°C). If it’s too hot for you, it’s too hot for your LED 36!

• If your LED 36 stops working properly, stop using it immediately. NEVER try

to repair it yourself. Attempting repairs in the eld can result in damage or

injury. Please contact us for repairs or replacement.

• Make sure the power cord is not frayed or damaged.

• Never disconnect the power cord by pulling on the cord. Use the plug!

• Avoid direct eye exposure to the light source while it is on. It’s cool looking,

and fun to watch, but staring into the light can damage your eyes!

There are no user serviceable parts inside this xture. Do not

open the housing or attempt any repairs yourself. Not only is it

a bad idea, it will void your warranty – which is a bummer when

you need a working light! If you do need service, please contact

Bargeheights. Damages sustained as a result of modications

to the xture, or disregarding information in this manual will

not be covered by your warranty. If something is wrong, let us

take a look at it. We’ll help you out!

!Caution!

3. SETUP

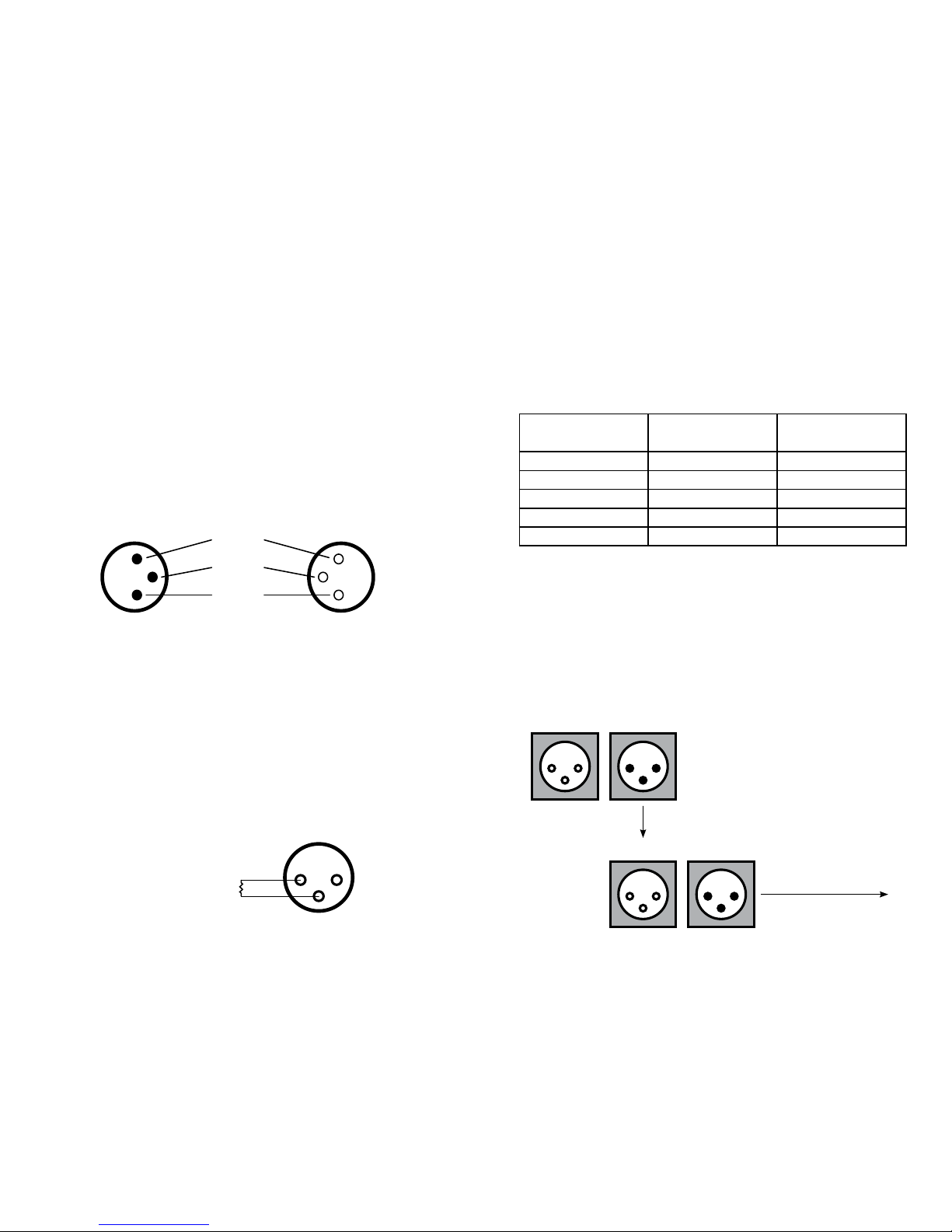

DMX Cabling

The LED 36 has standard 3-pin XLR connectors for DMX con-

trol and daisy-chaining. Up to 32 devices can be daisy-chained

together on a single run. Standard microphone cables will

probably work OK, but DMX is a serial data transmission with

impedance specications that are different than analog audio.

Cables specically designed to transmit DMX signals will always

work best. As an example, Belden© 9841 meets the specica-

tions for DMX-512 applications. The longer the cable distance,

the more important proper cable selection is.

DMX Termination

Sometimes, errors will crop up in your DMX line – especially if it

is a long run. When this is the case, or if you just want to make

sure your DMX runs have the best chance at accurate transmis-

sion, you can use a terminator. A terminator is a 120 ohm ¼

watt resistor which is connected between pins 2 and 3 of a male

XLR connector (DATA + and DATA -). This connector is inserted

in the female XLR connector of the last xture in your daisy

chain to terminate the line. Using a cable terminator will de-

crease the possibility of erratic behavior. Terminators are avail-

able on the internet and from lighting retailers. If you’re handy

with a soldering iron, they are simple to build yourself!

120 Ohm resistor

¼ watt

DMX Terminator

3-pin XLR Male connector

Shield

Data +

Data -

3-pin vs. 5-pin

Some manufacturers use 5-pin XLR connectors for DMX trans-

mission. Don’t worry! The two are still compatible. Adapters are

available on the internet and from lighting retailers. If you want

to build your own, here are the proper connections:

Cable Conductor 3-pin Female

(output)

5-pin Male

(input)

Shield (Ground) Pin 1 Pin 1

DMX Data + Pin 2 Pin 2

DMX Data - Pin 3 Pin 3

not connected - not connected

Master/Slave Mode

The LED 36 also has a Master/Slave mode. In this mode you

can set one xture in the line to act as the master controller –

and up to 32 other xtures can be connected and will mirror the

operation of the rst. In this conguration, you do not need a

DMX controller.

Connect the xtures just as

you would for DMX control.

See the OPERATION sec-

tion of this manual for more

information on how to set up

Master/Slave mode.

DMX IN DMX OUT

Master Fixture

Slave Fixture

to next xture

4. OPERATION/CONFIGURATION

We here at Bargeheights don’t really care for DIP switches.

They are hard to see in the dark, and since most of us don’t

quickly think in binary, they are tricky to set properly. The

LED 36 has an LED display with a simple menu system. There

are four control buttons below the display that allow you to

navigate the control menus.

<MENU> – Go up a level in the menu system; hold to conrm

<+> – Scroll to the next higher number or menu selection

<-> – Scroll to the next lower number or menu selection

<ENTER> – Select the current number / menu selection

To access the main menu press the <MENU> button. Use the

<+> or <-> buttons to navigate through the menu options.

Press the <ENTER> button to select the option displayed, and

use the <+> or <-> buttons to change the settings. Once your

changes are made press <ENTER> to accept the change.

8888

MENU + - ENTER

Menu Structure

A001

SP01

CL01

dnCo

Auto

SCAE

DMX Address Setting

Auto Mode Speed Control

Auto Mode Color Control

DMX Control Mode

Auto Control Mode

Slave Mode

A512

SP16

CL14

DMX Control Mode

To change the DMX starting address:

• Press <MENU> until the DMX channel (A001-A512) is dis-

played.

• Press <+> or <-> to select your starting address. (1-512)

• Press <ENTER> to assign your selection.

To put the xture into DMX Control Mode:

• Press <MENU> until the control mode is displayed.

(dnCo or Auto or SCAE)

• Press <+> or <-> to select DMX Control Mode. (dnCo)

• Press <ENTER> to assign your selection.

DMX Channel Assignments

Channel Channel Value Function

1 0-255 Overall RGB Intensity

2 0-255 Red Intensity

3 0-255 Green Intensity

4 0-255 Blue Intensity

1-255

No Strobe

Strobe slow -> fast

0-24

25-45

46-66

67-87

88-108

109-129

130-150

151-171

172-192

193-213

214-234

235-255

White

Blue

Green

Red

Cyan

Magenta

Yellow

Color Strobe

Color Change

Color Slow Fade

Audio Strobe

Audio Color Change

Auto Control Mode

The LED 36 has an automatic control mode that does not re-

quire a DMX control signal.

• Press <MENU> until the control mode is displayed.

(dnCo or Auto or SCAE)

• Press <+> or <-> to select Auto Control Mode. (Auto)

• Press <ENTER> to assign your selection.

Auto Control Mode has two selectable controls - color and

speed. The color mode has 14 individual choices:

CL01 – Red

CL02 – Orange

CL03 – Yellow

CL04 – Green

CL05 – Cyan

CL06 – Blue

CL07 – Magenta

CL08 – Purple

CL09 – White

CL10 – Audio Color Change

CL11 – Audio Strobe

CL12 – Slow Color Fade

CL13 – Color Chase

CL14 – Strobe

In Color Chase and Strobe modes, there are 16 speeds, from

fast to slow. SP01 is fast – SP16 is slow.

Master/Slave Mode

Up to 32 LED 36s may be connected via the 3-pin DMX connec-

tions and controlled simultaneously without a DMX controller by

using Master/Slave Mode. In this mode you can set one xture

in the line to act as the master controller – and up to 32 other

xtures can be connected and will mirror the operation of the

Master.

• Press <MENU> until the control mode is displayed.

(dnCo or Auto or SCAE)

• Press <+> or <-> to select Slave Mode. (SCAE)

• Press <ENTER> to assign your selection.

Connect LED 36 xtures and set them in Slave Mode and they

will operate mirroring the rst xture. Do not set the rst x-

ture in Slave Mode - only the other xtures.

Technical Specications:

Model: LED 36

LEDs: 36 x 1watt (12 Red, 12 Green, 12 Blue)

Voltage: 100-250v / 50-60Hz

Dimensions: 9in (h) x 9in (w) x 12in (l)

230mm (h) x 230mm (w) x 310mm (l)

Weight: 11lbs (5.0Kg)

Power

Consumption: 60 watts

DMX Channels: 6 channels

Beam Spread: 25 degrees (beam) 35 degrees (eld)

Setup & Addressing: LED Menu display – no dip switches!

Photometric Data:

Throw Distance 3.0m

9.8’

5.0m

16.4’

7.0m

22.9’

Beam Diameter 1.34m

4.4’

2.22m

7.3’

3.14m

10.3’

Illuminance (lux) 3110 1470 646

Photometric data taken with all channels at full. Due to varia-

tions in all LEDs, these values should be considered approxi-

mate. All LED sources experience a lowering of output and

some color shift over time. LED output varies with ambient

operating temperatures.

5. CARE/MAINTENANCE

Your LED 36 is designed for long life with minimal upkeep.

Since there are no lamps to replace, maintenance is simple -

just keep your LED 36 clean and dry. Especially if you are in a

dusty or haze-lled environment, there are some simple steps

you can take to ensure a long, happy life for your LED 36.

Keeping the lens area clean will ensure maximum light output.

Use glass cleaner on a soft cloth to wipe down the lens area

and the outer enclosure of the LED 36 whenever it gets dirty or

dusty. Always make sure the vent holes are kept clear. The fan

won’t work if there’s no place for the air to go!

Any other repair or maintenance should be performed by quali-

ed individuals only. There are no user-serviceable parts in the

LED 36. If you nd your LED 36 behaving strangely, please feel

free to contact us and we’ll help with troubleshooting.

Returns

While your LED 36 was tested and working perfectly before it

left to join your family, sometimes things can happen. If there’s

a problem, and you need to return your LED 36 - don’t worry!

It’s easy.

Send an email to [email protected], and we’ll issue

you an RA (Return Authorization) number. Carefully pack your

LED 36 for shipping - using the original box and packing mate-

rial, if possible. Use a prepaid, trackable shipping method, such

as UPS, FedEx or USPS Priority Mail.

Please include the following information with your xture so we

can best help you!

1. Your contact information (Name, Address, Phone Number,

Email address)

2. The RA# issued to you

3. A brief description of the problem/symptoms

We will take a look at the xture, and at our discretion, repair

or replace the xture. Please note that we cannot be responsi-

ble for damage that takes place during shipping - so make sure

you pack the xture well!

Shipping Damage

Damage incurred in shipping is the responsibility of the

shipper, and must be reported to the shipping company

immediately upon receipt of the items. Claims must be

made within seven (7) days of receipt.

bargeheights inc

www.bargeheights.com

Support: www.bargeheightslighting.com/support

[email protected]

859-317-2878

Table des matières

Autres manuels Bargeheights Équipement d'éclairage

Bargeheights

Bargeheights LED PAR Manuel utilisateur

Bargeheights

Bargeheights LED PAR Manuel utilisateur

Bargeheights

Bargeheights LED 54AW Manuel utilisateur

Bargeheights

Bargeheights BAR 252 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
