Bard Manufacturing Company, Inc.

Bryan, Ohio 43506

www.bardhvac.com

Manual: 2100-680

Supersedes: NEW

Date: 8-29-18

INSTALLATION AND

APPLICATION INSTRUCTIONS

BrightStat

Air Conditioner/Heat Pump

Room Controller

Manual 2100-680

Page 2 of 18

CONTENTS

Dimensions ........................................................ 3

Speciﬁcations .................................................... 3

Overview ............................................................ 4

Installation......................................................... 6

Remote Sensor Accessories ................................. 7

Home Screen Display .......................................... 8

How to Enter Setup Screen.................................. 9

Power Outage Clock Reset ................................. 10

Passive Infrared Sensor ..................................... 11

Optional Network Setup .................................... 15

Controllers' Occupancy Sequence

and Operation Schematic .................................. 16

SED Series Wireless Sensors.............................. 17

• If replacing an existing room controller, label wires before

removal of controller.

• Electronic controls are static sensitive devices. Discharge

yourself correctly before manipulating and installing room

controller.

• A short circuit or wrong wiring may permanently damage

controller or equipment.

• BrightStat controllers are designed for use as operating

controls only and are not safety devices. Tampering with the

devices or unintended application of the devices will result in

a void of warranty.

• This device must be installed to provide a separation

distance of at least 8" (20cm) from all persons and must not

be collocated or operating in conjunction with any other

antenna or transmitter.

!IMPORTANT

Manual 2100-680

Page 3 of 18

Manual 2100-680

Page 4 of 18

OVERVIEW

BrightStat

The BrightStat controller is a cost-effective solution for

upgrading air conditioner or heat pump thermostats.

The application allows existing wiring between the

wall-mount unit and the room controller to be re-

used, reducing overall costs and installation time. The

BrightStat can also add features like CO

and fresh air

monitoring to the existing functions of a wall-mount unit.

The BrightStat room controller can be conﬁgured to

handle a broad variety of applications covering all the

standard implementations necessary for HVAC systems.

BrightStat Controller Models

Bard Part Number Description Part Number Found on Back of Controller

8403-081 With Humidity and Motion Sensors VT8650U5500B

8403-082 With Motion Sensor VT8600U5500B

8403-083 With Humidity Sensor VT8650U5000B

8403-084 Temperature Only VT8600U5000B

In addition to controlling heating, cooling and air

quality, depending on the model and accessories,

the BrightStat can handle wireless networking and

switches, Passive Infrared (PIR) occupancy detection

using either onboard or remote sensors, and can have

custom programs implemented to fulﬁll speciﬁc user

requirements. The applications described here cover

all these features in combination with the BrightStat’s

advanced scheduling and occupancy controls to provide

the functionality for any required HVAC implementation.

Manual 2100-680

Page 5 of 18

In all Occupancy Modes

If room relative humidity is higher than the user-deﬁned

dehumidiﬁcation setpoint, both Dehumidiﬁcation

(DO12) and Fan (BO4) outputs are energized to reach

the RH% setpoint and the room controller.

NOTE: A relay is installed in the unit which will

disable dehumidiﬁcation on a call for cooling or

heating.

See page 41 of Advanced Programming & User

Interface Setup Guide (manual 2100-681) for

occupied and unoccupied settings adjustments.

Wiring

Reference unit installation manual for wiring

instructions.

Sequence of Operation

Occupied Mode

Setpoints revert to those deﬁned by occupied cooling

and heating.

Stand-by Mode (only available when PIR motion

detector sensor is used)

Setpoints revert to those deﬁned by stand-by cooling

and heating.

Unoccupied Mode

Setpoints revert to those deﬁned by unoccupied heating

and cooling.

Occupied Override Mode

System reverts to occupied mode for duration

determined by “ToccTime” parameter.

Options

• Wireless adapter modules for BACnet models are

available.

• Three (3) universal inputs can be used and

conﬁgured for advanced functionality as required

by the application.

NOTE: RC (5) and RH (7) must both be powered for

heating and cooling operation.

BO 1 - Aux

BO 2 - Y2

BO 3 - Y1

BO 4 - G

RC (24 Vac)

C (Common)

BO 8 - W1

UO 9 - W2

UO 10 - Econo

UO 11 - Heat

UO 12

BACnet

BACnet REF

UI 16

UI 17

Common

UI 19 - CO2

UI 20 - RS

Common

UI 22 - SS

UI 23 - OS

UI 24 - Airflow

13 14 15 16 17 18

7 8 9 10 11 12

19 20 21 22 23 24

1 2 3 4 5 6

Terminal Designation Function

1 BO 1 ON/OFF VENT OUTPUT PER

SCHEDULE

2 BO 2 Y2 COMP OUTPUT

3 BO 3 Y1 COMP OUTPUT

4 BO 4 G OUTPUT

5 RC COOL 24VAC IN

6 C 24VAC COM

7 RH HEAT 24VAC IN

8 BO 8 W1 OUTPUT

9 UO 9 W2, OB VALVE OUTPUT

10 UO 10 0-10V CO2 VENT OUTPUT

11 UO 11 EMERGENCY HEAT OUTPUT

12 DO 12 DEHUMIDIFICATION

13 BACnet+ BACNET

14 BACnet- BACNET

15 BACnet ref BACNET

16 UI 16 NOT USED

17 UI 17 SERVICE ALARM

18 Common NOT USED

19 UI 19 0-10V AUX CO2 INPUT

20 UI 20 24VAC OUT

21 Common 24VAC COM

22 UI 22 NOT USED

23 UI 23 NOT USED

24 UI 24 NOT USED

Not Used

DO 12 - Dehum

Manual 2100-680

Page 6 of 18

INSTALLATION

Location

• Do not install on outside wall.

• Do not install in areas with direct heat source.

• Do not install near any air discharge grill.

• Do not install in areas exposed to direct sunlight.

• Ensure room controller has sufﬁcient air

circulation.

• Ensure wall surface is ﬂat and clean.

Installation

1. Remove security screw on bottom of room

controller cover (if applicable).

2. Open unit by pulling on bottom side of room

controller (see Figure 1).

FIGURE 1

Open Cover

FIGURE 2

Install Base

FIGURE 3

Re-Install Cover

3. Read FCC ID and IC label installed in cover before

installing any wireless product.

4. Ensure correct side of base faces up.

5. Pull cables 6" (15 cm) out from wall.

6. Align base and mark location of two mounting

holes on wall (see Figure 2).

7. Install anchors in wall.

8. Insert cable in central hole of base.

9. Insert screws in mounting holes on each side of

base.

10. Strip each wire 1/4" (0.6 cm) from end.

11. Insert each wire and screw according to wiring

chart (see page 4).

12. Gently push excess wiring back into hole.

13. Insulate hole to prevent draft.

14. Gently align cover to top of base and snap in place

from bottom (see Figure 3).

15. Install security screw.

Manual 2100-680

Page 7 of 18

REMOTE SENSOR ACCESSORIES

TABLE 2

Remote Sensor Accessories

Model Number Description

8612-058 Wall-Mounted Temperature Sensor

8612-059 Wall-Mounted Temperature Sensor with Override Button

and Occupancy Status LED

NOTE: If one or multiple sensor(s) is/are connected

into the RS terminal, the internal temperature

sensor is automatically disabled. Disconnecting

the sensor(s) in RS terminal will re-activate the

internal sensor.

Remote mount temperature sensors inputs use 10K

type 2 NTC thermistors.

Features

• Each sensor can be conﬁgured for various

averaging combinations.

See Advanced Programming & User Interface

Setup Guide (manual 2100-681) for conﬁguration

instructions.

˚C˚F Kohm

-40 -40 324.3197

-35 -31 234.4009

-30 -22 171.3474

-25 -13 126.6109

-20 -4 94.5149

-15 5 71.2430

-10 14 54.1988

-5 23 41.5956

0 32 32.1910

5 41 25.1119

10 50 19.7390

15 59 15.6286

20 68 12.4601

25 77 10.0000

30 86 8.0694

35 95 6.5499

40 104 5.3467

45 113 4.3881

50 122 3.6202

55 131 3.0016

TABLE 3

Temperature vs. Resistance for

10K Ohm NTC Thermistor

(R25˚C = 10KΩ±3%, B25/85˚C = 3975K±1.5%)

Manual 2100-680

Page 8 of 18

HOME SCREEN DISPLAY

NOTE: User Home Menu and Interface (HMI) is conﬁgurable and allows display

functions such as outdoor temperature, setpoint and other buttons to be

enabled or disabled by setting various parameters in the setup screens.

Typical Hospitality User Interface Shown

* What is displayed is dependent on the User Home Menu and Interface (HMI) selected

during the setup process. See BrightStat Advance Programming & User Interface Setup

Guide 2100-681.

Time

System Status

Fan Status

Up Arrow

Increase Temperature

Setpoint

Actual Setpoint

Down Arrow

Decrease Temperature

Setpoint

Help

Language Selection

Temperature Units

Fan Mode

Date

Occupancy Status

Indoor Temperature

Outdoor Temperature

System Mode

Short Network Message

Custom Display Message

Manual 2100-680

Page 9 of 18

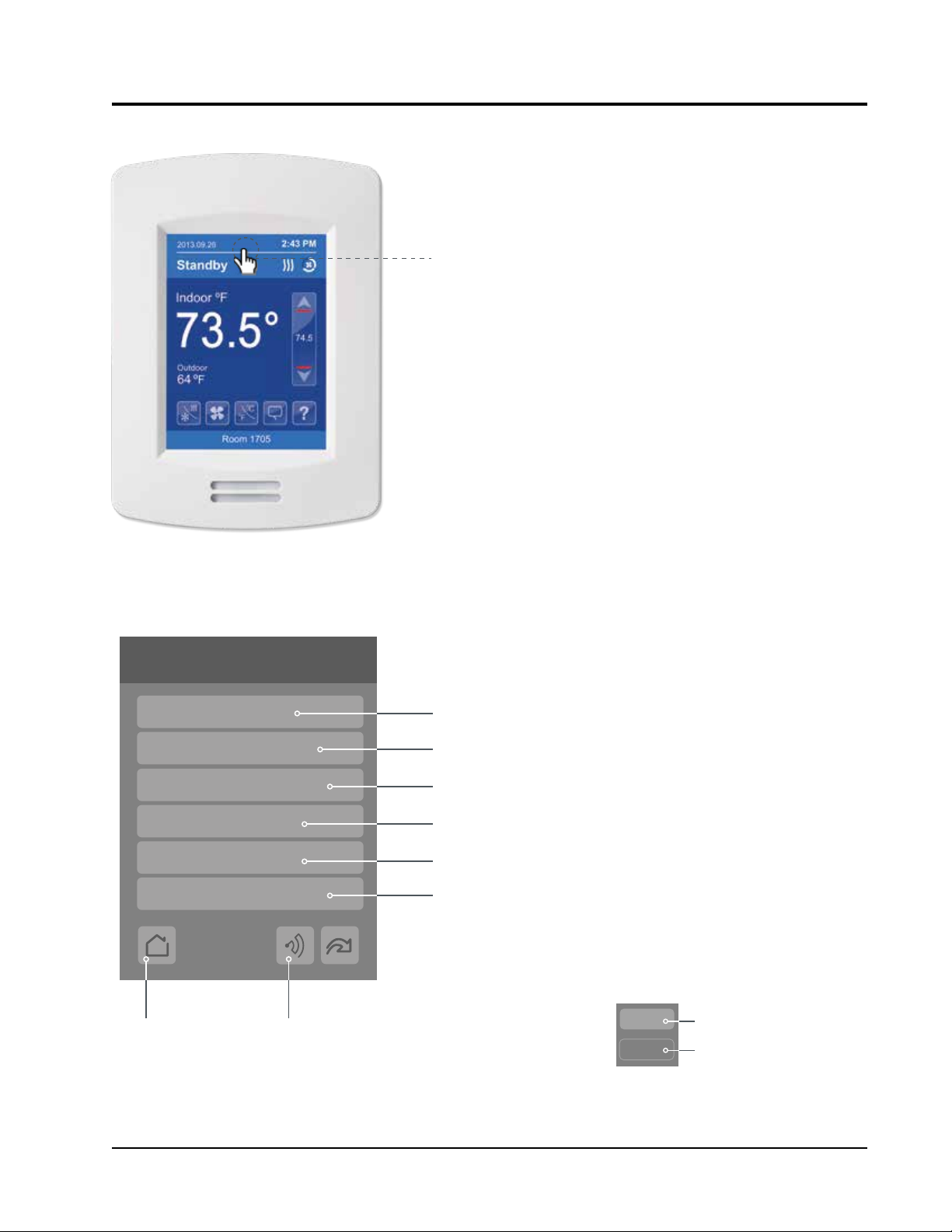

HOW TO ENTER SET-UP SCREEN

Touch and hold this point

for 3 seconds to enter set-up mode.

SET-UP SCREEN DISPLAY

Return to

home screen

General Note

1/2 Setup

Network

Configuration

Setpoints - Display

Service View

Test Outputs

Language Selection

Adjustable parameter

Non-adjustable parameter

NOTE: If a conﬁguration/installer

password is activated to prevent

unauthorized access to the

conﬁguration menu parameters,

a password entry prompt shows

to prevent access to device

conﬁguration components.

Controller is shipped without

password protection.

Discover Mode

The controller becomes

discoverable on the wireless

ZigBee®network for 1 minute (this

button is hidden if ZigBee®settings

are not conﬁgured).

Enter BACnet®and ZigBee®network settings

Enter parameter conﬁguration menu

Enter setpoint and display settings

Enter output testing mode

Enter status and service view

NOTE: The "Network" button does not show if no

BACnet®or ZigBee®card is installed.

For more information on using and

conﬁguring the functions of the thermostat,

refer to the BrightStat User Interface Guide

2100-681 and BrightStat User Interface

Quick Start Guide 2100-679.

Enter language selection

Manual 2100-680

Page 10 of 18

POWER OUTAGE CLOCK RESET

In the event of a power outage, BrightStat Room

Controllers will retain the correct time as long as

the duration of the power outage is not prolonged.

Depending on the duration of the power outage,

the room controller's internal clock may need to be

updated or reset completely. The following table gives

an indication of the expected clock performance after a

power outage.

TABLE 4

Expected Clock Performance After Power Outage

Outage Duration Room Controller Behavior

0-24 Hours Clock functions are normal.

24-36 Hours Clock accuracy not guaranteed,

time may need to be adjusted.

36-72 Hours

Clock no longer increments and

must be adjusted when power

is restored.

72+ Hours

Clock functions are fully reset and

must be re-initialized as per new

installation.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bard Contrôleurs

Bard

Bard CompleteStat CS9B-THOA Guide de configuration

Bard

Bard ECU Series Manuel utilisateur

Bard

Bard LV1000-100 Instructions d'installation

Bard

Bard LC6000-200 Manuel utilisateur

Bard

Bard CompleteStat CS9B-THOA Manuel utilisateur

Bard

Bard CompleteStat CS9B-THO Manuel utilisateur

Bard

Bard ECU Series Manuel du propriétaire

Bard

Bard CompleteStat CS9B-THO Guide de configuration

Bard

Bard CompleteStat CS9B-THOA Mode d'emploi

Bard

Bard MC4002 Manuel

Bard

Bard MV4000 SERIES Manuel utilisateur

Bard

Bard CMH-3 Manuel utilisateur

Bard

Bard BrightStat Manuel utilisateur

Bard

Bard TCS22-***-003 Manuel utilisateur

Bard

Bard MC4001 Series Manuel

Bard

Bard MC4002 Manuel

Bard

Bard MC5000 Series Manuel

Bard

Bard MC4000 SERIES Manuel

Bard

Bard MC4000 SERIES Manuel utilisateur

Bard

Bard CompleteStat-Series CS9B-THO Manuel utilisateur

Bard

Bard ECU Series Guide de configuration

Bard

Bard MC500 Series Manuel

Bard

Bard CMA-38 Manuel du propriétaire

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
