BARCO PROJECTION SYSTEMS
Date:17072002 Rev : 00 Art.No.:R5976486
R764081 - K
REPLACEMENT KIT 2 EHT + SPLITTER IN BV508
WITH SINGLE EHT + SPLITTER
Replacement kit for
R774465:EHTTransformer
R107596 : Splitters ( with EHT Feedback connector )
R763021:Splitters ( withFocusconnection)
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter
2 ___________________________________________________________________________________ R5976486.00 BARCO 17072002
Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, July 2002.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO n.v./Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : +32/56/368211
Fax : +32/56/351651
Visit Barco at the web : http://www.barco.com
Printed in Belgium
Federal communication commission (FCC statement)
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC
Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Instructions to the user :
If this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or
more of the following measures :
- relocate the equipment with respect to the receiver.
- plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.
- fasten cables connectors to the equipment by mounting screws.
Note : The use of shielded cables is required to comply within the limits of Part15 of FCC rules and EN55022.
R5976486.00 BARCO 17072002 __________________________________________________________________________________ 3
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter

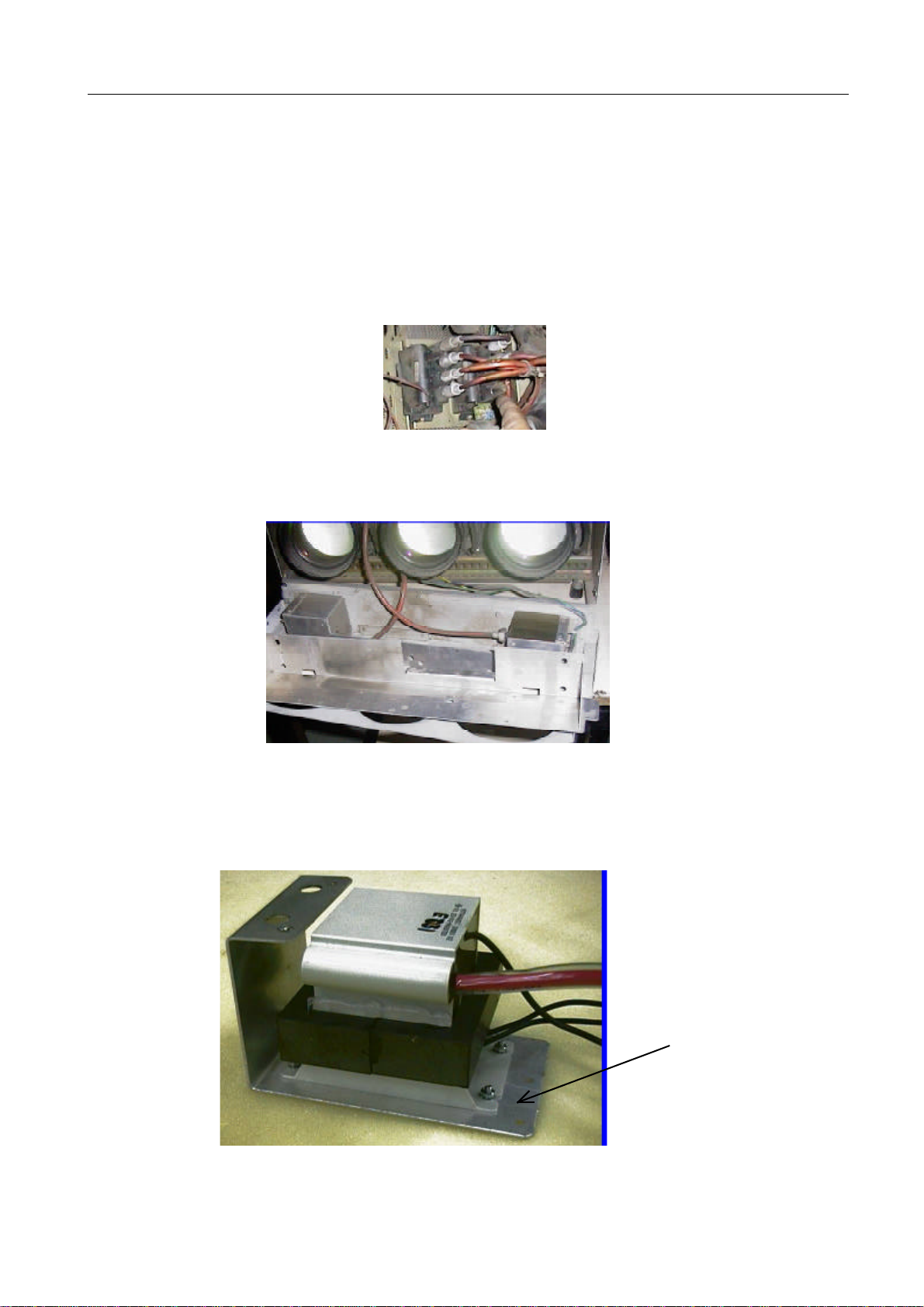

1. Remove R107596 (Splitter with PCB) and R763021 (Splitter without PCB) from BV508
assemply.
2. Remove EHT R774465 and EHT cover
3. Fix the single EHT with double diode (R7744865) on the EHT plate (R812671), with the
help of washers (R367502 qty.04) and nuts (R366102 qty.04).
R764081 - K
REPLACEMENTKIT2 EHT+SPLITTER INBV508
WITHSINGLEEHT+SPLITTER
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter
4 ___________________________________________________________________________________ R5976486.00 BARCO 17072002
4. Take the EHT cover (R813668) and Fix plastic rings (V313326) at the 2 positions as
shown :
Fix R3480264 cable guide to the EHT cover.
5. For the earthing cable, fix as shown to the EHT cover.
Screw R3631259 (qty.01)
Alternate Nuts R366103 (qty.02)
Alternate Washers R367503 (qty.03)
6. Fix the EHT plate & EHT to the EHT cover by 2 mounting
Screws (V3621227)
R5976486.00 BARCO 17072002 __________________________________________________________________________________ 5
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter
7. Guide EHT (Red) cable through circular wire.
8. Fix the complete assembly to lens frame (R815589) through 4 nuts (R366102) and wash-
ers (R367502)
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter
6 ___________________________________________________________________________________ R5976486.00 BARCO 17072002
9. Fix EHT Connector Z3440186 to the EHT
with cable Ties Z348019 qty.04 as shown :
10. Cover unused hole of splitter with RTV
11. Fix the adapter plate (R819945) to the Frame Assy. by 04 screws (V3621217)
R5976486.00 BARCO 17072002 __________________________________________________________________________________ 7
Replacement kit 2 EHT + Splitter in BV508 with single EHT + Splitter
12. Fix the splitter (R107595K) on Adapter using.
V3621229 - Qty. 02
V3621227 - Qty. 01
13. Fix EHT and Focus cable (Z3496636). Route IR cable through hole in the EHT cover.
14. Fasten Feedback connector + Focus connector cable ties qty.03
