Barco NGS-D320 Lite Manuel utilisateur

NGS-D320 Quick Start Guide

Your Barco NGS-D320 comes with:

1. Mains cable for Europe

2. Mains cable for USA

3. External power supply (12V/60W)

Notes:

1. Keep your original packaging. It is designed for this device and is the ideal protection

during transport.

2. If any of the accessories is missing or damaged, contact Barco Customer Support for an

immediate replacement.

3. Do not place any weight on top of the unit. It is not designed to support weight and

internal components can be damaged if objects are placed on top of it.

You can find the User Guide here:

NGS-D320 Lite:

NGS-D320 Pro:

OR:

In the NGS-D320 web interface, open Device Info > Help

www.barco.com/td/K9303079A

www.barco.com/td/K9303075A

NGS-D320

What’s in the box ?

K5903139-00

4 User Guide

More details: see NGS-D320 User Guide

1 Connecting your device

NGS-D320 Quick Start Guide

3 Setup wizard

2 Locate your device on the network

Install the NGS-D320 in the network. Connect the display(s), switch, PC, keyboard &

mouse, headphones, microphone, loudspeaker, etc... as applicable.

Detect the IP address of your NGS-D320. You can either detect this via

a. The OSD display output at device start-up

b. Or, the Barco Device Discovery Tool available at

Open your web browser to configure the NGS-D320.

Enter the IP address of your NGS-D320 into the address bar of your web browser

and trust the connection to access the web configuration.

a b

Select NGS-D320

Click the link to

access the NGS-D320

setup Wizard.

Choose the device

serial number from

the list or enter the

serial number in the

space below to quickly

find the device.

Setup steps:

1. Set the administrator password: At first usage, the web interface will ask to set

the admin password; this password is needed to change the configuration of the

device later on.

2. Set the logical name for the device: In Device info change the name of the device,

press Apply.

3. If not using DHCP, set the network settings: In Network Settings, fill in IP address,

Subnet mask and Gateway IP address. Press Apply.

4. For Encoders: In Encoder Settings, fill in multicast address and port for each of the

streams in the destination field and press Apply.

5. For Decoders: In Decoder Settings, click the Content Combo box and choose the

content you want to decode.

6. Discover: Press discover to show other devices on the network and configure

them.

Encoder installation

Decoder installation

Encoder and decoder installation (NGS-D320 Pro only)

http://www.barco.com/networktools

K5903139-00

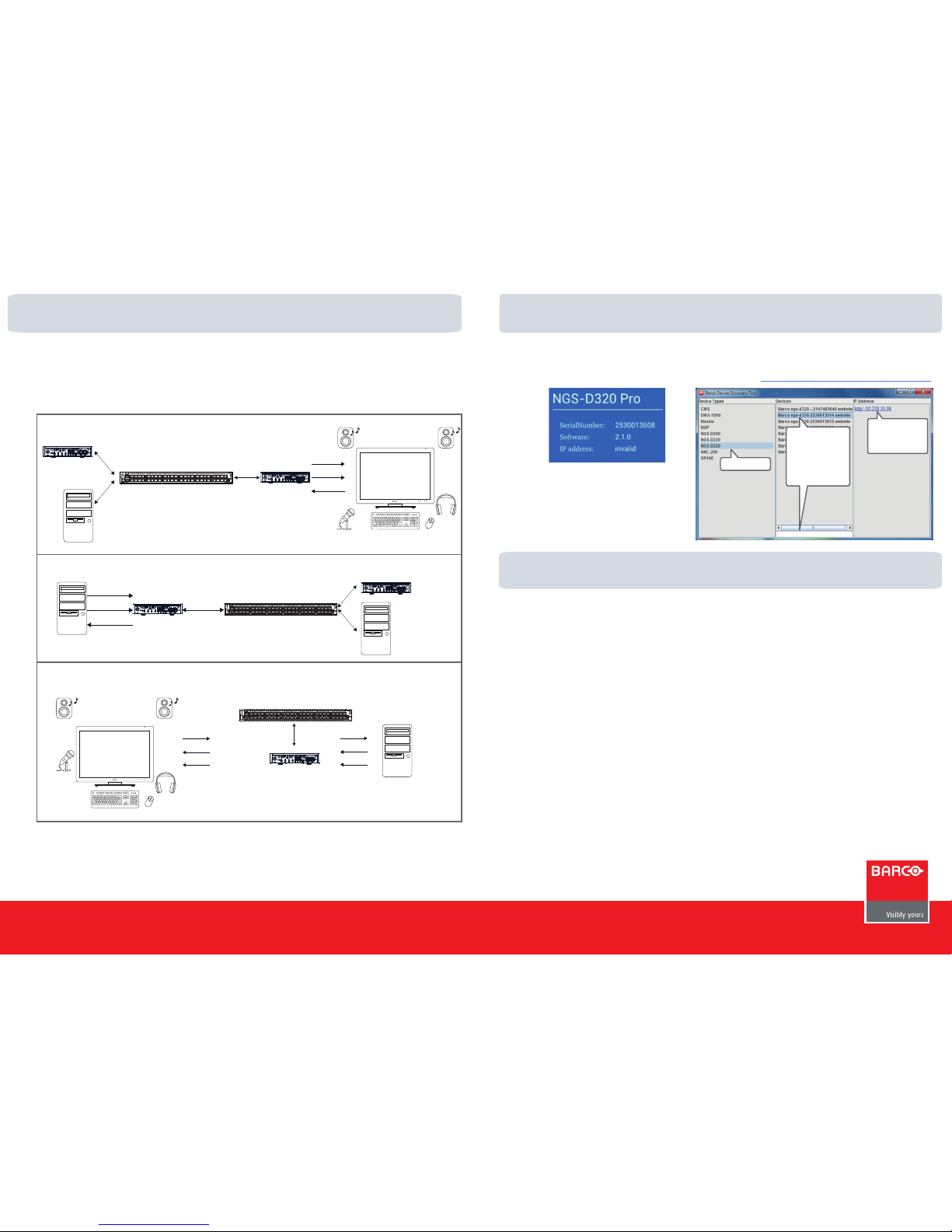

Installation diagram

You may need to press the

identification button you find

next to the network connector.
