Banner Registration Mark Sensor R58 Expert Manuel utilisateur

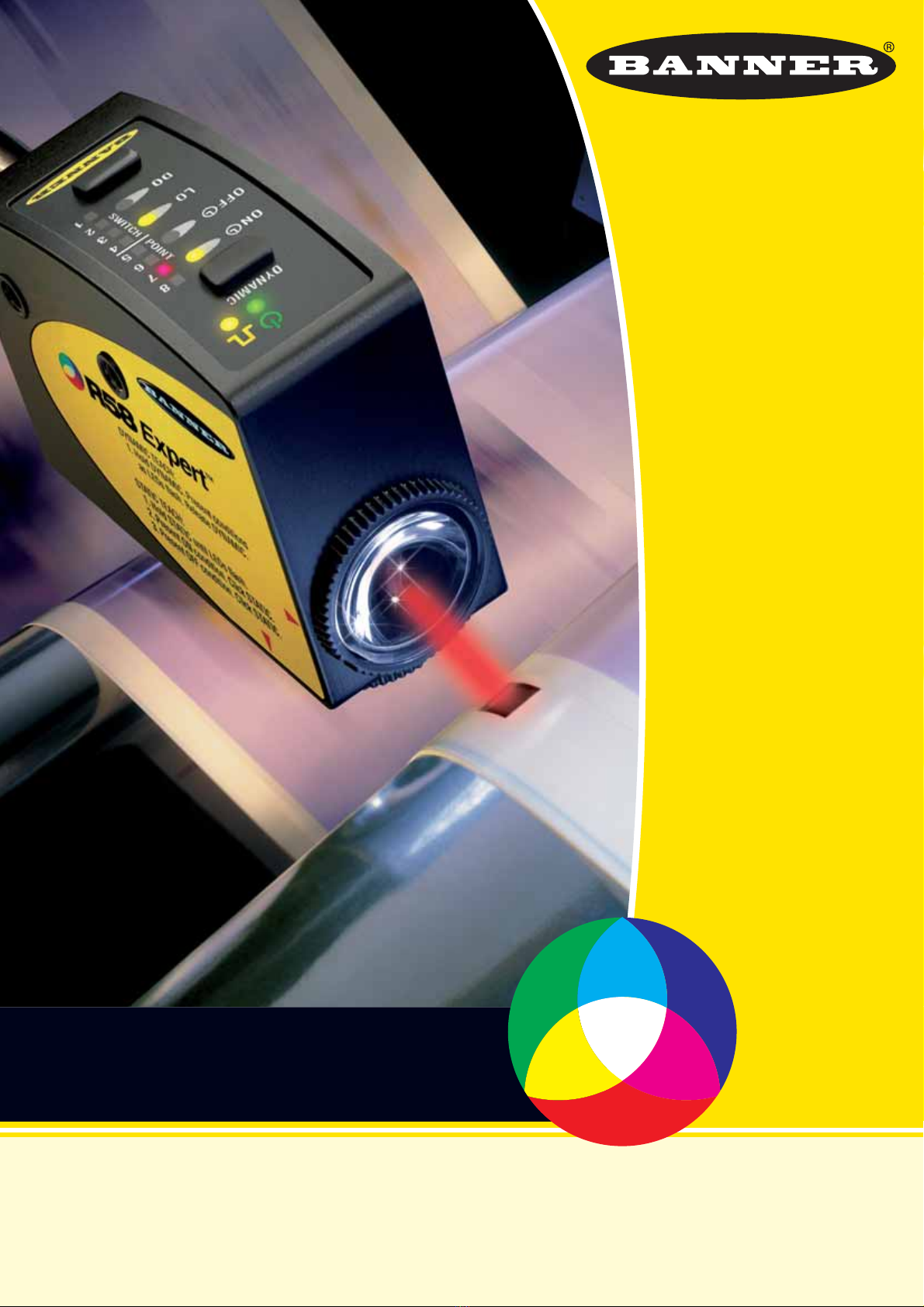

R58 Expert™

Registration Mark

Sensor

• Optimal contrast derived from a

combination of 3 LED colours and 16

levels of grey scale analysis

• Ultra-fast response time of 50 µs

(10 kHz switching frequency) allowing

precise detection and positioning

• Extreme performance stability

resulting from advanced micro-

processor algorithms and virtually no

temperature drift or warm up effect

• Configuration using TEACH button

to teach Static, Dynamic or Manual

Adjustment; optional via remote wire

• Indicator LEDs to show status, DO

or LO and provide 30 ms ON-delay

selection

• 8-Segment bar graph for setup

and signal strength visualisation and

control

• Robust metal housing with standard

positioned mounting holes and two

different output configurations

• Working distance of 10 mm ±3 mm

• Two lens positions (on-axis or right-

angle) and two spot positions (vertical

or horizontal) possible

Automatic detection of

any colour mark

Park Lane, Culliganlaan 2F

1831 Diegem • Belgium

Tel: +32 2 456 07 80

Fax: +32 2 456 07 89

E-mail: [email protected]

Web: www.bannereurope.com

BANNER ENGINEERING EUROPE

E-A079 – 02/2007

Authorised distributor:

SAFETYSENSORS VISION

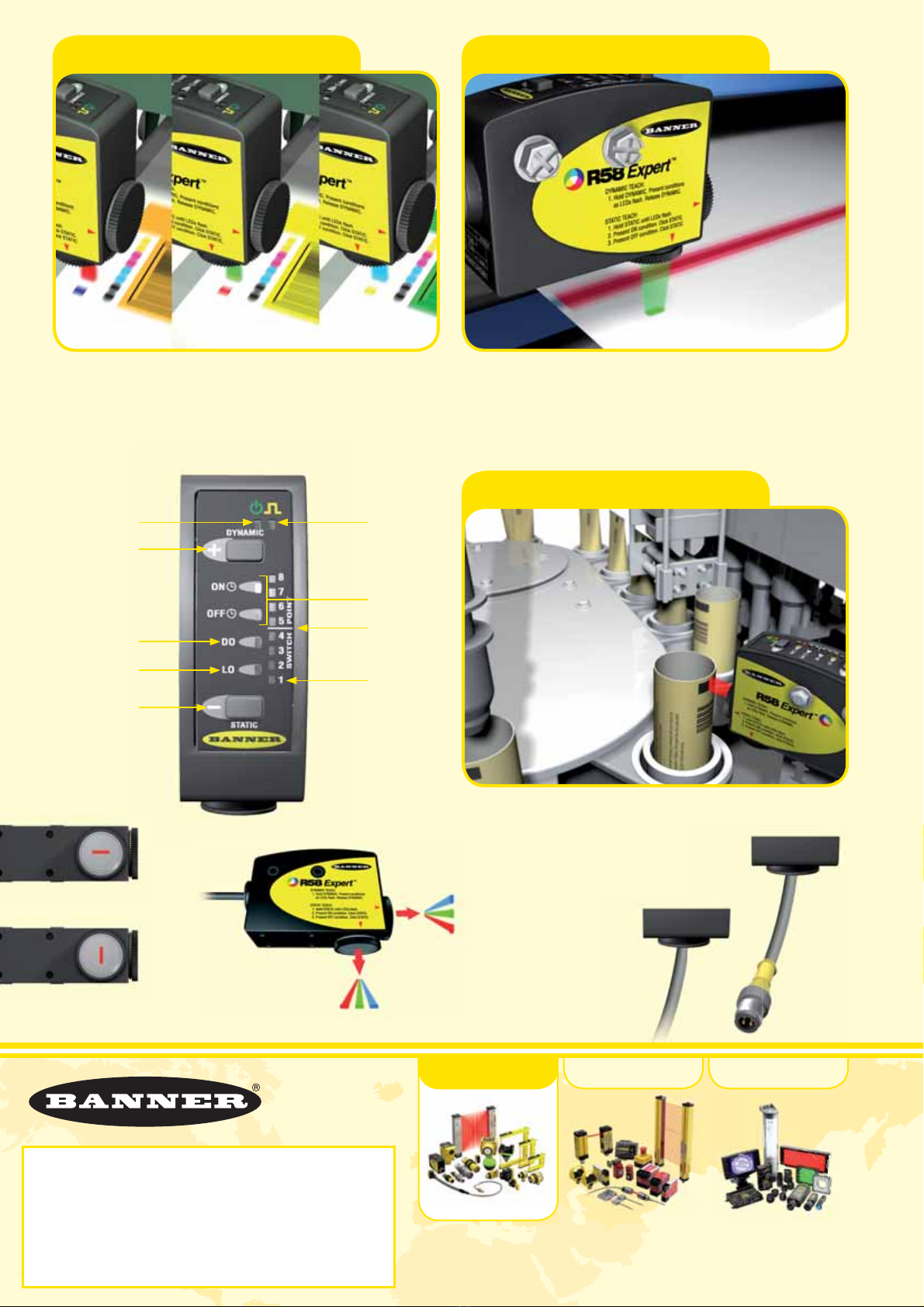

Objective: To detect registration marks on food packaging.

Description: The R58 Expert automatically chooses one

of three sensing LEDs – red, green or blue to maximise

contrast when detecting registration marks.

Registration Mark Detection

Objective: To identify splices on a roll of paper.

Description: The highly sensitive R58 Expert detects the

inconspicuous splice in a roll of paper, ensuring that the

printer skips over the splice.

Splice Detection in a Paper Roll

On-axis or right-angle

lens position possible

Power LED

Dynamic TEACH (+)

Push Button

Dark Operate LED

Light Operate LED

Static TEACH (-)

Push Button

Output LED

ON-Delay

Switch Point

8-Segment

Light Bar

Objective: To detect registration marks on tubes for

correct positioning before filling.

Tube Registration Mark Detection

Versions available with

M12x1 connector (5-pin)

or cable

Horizontal spot position

3 LED colours

available

Vertical spot position
