Introduction

Easy to install, up to 1 mile range. No wires, no

cables! Zlinx radio modems get your

data moving farther, easier, and at less cost than

running cable. Plug-n-play, Modbus compatible,

signal strength indicator, space saving DIN rail

mounting. Heavy-duty, wide temperature design

handles most industrial power configurations and

tough indoor/outdoor environments.

Check Package Contents

•Radio Modem

•Antenna

•Software CD

•Manual (On CD)

•Will require separate 18-30VAC or 10-48VDC Power

Supply

ZP24D-250RM-SR = 2.0W max

Model # Frequency Radio

Power RF Data Rate

ZP24D-250RM-SR 2.4GHz Configurable

Up To

100mW

250Kbps

2 Manual Documentation Number: ZP24D-250RM-SR-2508

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104– www.bb-elec.com

B&B Electronics – Westlink CommercialPark – Oranmore, Galway, Ireland –Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Hardware Installation

Dip switch Settings

Dipswitch OFF ON

1 4-wire 2-wire

2 4-wire 2-wire

3 No termination Termination

4 RS-422 RS-485

Mounting and Power

•Install on properly grounded DIN rail

oOperating Temperature is -40 to 85C

oOperating Humidity is 10-90% non-condensing

•Connect Power Supply

oPower supply is 10-48 VDC or 18-30 VAC

10-48 VDC

18-30 VAC

Manual Documentation Number: ZP24D-250RM-SR-2508 3

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104– www.bb-elec.com

B&B Electronics – Westlink CommercialPark – Oranmore, Galway, Ireland –Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Serial Connections

RS-232

RS-232 always present on DB9

RS-232

DB9F Pin Signal Name Direction

1 Data Carrier Detect Out

2 Receive Data Out

3 Transmit Data In

4 Data Terminal Ready In

5 Signal Ground ---

6 Data Set Ready Out

7 Request To Send In

8 Clear To Send Out

9 Not used ---

Note: The DTR input is

used to put the radio

into sleep mode. The

radio sleep option must

be enabled first using

the configuration

software. Once

enabled, lowering the

DTR signal will put the

radio in sleep mode

and raising the DTR

signal will put the radio

in idle mode, ready to

receive or transmit

data.

4 Manual Documentation Number: ZP24D-250RM-SR-2508

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104– www.bb-elec.com

B&B Electronics – Westlink CommercialPark – Oranmore, Galway, Ireland –Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

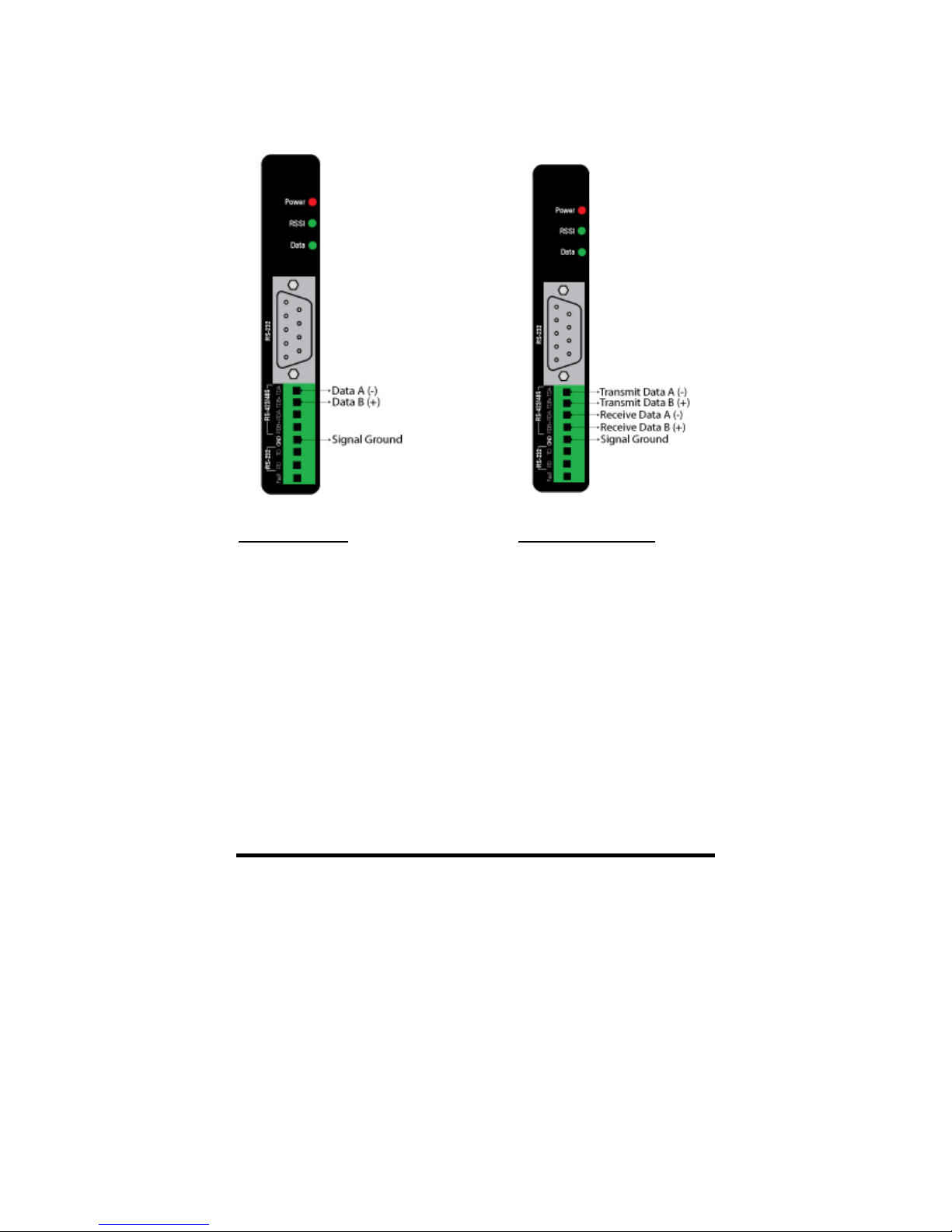

RS-422/485

RS-485 (2-Wire) RS-422/485 (4-Wire)

Manual Documentation Number: ZP24D-250RM-SR-2508 5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104– www.bb-elec.com

B&B Electronics – Westlink CommercialPark – Oranmore, Galway, Ireland –Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Wireless Link Failure Output

•Zlinx Radio modems offer a source

(PNP)transistor output when the wireless signal

strength drops below a critical level (link failure

or miss packets)

•40 mA max current

Note: In order for the RSSI LED to continuously indicate the signal strength, set the

RP command (RSSI PWM Timer) to FF.

6 Manual Documentation Number: ZP24D-250RM-SR-2508

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104– www.bb-elec.com

B&B Electronics – Westlink CommercialPark – Oranmore, Galway, Ireland –Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

LED Indicators

Note: In order for the RSSI LED to continuously indicate the signal strength, set the

“RP” command (RSSI PWM Timer) to FF.

Radio Frequency Information

•The ZP24D-250RM-SR has an indoor range up to

300 feet and an outdoor range up to one mile.

•These ranges are for line of sight installations using

the supplied antenna. Performance may vary

depending on your particular installation.

•The antenna connection on the radio modem is an

RPSMA female plug.

•B&B Electronics has a wide variety of accessory

antennas. Visit www.bb-elec.com for more

information.

Front Panel LED Status

Power Red = ON

OFF = No Power

RSSI (Signal Strength) Green = Strong

Yellow = OK

Red = Weak

OFF = No Signal

Wireless Data Green = Blink ON with

data

Model # Frequency Radio

Power RF Data

Rate

ZP24D-250RM-SR 2.4GHz Configurable

Up To

100mW

250Kbps
