bajaj electricals limited Page 2of 6
KNOW YOUR BAJAJ MAJESTY STORAGE WATER HEATER
How does it function?
1. Every Bajaj Majesty Storage Water heater
Unit is made of
a. an outer body, inner tank, heating
element
b. safety devices like Safety valve,
Thermostat, Thermal cut-out, Fusible plugs
and
c. Thermal insulation to retain heat.
2. When the tank is full (this becomes clear
when water starts flowing through the
outlet), close the outlet and switch ON the
power supply.
3. The heating element heats up the water. At
a pre-fixed temperature. The thermostat
automatically switches OFF the power supply
to the unit which is indicated by the
switching OFF of green lamp.
4. You can now take the water out through the
outlet. Because of the design of the heater &
displacement principle, fresh cold water
keeps entering through the inlet.
5. As temperature of water inside the tank
drops, the Thermostat again switches ON
the power supply to the heater. When this
happens, water starts heating up again. This
process continues till you switch OFF the
main power supply to the heater after
usage.
6. Since it takes a longer time for the water to heat up in storage water heater, it is advisable to switch ON the
power supply to the unit well in advance of the actual usage.
7. During normal functioning, red lamp does not glow. In case it glows, call the nearest Bajaj Sales and Service
Centre.

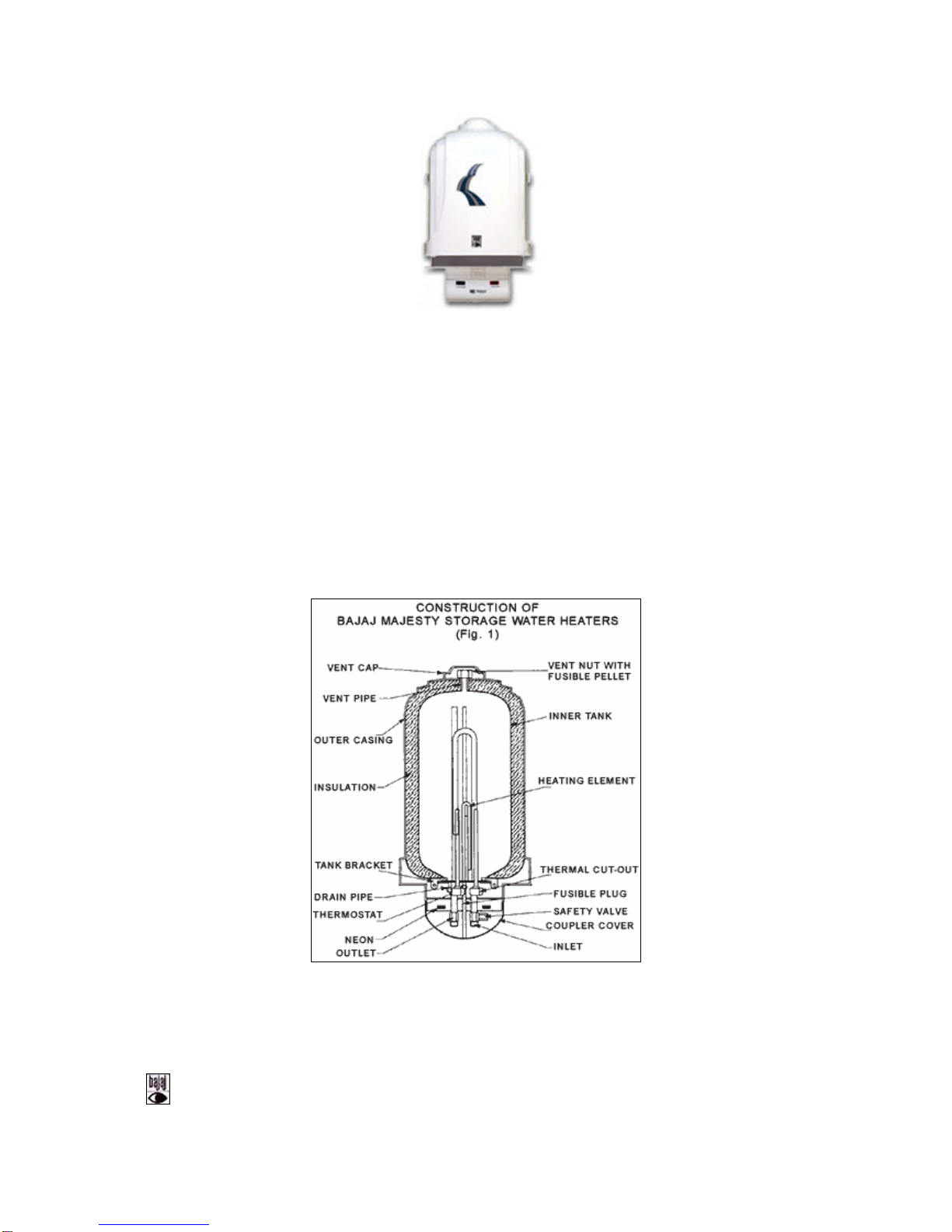

How is it made? (Fig.1)
OUTER CASING: This is made of superior quality, rust proof and shock proof ABS Engineering Plastic. A unique two
piece design enables easy servicing of the unit while it is in mounted position.
INNER TANK: This is made from 99.85% pure electrolytic extra thick copper, with reinforced welding at joints. It is
suitable for both hard and soft water. Tested as per BIS specifications it can withstand pressure up to 80 P.S.I. (6.00
Kg./cm2).
BAJAJ MAJESTY STORAGE WATER HEATER IS WITH INNER TANK MADE OF PURE COPPER. IT COMES WITH A 5 YEAR
GUARANTEE.
HEATING ELEMENT: A 53" long, dual, direct immersion type mineral filled element of 2 K.W rating is used which is
housed in a copper tube.
Highly efficient, it can be removed and serviced/replaced easily while the heater unit is in installed position. What's
more it is 'Bajaj' & 'ISI' marked, with a 2 year guarantee.
Neon Lamps: These are red and green neon-gas filled lamps which indicate the functioning of Thermostat and
thermal cut-out. They are mounted on the heater unit itself. The operation of these lamps is explained in the
'Operating Instructions'.
Insulation: Bajaj Majesty Water Heater is designed for high degree of efficiency. Premolded, Polyurethene foam
(PUF) is fitted between the outer casing and the inner tank for a high degree of insulation i.e. to ensure minimum heat
loss. Standing heat loss is 40% lower than norms specified by The Bureau of Indian Standards (BIS). This insulation
keeps the water hot for a longer period of time and saves electricity.
