ATOM OD06 - EG7010C-M11 USER Manual

1. Shipping List

Make sure you have got the following parts:

EG7010C

Quick Guide

PoE Adapter

Power Cord

Standard Mounting Kits

Optional Mounting Kits

2. Hardware Introduction

2.1 Indicators

Identity

Description

Color

Status

Description

MIU

Yellow

OFF

Reserved.

Steady On

Reserved.

Blanking

Reserved.

LTE

Network state

Indicator

Blue

OFF

LTE disconnected.

Steady On

LTE connected.

SIM

SIM card

status

indicator

Yellow

Steady On

The SIM card is normal.

Blanking

The SIM card is abnormal or not

inserted.

LAN

100Mbps Eth

Indication

Yellow

OFF

Ethernet connection does not

established.

Steady On

Ethernet connection is normal.

Blanking

Data is transmitting.

PWR

Power

Indicator

Yellow

OFF

No Power Supply

Steady On

Power On

LTE

Signal

5 LTEs,

Indicate

Green

All OFF

Signal is too weak to attach.

Steady On

According to signal strength in turn light

Identity

Description

Color

Status

Description

connection

state and

signal

strength

Blanking

Scanning the LTE network

The CPE is authenticating.

CPE is getting IP address from the LTE

network.

2.2 Interface and Buttons

Interface & Button

Description

PoE

Connected to the PoE Power Adapter

Support SD card

SIM

Support 1.8V/3.0V USIM 2FF

RESET

Long press over 10 seconds to restore the factory settings

GND

Connected to Earth by conductor

3. Installation Guide

3.1 Support Materials

Before installation, prepare the following support materials accordingly, as given below:

Item

Description

Ethernet cable

Outdoor Shield CAT5E

Shorter than 330 feet

Ground wire

16mm² yellow-green wire

3.2 Install USIM Card and Cables

(1) Screw the screw on the waterproof

cover, and open the waterproof cover

(2) Insert the USIM card to the USIM

slot. Note following the directions

(3) Connect the Ethernet cable to the PoE

port

(4) connect the ground cable to the

ground screw

(5) Close the waterproof cover and fasten the screw on the cover.

(6) Connected Ethernet cable to the power adapter.

Pay attention to the power adapter interface directions.

(7) Power on, the LED indicator will light up.

3.3 Install on Wall

1. Slipping the bracket from the CPE.

2. Fit the CPE on the wall, and mark the drilling locations.

3. Drill four 10mm diameter and 70mm depth holes in the wall by following the

marked locations.

4. Check the up/down direction of the bracket, and then fix it on wall using M5

tapping screws.

5. Install the CPE to the bracket and fasten the screw.

3.4 Install on Pole

1. Round an anti-slip rubber on the pole.

2. Fix the bracket using the hoop.

3. Install the CPE to the bracket and fasten the screw.

3.5 Grounding

The EG7010C-M11 must be grounding, please contact professional person to operation.

Using grounding cable, connect the grounding cable to the ground row

4. Configuration Guide

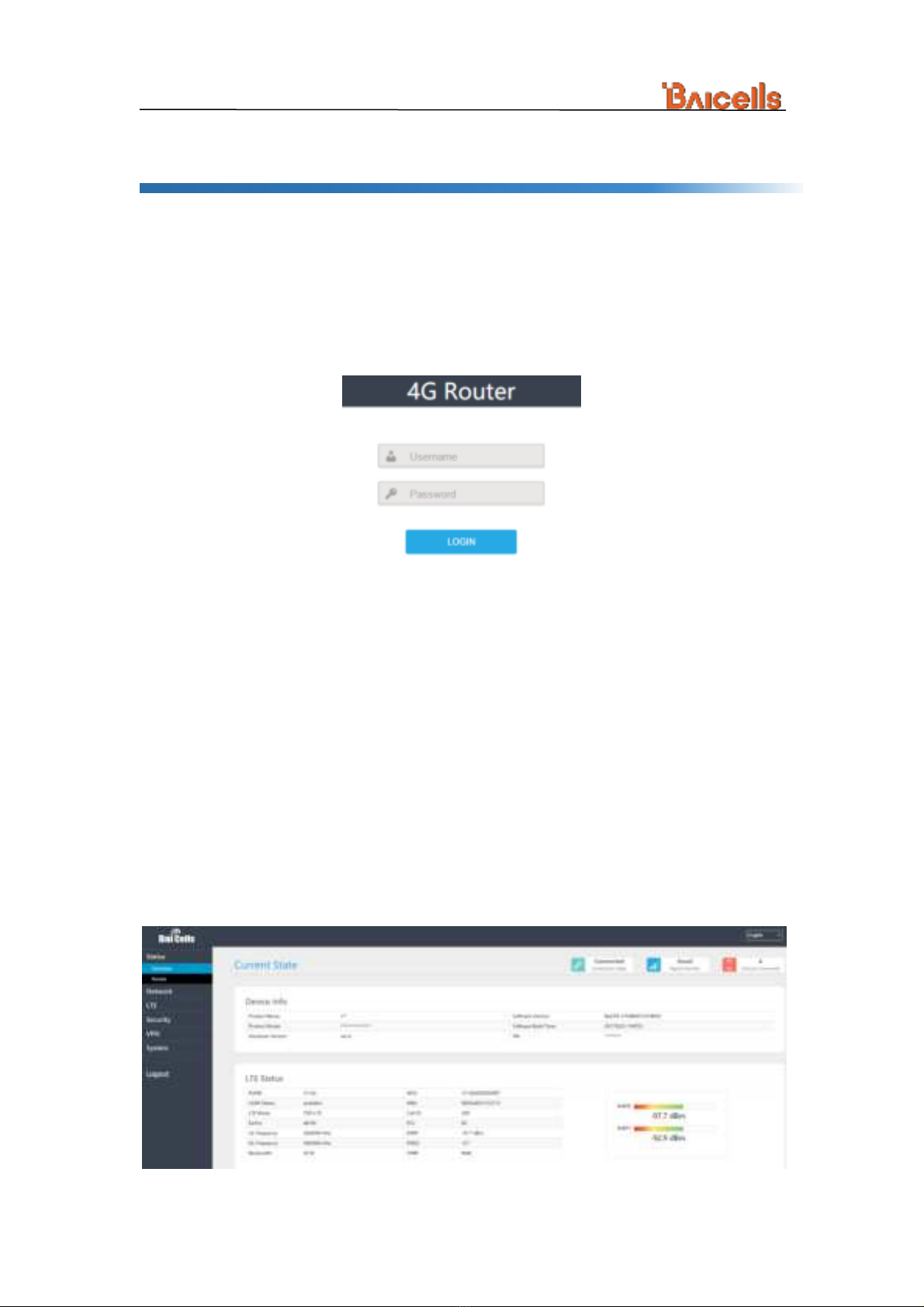

4.1 4.1 Login

The CPE manages, configures, and maintains the device by web management page. The

steps to log in are as follows:

1. In the address column of browser, type in http://192.168.150.1, then press “Enter”:

2. Enter the user name and password, click "LOGIN". After password authentication,

you can log on to the web management page.

The default user name and password is admin.

For security, it is recommended that you open the firewall, and keep your login password,

WLAN FTP passwords and password well.

4.2 View Status

In the overview area, you can view the device information and LTE status,such as Product

name, Software version, PLMN, IMSI, RSRP, RSRQ, CINR, SINR, Tx Power, Cell ID, PCI,

and so on, as shown below:

SAS Settings, as shown below:

5.Specifications

Basic Specifications

Item

Description

UE-Category

3GPP R10, CAT 6/7

USIM Slot

1.8V/3.0V USIM 2FF

Ethernet Port

1 RJ45, LAN, 10/100/1000 auto-sensing, auto-MDX,

PoE

Power Supply

Input: Universal range 100V~240V AC

Output: PoE (24V DC, 0.5A)

Reset Button

Tactile button. Long press over 10s to restore the

factory settings

LED Indicators

MIU/LTE/SIM/LAN/PWR/LTE Signal

Dimensions

241mm (H) x 154mm (W) x 50mm (D)

Weight

About 900 g

LTE Specifications

Item

Description

LTE Mode

LTE-TDD

LTE Bands

Band 48

TXRX

2T4R

Channel Bandwidth

5MHz, 10MHz, 15MHz, 20MHz
