EN OPERATOR MANUALSTRING TRIMMER
ES MANUAL DEL OPERADORCORTABORDES
1 Description...................................4
1.1 Purpose...................................................... 4
1.2 Overview.................................................... 4
2 Important safety instructions.....4
3 Symbols on the product............. 5
4 Risk levels....................................6
5 Service..........................................6
6 Environmentally safe battery
disposal........................................6
7 Proposition 65............................. 7
8 Installation................................... 7
8.1 Unpack the machine...................................7
8.2 Attach the guard......................................... 7
8.3 Assemble the shaft.....................................7
8.4 Attach the auxiliary handle......................... 8
8.5 Install the battery pack............................... 8
8.6 Remove the battery pack........................... 8
9 Operation..................................... 9
9.1 On/off button...............................................9
9.2 Speed indication.........................................9
9.3 Start the machine....................................... 9
9.4 Stop the machine....................................... 9
9.5 Operation tips............................................. 9
9.6 Adjust the length of the cutting line.......... 10
9.7 Cutting tips............................................... 10
9.8 Line cut-off blade......................................10
9.9 Adjust the cutting diameter.......................10
10 Maintenance...............................11
10.1 General information.................................. 11
10.2 Clean the machine....................................11
10.3 Remove the remaining line ......................11
10.4 Install the cutting line................................12
10.5 Remove the trimmer head........................12
10.6 Assemble the trimmer head..................... 12
11 Transportation and storage......12
11.1 Store the machine.................................... 13
12 Troubleshooting........................ 13
13 Technical data............................14
14 Limited warranty........................14
15 Exploded view........................... 15
3
English EN
1 DESCRIPTION
1.1 PURPOSE
This machine is used to cut grass, light weeds, and
other similar vegetation at or around ground level. The
cutting plane must be approximately parallel to the
ground surface. You cannot use the machine to cut or
chop hedges, shrubs, bushes, flowers and compost.
1.2 OVERVIEW
1
4
2
3
5
7
6
8
9
11
10
12
1Battery release button
2Rear handle
3On/off button
4Lock-out buton / speed button
5Switch trigger
6Auxiliary handle
7Upper shaft
8Coupler
9Lower shaft
10 Guard
11 Cut-off blade
12 Trimmer head
2 IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING (THIS
POWER TOOL)
WARNING
Read and understand all instructions before using
this product. Failure to follow all instructions listed
below may result in electric shock, fire, and/or serious
personal injury.
• Use only identical manufacturer’s replacement parts
and accessories. Use of any other parts may create
a hazard or cause product damage.
• Always wear safety glasses with side shields
marked to comply with ANSI Z87.1. Everyday
glasses have only impact resistant lenses. They are
NOT safety glasses. Following this rule will reduce
the risk of eye injury. Use face mask if operating in
dusty workspaces.
• Avoid Dangerous Environment – Do not expose
power tools to damp or wet conditions. Water
entering a power tool will increase the risk of electric
shock.
• Do not use in rain.
• Keep all bystanders, children, and pets at least 50 ft.
away.
• Dress Properly – Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
• Use right Appliance. Do not use appliance for any
job except that for which it is intended.
• Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to battery
pack, picking up or carrying the appliance. Carrying
the appliance with your finger on the switch or
energizing appliance that have the switch on invites
accidents.
• Do not Force Appliance – It will do the job better and
with less likelihood of a risk of injury at the rate for
which it was designed.
• Do nott overreach – Keep proper footing and
balance at all times.
• Stay alert – Watch what you are doing. Use
common sense. Do not operate this unit when you
are tired, ill or under the influence of alcohol, drugs
or medication.
• Always store idle power tools indoors – When not
in use, power tools should be stored indoors in a
dry and high or locked-up place, out of reach of
children.
• The machine is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
machine by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the machine.
4
English
EN
• Maintain Appliance With Care – Replace string head
if cracked, chipped, or damaged in any way. Be sure
the string head is properly installed and securely
fastened. Keep cutting edge sharp and clean for
best performance and to reduce the risk of injury.
Follow instructions for lubricating and changing
accessories. Inspect appliance cord periodically,
and if damaged, have it repaired by an authorized
service facility. Inspect extension cords periodically
and replace if damaged. Keep handles dry, clean,
and free from oil and grease. Failure to do so can
cause serious injury.
• Check damaged parts before using the appliance,
a guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check
for alignment of moving parts, binding of moving
parts, breakage of parts, damaged mountings, and
any other condition that may affect its operation.
A guard or other part that is damaged should
be properly repaired or replaced by an authorized
service center unless indicated elsewhere in this
manual.
• Remove or disconnect battery before servicing,
cleaning or removing material from the gardening
appliance.
• Do not modify or attempt to repair the appliance or
the battery pack (as applicable) except as indicated
in the instructions for use and care. Use appliances
only with specifically designated battery packs. Use
of any other battery packs may create a risk of injury
and fire. Use only with Greenworks BAT80V20A
battery or other BAT 80V series.
• Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack. Use only with
Greenworks CHA180VA2 charger or other CHA 80V
series.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
• Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to
fire or excessive temperature. Exposure to fire or
temperature above 265 °F (130 °C) may cause an
explosion.
• Do not dispose of the batteries in a fire. The cells
may explode. Check with local codes for possible
special disposal instructions.
• Do not open or mutilate the batteries. Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to
short the battery with conducting materials such as
rings, bracelets, and keys. The battery or conductor
may overheat and cause burns.
• Follow all charging instructions and do not charge
the battery pack or appliance outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
• Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
• Keep guards in place and in working order.
• Keep hands and feet away from cutting area.
• Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such preventive
safety measures reduce the risk of starting the
appliance accidentally.
• Use only with the spiral nylon cutting line of
0.095" (2.4 mm) diameter. Do not use heavier lines
than recommended by the manufacturer and line
materials of other types – for example, metal wire,
rope, and the like.
SAVE THESE INSTRUCTIONS
3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this
tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate
the tool better and safer.

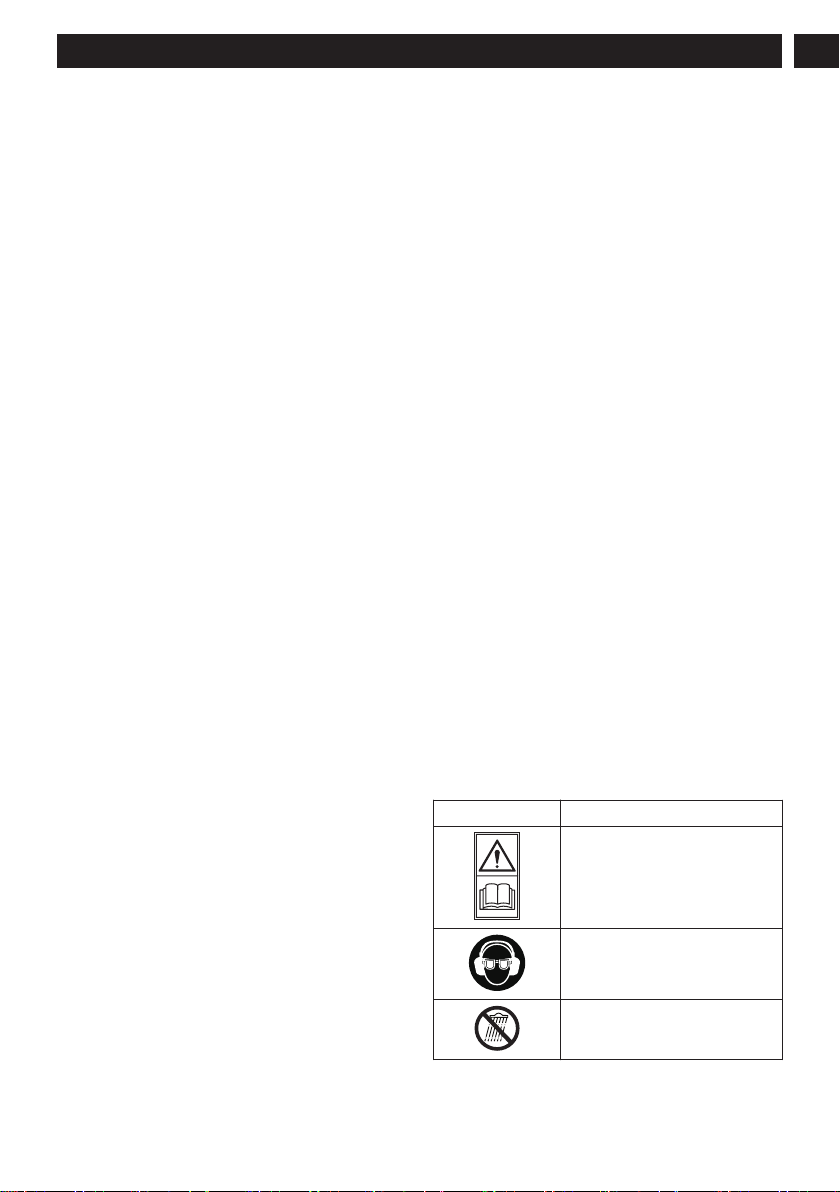

Symbol Explanation
Read and understand all instruc-
tions before operating the prod-
uct, follow all warnings and safety
instructions.
Wear eyes protection and ears
protection.
Do not expose to rain or in damp
condition.
5
English EN
Symbol Explanation
Beware of thrown or flying ob-
jects. Keep all bystanders, espe-
cially children and pets, at a safe
distance at least 50-ft away from
the operating area.
Keep bystanders a safe distance
away from the product.
The guaranteed sound volume
level is 96 dB.
4 RISK LEVELS
The following signal words and meanings are intended
to explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently
hazardous situation, which,
if not avoided, will result in
death or serious injury.
WARNING Indicates a potentially haz-
ardous situation, which, if
not avoided, could result in
death or serious injury.
CAUTION Indicates a potentially haz-
ardous situation, which, if
not avoided, may result in
minor or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation
that may result in property
damage.
5 SERVICE
Servicing requires extreme care and knowledge and
must be performed only by a qualified service
technician. For service we suggest you return the
machine to your nearest AUTHORIZED SERVICE
CENTER for repair. Use only identical manufacturer’s
replacement parts and accessories.
6 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the
batteries used in this machine: Lithium-ion, a toxic
material.
WARNING
Discard all toxic materials in a specified manner to
prevent contamination of the environment. Before
discarding damaged or worn out Lithium-ion battery,
contact your local waste disposal agency, or the local
Environmental Protection Agency for information and
specific instructions. Take the batteries to a local
recycling and/or disposal center, certified for Lithium-
ion disposal.
WARNING
If the battery pack cracks or breaks, with or without
leaks, do not recharge it and do not use. Discard it
and replace with a new battery pack. DO NOT TRY
TO REPAIR IT! To prevent injury and risk of fire,
explosion, or electric shock, and to avoid damage to
the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the
battery pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular
household trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of
any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal
center.
6
English
EN
7 PROPOSITION 65
WARNING
This product contains a chemical known to the
state of California to cause cancer, birth defects
or other reproductive harm. Some dust created by
power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated
lumber.
Your risk of exposure to these chemicals varies
depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a
well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially
designed to filter out microscopic particles.
8 INSTALLATION
8.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine
before use.
WARNING
• If parts of the machine are damaged, do not use
the machine.
• If parts are missing, do not operate the machine.
• If parts are damaged or missing, contact the
service center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in compliance
with local regulations.
WARNING
For your personal safety, do not insert battery before
the tool is assembled completely.
8.2 ATTACH THE GUARD
WARNING
Do not touch the cut-off blade.
1. Remove the screws from the trimmer head with a
Phillips head screwdriver (not included).
2. Put the guard onto the trimmer head.
3. Align the screw holes on the guard with the screw
holes on the trimmer head.
4. Tighten the screws.
8.3 ASSEMBLE THE SHAFT
1. Loosen the knob (1) on the coupler (2).
2. Push in the release button (4) on the lower shaft.
1
2
3
4
3. Align the release button with the positioning hole (3)
and move the two shafts.
4. Turn the lower shaft until the button locks into the
positioning hole.
5. Tighten the knob.
7
English EN
1
8.4 ATTACH THE AUXILIARY HANDLE
1. Remove the knob from the handle.
2. Attach the auxiliary handle and lower clamp (1) on
the shaft.
3. Set the auxiliary handle in the comfortable position.
4. Put the bolt through the holes...
5. Tighten the auxiliary handle with the knob (2).
8.5 INSTALL THE BATTERY PACK
WARNING
• If the battery pack or charger is damaged, replace
the battery pack or the charger.
• Stop the machine and wait until the motor stops
before you install or remove the battery pack.
• Read and understand the instructions in the
battery and charger manual.
1. Align the ribs on the battery pack with the grooves in
the battery compartment.
2. Push the battery pack into the battery compartment
until the battery pack locks into place.
3. When you hear a click, the battery pack is installed.
8.6 REMOVE THE BATTERY PACK
1. Push and hold the battery release button (1).
2. Remove the battery pack from the machine.
1
8
English
EN
9 OPERATION
IMPORTANT
Before you operate the machine, read and understand
the safety regulations and the operation instructions.
WARNING
Be careful when you operate the machine.
9.1 ON/OFF BUTTON
Push this button to turn power on and off for the
machine.
Green light on: the electrical circuit of the machine is
on (ON). The machine prepares to operate.
NOTE
If you do not use the machine for more than 30 s, the
machine stops.
Lights off: the electrical circuit is off (OFF).
IMPORTANT
Do not keep your finger on the button when you move
the machine to prevent accidental start.
9.2 SPEED INDICATION
1. The rabbit light is on when you adjust to high speed.
2. The turtle light is on when you adjust to low speed.
9.3 START THE MACHINE
1. Push the on/off button (1).
2. Pull the lock-out button (2) rearward.
3. Pull the trigger (3).
4. Push the speed button (2) forward to increase
cutting means speed according to grass conditions.
2
1
3
9.4 STOP THE MACHINE
1. Release the trigger to stop the machine.
9.5 OPERATION TIPS
WARNING
Keep clearance between the body and the machine.
WARNING
Do not operate the machine without guard in place.
Do these tips when you use the machine
• Keep the machine connected to the correctly worn
harness.
• Keep a firm hold with both hands on the machine
while you operate the machine.
• Cut tall grass from the top down.
If grass winds around the trimmer head:
• Remove the battery pack.
• Remove the grass.
9
English EN
9.6 ADJUST THE LENGTH OF THE
CUTTING LINE
While you operate the machine, the cutting line gets
worn and shorter. You can adjust the length of the
cutting line.
1. Hit the trimmer head against the ground while you
operate the machine.
2. Line is automatically released and the cut-off blade
cuts the excess length.
9.7 CUTTING TIPS
• Tilt the machine toward the area to be cut. Use the
tip of the cutting line to cut grass.
• Move the machine from right to left to prevent
thrown debris toward the operator.
• Do not cut in the dangerous area.
• Do not force the trimmer head into uncut grass.
• Wire and picket fences cause cutting line wear and
breakage. Stone and brick walls, curbs, and wood
can wear the cutting line quickly.
Direction
of rotation
Best cutting area
Dangerous
cutting area
9.8 LINE CUT-OFF BLADE
This trimmer is equipped with a line cut-off blade
on the guard. The line cut off blade continuously
trims the line to ensure a consistent and efficient cut
diameter. Advance line whenever you hear the engine
running faster than normal, or when trimming efficiency
diminishes. This will maintain best performance and
keep line long enough to advance properly.
9.9 ADJUST THE CUTTING DIAMETER
NOTE
The machine is set at a 16" (406 mm) cutting
diameter. You can adjust to a 14" (356mm) cutting
diameter.
Set the cutting diameter to for greater runtime and for
a larger cutting area.
1. Remove the battery pack.
2. Remove the blade screws from the cut-off blade.
3. Turn the cut-off blade 180°.
4. Tighten the blade screws.
10
English
EN
Ce manuel convient aux modèles suivants
3
Table des matières
Langues :
