Backyard Creations SRFP41301 Manuel utilisateur

Questions, problems, missing parts? Before returning to your retailer, call

our customer service department at 1-866-814-0585, 8 a.m. - 8 p.m., EST

Monday - Friday. Or e-mail: [email protected].

259-5069

47'' Stone Fireplace

Model# SRFP41301

Instructions Manual

Table of Contents

Warnings............................................................................................ 2

Table of Contents................................................................................. 1

Tools Required .................................................................................. 4

Parts List ............................................................................................5

Hardware............................................................................................ 6

Assembly Instructions......................................................................... 7

Care and Maintenance......................................................................14

Warranty Information........................................................................ 15

REMINDER

BEFORE ASSEMBLY

Verify that all parts are included with your fireplace BEFORE you begin assembly by checking the Parts and

Hardware List. For your convenience, some parts may be pre-assembled or attached to fireplace components.

If all parts are not included, do not attempt to assemble fireplace. Call the toll free number on the

cover page for replacement parts.

Leave hardware installed HALF-TIGHTENED on the fireplace during assembly until unit is completely

assembled, then finish tightening all hardware installed.

YOUR OWNER’S MANUAL

Keep and store this Owner’s Manual for future reference – it contains important instructions and procedures

for safety and maintenance.

Warnings

WARNING

For Outdoor Use Only

(outside any enclosure)

WARNING

1. Improper Installation, adjustment, alteration, service, or maintenance may result

in property damage, injury or death.

2. Read the Installation, operation, maintenance instructions thoroughly before

installing or servicing this equipment.

3. Failure to follow these instructions could result in a fire or explosion, which

could cause property damage, personal injury or death.

WARNING

FOR YOUR SAFETY

2. This item is for outdoor use only, and shall NOT be used in a building, garage or any other

enclosed area.

3. DO NOT use this fireplace for indoor heating. TOXIC carbon monoxide fumes can accumulate

and cause asphyxiation or death.

4. This fireplace is NOT for commercial use.

5. This fireplace is NOT to be operated by children.

.selcihevlanoitaercerrostaobnoronidesuebotTONsifireplacesihT.6

7. Always use in accordance with all applicable local, state and national codes. Contact your

local fire department for details on outdoor burning.

8. When using this fireplace, exercise the same precautions you would with any open fire.

9. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s

ability to properly assemble or safely operate this fireplace.

10. This fireplace is for use with dry, seasoned hardwood. It will burn hotter, more completely

and create less smoke.

11. DO NOT burn charcoal briquette, lump charcoal, manufactured logs, driftwood, trash,

leaves, papers, cardboard, plywood, painted or stained or pressure treated wood.

Avoid using softwoods such as pine or cedar that can throw sparks.

12. DO NOT alter this fireplace in any manner.

13. DO NOT use this fireplace until it is COMPLETELY assembled and all parts are securely

fastened and tightened.

Save these instructions for future reference. If you are assembling this fireplace for someone else, give this

manual to him or her to save for future reference.

1. DO NOT use this fireplace without reading this entire document and all WARNINGS, cautions

and instructions.

Warnings

14. DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or

any other appliance.

15. DO NOT store or use an LP gas cylinder within10 feet (3.05m) of this fireplace while it is in

operation.

16. DO NOT use this fireplace near automobiles,trucks, vans or recreational vehicles.

17. DO NOT use in an explosive atmosphere. Keep outdoor area clean and free from

combustible materials, gasoline and other flammable liquids.

18. DO NOT use this fireplace under an overhead or near any unprotected combustible

constructions. Avoid using near or under overhanging trees and shrubs.

19. Always use this fireplace on a hard level non-combustible surface such as concrete, rock or

stone. An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT use

on wooden decks.

20. Always empty this fireplace before each use.

21. DO NOT wear flammable or loose clothing when operating this fireplace.

22. DO NOT use in windy conditions.

.serifthgilerrotratsotdiulfrethgil,leufleseid,enesorek,enilosagesuTONOD.32

24. Keep all electrical cords away from a hot fireplace.

25. All surfaces of this fireplace are hot when in operation. To avoid burns, DO NOT touch fireplace

,sevolg,sredlohtop(raegevitcetorpgniraewerauoysselnudeloocyletelpmocsahtilitnu

BBQ mittens, hot pads etc). Never touch ashes or coals to see if they are hot.

26. DO NOT leave a lit fireplace unattended, especially around children and pets.

27. DO NOT attempt to move or store this fireplace until ashes and coals are completely

extinguished.

28. DO NOT remove ashes or coals until they are completely extinguished.

29. Use heat-resistant gloves or hot pads when contacting handles.

30. Use long, sturdy fireplace tools when adding or moving logs.

31. DO NOT place wood directly into bottom of the fireplace. Place wood only on the charcoal grid.

32. DO NOT overload the fireplace. DO NOT add additional firewood until the fire burns down.

33. DO NOT lean over this fireplace when lighting or when in use.

34. DO NOT place hot pit tools onto combustible surface such as grass, wooden deck or furniture.

35. Avoid breathing smoke from the fire and avoid getting it into your eyes.

36. This fireplace should be thoroughly inspected and cleaned on a regular basis.

37. After a period of storage and/or non-use, check for signs of damage and creosote build-up.

DO NOT operate until necessary repairs and/or clean up is executed.

38. Death, serious injury or damage to property may occur if the above is not followed exactly.

Tools Required

PictureDescription (Not included)

Phillips Head Screwdriver

Adjustable open end wrench

Parts List

Part # Quantity

Description Picture

Chimney cap

Roof

Panel 1

Connecting pole

Door spindle

Panel 2

Right door

Door holder

Door knob

Hook

Charcoal grid

Fire bowl

Base

Left door

Panel 3

Panel 4

Hardware

Picture Quantity

DescriptionHardware #

M5 x 35mm Bolt

M5 x 16mm Bolt

M5 x 12mm Bolt

ST5.5 x 13mm Bolt

1EE D6 Washer

4FF D5 Washer

12GG D5 Spring Washer

12HH M5 Nut

3II D6 Spring Washer

2JJ M6 Nut

NOTE: Before beginning assembly of product, make sure all parts are present. Compare parts

with package contents list and hardware contents above. If any part is missing or damaged,

do not attempt to assemble the product. Contact customer service for replacement parts.

Assembly Instructions

NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact

customer service.

Step 1

Step 2

Attach Door knob (J) and Door

holder (I) to Right door (H) with

(2) D6 washer (EE), (2) D6 spring

washers (II), and M6 nut (JJ).

See Figure 2

Attach Door knob (J) to Left door (O)

with D6 spring washer (II) and M6

nut (JJ).

See Figure 1

Hardware Used

II D6 Spring Washer x 1

JJ M6 Nut x 1

Hardware Used

II D6 Spring Washer x 2

x 1

JJ M6 Nut

EE D6 Washer

x 1

Assembly Instructions

Hardware Used

M5 x 12 Bolt x 3

ST5.5 x 13 Bolt x 10

D5 Spring Washer x 3

M5 Nut x 3

Step 3 3

Attach Panel 1 (C) and Panel 2 (G) to

Connecting pole (D) with

(10) ST5.5 x 13mm bolts (DD).

(3) M5 x 12mm bolts (CC), (3) D5 spring

washers (GG) and (3) M5 nuts (HH).

See Figure 3

NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact

customer service.

HH GG

Assembly Instructions

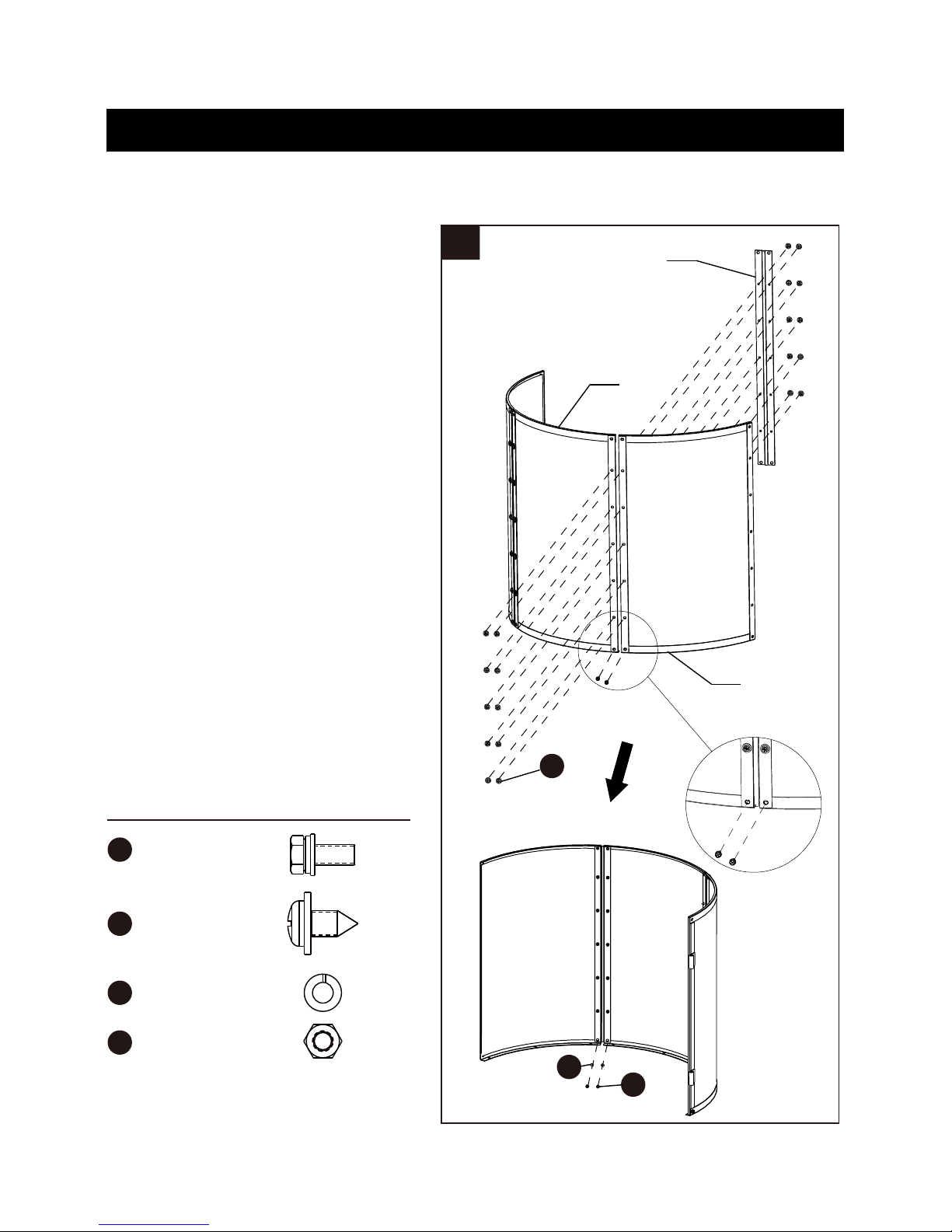

Step 4 4

Attach Panel 4 (Q) and Panel1 (C) to

Connecting pole (D) with

(10) ST5.5 x 13mm bolts (DD).

(2) M5 x 12mm bolts (CC), (2) D5 spring

washers (GG) and (2) M5 nuts (HH).

See Figure 4

Hardware Used

M5 x 12 Bolt x 2

ST5.5 x 13 Bolt x 10

D5 Spring Washer x 2

M5 Nut x 2

NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact

customer service.
