Body Shell Assembly

1:20.3 Large Scale

Long Caboose

G887X-IS001

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

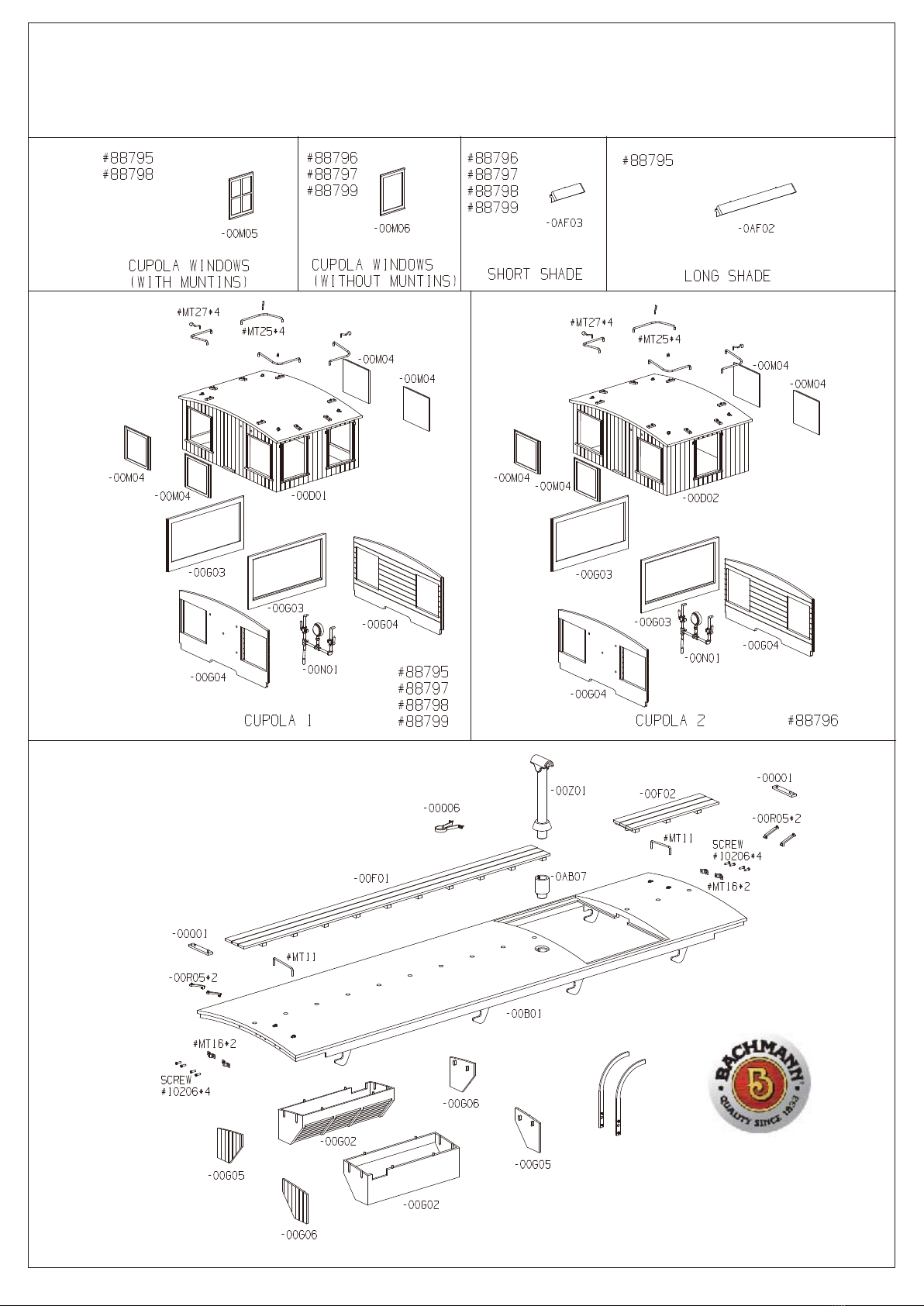

Roof & Cupola Assemblies

1:20.3 Large Scale

Long Caboose

G887X-IS002

Chassis Assembly

1:20.3 Large Scale

Long Caboose

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

G887X-IS001

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

Wiring Assembly

1:20.3 Large Scale

Long Caboose

G887X-IS002

3mm 3mm

3mm

WHITE

GRAY

BROWN

GREEN

BROWN

PURPLE

YELLOW

ORANGE

BLACK

RED

GREEN

BLUE

MARKED LIGHT 2

MARKED LIGHT 1

Pull up the cushion cover

Remove the dummy plug from

the socket

Install 8 pin decoder (either

bachmann HO decoder or other

decoder from open market)

There are 2 switches

under the chassis

for selection of

pick up & LEDS

How to install Decoder

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

DCC

Please notice that when

using non-Bachmann decoder,

switch 2 should be located at

the marker light positon otherwise

it works improperly.

SWITCH 1 SWITCH 2

1 4

8 PIN SOCKET

G887X-IS003

Slide the seat cover horizontally

Lift up the seat cover with

cushion

Follow the battery logo position

to install two AA batteries

How to load batteries inside the car body

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

- AA +

+ AA -

Batteries not included

CAUTION!

- Do not mix old and new batteries or

different types of batteries

- Remove batteries if the product is not

in use

- Do not short-circuit the battery contacts

G887X-IS003

Unfasten 4 screws

at the long ladder

(88797 , 88798)

Slide the roof cover

backward horizontally

Pull up the roof cover

DETAIL A

DETAIL B

When assembling the

roof cover, make sure

the ladder is installed

into the brackets on

the roof end.

How to remove the roof from the body

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

G887X-IS004

Unfasten two screws on the

coupler box cover and then

remove the fine scale couplers

Install the offset shank

coupler with chain

Make sure the chain is fastened

to the uncoupling lever before

assemble the coupler.

How to change the front / rear

die-cast offset shank couplers

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

(ACCESSORY BAG)

How to exchange LEDs on markers/table lights

G887X-IS004

Remove marker lamp / chimney

Grasp bracket while

removing LED

How to separate the two sides of the interior

walls from the body shell

BACHMANN INDUSTRIES, INC.

1400 East Erie Avenue

Philadelphia, Pennsylvania 19124 USA

800-356-3910

www.bachmanntrains.com

Printed in China

G887X-IS005

Unfasten 8 screws at

the two sides of body shell

2Pull up two sides of interior

walls carefully to prevent

damage to the wires inside

the interior walls
