B-Speech® MiniPad User Manual
Page 1 of 21
User Manual
For
Symbian Series 60 Mobile Devices
B-Speech® MiniPad User Manual
Page 2 of 21
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not
represent a commitment on the part of the vendor. No warranty or representation,
either expressed or implied, is made with respect to the quality, accuracy or fitness
for any particular purpose of this document. The manufacturer reserves the right to
make changes to the content of this document and/or the products associated with
it at any time without obligation to notify any person or organization of such changes.
In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages. This document
contains materials protected by copyright. All rights are reserved. No part of this
manual may be reproduced or transmitted in any form, by any means or for any
purpose without expressed written consent of its authors. Product names appearing
in this document are mentioned for identification purchases only. All trademarks,
product names or brand names appearing in this document are registered property
of their respective owner
BK300 User Manual
Page 3 of 21
Table of Contents:
Introduction of Bluetooth Keyboard ……………………… 4
¾Keyboard Features ……………………………………………………………………………. 4
Driver Installation / Upgrading / Removing …………… 5
¾System requirements …………………………….………………………………………… 5
¾Before to use ………………………………….………………………………………………… 5
¾How to Install / Upgrade/ Remove the Bluetooth keyboard Driver …. 5
Configuring Bluetooth Keyboard …………………………… 9
The Illustration of “ Config ” Page ………………………… 10
¾Active BTKeybd ……………..……………………….………………………………………… 10
¾Reconnection ………………………………………………………………….…………………. 11
¾Typing Repeat Rate ……………………………………………………..…………………... 11
¾Typing Repeat Delay ……………………………………………………..…………………...
11
¾Power Saving Mode ……………………………………………………..…………………... 12
¾BTKeybd Test ………..…………………………………………………..…………………... 12
The Illustration of “ Function ” Page ……………………… 13
The Illustration of “ About ” Page …………………………. 14
Function key and the Combination keys …………………. 15
¾Launching Applications ……………………………………………...................... 15
¾Function Key ……………………………………………………………………………………… 15
¾Editing Text Command …………………………………………………………………….. 16
¾Symbol Characters ……………………………………………………..................... 16
¾Latin Characters ………………………………………………..…………………………….. 17
¾Calculator Functions …………………………………………………..................... 18
Bluetooth Keyboard Status LED …………………………….. 19
Product Specifications …………………………………………. 20
Appendix A : Troubleshooting ………………………………. 21
BK300 User Manual
Page 4 of 21
Introduction of Bluetooth Keyboard

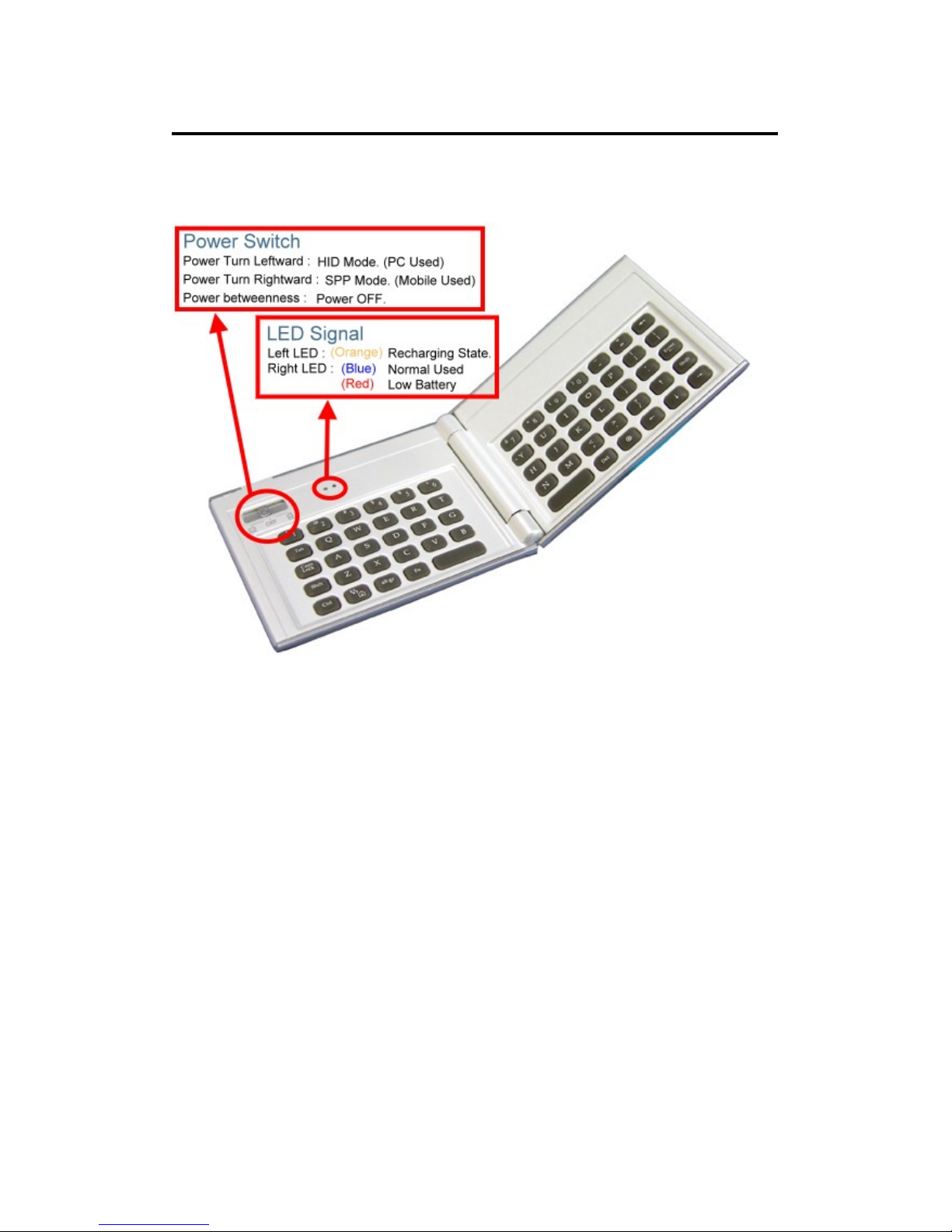

¾Keyboard Features
BK300 User Manual
Page 5 of 21
Driver Installation / Upgrading / Removing
¾System requirements
Symbian Series 60 Smartphone.
At least 100 KB free memory on your Smartphone.
A computer with the Microsoft Windows 2000/XP operating system.
PC Suite (available on one of the CDs delivered with your phone).
¾Before to Use
Check the batteries status of Bluetooth Mini keyboard.
(Turn the switch on to check the Blue light on the keyboard.)
Disable other application which will use Bluetooth port on your mobile device.
¾How to Install / Upgrade / Remove the
Bluetooth keyboard Driver?
Installation
For Symbian Series 60 OS, the Bluetooth keyboard driver can be installed by
AutoRun CD-ROM, PC Suite, Cable or Wireless file transfer ( Infrared or
Bluetooth ). Please find the details as below information.
( When the Smartphone receive the file, it will show message with file “MiniKB.sis”, click
“ View”. You will be warned that “Application is untrusted and may have problems. Install only
if you trust provider.” Click “Yes”, then click “Install”. )
Install the Application in Series60 OS Smartphone by AutoRun
CD-ROM
1Establish the connection between your computer and your Smartphone.
2Insert Bluetooth Universal Keyboard CD into computer’s CD-Rom drive.
3Follow the instruction on screen to complete the installation.
4When the installation is finished, you can find this Bluetooth keyboard icon
is showed on the Menu of the mobile device.
Install the Application in Series60 Smartphone by “Application
BK300 User Manual
Page 6 of 21
installer” of PC Suite
1Tag the PC Suite on the screen of the laptop/desktop, then click “Install
applications” icon. (Figure 1)
Figure 1
2In the Application installer, from “My Computer” side, Path: CD-Rom driver
»Files »Symbian » Series60 » Language. (Figure 2)
3Find the file “MiniKB.sis”, then tag the install.
Install the Application in Symbian Series 60 Smartphone by Infrared
Figure 2
BK300 User Manual
Page 7 of 21
or Bluetooth file Transfer
1Disable applications or drivers in the Smartphone, which may use Infrared
or Bluetooth ports.
2Path: CD-Rom driver »Files »Symbian » Series60 » Language. Tag the file
“MiniKB.sis” on your computer or CD-ROM.
3Follow the instructions for the Infrared or Bluetooth software on your
computer to located the Series60 OS Smartphone and transfer the file to it.

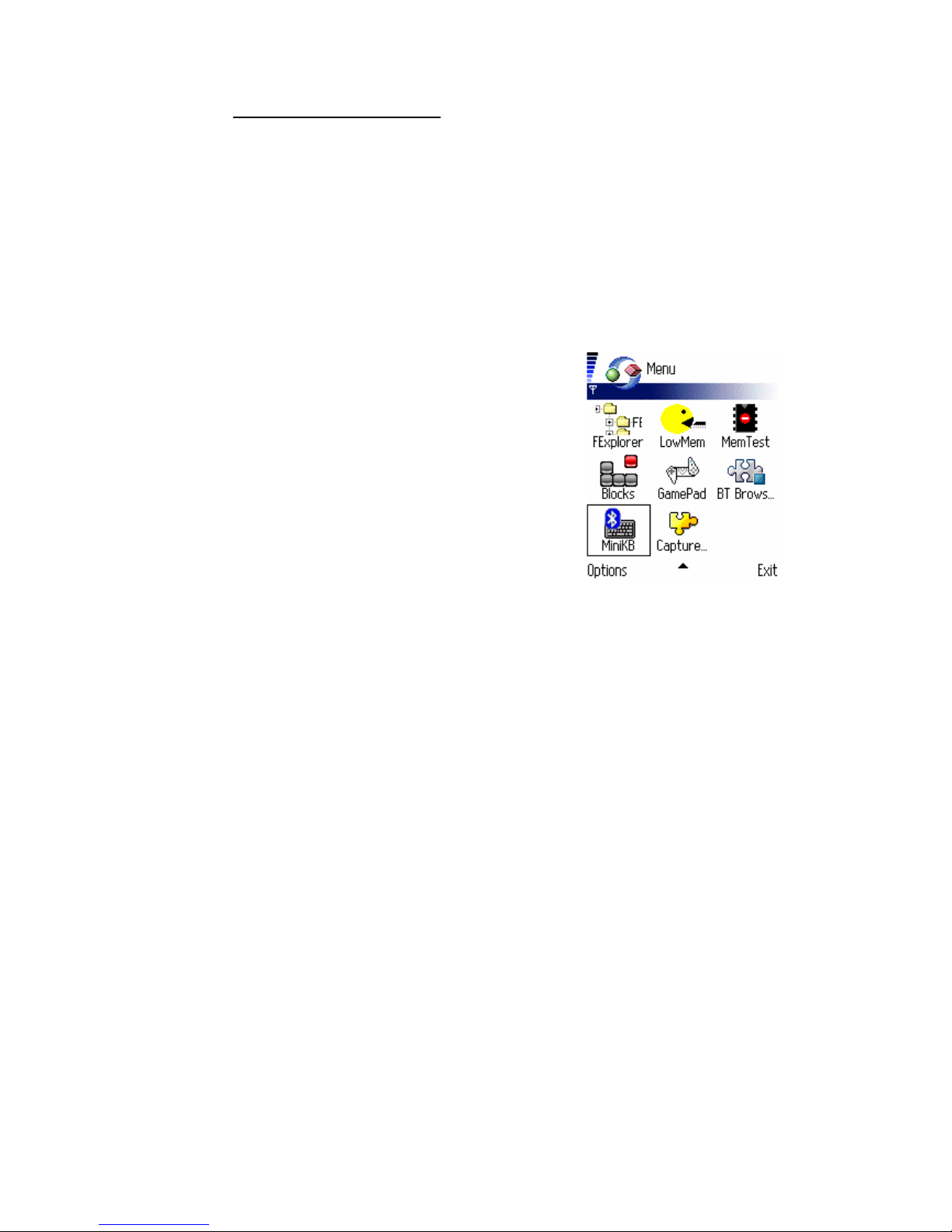

After the driver is installed successfully ,
the keyboard driver icon will show up in
the main menu. (Figure 3)
Upgrading
Figure 3
BK300 User Manual
Page 8 of 21
Please check the Agent’s website from time to time to check if any new
driver is released.
( If you want to install the latest driver, please uninstall the previous driver first. )
Removing
Step 1: Turn the driver off.
Step 2: Select Tools -> Manager -> MiniKB -> Remove. (Figure 4)
Figure 4
Configuring Bluetooth Keyboard
BK300 User Manual
Page 9 of 21
¾When you click the “MiniKB” icon, you will see three pages “ Config ” , “ Function ”,
“ About ”. (Figure 5)
Figure 5
¾How to switch the page of driver interface?
Method 1:
Please use the left direction or the right direction
buttons of your Smartphone to switch the page.
Method 2:
Please use the left function key of your Smartphone
to select the " Options " on your Smartphone, and
then switch the page by clicking the contents of
your " Options ". (Figure 6)
¾“ Config ” page
There are including:
” Active BTKeybd ” , “ Reconnection ”, “ Typing Repeat Rate “,
“ Typing Repeat Delay “, ” Power Saving Mode “, “ Keyboard Test “.
¾“ Function ” page
This allows you to assign application or file to open as “Hot Keys”.
¾“ About ” page
Provides the version of the driver installed in your Smartphone.
The Illustration of “ Config ” Page
Figure 6
BK300 User Manual
Page 10 of 21
¾Active BTKeybd
How to connect the Bluetooth
keyboard with your device??
Step 1:
Turn the Bluetooth keyboard on,
the LED will flash blue once every other
second, the Bluetooth keyboard is in
discovery mode.
Step 2:
Tap “MiniKB” icon in application list
of the Symbian Smartphone. (Figure 7)
Step 4:
When the connection establish successfully,
you will see the Bluetooth icon of your
Smartphone (Figure 9), and the LED of the
Bluetooth keyboard will flash blue twice
every other second.
¾Reconnection
After the connection established successfully, then you can turn “Reconnection” to
Figure 7
Figure 8
Figure 9
Step 3:
Turn “Active BTKeybd” option to “On” to
scan the Bluetooth keyboard and the link will
be established automatically. (Figure 8)
