Introduction

Congratulations for making B.C.Rich your choice of instrument.This manual

will explain how to keep your instrument in top shape for years of musical

enjoyment.

Controls

Bronze Series guitars

The Bronze Series has 3 controls to adjust the sound of the guitar.

•The first knob (closest to the bridge pickup) is the MasterVolume.

It controls the loudness of both pickups.

•The next control is the 3-way Pickup Selector. It is used to switch 

the two pickups on or off.Switching the selector up will engage 

the neck pickup.The middle position engages both pickups, and

switching it down will engage the bridge pickup.

•The final control is the Master Tone control.This changes the 

tonal characteristics of the pickup(s) currently engaged.

Platinum, Platinum Pro, Acrylic, NJ and Classic Series guitars

These guitars have 4 output controls:

•The first knob (closest to the bridge pickup) is theVolume Control

for the bridge pickup. It controls the loudness of this pickup.

•The next control is the 3-way Pickup Selector. It is used to switch 

the two pickups on or off. Switching the selector up will 

engage the neck pickup. The middle position engages both 

pickups, and switching it down will engage the bridge pickup.

•The next control is the Volume Control for the neck pickup. 

It controls the output of this pickup.

•The final control is the Master Tone Control. This changes the 

characteristics of the pickup(s) currently engaged.

Exclusive Series guitars

This series has the traditional control set-up found on most archtop guitars

with two pickups.It consists of 2Volume Controls,2Tone Controls and a 3-

Way Pickup Selector.

Platinum Series basses

Platinum Basses come equipped with 2 passive split-coil bass pickups.The

controls are as follows:

•The first knob (closest to the bridge pickup) is the Volume

Control for the bridge pickup. It controls the loudness

of this pickup.

•The next control is the 3-way Pickup Selector. It is used to switch 

the two pickups on or off. Switching the selector up will engage

the neck pickup. The middle position engages both pickups,

and switching it down will engage the bridge pickup.

•The next control is theVolume Control for the neck pickup.It controls

the output of this pickup.

• The final control is the MasterTone Control.This changes the tonal

characteristics of the pickup(s) currently engaged.

NJ and Innovator Series basses

NJ Basses come equipped with 2 split-coil pickups with an active EQ system.

Innovator Basses come equipped with 2 EMG-HZ passive pickups with an

Active EQ System.BothActive EQ Systems use a 9-volt alkaline battery for

power. For longer battery life, always unplug your bass when not in use.

Step 6:

If you're ready to float the tremolo,

check your tuning one last time and

make any needed adjustments using

the range tuner set screw.Then,back

the tremolo stop set screw away from

the spring block.This will cause the

bridge to tilt back toward the body of

the guitar and all the strings will go

sharp.This is normal.

Step 7:

You must now retune the guitar,this

time using a Phillips screwdriver to

turn the spring claw screws counter-

clockwise to loosen the spring tension

(If you added an extra spring to pull

the spring block against the tremolo

stop screw you should remove it first.)

Step 8:

The good news is that you only have

to retune one string.Pluck the string

you want to tune (Typically the "A"

string for this procedure) and then,

while watching the tuner,loosen first

one claw screw then the other claw

screw the same amount.

Check the tuning and repeat until the

string is in tune.When you get the

string you chose in tune the other

strings will be in tune.This assumes

that all the strings were in tune before

you released the tremolo stop.

For foreign language translation of this owner's manual,please visit

www.bcrich.com.

215

When you do need to change batteries you will get better performance and

battery life if you use an alkaline battery.The battery compartment is located

on the back of the bass just above the control cavity.It can easily be opened

by unscrewing the 2 screws with a Phillips head screwdriver. Changing the

battery will not affect your warranty.

The controls for both the NJ and Innovator series are as follows:

(see photo)

•#1 is the Master Volume. It controls the output of both pickups.

•#2 is the Blend Control.The purpose of the Blend Control is to 

be able to select pickups (bridge or neck) and also to be able

to blend them together. Turning the knob counterclockwise 

will bring more of the neck pickup into the mix. Turning it 

clockwise will bring more of the bridge pickup into the mix. 

Setting the Blend Control knob in the middle (there is a middle 

detent position) will place each pickup evenly in the mix.

•#3 is the Bass Boost/Cut Control. It controls the amount of bass

(low end) output of the instrument.Turning the knob clockwise

will add bass. Turning the knob counterclockwise will decrease

the bass output. Once again, there is a center position that

will set the bass EQ flat (no cut or boost).

•#4 is the Treble Boost/Cut Control. It controls the amount of

high-end output of the instrument. Turning the knob clockwise

will add treble. Turning the knob counterclockwise will

decrease the treble output. Once again, there is a center position

that will set the treble EQ flat (no cut or boost).

tuning using the range tuner set screw.

Remember:do not use the fine tuner

screws to tune the guitar at this point.

Step 4:

A range tuner setscrew is located in

the nose of each pivoting saddle.

Step 5:

Using a 1.5mmAllen wrench and the

range tuner setscrew,tune your guitar

to any tuning you desire.You can

increase the pitch of a given string by

turning the setscrew clockwise,and

decrease the pitch of the string by

turning the setscrew counter-

clockwise.(Remember not to use the

fine tuner screws for this tuning.)

Now that you have tuned your guitar

to the tuning you want,the bridge

should be properly setup,and the fine

tuners should be set to the middle of

their range.

The way your guitar is set up now is

what is called a "blocked" setup.This

means that the tremolo can be used

for dive effects but you can't pull up

on the arm for up bends.You can leave

your guitar the way it is,or you can

disengage the tremolo stop to return

the tremolo to what is called a

"floating" setup.However,before you

return the bridge to a floating

condition,you might want to check

your intonation.If your intonation

needs adjusting,go to the "Setting your

intonation" section.

14 3

Step 1:

The first thing you do to reset the

range of all the fine tuners is to position

all the fine tuner screws to the middle

of their possible movement.

Step 2:

One way to do this is to turn the low

"low E" string fine tuner screw all the

way up,then turn the "D" string fine

tuner screw all the way down.

Now,position the "A" string fine tuner

screw half way between the "E" and

the "D" fine tuner screw positions.

Step 3:

Now,leaving the "A" string fine tuner

where you set it,reposition all the of

the other fine tuner screws to match

the height of the "A" string fine tuner

screw.

You should now have all of the fine

tuner screws set to the middle of their

range.

Ignore the fact that your guitar is now

completely out of tune,we're going to

fix that next.

At this point you're ready to tune your

guitar using the range tuner set screw.

You can set your guitar up for standard

pitch,any open tuning,or any drop

SETTINGTHE FINETUNER RANGE ONTHE SPEEDLOADER

TREMOLO

Like the Original Floyd Rose,there are several situations that will cause the

SpeedLoader fine tuners to run out of range.If this happens don't panic,the

fine tuner range can be reset.

To reset the fine tuner range first engage the tremolo stop and set the bridge

position as described in the "Setting up the SpeedLoaderTremolo Bridge base

plate."

With the base plate set properly and the tremolo stop properly engaged,you

are ready to set your fine tuner range.If only one or two of the fine tuners

are out of range you may want to try adjusting them without engaging the

tremolo stop.

Climate,Humidity andYour Guitar

Damage done to an instrument as a result of too little,or too much,humidity

is not covered by the manufacturer's warranty. Cracks resulting from a lack

of humidity are not due to a manufacturing defect,but are considered neglect,

and educating yourself could save you some heartaches...and expense.

Do not leave your instrument in a hot car,direct sunlight,near a stove,heater,

an attic or other area where the temperatures are high.Cold temperatures

can also damage your guitar.If you must take your instrument out in the cold,

let it warm back up before taking it out of the case.This will keep the finish

from cracking or clouding.It will also keep your fretboard from drying out and

cracking.

Cleaning

Like all fine instruments,your B.C.Rich requires periodic care and maintenance.

One of the most important ways to maintain the beauty of your instrument

and prolong its string life is regular cleaning.Perspiration can actually contain

acids that are corrosive to the strings as well as the metal parts of the guitar.

After playing,wipe down your instrument's finish,strings,fretboard,and metal

parts (bridge,tuners,etc.) with a soft cloth.The finish should be polished only

as needed to avoid polish build-up that will dull the appearance. When you

do need to polish,use a soft treated cloth or cotton rag. Also,only use a polish

formulated for musical instruments to avoid build up.Follow these simple steps

and your instrument should shine for years to come.

BridgeAdjustments

Bronze Series Guitars

The Bronze Series Guitars have a one-piece adjustable bridge.These are

adjusted by turning the two screws on each side of the bridge with a flathead

screwdriver until the desired height is achieved.Loosening the strings before

adjustment will keep the screws from becoming scratched or blemished.

Platinum,Acrylic,Exclusive,and Classic Series Guitars

TheTune-O-Matic Bridge is adjusted by turning the two finger screws on each

side of the bridge until you reach the desired height.

Platinum Pro,NJ,and NeckThru Series Guitars

The Licensed Floyd RoseTremolo plate on the Platinum Pro,NeckThru and

SpeedLoader-NJ models must be kept parallel to the body for proper intonation

and tuning.To adjust,open the back cavity of the guitar and adjust the two claw

screws.This can be a time consuming task but once the bridge is balanced,it

shouldn’t need adjustment unless you decide to change string gauges.

If the bridge is tilting towards the neck,tighten the claw screws,return your

guitar to pitch,and see if the bridge is parallel.

Changing Strings with a Licensed Floyd Rose

Changing strings on a guitar equipped with a locking tremolo may seem tedious

at first but with a little practice the process will become second nature.

Changing one string at a time will keep the proper tension on the neck and

tremolo,which,in turn,will make tuning your guitar back to pitch much easier.

4 13

Step 6:

Now check the base plate position.If it is not parallel to the face of the guitar

body turn the setscrew until the base plate is parallel.

Step 7:

After you get the base plate parallel,

check your string action.If your strings

are too high or too low for you,adjust

the action with the two rocker screws,

using a 3mmAllen wrench until the

action is where you like it.

When you get the base plate parallel

with the face of the guitar,the action

properly adjusted,and the tremolo

stop firmly engaged with the spring

block,you are ready to set the fine

tuner range or intonate the guitar.

These procedures follow...

Intonation

Use and electronic tuner and tune your instrument to standard pitch.Play an

open string and them compare it to the fretted note at the 12th fret.These

notes should read the same on the tuner.

* If the fretted note on the 12th fret is flatter (lower) than the open 

note,move the saddle forward toward the neck.

* If the fretted note on the 12th fret is sharper (higher) than the open 

note,move the saddle back away from the neck.

For an accurate reading, be sure to retune the string to pitch after each

adjustment of the saddle.Bronze and Platinum guitars require a Phillips head

screwdriver for this adjustment.Models with the Licensed Floyd Rose will need

the supplied 2.5mm allen wrench.

The quality of strings affects intonation as does string gauge. An adjustment

of the intonation will most likely have to be made if the string gauge is changed.

NeckAdjustments

Each B.C. Rich Guitar is carefully adjusted at the factory, as well as by our

Quality Control Department before shipping.The truss rod and string height

are set for optimum action and playability with the gauge string supplied.

Occasionally an instrument's neck may need adjustment as a result of string

tension or climactic changes.The curvature of the neck should be slightly

concave. The amount depends on the player’s personal taste.

Truss rod adjustment should only be performed by a B.C.RichAuthorized

Service Center.Over adjustment can cause permanent damage that will

not be cover by the warranty.

12 5

1. Loosen the locking nut that corresponds to the string being changed 

with the 3mm allen wrench.

2. Loosen the string completely by turning the tuning key on the headstock.

3. Loosen the saddle lock screw with the 3mm allen wrench.

4. Remove the string.

5. Remove any broken string bits with a small magnetic screwdriver or 

long nose tweezers.

6. Return the tremolo fine tuners to their mid point position.

7. Cut the ball end and extra wraps off the new string.

8. Insert the new string into the tremolo lock box.

9. Tighten the saddle screw securely but do not over tighten.

10. Slide the string thru the string post on the headstock.

11. Leave enough slack for about three turns around the post.

12. Tune to pitch.

13. Once all the strings have been replaced and stretched,tune the guitar

to pitch,lock down the nut,and use the fine tuners for minor 

adjustments.

Step 1:

To replace a string,push down on the

back of the saddle of one of the strings.

Step 2:

Then,pull back on the sliding latch by

placing the first finger of your free

hand on the black knob protruding

out the back of the saddle then placing

your thumb on the fin sticking up just

behind the fine tuner screw and pull

the latch back with a pinching action

between the thumb and first finger.

Step 3:

Once you have pulled back on the

sliding latch,release the saddle and

allow it to rotate forward.

REMOVING SPEEDLOADER GUITAR STRINGS

*For use with SpeedLoader™ bridges only.

Please note:SpeedLoader strings are offered in two scale lengths:25.5inches

and 24.75 inches.If you're not sure what scale length your guitar is,consult

the guitar manufacturer or the store where you purchased the guitar.

Make sure you have purchased the correct scale length strings for your guitar.

The string scale length appears in the lower left corner of the string package.

To purchase strings go to:www.floydrose.com or ask for them at your local

dealer.

Step 3:

If this part is missing stop right here

and get one installed by a qualified

guitar repairman.You can get this part

from www.floydrose.com.

Depending on the guitar you purchased,

the tremolo stop may or may not be

engaged with the spring block.

We will assume it is not engaged and

show you how to engage it.

Take the 3mmAllen wrench and turn

the setscrew until it touches the spring

block.

Step 4:

Now,tighten the springs with the spring

claw screws so the spring block is

pulled tightly against the setscrew.

Step 5:

Another way to pull the spring block

against the tremolo stop set screw is

to add another spring to the spring

block and claw.Using this method is

preferred because it will be easier to

re-float the tremolo after setting up

the bridge.

6 11

Step 4:

Now remove the bullet from the

saddle.

Step 5:

If you are replacing a broken string,

when you unlatch the pivoting saddle

there will be no tension on the string

to pull the pivoting saddle forward,so

you'll have to pivot the saddle forward

with your finger.

You can now remove the bullet on the

other end of the string from the nut

by simply sliding it out the back of the

nut.

Step 6:

If you try to release a saddle and pull back on the sliding latch and it won't

budge,release everything and start over making certain that you don't turn

the sliding latch sideways.If the sliding latch turns on its shaft,the safety catch

portion of the sliding latch will not line up properly with the safety catch

portion of the pivoting saddle and will cause binding.

The safety catch is there to prevent the string from accidentally releasing while

playing or changing strings.

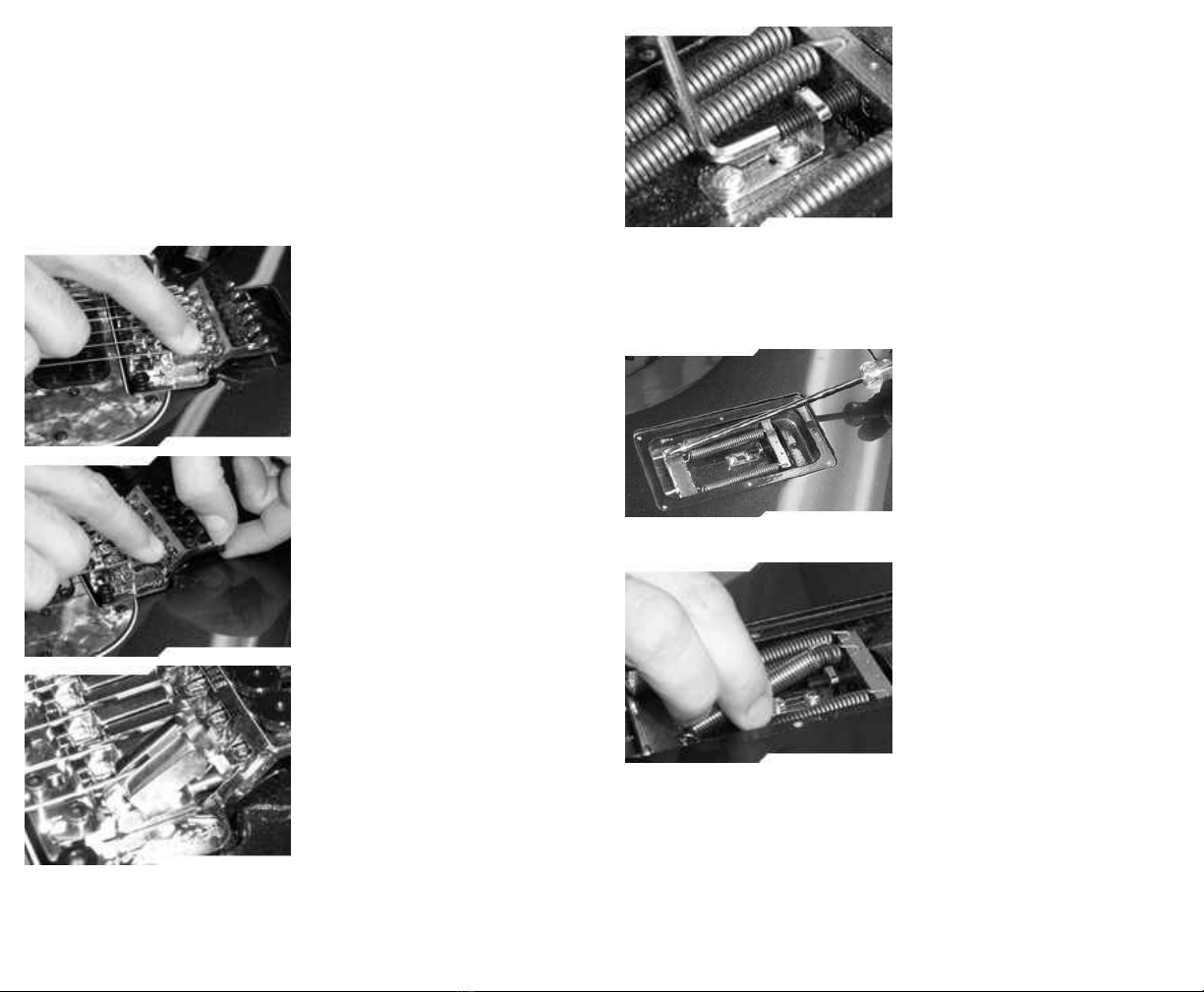

Step 1:

To level the base plate,first take the

spring cover plate off the back of the

guitar.

Step 2:

Inside the spring cavity you should find

a tremolo stop.

SETTING UPTHE SPEEDLOADERTREMOLO BRIDGE BASE

PLATE

The proper setup of the SpeedLoaderTremolo Bridge looks exactly like a

properly setup Original Floyd RoseTremolo Bridge.By the way,the SpeedLoader

Tremolo will retrofit an Original Floyd quite easily.

The first thing you'll want to do is check to see if the top surface of the base

plate of the bridge is sitting parallel to the top surface of the guitar.

If the base plate appears to be tilted forward away from the top surface of the

guitar or tilted back closer to the top of the guitar,then an adjustment should

be made.

This is what the safety catch looks like up close.(see above)

10 7

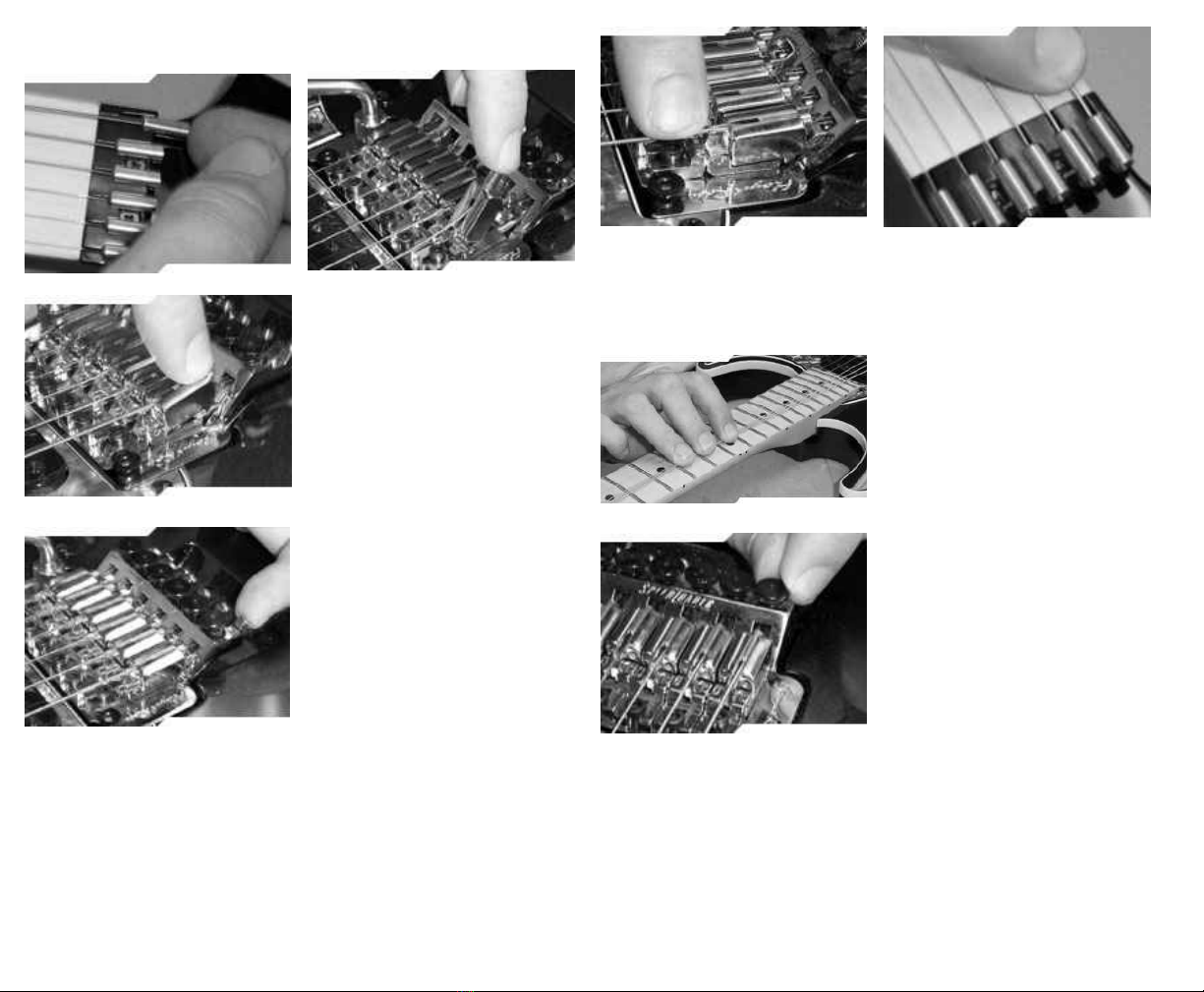

Step 1:

To put on the new string simply slide

one of the bullets into the nut,then

place the other bullet into the

appropriate saddle and push down on

the back on the saddle until you hear,

or feel,a snap.

Step 2:

This sound is the spring-loaded sliding

latch snapping into place.If you don't

hear or feel the snap,push the sliding

latch toward the saddle until it catches.

Making sure the sliding latch is all the

way forward to its locked position is

important because if it isn't two things

will happen:

1)The replaced string will be held

sharp,and;

2) the safety catch will not be engaged

and the string could suddenly and

unexpectedly be released and fly across

the room.

LOADING SPEEDLOADER STRINGS

Step 4:

Then do a couple of stretching pulls

on the string.

Step 5:

The string is now seated and no more

stretching is necessary,just play.In fact

if you stretch the string too vigorously

you will damage the string.Just play

the string in for a bit and re-adjust your

tuning with the fine-tuning screw as

needed.

If the string you're replacing was tuned

to your desired pitch,the new string

you install should be able to be tuned

to that pitch with the fine tuner screw.

If the fine tuners do not have enough

range to tune the new string to the

previous pitch you will need to adjust

the range tuner setscrew as described

below.See "Setting the fine tuner range

on the SpeedLoaderTremolo".

Step 3:

Now that the new string has been properly installed you should seat the new

string.To seat the new string press down firmly on the string just in front of

the saddle and just in front of the nut.

8 9

Autres manuels pour ASM One

Ce manuel convient aux modèles suivants

Autres manuels B.C. Rich Guitare

B.C. Rich

B.C. Rich ASM One Manuel

Manuels Guitare populaires d'autres marques

Squier

Squier Affinity Jazz Bass V Manuel utilisateur

Fender

Fender 72 Telecaster Manuel utilisateur

Gibson

Gibson Firebird X Manuel utilisateur

CARVIN

CARVIN P-SERIES Manuel utilisateur

Fender

Fender HEARTFIELD - FOR GUITARS AND BASSES Manuel utilisateur

Peavey

Peavey Acoustic Guitar Series Manuel utilisateur

Fender

Fender CY Manuel utilisateur

Zon

Zon Mosaic BB5 Manuel utilisateur

Warwick

Warwick RockBass Streamer LX Manuel utilisateur

Fender

Fender Deluxe Active Manuel utilisateur

Peavey

Peavey Spectrum Bass Manuel utilisateur

Warwick

Warwick Streamer LX Manuel utilisateur

Peavey

Peavey Nitro I Manuel utilisateur

Squier

Squier Frank Bello J Bass Manuel utilisateur

Fender

Fender Ritchie Blackmore Stratocaster Manuel utilisateur

Steinberger

Steinberger ZT3 TransTrem Manuel utilisateur

Yamaha

Yamaha Electric Acoustic Guitar Manuel utilisateur

Peavey

Peavey T-45 Manuel utilisateur
