Axxess AXAC-FD1 Manuel utilisateur
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXAC-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 3/31/20 INSTAXAC-FD1
INTERFACE FEATURES
TOOLS REQUIRED

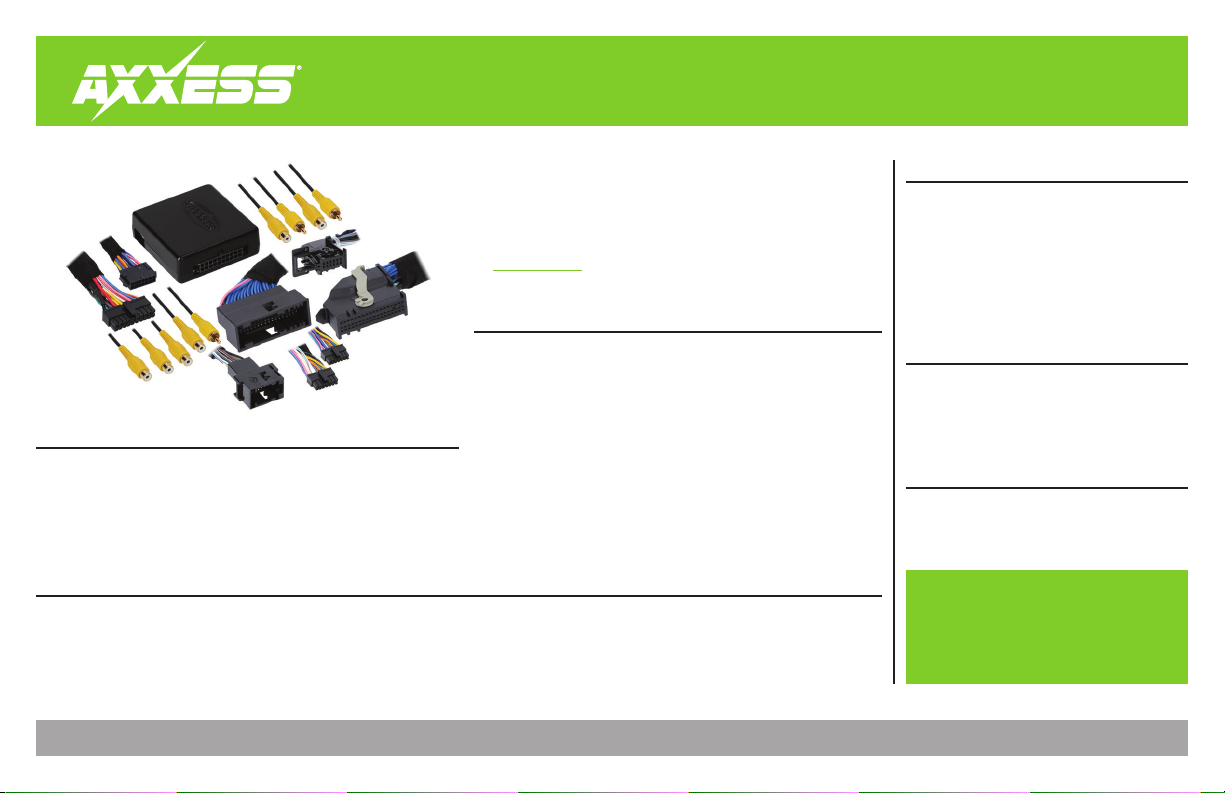

INTERFACE COMPONENTS
REQUIRED ITEMS (sold separately)
TABLE OF CONTENTS
Introduction............................................................2
Configuration .....................................................2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
• (4) Camera inputs *
• Reverse signal trigger generated via CAN bus communication of the vehicle
•
Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
* Models equipped with NAV can only use front and rear camera inputs
Note: AXAC-FDSTK (sold separately) required for 2014-Up models
with a 4.2-inch display screen.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
Update Cable: AXUSB-MCBL
Supplemental Harness ‡: AX-ADDCAM-FDSTK
‡ 2014-Up models with 4.2-inch display screen only
† With either a 4.2-inch, 6.5-inch, or 8-inch display screen
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
Ford† Camera Interface With Pre-Wired Harness
2011-Up
APPLICATIONS
Ford
Edge 2011-Up
F-150 2013-Up
F-250/350/450/550 2017-Up
Focus 2012-2019
Fusion 2013-Up
Mustang 2015-Up
Transit 2014-2019
Transit Connect 2015-2018
Ranger 2019-Up
2
CONFIGURATION

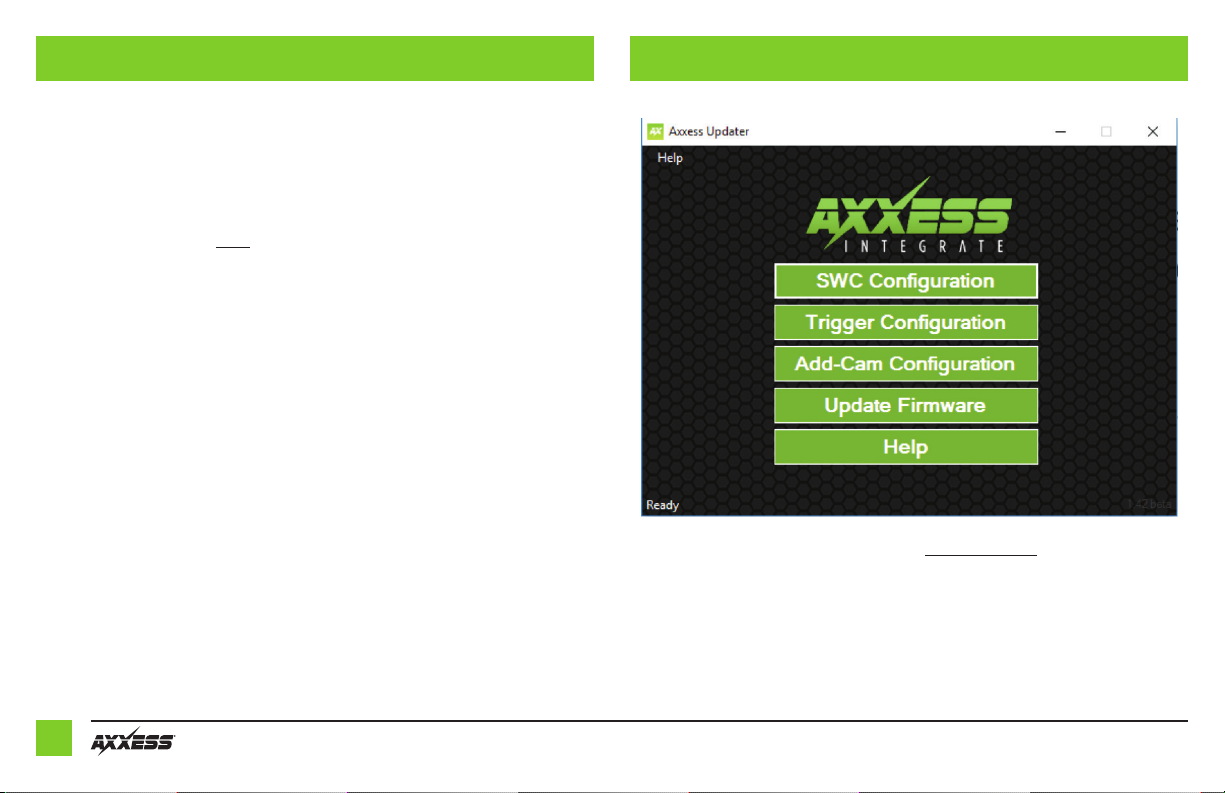

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-FD1 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
3
REV. 3/31/2020 INSTAXAC-FD1

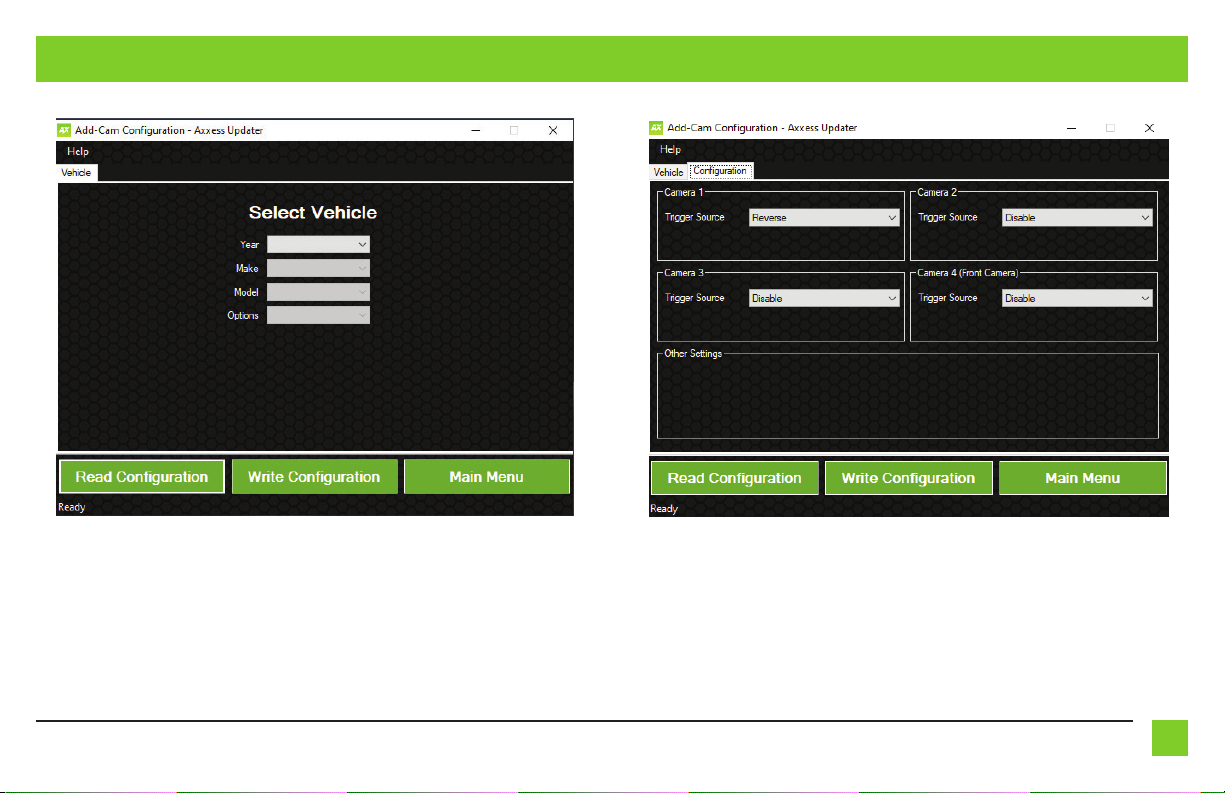

• Under Configuration, configure the (4) video trigger inputs to the desired settings. †
• Once all selections have been configured, press Write Configuration to save the settings.
• Unplug the update cable from the interface and computer.
† Refer to the following page for more information.
CONFIGURATION (CONT.)
Continued on the next page
• Select the vehicle in the drop down list. A tab labeled Configuration will appear after the
vehicle has been selected.
4
CONFIGURATION (CONT.)
Video trigger legend
• Disable (will turn off the input)
• Backup Camera (dedicated backup camera)
• Left Blinker (will be used for activation)
• Right Blinker (will be used for activation)
• Control 1 (positive trigger activation)
• Control 1 (negative trigger activation)
• Control 2 (positive trigger activation)
• Control 2 (negative trigger activation)
• Control 3 (positive trigger activation)
• Control 3 (negative trigger activation)
• Control 4 (positive trigger activation)
• Control 4 (negative trigger activation)
• Auto (Reverse -> Drive) will activate once
that sequence is seen (only available for
video trigger 4)
Video trigger description
• Reverse camera: Dedicated by default to Video Trigger 1. Will activate the backup camera
while the vehicle is in reverse.
• Left blinker: Activation of the left turn signal will activate the left camera.
• Right blinker: Activation of the right turn signal will activate the right camera.
•
Auto (reverse -> drive): Available only for Video Trigger 4, when installing a front camera. With
this feature selected, the camera will activate automatically once a reverse-then-drive sequence
is seen from the vehicle. Example of this scenario would be while parallel parking the vehicle. As
an alternative, a control wire can be used instead to manually activate the camera
.
Note:
Auto (Reverse -> Drive) will disable the camera once 15 MPH is reached. A control wire
activated will also disable the camera.
Note:
If the control wire is activated while driving, the camera will activate and deactivate
during stop-and-go traffic.
• Control 1-4 (positive or negative) trigger activation wires: Can be used as a positive or
negative trigger to manually activate a camera via a toggle switch, or similar device.
5
REV. 3/31/2020 INSTAXAC-FD1
CONNECTIONS
Attention! Two different harnesses are provided, one for models with a 4.2-inch display screen radio
(12-pin T-harness), the other for models with an 8-inch display screen radio (54-pin T- harness).
Use the appropriate harness and discard the other. The harness will connect at the display screen.
For models with a factory backup camera:
The camera signal will need to be interrupted and connected to the corresponding input/output
RCA jacks from the interface.
• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera input”, to the RCA
jack from the AXAC-FD1 interface harness labeled “Camera output”.
• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera output”, to the
RCA jack from the AXAC-FD1 interface harness labeled “Camera 1”.
• Disregard the following (3) wires: Blue/Green, Green/Blue, Red
For models without a factory backup camera:
• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera input”, to the RCA
jack from the AXAC-FD1 interface harness labeled “Camera output”.
• Connect the RCA jack from the AXAC-FD1 interface harness labeled “Camera 1”, to the
aftermarket backup camera.
• Disregard the RCA jack labeled “Camera output” from the AXAC-FD1 vehicle harness.
• Connect the Red wire from the AXAC-FD1 interface harness labeled “Camera 12V”, to the
power wire from the aftermarket backup camera.
• Disregard the following (2) wires: Blue/Green, Green/Blue
Camera Input:
Camera 1 Backup camera input
Camera 2 Left or right camera, user assignable
Camera 3 Left or right camera, user assignable
Camera 4 Front camera
Analaog control trigger wires:
The (optional) analog control wires can be used with either a negative or positive trigger, depending
on how they are configured in the Axxess Updater. These wires will only be used for manual control of
the camera(s). Otherwise disregard them.
Control Wire Wire Color
Control 1 Gray/Blue
Control 2 Gray/Red
Control 3 Orange
Control 4 Orange/White
Blue/Black and Blue/Red input wires (12-pin T-harness):
These wires are only for use with the AXAC-FDSTK (sold separately) for 2014-Up models.
Refer to the AXAC-FDSTK instructions for wiring.
6
I N S TAL L ATI O N PROGRAMMING

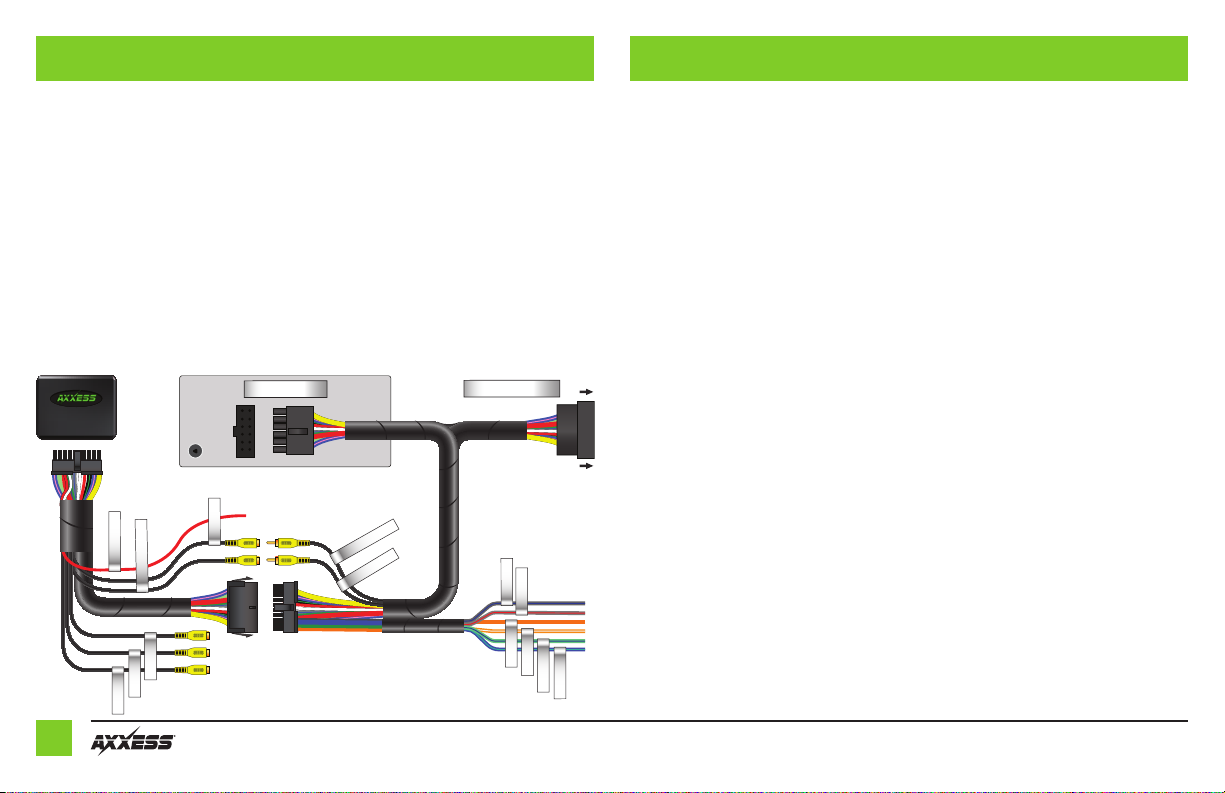

With the ignition cycled off:
1.
Remove the harness from the factory radio display, then install the AXAC-FD1 vehicle harness
in between.
2. Connect the AXAC-FD1 vehicle harness to the AXAC-FD1 interface harness.
3. Connect the AXAC-FD1 interface harness to the AXAC-FD1 interface.
4. Make sure the camera(s) is connected to the appropriate input.
5. Make sure the interface has been configured beforehand as shown in the Configuration
section. Failure to configure the interface will result in the interface not functioning properly.
AUX-IN
Camera Input
Camera Output
Camera Output
Camera 1
FACTORY RADIO TO VEHICLE HARNESS
Camera 4
Camera 2
Control 1
Control 2
Control 3
Control 4
Camera 3
Camera 12V
VSS output
VSS input
1. Cycle the ignition on and wait until the LED in the interface comes on.
Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the
off position, disconnect the interface, check all connections, reconnect the interface, and then
try again.
2. Test all functions of the installation for proper operation.
7
REV. 3/31/2020 INSTAXAC-FD1
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
IMPORTANT
If you are having difficulties with the installation of this product,
please call our Tech Support line at 386-257-1187. Before doing
so, look over the instructions a second time, and make sure the
installation was performed exactly as the instructions are stated.
Please have the vehicle apart and ready to perform troubleshooting
steps before calling.
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 3/31/20 INSTAXAC-FD1
