INSTALLATION/OWNER'S MANUAL

AM/FM/CD Receiver with Detachable Face

AC404iM

Front and Rear Inputs

Front Input

AC404iM INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

•Disconnect negative battery terminal. Consult a qualified technician for instructions.

•Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit.

• Remove 2 transit screws located on top of the unit.

• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting

sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

MOUNTING SLEEVE

INSTALLATION

MOUNTING KITS

OR DASHBOARD

HEAD UNIT

REMOV

AL KEYS

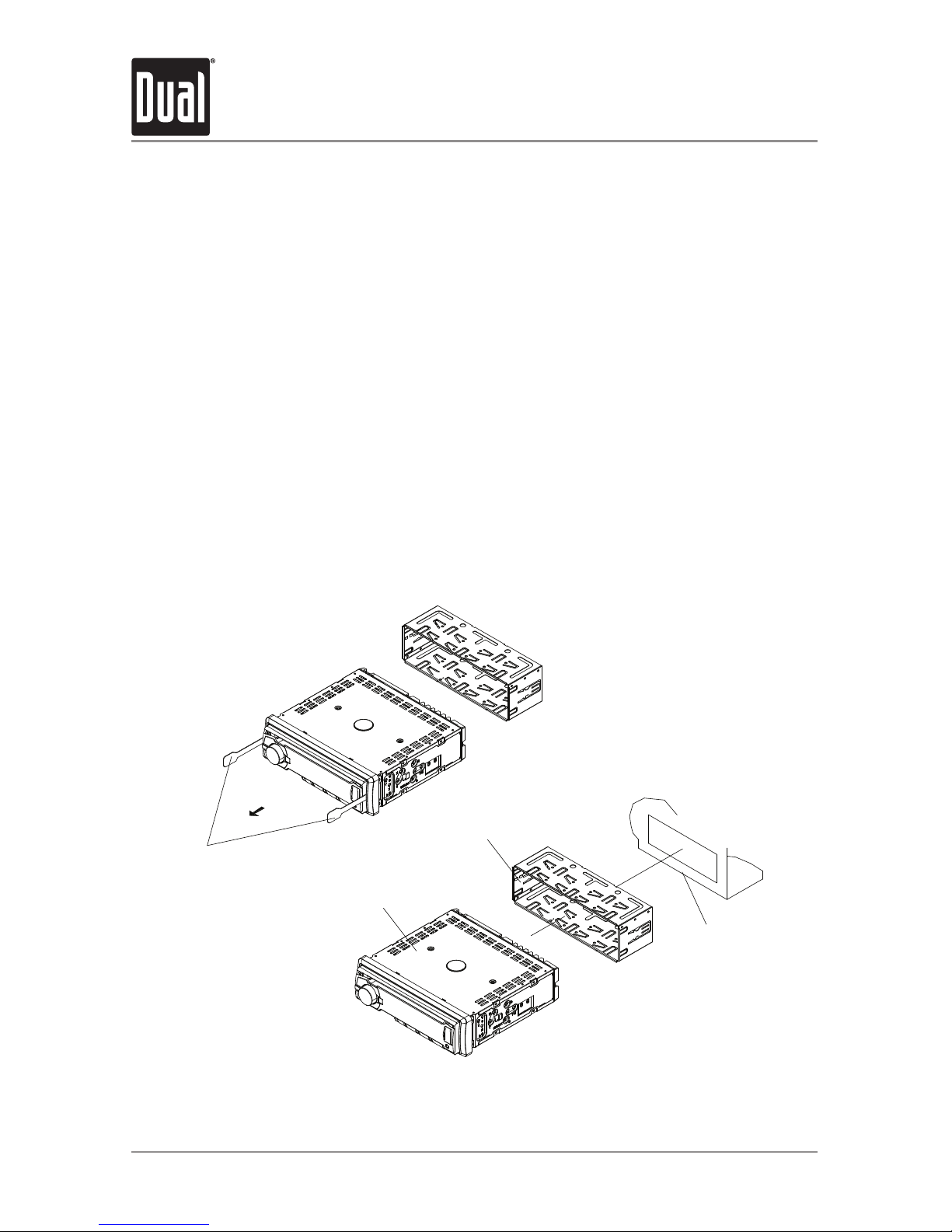

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

AC404iM INSTALLATION

Wiring Diagram

FUSE

When replacing the

fuse, make sure new

fuse is the correct type

and amperage. Using

an incorrect fuse could

damage the radio.

The AC404iM uses

one 10 amp ATM fuse

located beside the wiring

connector.

Antenna

Connector

10 AMP

AGC Fuse

AC404iM OPERATION

Control Locations - Receiver

1213

Release

Power

Volume / Select

Audio / Menu

USB Port

Eject

Auxiliary Input

Preset 6 / Folder Up / Thumbs Up

Preset 5 / Folder Down / Thumbs Down

Preset 4 / Play / Pause

Preset 3 / Intro

Preset 2 / Random

Preset 1 / Repeat

Display

Tune / Track Up

Tune / Track Down

Band / Go Back

Mode

Mute

5 6 7

123

AC404iM OPERATION

Press or any other button (except EJECT) to turn the unit

on. Press to turn the unit off.

Press MODE to select between AM/FM, CD player, auxiliary

input, USB and operation of iPod®/iPhone®. Modes of

operation are shown in the display.

NOTE: CD, USB and operation of iPod modes will not appear

unless a CD is inserted or USB/iPod devices are connected.

The AC404iM offers a 3.5 mm port on the front panel. Use

to connect audio device, MP3 player, etc.

Adjust volume using volume knob (00-46).

Press DISP to select between clock and different types of

information, such as radio frequency, CD track/elapsed time

or MP3/WMA song information.

Press RESET upon initial installation or if abnormal operation

occurs. Reset button is located behind the front panel.

With the unit on, press and hold DISP until the clock begins

to flash, then release. Press TUNE

to adjust the hours

and TUNE

to adjust the minutes. Press DISP momen-

tarily to save the selected time.

The clock will display 12-hour AM/PM time in USA frequency

spacing mode (PM 10:00). In European frequency spacing

mode, the clock will display 24-hour time (22:00).

Press and hold AUDIO/MENU for more than 3 seconds to

access the setup menu. Press AUDIO/MENU momentarily

to select between the menu functions and rotate the volume

knob left/right to adjust or activate the desired function.

Power On/Off

Mode

Auxiliary Input

Volume

Display

Reset

Set the Clock

12/24-hour Clock

Setup Menu

General Operation

General Operation - Setup Menu

Menu Function Options Action

Auto Station

Store AUTO STORE Press SELECT to seek and save 6 strong stations in the

current band. (Tuner mode only)

Local/Distance

Tuning

LOCAL OFF Activates distance tuning (Tuner mode only).

LOCAL ON Activates local tuning for strong station reception only (Tuner

mode only).

Tuner

Frequency

Spacing

FREQ USA Programs the unit to USA tuner spacing.

(200kHz for FM and 10kHz for AM). (Tuner mode only)

FREQ EURO Programs the unit to European tuner spacing.

(50kHz for FM and 9kHz for AM). (Tuner mode only)

Motion

Control

MOTION OFF Disables the motion control feature.

MOTION ON Enables the motion control feature.

Front Auxiliary

Input

AUX FRONT ON Enables the front panel 3.5mm auxiliary input.

AUX FRONT OFF Disables the front panel 3.5mm auxiliary input.

Beep

Confirmation

BEEP OFF Disables the confirmation beep.

BEEP ON Enables the confirmation beep.

Programmable

Turn On Volume PRO-VOL # Programs unit to always turn on at a specific volume

(default is OFF). Any volume level 1-30 can be selected.

Power on

Message

MSG OFF Disables power on message. (example: GOOD MORNING)

MSG ON Enables power on message to be displayed.

Scrolling

Option

SCROLL 15 S Programs unit to scroll information once every 15 seconds

(default).

SCROLL ONCE Programs unit to scroll once, then show the first 10

characters on display.

SCROLL ON Programs unit to scroll continuously.

SCROLL OFF Programs unit to show the first 10 characters on the display.

Demonstration

Mode

DEMO OFF Disables the demonstration mode.

DEMO ON Enables the demonstration message.

AC404iM OPERATION

Press AUDIO/MENU momentarily to select between Bass,

Treble, Balance, Fader, Subwoofer and Source Volume Level.

Press AUDIO/MENU until BASS appears then rotate

volume knob left/right to adjust ( -6 minimum / +6

maximum).

Press AUDIO/MENU until TREBLE appears then rotate

volume knob left/right to adjust ( -6 minimum / +6

maximum).

Press AUDIO/MENU until BAL appears then rotate volume

knob left/right to adjust (BAL LEFT 12 - BAL RIGHT 12).

BAL EVEN represents equal balance

Press AUDIO/MENU until FADER appears then rotate

volume knob left/right to adjust (FADER FRONT 12 - FADER

REAR 12). FADER EVEN represents equal fader

Press EQ, then turn the volume knob to cycle through the

following equalization curves: FLAT (default), POP, JAZZ,

CLASSIC, BEAT, ROCK and USER. Any manual adjustment

to the Bass or Treble settings are automatically saved as

USER.

Press AUDIO/MENU until LOUD appears then rotate

volume knob left/right to adjust LOUD ON/OFF.

The source volume level control allows a gain adjustment

for each audio source: AM, FM, CD, AUX FRONT/REAR,

operation of iPod, Pandora and USB. Set the source volume

level for each mode, depending on the relative volume of

each audio source.

To set the source volume level, press AUDIO/MENU until

SRC LEVEL appears. After one second, the current mode

will appear on the display. Turn the volume knob to adjust

the audio level of the current source (-3 minimum/+3

maximum).

Note: Only the current mode will be available for adjustment.

To adjust another mode of operation, press MODE until the

desired mode is selected, then set the source volume level

for that mode.

Audio

Bass

Treble

Balance

Fader

Loudness

Source Volume Level

General Operation

BASS TREBLE BALANCE FADER EQ LOUD SOURCE LEVEL

AC404iM OPERATION

Seek Tuning

Manual Tuning

Band

Storing and Recalling

Station Presets

Press TUNE

or TUNE

for more than one second

to seek to the next strong station.

Press TUNE

or TUNE

momentarily to change

radio frequency up or down one step at a time. Press and

hold to advance quickly.

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands.

Up to 18 FM stations and 12 AM stations can be stored. To

store a station, select the desired band and station. Press

and hold the desired preset button (1-6) for more than

2 seconds. When stored, the preset number will appear in

the display. The station can be recalled anytime by pressing

the corresponding preset button.

AM/FM Tuner Operation

AC404iM OPERATION

Motion Control

Overview

In Tuner mode

In CD, USB

and iPod mode

Motion control allows you to use simple hand gestures to

controlt the radio. Easily perform most-used functions such

as play/pause, volume up/down, and track forwards/

backwards.

Swipe your hand:

- Up across the sensor to increase the volume

- Down across the sensor to decrease the volume

- Right across the sensor to seek up and tune to the next

strong station

- Left across the sensor to seek down and tune to the next

strong station

Put your hand over the sensor to mute the audio

Swipe your hand:

- Up across the sensor to increase the volume

- Down across the sensor to decrease the volume

- Right across the sensor to skip to the next track

- Left across the sensor to return to the beginning of the

previous track.

Put your hand over the sensor to pause/play the track.

Note: The motion control feature may not work properly

with a large USB flash drive or a USB cable inserted. A low

profile USB flash drive is recommended.

Motion Control

AC404iM OPERATION

Insert CD

Eject CD

Track Select

Fast Forward and

Reverse

Pause

Intro

Repeat

Random

CD-R/CD-RW

Compatibility

With the label facing up, insert a standard size CD into the

CD slot. The CD will automatically begin playback.

Press EJECT to eject the CD. The unit will change to

previous mode of operation. If the disc is not removed within

10 seconds, the unit will reload the disc. The unit does not

have to be turned on to eject CD.

Press TRACK

to skip to the beginning of the next

track. Press TRACK

to return to the beginning of the

current track. Pressing TRACK

again skips to the

beginning of the previous track.

Press and hold TRACK

or TRACK

to fast

forward or reverse a track.

Press

to temporarily stop CD playback.

Press

again to resume playback.

Press INT to enter the Intro menu, then turn the volume

knob to select one of the following options:

• OFF - Cancels the INT function.

• ALL - Plays the first 10 seconds of each track.

Press RPT to enter the Repeat menu, then turn the volume

knob to select one of the following options:

• ALL - Plays all tracks on CD.

• TRACK - Continuously repeats selected track.

Press RDM to enter the Random menu, then turn the

volume knob to select one of the following options:

• OFF - Cancels the RDM function.

• ALL- Plays all tracks in random order.

Some CD-Rs and CD-RWs may be incompatible with this

unit, depending on media type and recording method. In

addition, the following CDs may be incompatible with this

unit:

CDs exposed to extreme temperatures or direct sunlight for

extended periods of time, CDs recorded in which a recording

session failed or a re-recording was attempted and, or

encrypted or copy-protected CDs which do not conform to

the audio CD-DA red book recording standard.

CD Player Operation

Table des matières

Autres manuels Axxera Récepteur de voiture

Axxera

Axxera AV7118Bi Mode d'emploi

Axxera

Axxera AVM1409W Mode d'emploi

Axxera

Axxera X2DMA500 Manuel utilisateur

Axxera

Axxera AXD530 Mode d'emploi

Axxera

Axxera X2DMA500 Instructions d'installation

Axxera

Axxera AC328BT Mode d'emploi

Axxera

Axxera AXV820 Manuel utilisateur

Axxera

Axxera AXD430 Mode d'emploi

Axxera

Axxera XDMA7100 Instructions d'installation

Axxera

Axxera AXV3D Manuel utilisateur

Axxera

Axxera AXD430 Mode d'emploi

Axxera

Axxera AXV150BT Mode d'emploi

Axxera

Axxera AVM72NAVLH Manuel utilisateur

Axxera

Axxera AV604Bi Mode d'emploi

Axxera

Axxera AXD530 Instructions d'installation

Axxera

Axxera AV615BHM Mode d'emploi

Axxera

Axxera AXD330 Instructions d'installation

Axxera

Axxera Axxera Car Audio Manuel utilisateur

Axxera

Axxera XDMA7200 Instructions d'installation

Axxera

Axxera AC536Bi Mode d'emploi

Axxera

Axxera AXD130 Mode d'emploi

Axxera

Axxera AV714BH Manuel utilisateur

Axxera

Axxera AXD130 Instructions d'installation

Axxera

Axxera ACPM6628BT Mode d'emploi

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
