03
ASSEMBLY (see page 04 )
EN
SAFETY NOTES
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
Children as well as adults with physical, mental and⁄or
sensoric impairments must not use this product without
proper supervision. Persons under the influence of
alcohol or drugs are prohibited from using this product.
Do not allow the streams of the shower touch sensitive
body parts (such as your eyes). An adequate distance
must be kept between the shower and you.
The product may not be used as a holding handle. A
separate handle must be installed.
The hot and cold supplies must be of equal pressures.
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and
tested as per the applicable standards.
⁄ The plumbing codes applicable in the respective
countries must be observed.
⁄ The mesh washer must be insert to protect the shower
against incoming dirt by pipework. Incoming dirt leads
to defects or⁄and can damage parts of the shower;
such caused faults voids all liability and guarantee
claims.
TECHNICAL DATA
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C ⁄ 4 min
The product is exclusively designed for drinking water!
SYMBOL DESCRIPTION
Do not use silicone containing acetic acid!
ADJUSTMENT (see page 05 )
To adjust the hot water limiter. Using a hot water
limiter in combination with a continuous flow
water heater is not recommended.
Hot and cold supplies are reversed
(see page 03 )
DIMENSIONS (see page 06)

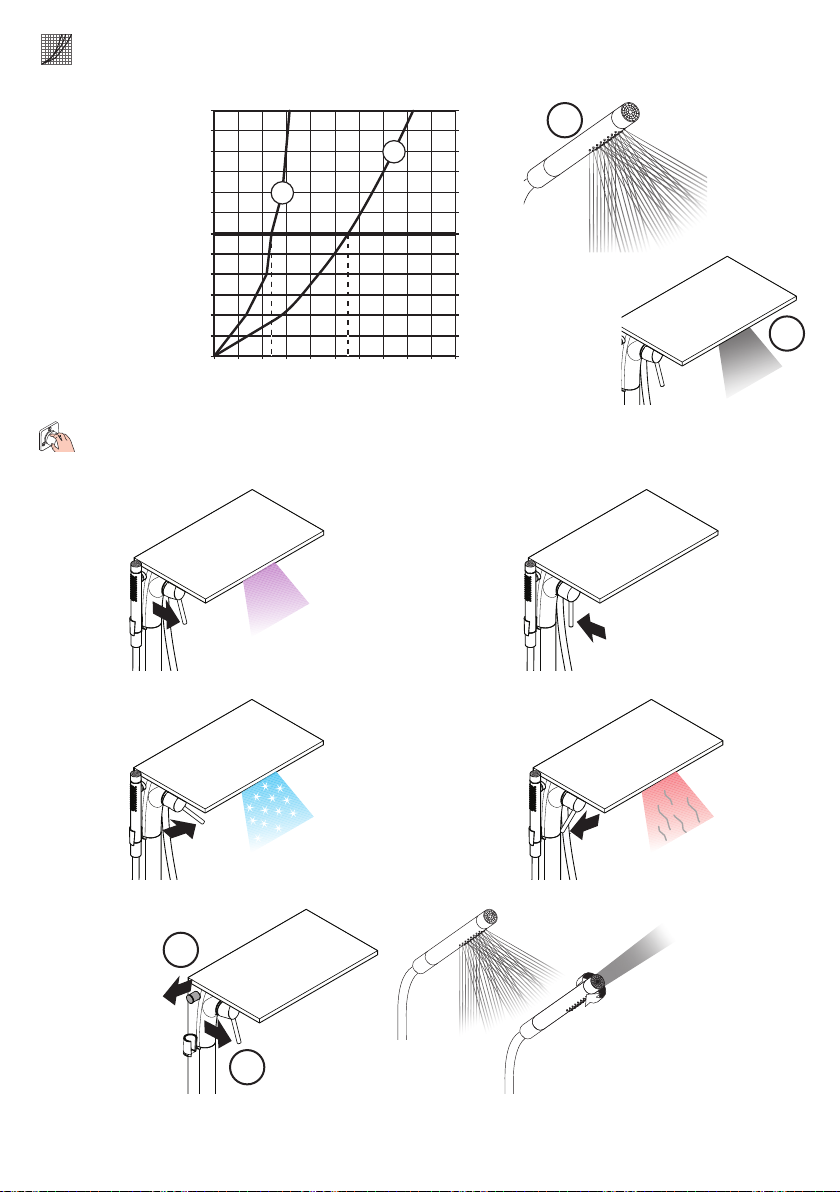

FLOW DIAGRAM (see page 08 )
SPARE PARTS (see page 12 )
SPECIAL ACCESSORIES
(order as an extra)
⁄ extension 60 mm #97686000 (see page 12 )

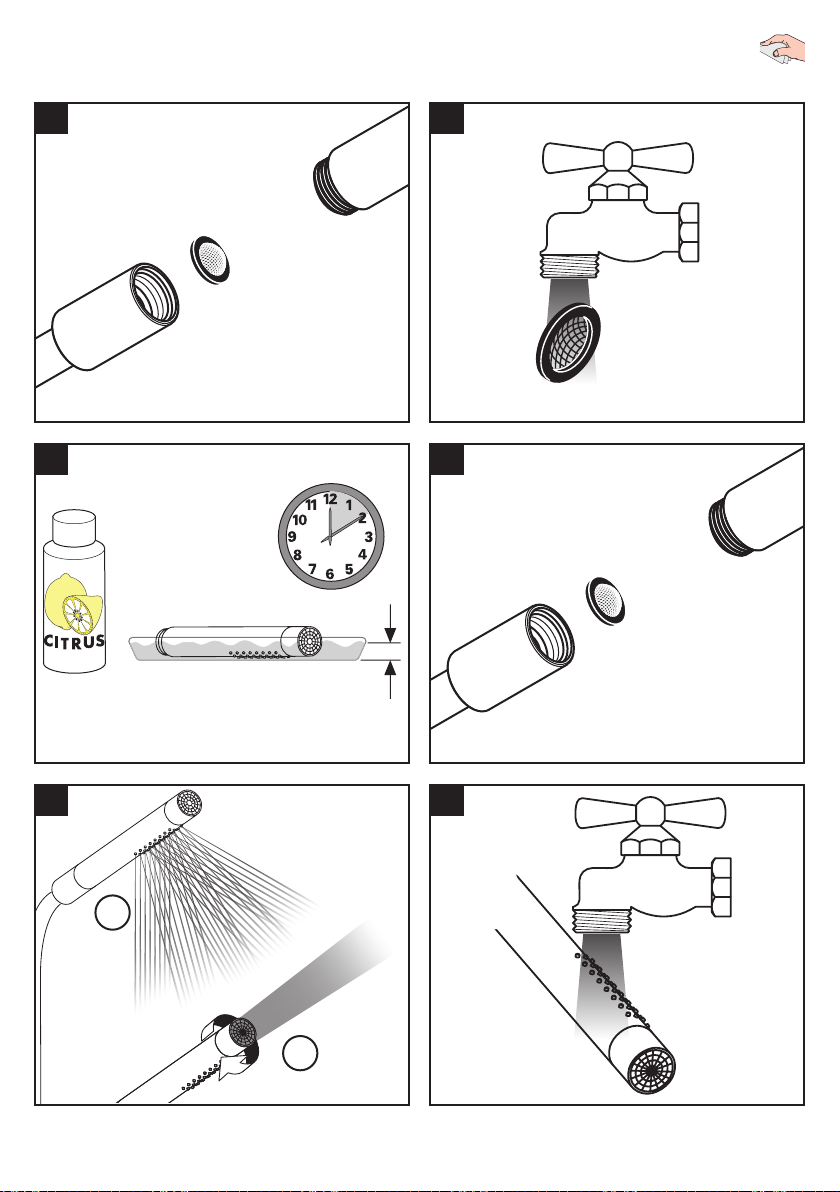

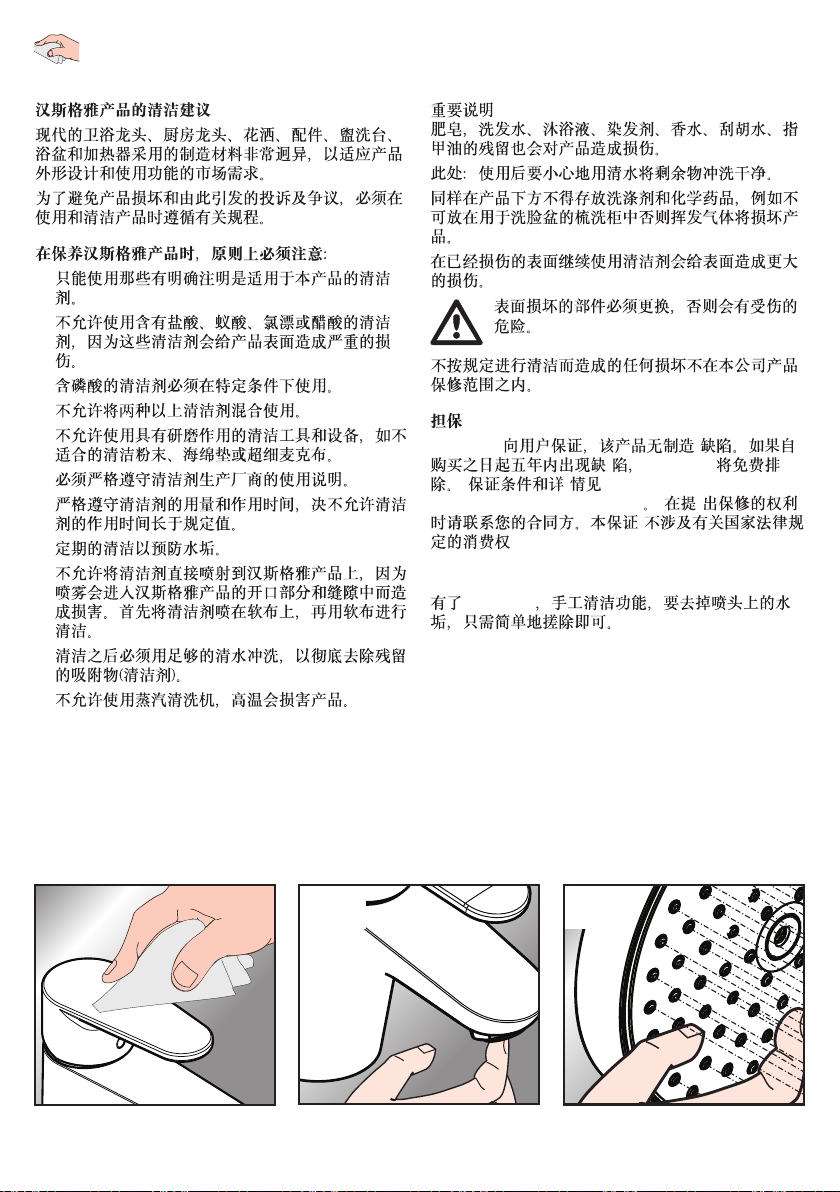

CLEANING (see page 09)
OPERATION (see page 08 )
FAULT CAUSE REMEDY
⁄ Insufficient water ⁄ Shower filter seal dirty ⁄ Clean filter seal between shower and
hose
⁄ Mixer stiff ⁄ Cartridge defective, calcified ⁄ Exchange cartridge
⁄ Mixer dripping ⁄ Cartridge defective ⁄ Exchange cartridge
⁄ Water escaping in area of swivel
spout
⁄ O-ring defective ⁄ Exchange O-ring
⁄ Instantaneous heater didn’t work ⁄ Shower filter seal dirty ⁄ Clean filter seal between shower and
hose
⁄ Flow limiter in handshower isn’t re-
moved
⁄ Remove flow limiter
⁄ Hot water temperature too low ⁄ Hot water limiter incorrectly set ⁄ Set hot water limiter
