AW1400B

Bandsaw

Code 107710

Original Instructions

AT: 22/07/2022

BOOK VERSION: 10

INDEX OF CONTENTS

EU DECLARATION OF CONFORMITY

EU Declaration of Conformity 02

What’s Included 03-04

General Instructions for 230V Machines 05-06

Speciﬁcation 06

Assembly 06-07-08

Illustration and Parts Description 09-10-11-12-13

Setting Up the Saw 14-15-16-17-18-19

Operating Instructions 19-20

Changing the Saw Blade 20-21

Routine Maintenance 22

Machine Footprint 23

Bandsaw Blade Information 24-25

AW1400B Bandsaw Blades 26

Bandsaw Trouble Shooting/Accessories 26

UJK Technology Bandsaw Buddy 27

Exploded Diagrams/Lists 28-29-30-31

Wiring Diagram 31

Cert No: MJ3420, MJ3425,

MJ343C, MJ343B

Axminster Tool Centre Ltd

Axminster Devon

EX13 5PH UK

axminstertools.com

Type Bandsaw

Model AW1400B conforms to the machinery example for which the

EC Type-Examination Certiﬁcate No BM 50421300

has been issued by Laizhou Fulin Machinery Co., Ltd.

at:Wenchang Road Street Nanwuli Industry Yard

Laizhou, Shandong261400 China

and complies with the relevant essential health and safety requirements.

2006/42/EC

2004/108/EC

EN 1807-1:2013

EN 60204-1:2006+A1+AC

declares that the machinery described:-

This machine complies with the following directives:

EU Declaration of Conformity

06/42/EC - Annex I/05.2006

Signed

Andrew Parkhouse

Operations Director Date: 05/11/2018

Fully read manual

and safety instructions

before use

Eye protection

should be worn

Ear protection

should be worn

HAZARD

Motor gets hot

Dust mask

should be worn

The symbols below advise the correct safety procedures when using this machine.

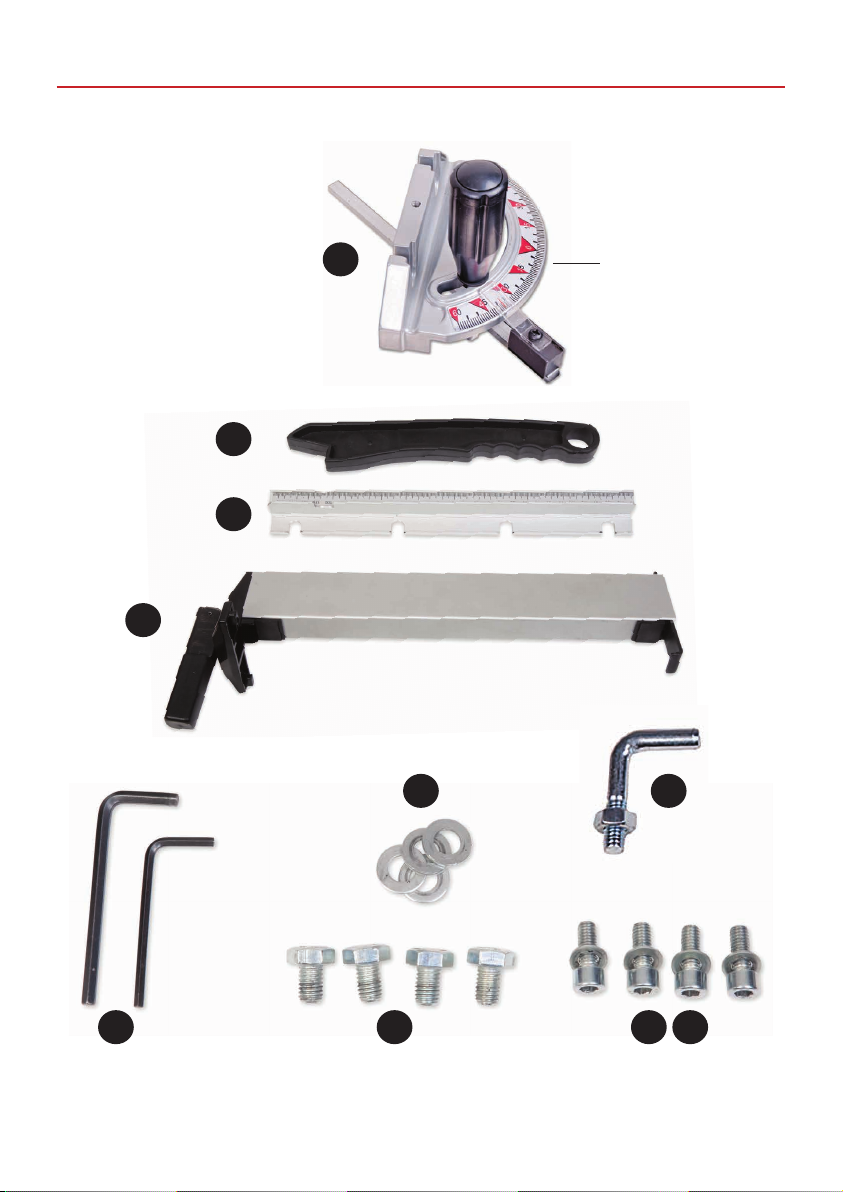

WHAT’S INCLUDED

Quantity Item Part Model Number

AW1400B

1 Craft Bandsaw A

1 Bandsaw Blade 1,400mm Long 6mm 6TPI

(Mounted on the saw but not tensioned)

1 Table B

1 Fence Rail C

1 Fence Assembly D

1 Mitre Fence (Optional Accessory) E Code: 102919

1 Push Stick F

1 Fence Rail Scale Strip (see pages 17-19 for mounting instructions)

Fixings

4 M6 x 12mm Caphead Screws G

4 M6 Washers H

4 M8x12mm Bolts I

4 M8 Washers J

1 Angled Bolt and Nut K

1 3-4mm Hex Key L

4 Adjustable Rubber Feet M

1 Instruction Manual

Having unpacked your saw (see below) and its accessories please dispose of any unwanted packaging

properly.The cardboard packaging is biodegradable.

WHAT’S INCLUDED

HI G

Optional Mitre Fence

Code: 102919

GENERAL INSTRUCTIONS FOR 230V MACHINES

The following will enable you to observe good

working practices, keep yourself and fellow workers

safe and maintain your tools and equipment in good

working order.

Mains Powered Tools

•Tools are supplied with an attached 13 Amp plug.

•Inspect the cable and plug to ensuree that neither

are damaged.Repair if necessary by a suitably

qualiﬁed person.

•Do not use when or where it is liable to get wet.

Workplace

•Do not use 230V a.c. powered tools anywhere

within a site area that is ﬂooded.

•Keep machine clean.

•Leave machine unplugged until work is about to

commence.

•Always disconnect by pulling on the plug body

and not the cable.

•Carry out a ﬁnal check e.g. check the cutting tool.

is securely tightened in the machine and the

correct speed and function set.

•Ensure you are comfortable before you start work,

balanced,not reaching etc.

•Wear appropriate safety clothing, goggles, gloves,

masks etc.Wear ear defenders at all times.

•If you have long hair wear a hair net or helmet to

prevent it being caught up in the rotating parts of

the machine.

•Consideration should be given to the removal of

rings and wristwatches.

•Consideration should also be given to non-slip

footwear etc.

•If another person is to use the machine, ensure they

are suitably qualiﬁed to use it.

•Do not use the machine if you are tired or distracted

•Do not use this machine within the designated

safety areas of ﬂammable liquid stores or in areas

where there may be volatile gases.

•Check cutters are correct type and size,are

undamaged and are kept clean and sharp, this will

maintain their operating performance and lessen

the loading on the machine.

•

OBSERVE….

make sure you know what is

happening around you and

USE YOUR COMMON

SENSE.

WARNING!! KEEP TOOLS AND

EQUIPMENT OUT OF REACH OF

YOUNG CHILDREN

KEEP WORK AREA AS

UNCLUTTERED AS IS

PRACTICAL. UNDER NO

CIRCUMSTANCES SHOULD

CHILDREN BE ALLOWED IN

THE WORK AREA.

SPECIFICATION

Code 107710

Model AW1400B

Rating Workshop

Power 250W 230V 1ph

Blade Speed 800 m/min

Blade Length 1,400 mm

Blade Width Min/Max 6 mm to 9.5 mm

Max Width of Cut 200 mm

Max Depth of Cut 80 mm

Max Width of Cut with Fence 102 mm

Airﬂow 200 m3/hr

Table Size 300 x 300 mm

Table Tilt 0-45°

Table Height 290 mm

Wheel Diameter 200 mm

Dust Extraction Outlet 40 mm

Overall L x W x H 450 x 430 x 700 mm

Weight 20 kg

Please read the Instruction Manual prior to using your new machine; as well as the operating procedures for

your new machine,there are numerous hints and tips to help you to use the machine safely and to maintain

its efﬁciency and prolong its life.

Keep this Instruction Manual readily accessible for any others who may also be required to use the

machine.

NOTE:The table can be ﬁtted without removing the

bandsaw blade. However, if you feel safer with the

bade removed, loosen the blade tensioning knob

(A),see ﬁg 01 and very carefully remove the blade. To

reﬁt the blade refer to pages 18-19 for “Changing the

Saw Blade”.

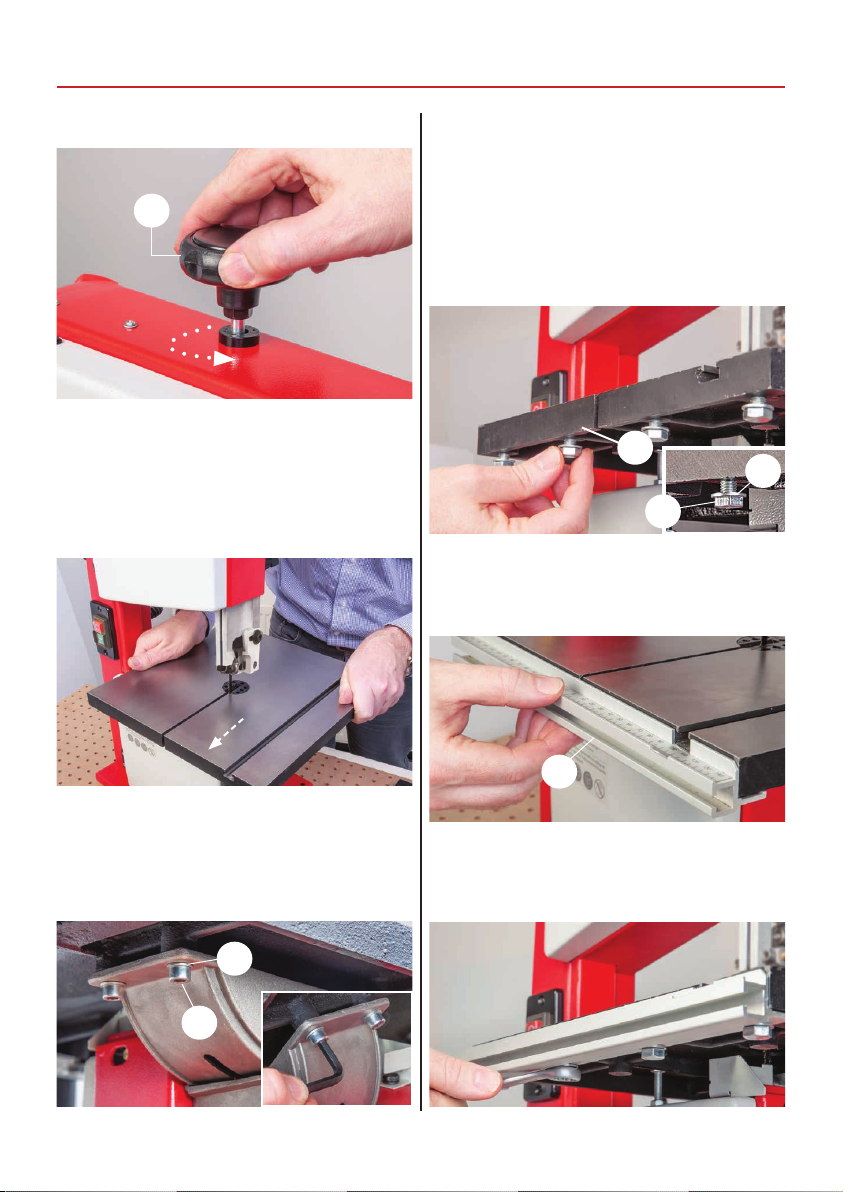

Fitting the Table

Fitting the Rubber Feet

WARNING! WE ADVISE YOU

WEAR GLOVES AS THE BLADE

HAS SHARP TEETH!

ASSEMBLY

Locate the four adjustable rubber feet (M), screw

each foot in turn into each corner to the underside of

the bandsaws base,see ﬁg A & B. Stand the bandsaw

upright, adjust each foot until the bandsaw is level.

Nip-up the locking nuts against the frame to secure

in position.

Thread rubber foot

Locking nut Mounting

bracket

ASSEMBLY

Fig 02

Fig 01

Step 1 Locate the bandsaw table (B), the four M6

caphead screws (G) and washers (H). Slot the blade

into the table’s slot and line up the threaded holes

in the table with the pre-drilled holes on the tilt

quadrant, see ﬁg 02.

Step 2 Place a washer (H) over each M6 caphead

screw (G),screw the caphead screws through the

tilt quadrant into the table and tighten using the

supplied spanner, see ﬁg 03.

Fig 03

Step 1 Locate the fence rail (C), fence assembly (D),

four M8 bolts (I) and washers (J). Place a washer over

the end of each bolt and lightly screw the bolts into

the threaded holes beneath the front of the table (B),

see ﬁg 04. NOTE: Leave sufﬁcient distance between

the bolt head and table for mounting the fence

rail.

Fitting the Fence

Fig 04

Step 2 Find the fence rail (C), line up the half moon

cutouts with the four bolts in the table and insert the

fence rail up against the table (B), see ﬁg 05.

Fig 05

Continues Over...

Secure the fence rail (C) in position by tightening the

four bolts with the supplied spanner, see ﬁg 06.

Fig 06

ASSEMBLY

Fig 08

Fig 07

Fence rail“T” slot

Clamping lever

Step 4 Locate the angled bolt (K), screw the

threaded end of the bolt into the threaded hole to

the top of the bandsaw frame and, using the supplied

10mm spanner, tighten with the nut to lock the bolt

in position, see ﬁg 09. Find the push stick (F) and

hook it onto the angled bolt (K), see ﬁg 10.

Fig 09-10

Fig 11

Table“T” slot EE

Step 3 Locate the fence assembly (D).Lower the

fence over the table until the clamping lever

assembly slots into the fence rail’s “T” slot. NOTE:

Make sure the clamping hook to the rear of the

fence (D) has engaged over the rear of the table.

Twist the locking lever clockwise to adjust the

clamping tension.(two rotations should be adequate)

then press down the lever to lock the fence in

position, see ﬁgs 07-08.

Step 5 Locate the optional mitre fence assembly (E)

and slide it into the table’s “T” slot, see ﬁg 11.

ILLUSTRATION AND PARTS DESCRIPTION

Lower wheel door

Guide fence

Upper door locking knob

Lower door locking knob

Upper blade guide and guard

Fence guide rail

Saw table‘T’ slot for mitre fence

ON/OFF buttons

Upper wheel door

Blade tensioning knob

Blade

Table insert

ILLUSTRATION AND PARTS DESCRIPTION

Optional mitre fence assembly (A)

Index and pointer (B)

Blade guide adjusting knob (A)

Blade guide clamp (B)

Blade tensioning knob

Table levelling stop bolt

Tracking control knob (A)

Tracking control butterﬂy lock (B)

Tilt quadrant (A),Tilt scale (B)

Tilt scale pointer and adjusting screw (C)

ON/OFF NVR switch assembly

OFF
