Axminster Professional AP1854B Manuel utilisateur

AP1854B & AP1854BV

Bandsaw

AP1854B (BS11) Code 107651

AP1854BV (BS11-INV) Code 107652

Model

AP1854B

Model

AP1854BV

INV Variable Speed Control

Electro-magnetic brake

key switch

AT: 08/02/2022

BOOK VERSION: 6

Original Instructions

INDEX OF CONTENTS

EU DECLARATION OF CONFORMITY

EU Declaration of Conformaity 02

What’s Included 03

Optional Accessories 04

General Instructions for 230V Machines 05

Speciﬁcation 06

Stand Assembly 07

Mounting the Bandsaws 08

Machine Footprint 09

Illustration & Parts Description 10-11-12-13-14-15

Setting Up the Saw 16-17-18-19-20

General Operating Instructions 21

Speciﬁc Operating Instructions 22-23-24

Electro-magnetic Motor Brake Switch/Extraction Outlets 25

Changing the Blade Speed 26-27

Changing the Saw Blade 28-29

Routing Maintenance 30

Bandsaw Blade Information 31-32

BandsawTrouble Shooting/Accessories 33

Exploded Diagram/List (AP1854B Bandsaw) 34-35-36

Exploded Diagram/List (AP1854BV Bandsaw) 37-38-39

Wiring Diagram 40-41

Notes 42-43

The symbols below advise the correct safety procedures when using this machine.

Fully read manual

and safety instructions

before use

Eye protection

should be worn

Ear protection

should be worn HAZARD

Dust mask

should be worn

Cert No:BS11,BS11INV

AxminsterTool Centre Ltd

Axminster Devon

EX13 5PH UK

axminstertools.com

Type Bandsaw

Model AP1854B & AP1854BV and conforms to the machinery example for which the

ECType-Examination Certiﬁcate No MDC 1522

has been issued by KINGCRAFT MACHINERY COMPANY LIMITED

at:No.26.GONGYEH 12RD.,DAH LI DISTRICT,TAICHUNG CITY,TAIWAN

and complies with the relevant essential health and safety requirements.

2006/42/EC

EN 1870-1:2013

declares that the machinery described:-

This machine complies with the following directives:

EU Declaration of Conformity

Signed

Andrew Parkhouse

Operations Director Date: 06/01/2020

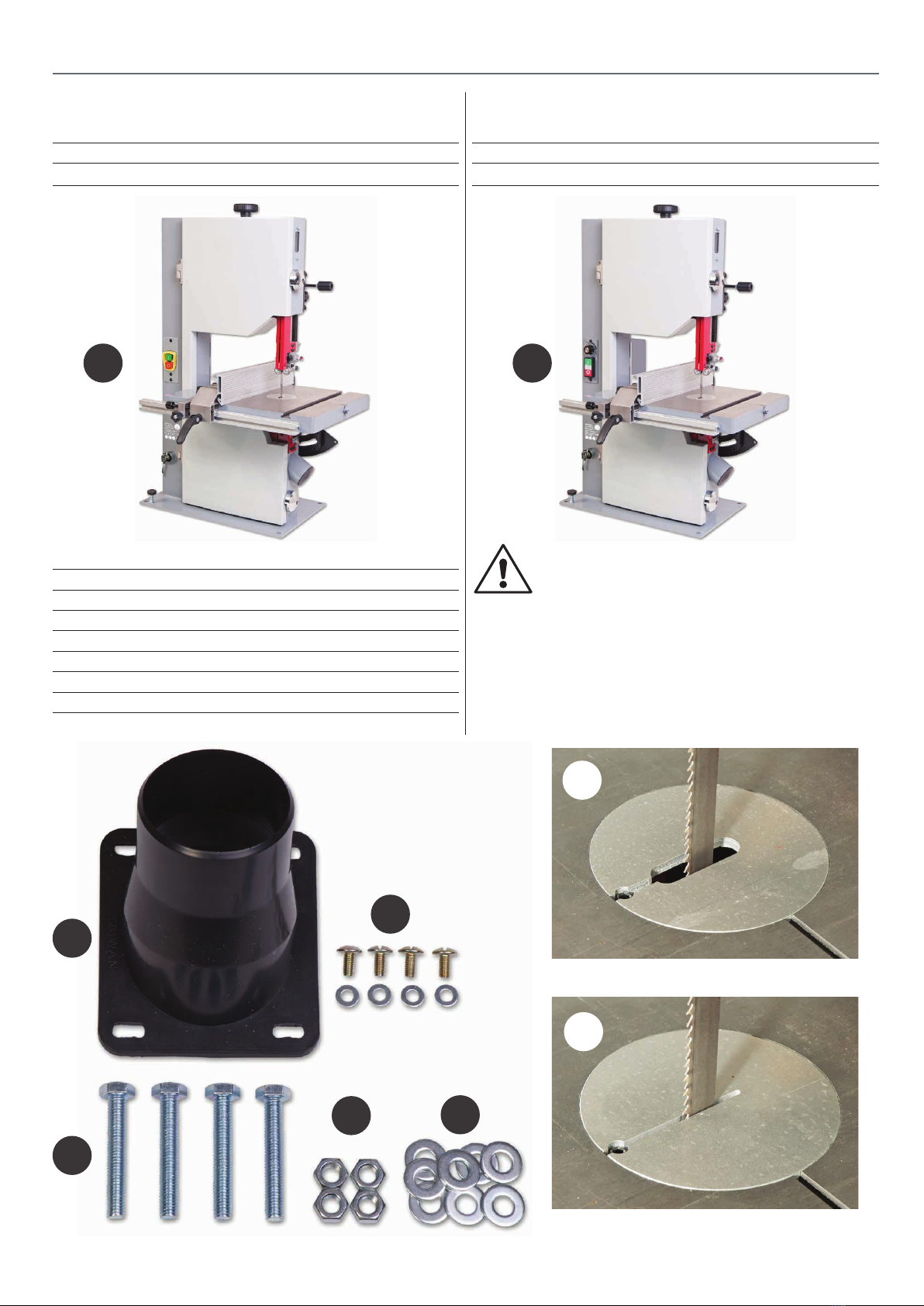

WHAT’S INCLUDED

Quantity Item Part

1 No AP1854B Bandsaw A

Quantity Item Part

1 No AP1854BV Bandsaw B

Model Number BS11 Model Number BS11-INV

1 No Dust Extraction Outlet C

4 No M5 Domed Phillips Screws and

Washers D

4 No M8 x 50mm Bolts E

4 No M8 Nuts F

4 No M8Washers G

1 No Table Insert H

1 No Table Insert (AT1854BV ONLY) I

Please read the Instruction Manual prior to using

your new machine;as well as the operating procedures

for your new machine,there are numerous hints and tips to

help you to use the machine safely and to maintain its

efﬁciency and prolong its life.Keep this Instruction Manual

readily accessible for any others who may also be required to

use the machine.

A B

EFG

x4 M8

Bolts x24 M8

Coach Bolts x32 M8

Washers x28 M8

Nuts x4 Thread Rubber

Foot

A E B C D

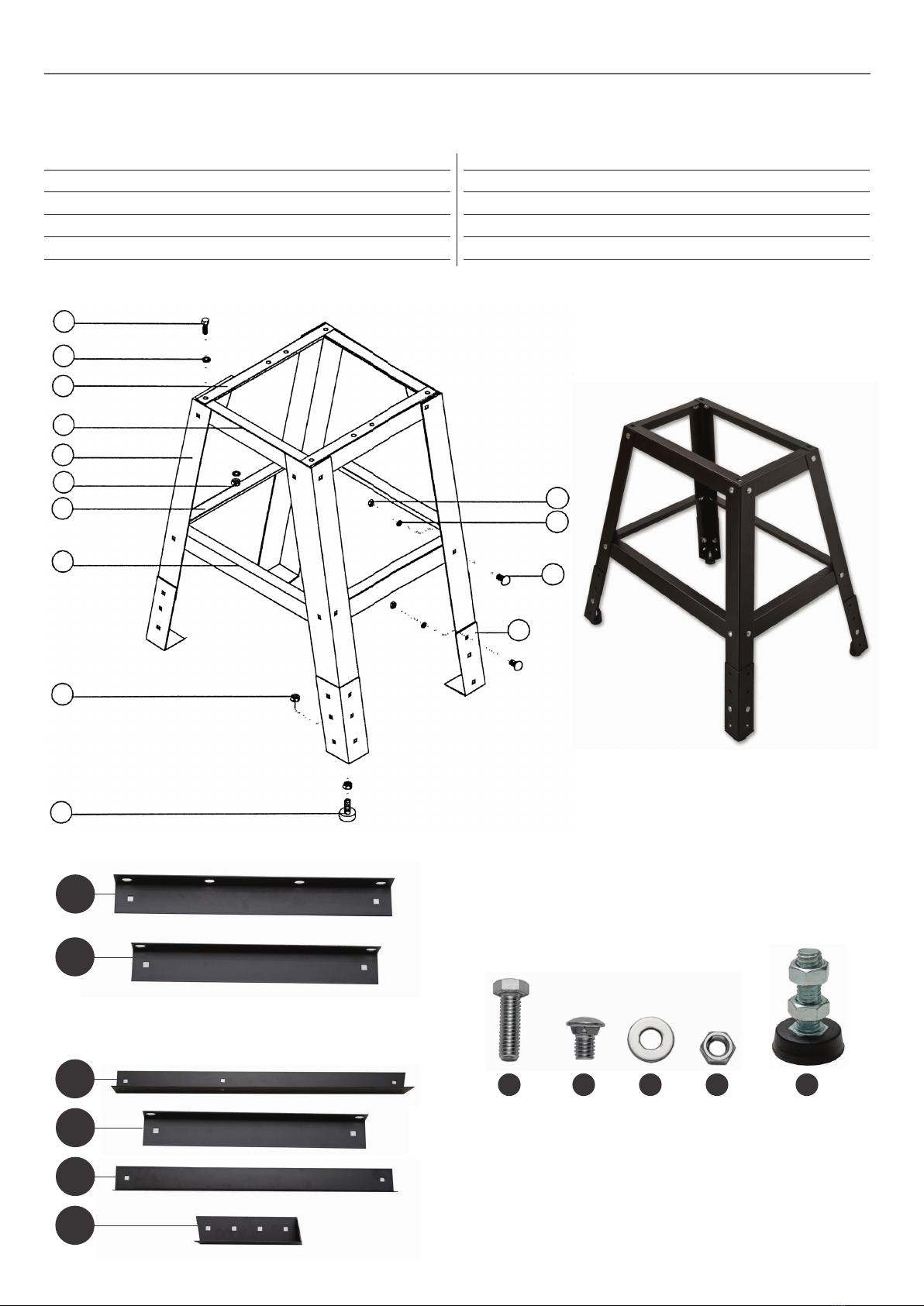

OPTIONAL ACCESSORIES

04 No M8 Bolts A

32 No M8Washers B

28 No M8 Nuts C

04 No Threaded Rubber Feet D

32 No M8 Coach Bolts E

2 No Long Struts (Upper) 1

2 No Short Struts (Upper) 2

4 No Leg‘A’Frames’ 3

2 No Short Struts (Lower) 4

2 No Long Struts (Lower) 5

Stand Assembly (Code 102028)

GENERAL INSTRUCTIONS FOR 230V MACHINES

GoodWorking Practices/Safety

The following will enable you to observe good working

practices,keep yourself and fellow workers safe and maintain

your tools and equipment in good working order.

WARNING!! KEEPTOOLS AND EQUIPMENT

OUT OF REACH OFYOUNG CHILDREN

Mains PoweredTools

•Tools are supplied with an attached 13 Amp UK 3 pin plug,

ﬁtted with 13 amp fuse

• Inspect the cable and plug to ensuree that neither are

damaged.Repair if necessary by a suitably qualiﬁed person.

• Do not use when or where it is liable to get wet.

Workplace

• Do not use 230V a.c.powered tools anywhere

within a site area that is ﬂooded.

• Keep machine clean.

• Leave machine unplugged until work is about to commence.

• Always disconnect by pulling on the plug body and not the

cable.

•Carry out a ﬁnal check e.g.check the cutting tool

is securely tightened in the machine and the correct

speed and function set.

•Ensure you are comfortable before you start work,

balanced,not reaching etc.

•Wear appropriate safety clothing,goggles,gloves,

masks etc.Wear ear defenders at all times.

•If you have long hair wear a hair net or helmet to prevent it

being caught up in the rotating parts of the machine.

•Consideration should be given to the removal of rings and

wristwatches.

•Consideration should also be given to non-slip footwear etc.

•If another person is to use the machine,ensure they are

suitably qualiﬁed to use it.

•Do not use the machine if you are tired or distracted

•Do not use this machine within the designated safety areas

of ﬂammable liquid stores or in areas where there may be

volatile gases.

•Check cutters are correct type and size,are undamaged

and are kept clean and sharp,this will maintain their

operating performance and lessen the loading on the

machine.

•OBSERVE…. make sure you know what is happening

around you and USE YOUR COMMON SENSE.

KEEPWORK AREA AS UNCLUTTERED AS IS

PRACTICAL.UNDER NO CIRCUMSTANCES SHOULD

CHILDREN BE ALLOWED INWORK AREAS.

SPECIFICATION

Code 107651

Model AP1854B

Rating Professional

Power 750W 230V 50Hz 1ph

Blade Speed 534 m,819m/min

Blade Length 1,858 mm

BladeWidth Min/Max 3 mm /12 mm

MaxWidth of Cut 250 mm

Max Depth of Cut 160 mm

MaxWidth of Cut with Fence 220 mm

Table Size 350 x 350 mm

TableTilt -5˚ to +45˚

Table Height 340 mm

Dust Extraction Outlet 63 mm

Base Size 455 x 280 mm

Overall L xW x H 590 x 540 x 850 mm

Overall L xW x H with stand 750 x 540 x 1530 mm

Weight 60 kg

Code 107652

Model AP1854BV

Rating Professional

Power 750W 230V 50Hz 1ph

Blade Speed (L) 42-660m,(H) 64m-1001m/min

Blade Length 1,858 mm

BladeWidth Min/Max 3 mm/12 mm

MaxWidth of Cut 250 mm

Max Depth of Cut 160 mm

MaxWidth of Cut with Fence 220 mm

Table Size 350 x 350 mm

TableTilt -5˚ to +45˚

Table Height 340 mm

Dust Extraction Outlet 63 mm

Base Size 455 x 280 mm

Overall L xW x H 590 x 540 x 850 mm

Overall L xW x H with stand 750 x 540 x 1530 mm

Weight 63 kg

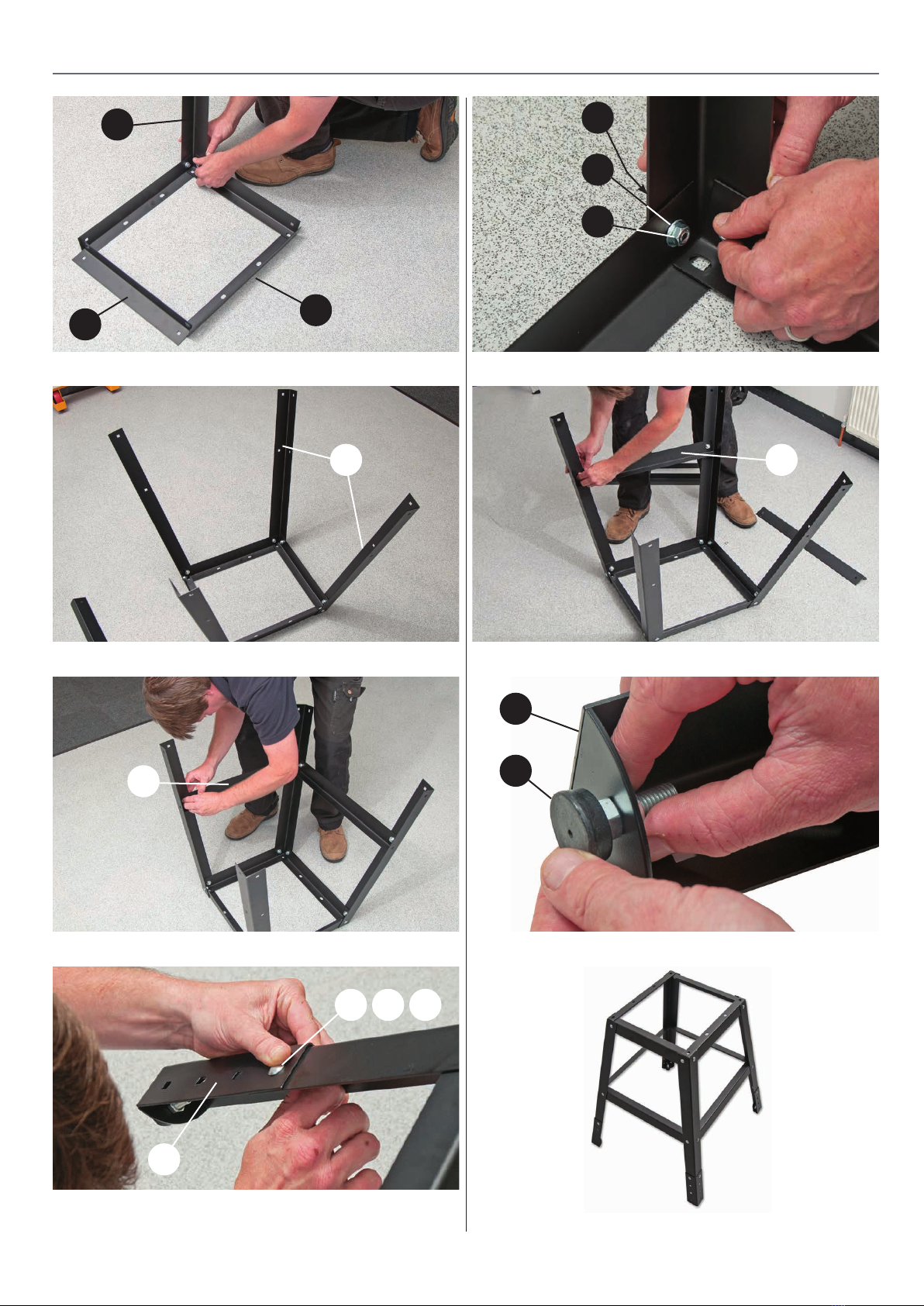

STAND ASSEMBLY

Step 2Step 1

3 4

Step 3Step 4

Step 5Step 6

E B C

Use the holes in the bracket (6) to adjust the stand height

Step 7Stand assembled

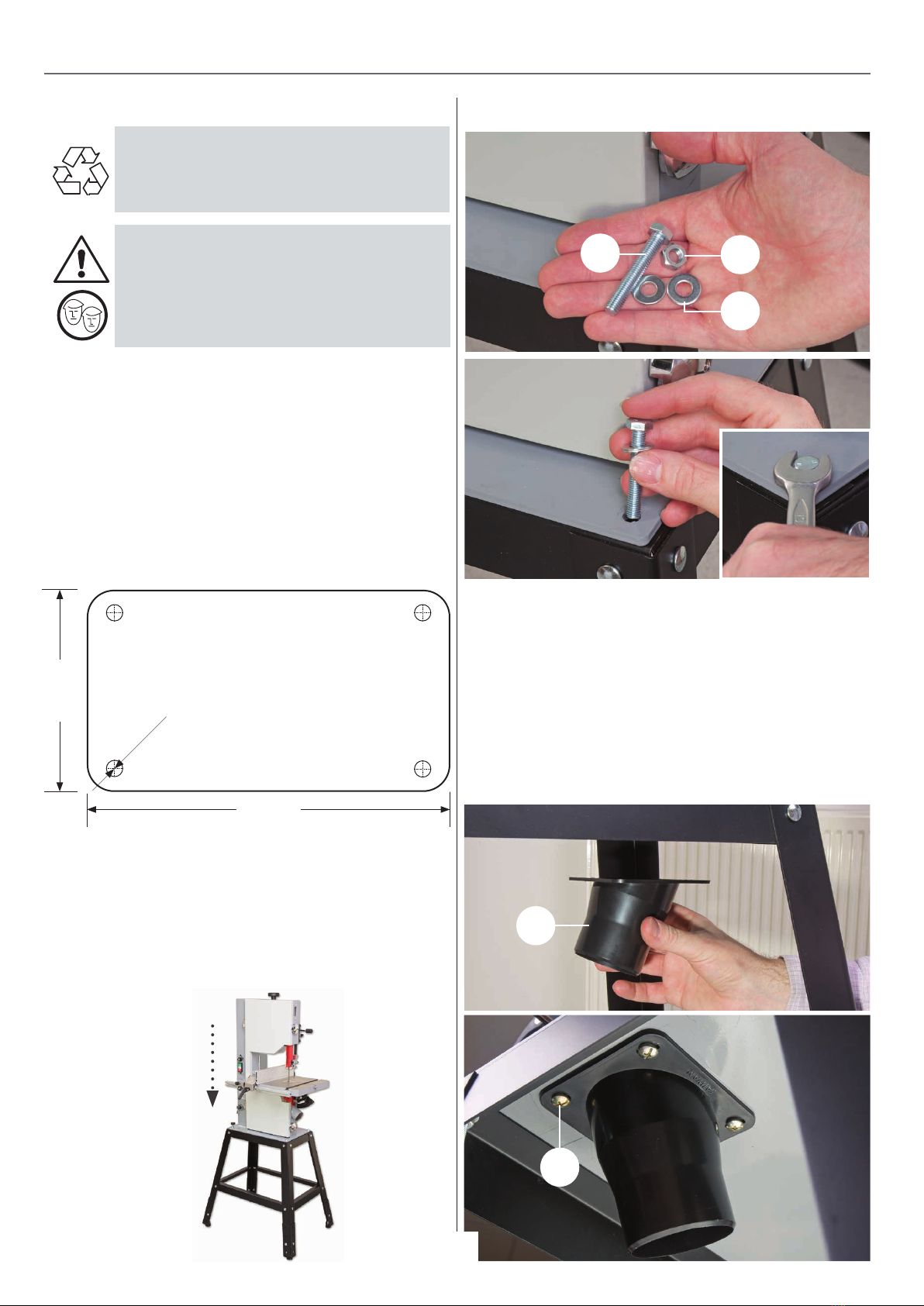

MOUNTING THE BANDSAWS

Whenyoureceveyour newbandsaw itwill comefullyassembled.

WARNING!THE BANDSAW IS A HEAVY PIECE

OF MACHINERY,WE STRONGLY ADVISEYOU

GETTHE ASSISTANCE OF ANOTHER PERSON

OR USE SOME SORT OF LIFTING DEVICE,

(HOIST,ENGINE CRANE),BEFOREYOU

ATTEMPT TO LIFT OR MOVETHIS MACHINE!

HAVING UNPACKEDYOUR ACCESSORIES PLEASE

DISPOSE OF ANY UNWANTED PACKAGING

PROPERLY.THE POLYTHENE AND CARD IS

RECYCLABLE.

Workbench

Optional Bandsaw Stand

Locatethe fourM8x50mmbolts(E),M8Washersand nuts(F-G).

1.Place the bandsawon a work bench.Mark the position ofthe

holes in thebandsaw’s base,place the bandsawto one side and

drillthe holesusinga 10mmdrill bit.

2.Line up the holesand securethe bandsaw in place with theM8

bolts,washersand nuts.

4 ø 10mm

455mm

280mm

1.Locatethestand,with assistance lift the bandsawontothe

stand and lineup the pre-drilled holeswith the holes in thestand

assembly.

2.Place a washer(F) over theM8 bolt threads (E),slot the bolts

through theholes and secure usingthe remaining washers and

nuts(G),seeﬁg 01-02-03.

Fig 01

Fig 02-03-04

3.Locate the dust extraction moulding outlet (C) and the four

M5 domed Phillips screws and washers (D).

4. Line up the four holes in the extraction moulding with the

threaded holes beneath the bandsaw base and secure in place

with the four Phillips screws and washers (D),see ﬁg 05-06.

Note:Make sure the extraction outlet is pointing inward

Fig 05-06

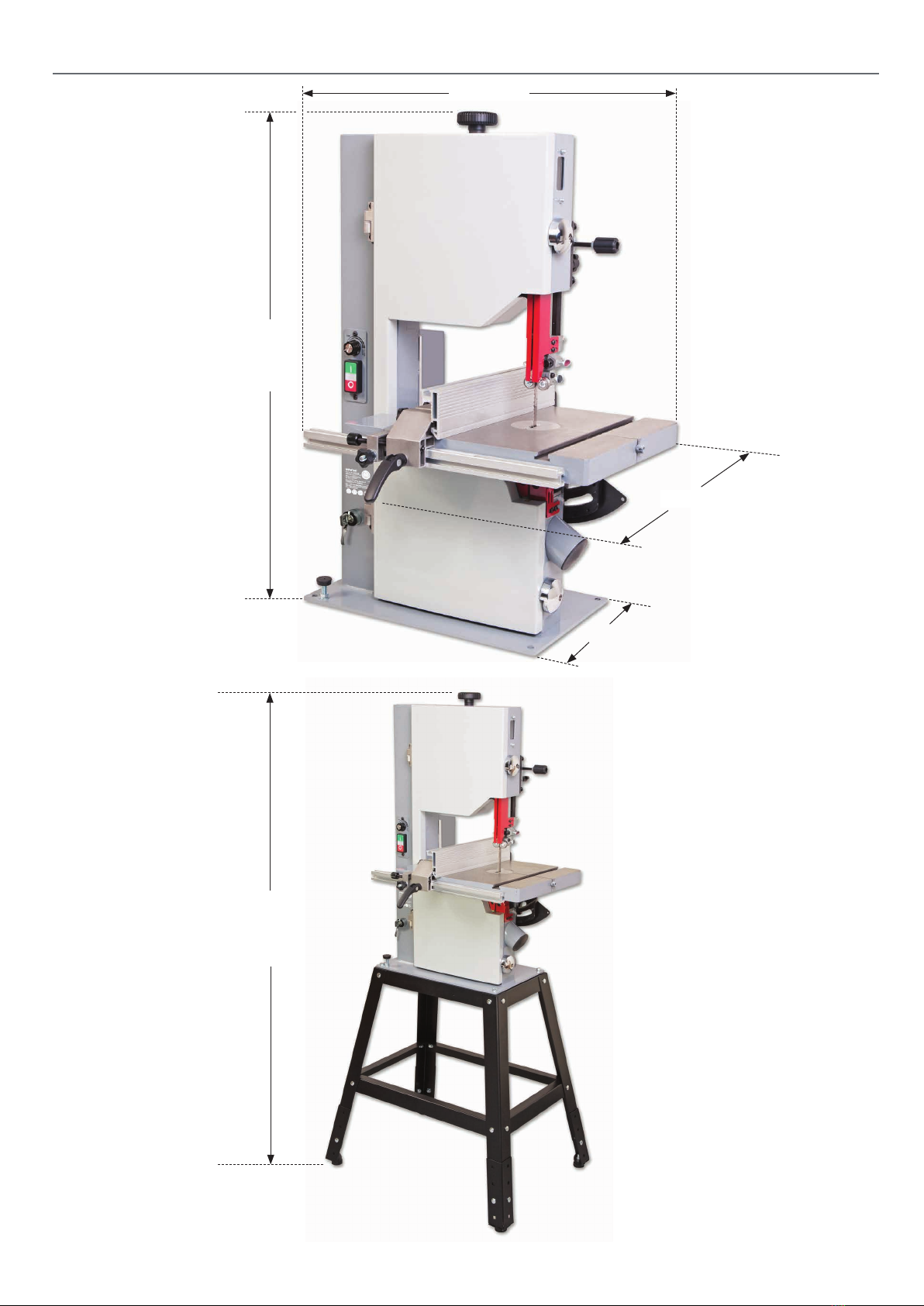

MACHINE FOOTPRINT

540mm

590mm

850mm1530mm

280mm

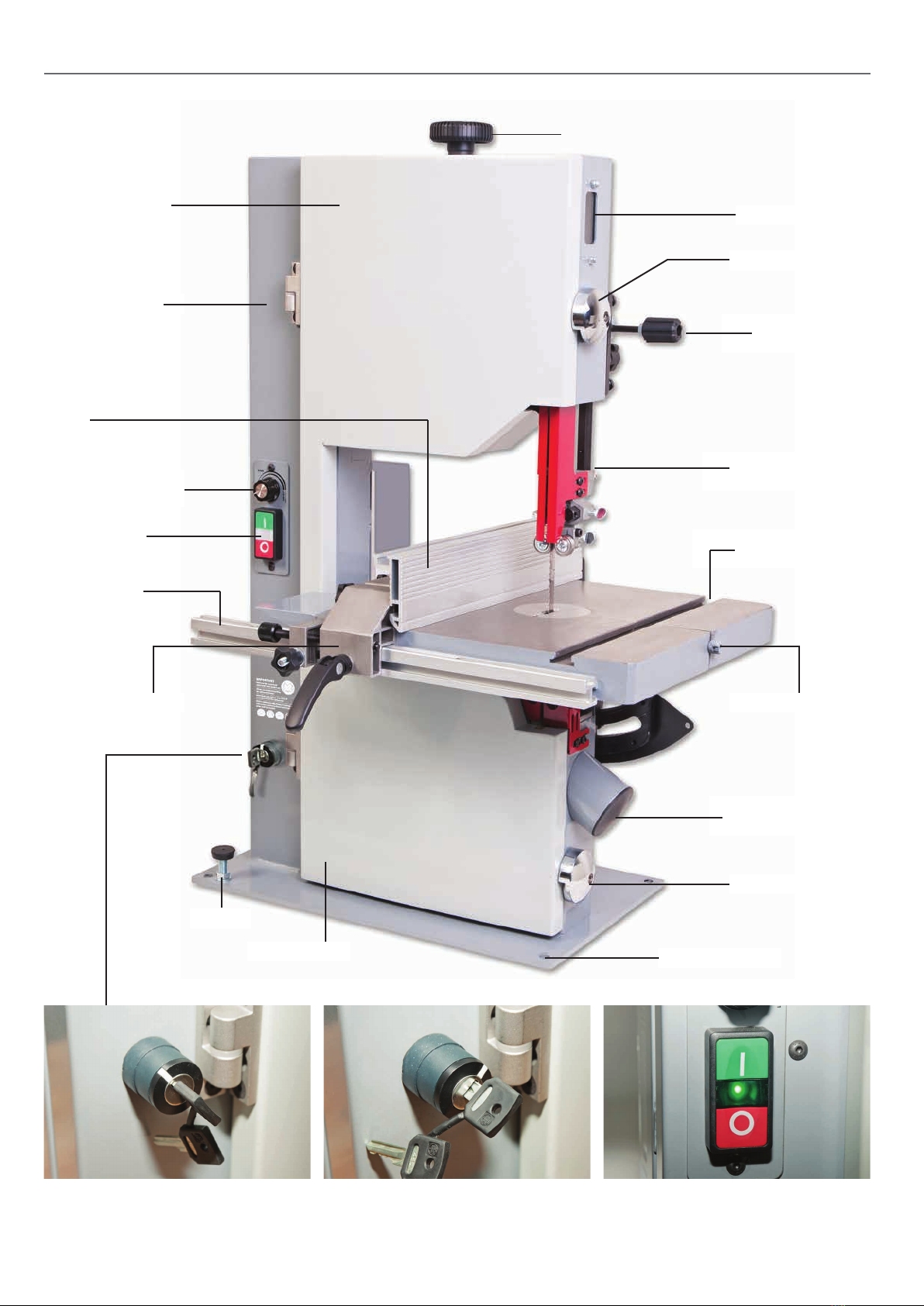

ILLUSTRATION & PARTS DESCRIPTION

Blade tensioning knob

Upper door chrome latch

Blade tracking window

Lower door chrome latch

Front dust extraction

outlet with rubber cap

Upper blade guide

adjusting knob

Upper blade guide

and guard assembly

Saw table‘T’slot for mitre fence

(Not Supplied)

Table alignment pin

Saw wheel access door

Lower wheel door 10mm mounting hole

Main saw frame

Variable speed control

AP1854BV ONLY

ON/OFF buttons

Fence guide rail

Fence

Fence clamp assembly

Door stop

The electro-magnetic brake switch,

set to the‘OFF’position isolating the bandsaw The electro-magnetic brake switch,

set to the‘ON’position When the switch is set to the‘ON’ position the

‘GREEN LED’lights up on the control panel.

This puts power to the bandsaw
