Axis Q6225-LE Manuel utilisateur

AXISQ6225-LEPTZCamera

RepaintingInstructions

AXISQ6225-LEPTZCamera

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

axis.com/warranty-implication-when-repainting.

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ6225-LEPTZCamera

Repaintteproduct

Preparations

•Ifapplicable,disassemblethedeviceaccordingtotheinstructionsinthisdocument.

•Cleanallpartsthatwillberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskanyopenings(forexampleforscrews,LEDindicators,

ormicrophones)beforeyoupaint.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne

sandpaper,andcleanthepartsbeforepainting.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

aterialusedinproduct

ThematerialusedintheproductisInterponD2015.

Disassembly

1.Insertascrewdriverunderthewiperandpushitasclosetothefasteningaspossible.Pullthewiperstraightout

toremoveit.

AUTION

•Pullingonthewiperarmwillbendthewiperarm.

•Pushingthewiperacrossthewindowwilldamagethewipermotor.

AXISQ6225-LEPTZCamera

Repaintteproduct

2.Unscrewthefourscrewsfromthemainwindow.

3.Disconnecttheheaterconnector.

Note

•Carefullyliftoutthemainwindowbeforedisconnectingtheheaterconnector.

•Donottouchthecircuitboardontheinsideofthewindow.

AXISQ6225-LEPTZCamera

Repaintteproduct

4.UnscrewthefourscrewsfromtheIRwindowandremovetheIRwindow.

5.Removethescrewsandwashersfromthefoot.

AXISQ6225-LEPTZCamera

Repaintteproduct

6.RemovetheSDcardcover.

Repainting

asking

Maskthefollowingparts:

•TheIRwindow

•Themainwindow

•Thecontrolbutton

•Thescrewholesinthefoot

•TheSDcardslot

•TheIRwarninglabel

•TheAxislogo

AXISQ6225-LEPTZCamera

Repaintteproduct

Repaintingtheparts

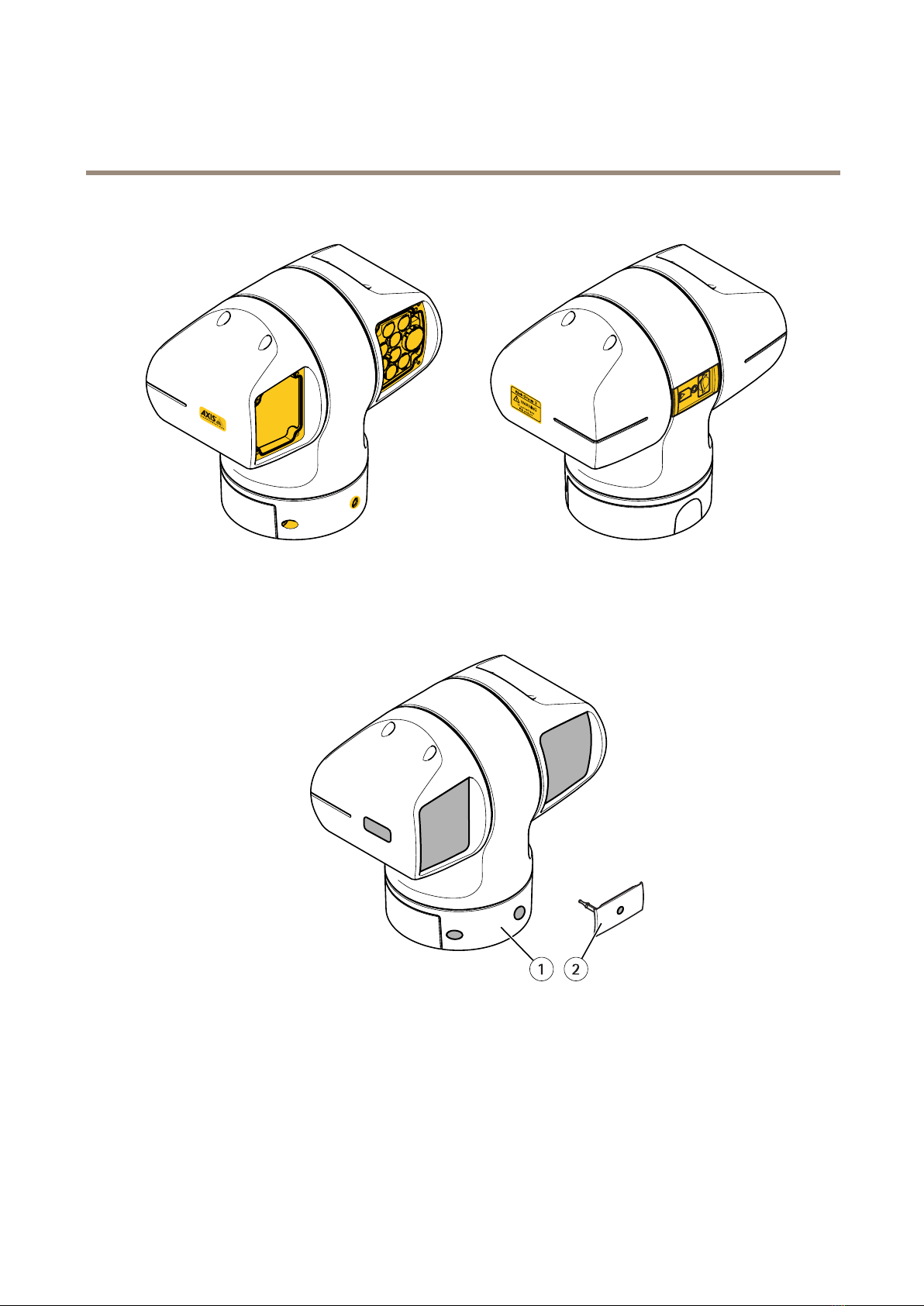

RepaintthecameraunitandtheSDcardcover.

1Cameraunit

2SDcardcover

1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

2.Letthepaintdry.

3.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

4.Whenthepaintisdry,removethemasking.

AXISQ6225-LEPTZCamera

Repaintteproduct

Reassembly

1.Assemblethescrewsandthewasherswiththefoot.

2.PuttheSDcardcoverbackinitsplace.

3.Connecttheheaterandassemblethemainwindow.

4.AssembletheIRwindow.

5.Pushthewiperintotheholder.

RepaintingInstructionsVer.M1.6

AXISQ6225-LEPTZCameraDate:July2022

©AxisCommunicationsAB,2022PartNo.T10180640
