Axis Q6215-LE Manuel utilisateur

AXISQ6215-LENetworkCamera

RepaintingInstructions

AXISQ6215-LENetworkCamera

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ6215-LENetworkCamera

owtorepainttheproduct

Preparations

•Ifapplicable,disassembletheeuipmentaccordingtotheinstructionsinthisdocument.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskopeningsforscrews,LEDindicators,ormicrophonesbefore

painting.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne

sandpaper,andcleanthepartsbeforepainting.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

isassembly

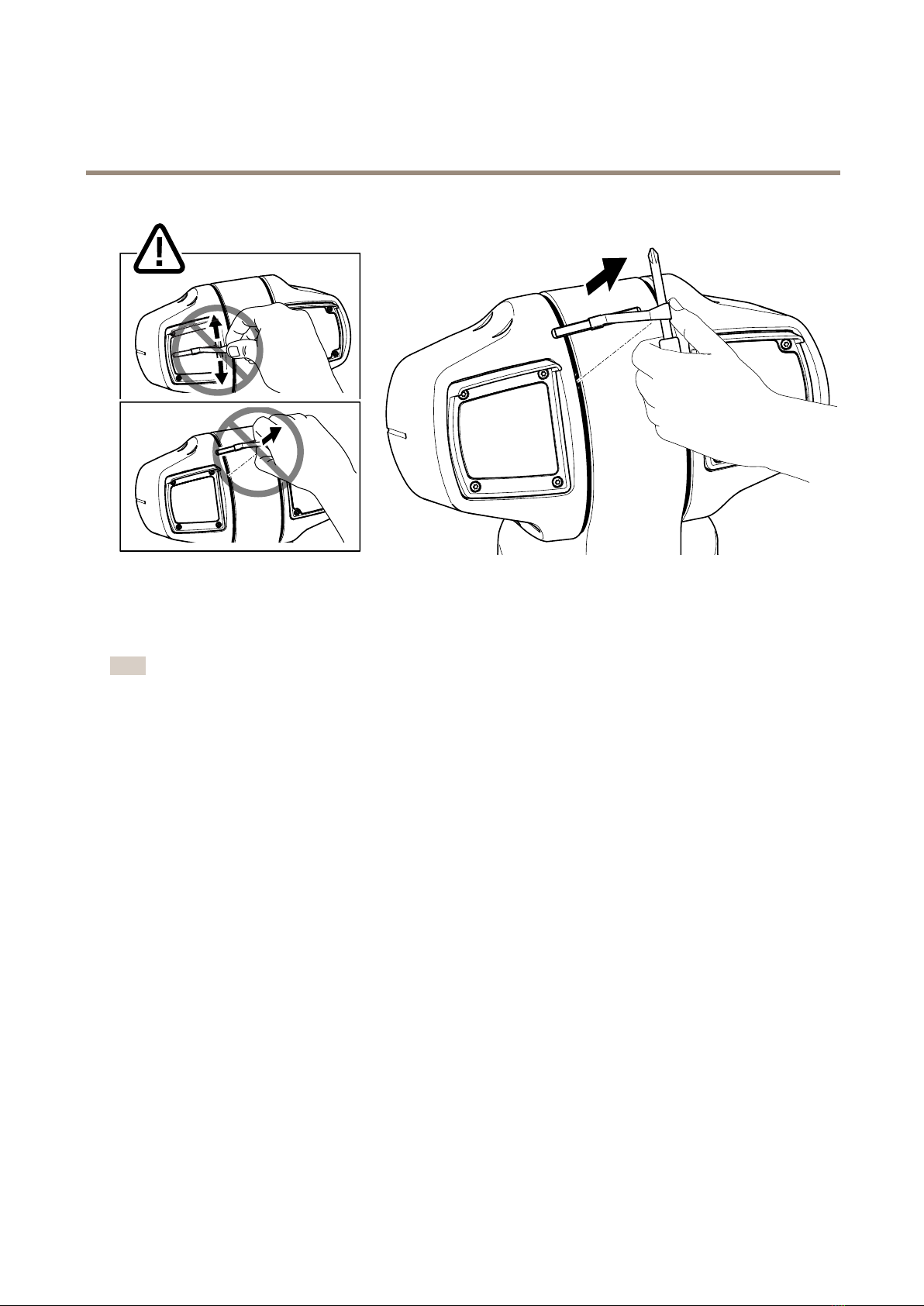

1.Insertascrewdriverunderthewiperandpushitasclosetothefasteningaspossible.Pullthewiperstraightout

toremoveit.

CAUTION

•Pullingonthewiperarmwillbendthewiperarm.

•Pushingthewiperacrossthewindowwilldamagethewipermotor.

AXISQ6215-LENetworkCamera

owtorepainttheproduct

2.Unscrewthefourscrewsfromthemainwindow.

3.Disconnecttheheaterconnector.

Note

Donottouchthecircuitboardontheinsideofthewindow.

AXISQ6215-LENetworkCamera

owtorepainttheproduct

4.UnscrewthefourscrewsfromtheIRwindowandremovetheIRwindow.

5.Removethescrewsandwashersfromthefoot.

AXISQ6215-LENetworkCamera

owtorepainttheproduct

6.RemovetheSDcardcover.

Repainting

Masking

Maskthefollowingparts:

•TheIRwindow

•Themainwindow

•Thecontrolbutton

•Thescrewholesinthefoot

•TheSDcardslot

•TheIRwarninglabel

•TheAxislogo

AXISQ6215-LENetworkCamera

owtorepainttheproduct

Repaintingtheparts

RepaintthecameraunitandtheSDcardcover.

1Cameraunit

2SDcardcover

1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

2.Letthepaintdry.

3.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

4.Whenthepaintisdry,removethemasking.

AXISQ6215-LENetworkCamera

owtorepainttheproduct

Reassembly

1.Assemblethescrewsandthewasherswiththefoot.

2.PuttheSDcardcoverbackinitsplace.

3.Connecttheheaterandassemblethemainwindow.

4.AssembletheIRwindow.

5.Pushthewiperintotheholder.

RepaintingInstructionsVer.M1.5

AXISQ6215-LENetworkCameraDate:April2019

©AxisCommunicationsAB,2019PartNo.T10137739
