AXIS 210/210A/211/211A

Network Camera

Installation Guide

AXIS 210/210A/211/211A Installation Guide Page 3

ENGLISH

AXIS 210/210A/211/211A

Installation Guide

This installation guide provides instructions for installing the AXIS 210/210A/211/211A

Network Camera on your network. For all other aspects of using the product, please see the

User’s Manual, available on the CD included in this package, or from www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.

2. Hardware overview. See page 4.

3. Install the hardware. See page 6.

4. Set an IP address. See page 7.

5. Set the password. See page 10.

6. Adjust the focus. See page 11.

7. Change the camera’s web interface language

(optional). See page 12.

Package contents

Item Models/variants/notes

Network camera • AXIS 210

• AXIS 210A: PoE, two-way audio and built-in microphone

• AXIS 211: PoE, Varifocal DC-iris lens

• AXIS 211A: PoE, two-way audio and built-in microphone, Varifocal DC-iris

lens

PS-K indoor power supply

(country specific)

Europe, UK, Australia, USA/Japan, Argentina, Korea

Camera stand Supplied with mounting screws

Terminal block connector 4-pin connector block for connecting external devices to the I/O terminal con-

nector

CD Axis Network Video Product CD, including installation tools a nd other soft-

ware, product documentation

Printed Materials AXIS 210/210A/211/211A Installation Guide (this document)

Axis Warranty Document

Important!

This product must be used in

compliance with local laws

and regulations.

Page 4 AXIS 210/210A/211/211A Installation Guide

ENGLISH

Hardware overview

AXIS 211/AXIS 211A

DC-Iris

control cable

Focus puller

Status

indicator

Tele/wide puller

AXIS 210/AXIS 210A

Focus puller

Status

indicator

Underside

Power indicator

Network indicator

Control button

Serial number

Internal microphone

(AXIS 210A/AXIS 211A)

AXIS 210/210A/211/211A Installation Guide Page 5

ENGLISH

Note:

Depending on the product version of your AXIS 210/210A/211/211A, you will see

one of two different types of I/O ternminal connectors. See I/O terminal connec-

tor, on page 15.

Dimensions

AXIS 210/210A:

HxWxD = 38 x 88 x 157mm (1.5” x 3.4” x 6.2”)

Weight (AXIS 210) = 305g (0.67lb) excl. power supply

Weight (AXIS 210A) = 325g (0.72lb) excl. power supply

AXIS 211/211A:

HxWxD = 38 x 95 x 178mm (1.5” x 3.7” x 7”)

Weight = 345g (0.76lb) excl. power supply

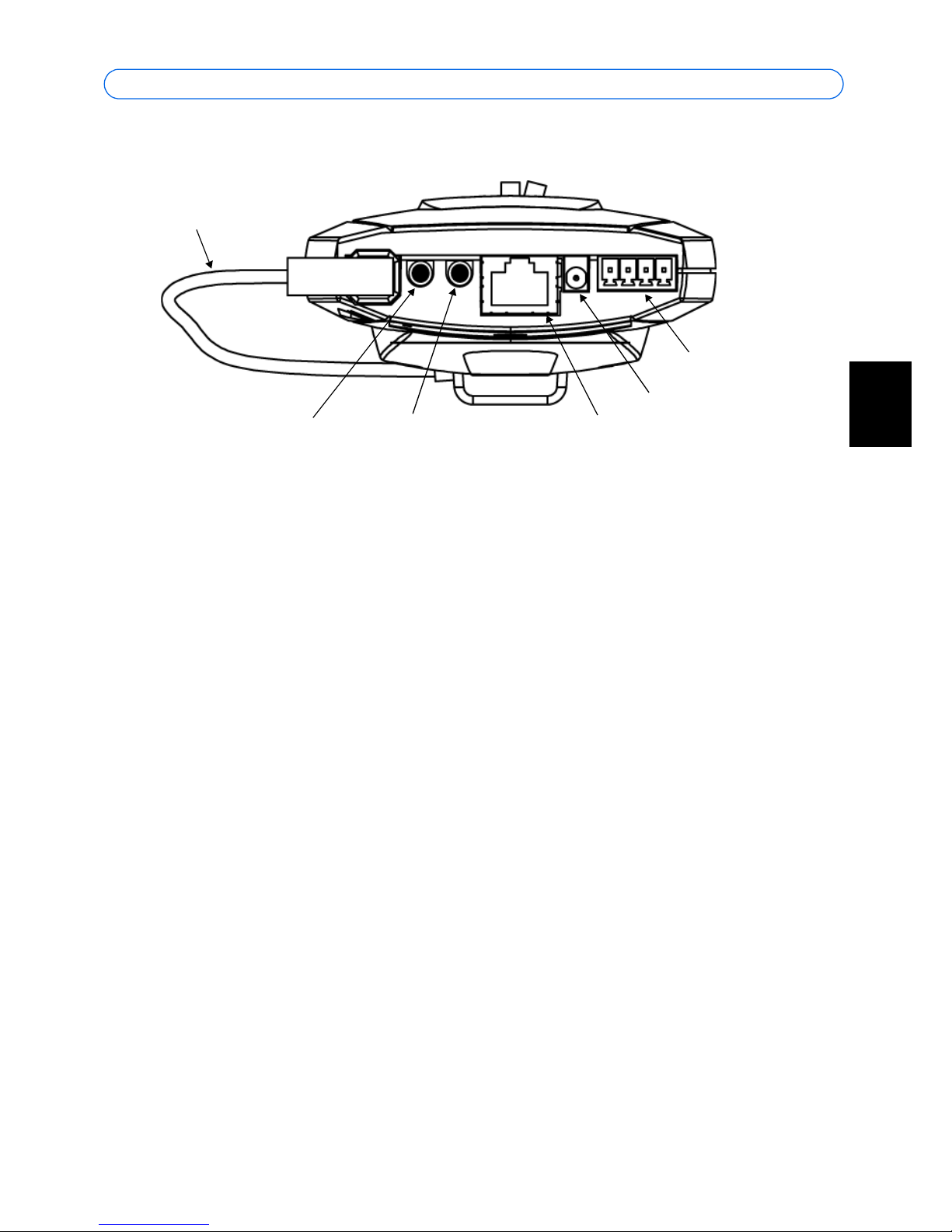

Rear panel

Network connector and PoE

(AXIS 210A/211/211A)

Power connector

External microphone/line input

(AXIS 210A/211A)

Audio output

(AXIS 210A/211A)

I/O terminal

connector

DC-Iris control cable

(AXIS 211/211A)

4321

Page 6 AXIS 210/210A/211/211A Installation Guide

ENGLISH

Install the hardware

Connect the camera

1. Connect the Network Camera to your network using a standard network cable. Using

Shielded Twisted Pair (STP) cables is recommended.

2. Optionally connect external input/output devices, e.g. alarm devices. See page 15 for

information on the terminal connector pins.

3. Optionally connect an active speaker and/or external microphone.

4. Connect power, using one of the methods listed below:

• The supplied power connector.

• Power over Ethernet (PoE). If available, this is automatically detected when the

network cable is connected (see above).

• The I/O terminal connector on the rear panel.

5. Check that the indicator LED:s indicate the correct conditions. See the table on page 16

for further details. Note that some LED:s can be disabled and may be unlit.

!IMPORTANT! - The 210/210A is designed for indoor use only, and must

always be positioned where it is not exposed to direct sunlight or strong

halogen light, which can cause permanent damage to the camera’s image

sensor. Damage as a result of exposure to strong light is not covered by the

Axis warranty.

IMPORTANT! - The AXIS 211/211A is designed for indoor and outdoor use. To

use the camera outdoors, it must be installed in an approved outdoor housing.

Please see www.axis.com for more information on outdoor housings.

AXIS 210/210A/211/211A Installation Guide Page 7

ENGLISH

Assign an IP address

To make it accessible on the network, the AXIS 210/210A/211/211A must be assigned an IP

address.

Depending on the number of cameras you wish to install, the recommended method for

assigning IP addresses in Windows is either AXIS IP Utility or AXIS Camera Management.

Use the method that best suits your purpose.

Both of these free applications are available on the Axis Network Video Product CD supplied

with this product, or they can be downloaded from www.axis.com/techsup

Notes:

• A network DHCP server is optional.

• The AXIS 210/210A/211/211A has the default IP address 192.168.0.90

• If assigning the IP address fails, check that there is no firewall blocking the operation.

• For other methods of assigning or discovering the IP address of the AXIS 210/210A/211/211A, e.g. in

other operating systems, see page 10.

Method Recommended for Operating system

AXIS IP Utility

See page 8

Single camera

Small installations

Windows

AXIS Camera Management

See page 9

Multiple cameras

Large installations

Installation on a different subnet

Windows 2000

Windows XP Pro

Windows 2003 Server

Page 8 AXIS 210/210A/211/211A Installation Guide

ENGLISH

AXIS IP Utility - single camera/small installation

AXIS IP Utility automatically discovers and displays Axis devices on your network. The

application can also be used to manually assign a static IP address.

Note that the computer running AXIS IP Utility must be on the same network segment

(physical subnet) as the AXIS 210/210A/211/211A.

Automatic discovery

1. Check that the AXIS 210/210A/211/211A is connected to the network and that power has

been applied.

2. Start AXIS IP Utility.

3. When the camera appears in the window, double-click it to open its home page.

4. See page 10 for instructions on how to assign the password.

Assign the IP address manually

1. Acquire an unused IP address on the same network segment as your computer.

2. Click the button Assign new IP address using serial number and enter the serial

number and IP address for the AXIS 210/210A/211/211A. The serial number is located on

the product label.

3. Click the Assign button and follow the instructions.

4. Click the Home Page button to access the camera’s web pages.

5. See page 10 for instructions on how to set the password.

AXIS 210/210A/211/211A Installation Guide Page 9

ENGLISH

AXIS Camera Management - multiple cameras/large installations

AXIS Camera Management can automatically find and set IP addresses, show connection

status, and manage firmware upgrades for multiple Axis video products.

Automatic discovery

1. Check that the camera is connected to the network and that power has been applied.

2. Start AXIS Camera Management. When the AXIS 210/210A/211/211A appears in the

window, double-click it to open the camera’s home page.

3. See page 10 for instructions on how to set the password.

Set the IP address in multiple devices

AXIS Camera Management speeds up the process of assigning IP addresses to multiple

devices, by suggesting IP addresses from a specified range.

1. Select the devices you wish to configure (different models can be selected) and click the

Assign IP button.

2. Select Obtain IP addresses automatically (DHCP), click the Update button and the

program will search in the specified range and suggest an IP address for each device.

-or-

Enter the range of IP addresses, the subnet mask and default router that devices can use

and click the Update button.

Page 10 AXIS 210/210A/211/211A Installation Guide

ENGLISH

Set the password

When accessing the AXIS 210/210A/211/211A

for the first time, the ‘Configure Root

Password’ dialog will be displayed.

1. Enter a password and then re-enter it, to

confirm the spelling. Click OK.

2. Enter the user name root in the dialog.

Note: The default administrator user name

root cannot be deleted.

3. Enter the password as set above, and click OK. If the password is lost, the AXIS 210/

210A/211/211A must be reset to the factory default settings. See page 17.

4. If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the

video stream in Internet Explorer. You will need administrator rights on the computer to

do this.The Live View page of the AXIS 210/210A/211/211A is displayed, with links to the

Setup tools, which allow you to customize the camera.

Setup - Provides all the tools for configuring

the camera to requirements.

Help - Displays

online help on all

aspects of using

the camera.
